103-0009 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 103-0009

103-0009: Descriptiontoggle switchtoggle spst; CategoryTopical application Mechanical and electrical/engineering/automation; File Size60KB，1 Pages; ManufacturerMountain Switch

Download Datasheet Parametric View All

103-0009 Overview

toggle switchtoggle spst

103-0009 Parametric

Parameter Name	Attribute value
Maker	Mountain Switch
Product Category	Toggle Switches
RoHS	no
Contact form	SPST
switch function	ON - OFF
Contact current rating	6 Amps at 125 Volts
Termination type	Solder Lug
Installation style	Panel
Terminal seal	Epoxy
Actuator	Lever, Standard
Voltage ratingAC	125 Volts

Preview

Download Datasheet

View All

Last Update:

4-13-05

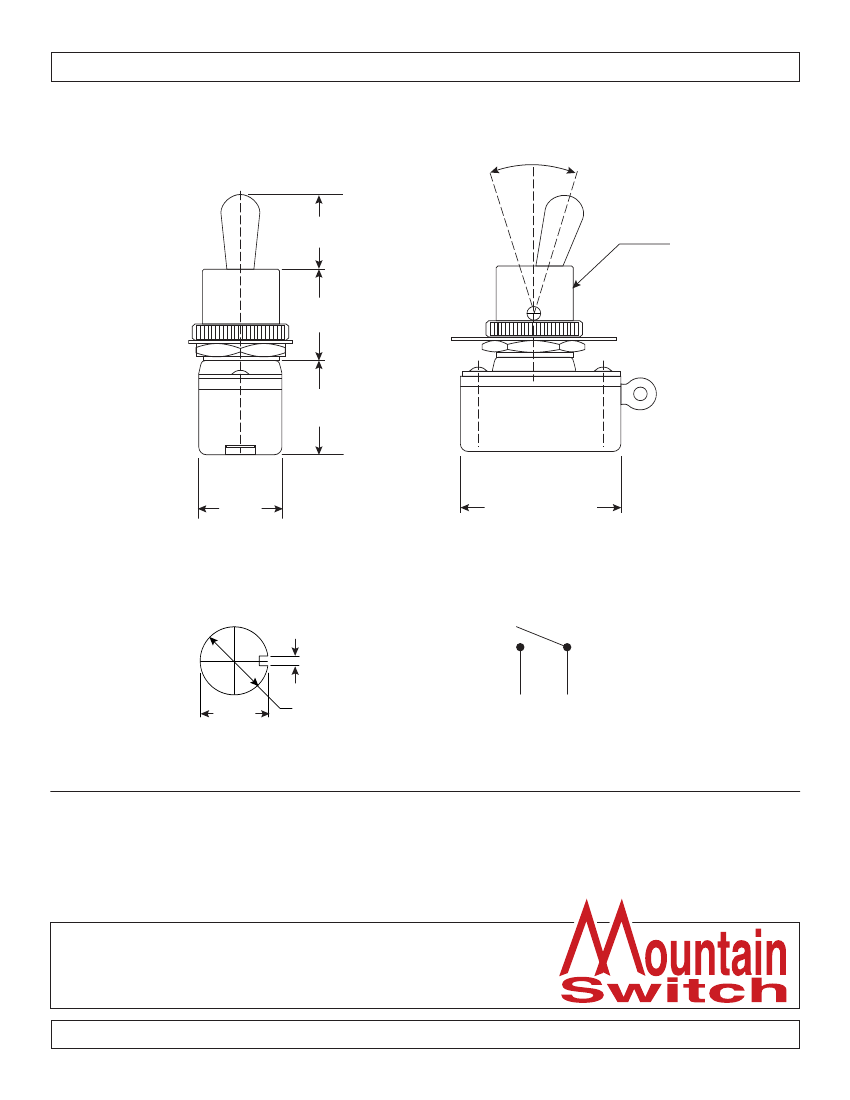

Dimensions: mm (In.)

Ref. #:

MS-100246

34°

40±.51

(1.594±.039)

M12x0.75

14.5±0.5

(.571±.02)

15±0.5

(.591±.02)

13±0.5

(.512±.02)

25.5±0.5 (1.004±.02)

Mount Hole

Circuit Structure

1.5±0.1

(.059±.004)

ø12.2 +0/-0.2

(.480 +0/-.008)

11±0.1

(.433±.004)

Electrical Specifications:

•

Rating: 6A/125VAC, 3A/250VAC

•

Contact Resistance: 50mΩ Max.

•

Insulation Resistance: 500VDC 100MΩ Min.

•

Dielectric Strenght: 1000VAC for 1 Minute

Mechanical Specifications:

•

Circuit: 2P SPST On-Off

Toggle Switch

103-0009

Available from Mouser Electronics

www.mouser.com

1-800-346-6873

Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
