334-10-140-00-050100 datasheet, PDF

Datasheet> All Categories > The connector> socket> 334-10-140-00-050100

334-10-140-00-050100: DescriptionIC Socket, SIP40, 40 Contact(s), ROHS COMPLIANT; CategoryThe connector socket; File Size231KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

334-10-140-00-050100 Overview

IC Socket, SIP40, 40 Contact(s), ROHS COMPLIANT

334-10-140-00-050100 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Other features	SOCKET HEADER
Contact to complete cooperation	GOLD (10) OVER NICKEL (150)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrie
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	SIP40
JESD-609 code	e4
Number of contacts	40
Base Number Matches	1

Preview

Download Datasheet

View All

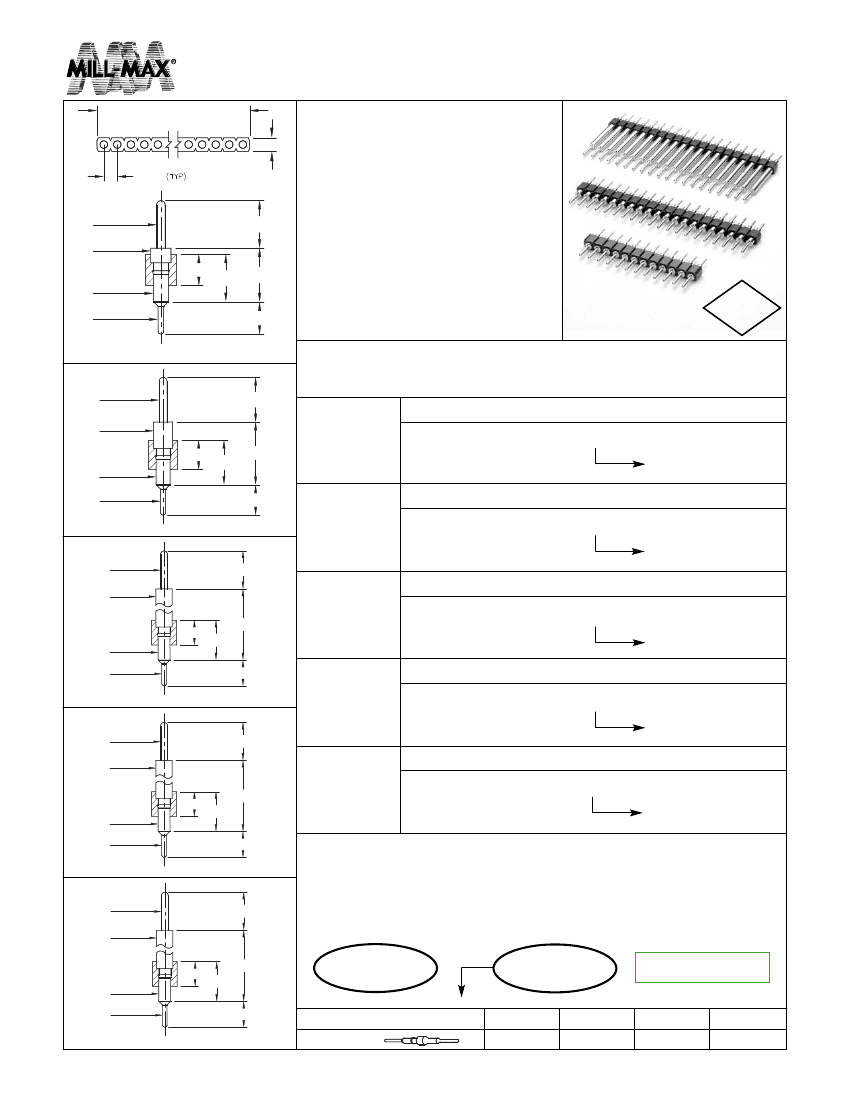

HEADER STRIPS

2,54 Grid Interconnects

Single Row

Number of Pins X 2,54

Series 334

2,54

•

Series 334 Interconnect header strips

are available in 5 lengths:

334...020 uses pin #3402 ( L = 4,83 )

334...010 uses pin #3401 ( L = 5,99 )

334...050 uses pin #3405 ( L = 8,0 )

334...000 uses pin #3400 ( L = 15,39 )

334...100 uses pin #3410 ( L = 27,18 )

See pages 182 for details.

•

Strips come with 0,51 pluggable solder

tails at one end and 0,76 tails at the other.

•

Insulators are high temp. thermoplastic.

0,76 DIA.

1,83 DIA.

2,79

1,35 DIA.

0,51 DIA.

4,32

4,27

4,83

2,92

2002/95/EC

RoHS

Fig. 1

Ordering Information

0,76 DIA.

4,32

1,83 DIA.

2,79

1,35 DIA.

0,51 DIA.

4,22

5,99

Fig. 1

Series 334...020

0,51 / 0,76 Solder Tails

334-XX-1_ _-00-020000

Specify # of pins

01-64

2,92

Fig. 2

0,76 DIA.

4,32

Fig. 2

Series 334...010

0,51 / 0,76 Solder Tails

334-XX-1_ _-00-010000

Specify # of pins

01-64

1,83 DIA.

8,0

2,79

1,35 DIA.

0,51 DIA.

4,47

Fig. 3

Series 334...050

0,51 / 0,76 Solder Tails

334-XX-1_ _-00-050000

Specify # of pins

01-64

2,92

Fig. 3

0,76 DIA.

4,32

Fig. 4

Series 334...000

0,51 / 0,76 Solder Tails

334-XX-1_ _-00-000000

Specify # of pins

01-64

1,83 DIA.

15,39

2,79

1,35 DIA.

0,51 DIA.

4,45

Fig. 5

Series 334...100

0,51 / 0,76 Solder Tails

334-XX-1_ _-00-100000

Specify # of pins

01-64

2,92

Fig. 4

0,76 DIA.

4,32

1,83 DIA.

27,18

2,79

1,35 DIA.

0,51 DIA.

4,22

For Electrical,

Mechanical & Enviromental

Data, See pg. 4

XX=Plating Code

See Below

For RoHS compliance

select



plating code.

2,92

SPECIFY PLATING CODE XX=



0,25μ Au

5,08μ Sn/Pb



5,08μ Sn

Fig. 5

Pin Plating

w w w. m i l l - m a x . c o m

105



516-922-6000
