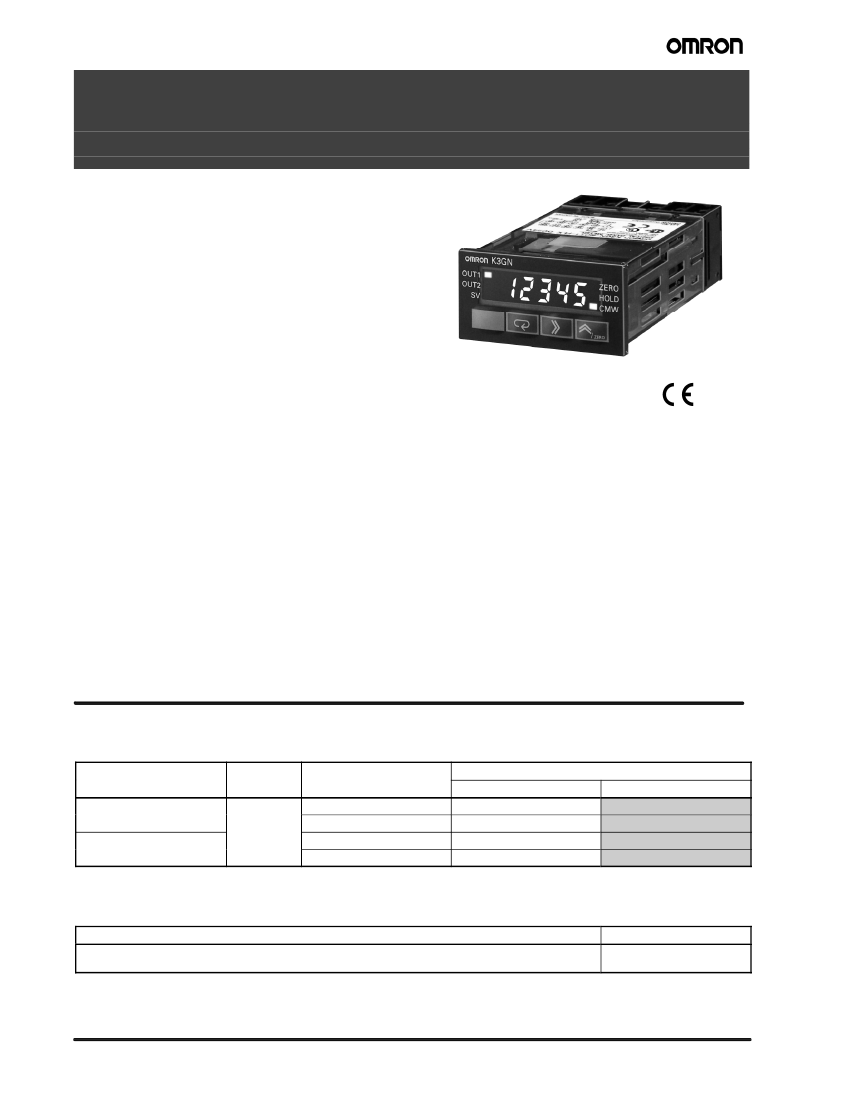

K3GN
D
1/32 DIN Digital Panel Meter
Compact, Intelligent Panel Meter
Offers NEMA 4X Water Resistance,
Optional Communications Interface
Multi-purpose industrial process meter is ideal for many
applications:
Process meter: 6 analog input ranges available: 4 to 20 mA,
0 to 20 mA; 1 to 5 VDC, 0 to 5 VDC; --5 to +5 VDC, --10 to
+10 VDC
RPM processor/Tachometer: 5 kHz max. input pulse
frequency range
Digital data display for PC or PLC (RS-485 communications)
D
D
D
Scaling in a wide range of engineering units.
Programmable output operation action, decimal point
position setting, teaching function for input range,
leading zero suppression and average processing.
Advanced display features enhance operator comprehension
5-digit display can be programmed to display red or green characters.
Display can be programmed to change color when an output turns on.
High-contrast backlit LCD display provides good legibility in most lighting conditions.
uC
D
D
D
D
High accuracy:
±0.1%
full scale.
Selectable outputs: 2 relay outputs, 3 transistor
outputs, RS-485 communications.
Compact 1/32 DIN size saves panel space and shallow
mounting depth allows thinner control cabinets:
measures 48 W x 24 H x 83 D mm (1.89 x 0.94 x 3.27
inches).
Easy to configure from front panel or using Thermo
Tools Software.
Ordering Information
J
Panel Meters
Stock Note:
Shaded models are normally stocked.
Input type
p
yp
DC process signal or NPN
p
g
pulse input
l i
t
DC process signal or PNP
p
g
pulse input
l i
t
Supply
pp y
voltage
lt
24 VDC
Output
p
No communications
Dual relays (SPST-NO)
Three NPN open collector
Dual relays (SPST-NO)
Three PNP open collector
K3GN-NDC 24VDC
K3GN-NDT1 24VDC
K3GN-PDC 24VDC
K3GN-PDT2 24VDC
Model
RS-485 communications
K3GN-NDC-FLK 24VDC
K3GN-NDT1-FLK 24VDC
K3GN-PDC-FLK 24VDC
K3GN-PDT2-FLK 24VDC
J
Programming Software
Stock Note:
Shaded models are normally stocked.
Description
Sets all panel meter parameters, initiates teaching function. Use with RS-485 communications models.
Model
Thermo Tools
(See Note)
Note: Contact Omron for current version information.
B--66
1/32 DIN Digital Panel Meter
K3GN
Specifications
J
Ratings
Supply voltage
Operating voltage range
Power consumption (See Note)
Insulation resistance
Dielectric withstand voltage
Noise immunity
Vibration resistance
Shock resistance
Malfunction
Destruction
Malfunction
Destruction
Ambient temperature
p
Ambient humidity
Ambient atmosphere
EMC
Emission Enclosure
Emission AC Mains
Immunity ESD
Immunity-RF-interference
Immunity Conducted Disturbance
Immunity Burst
Approved standards
Operating
Storage
Operating
24 VDC
85% to 110% of the rated supply voltage
2.5 W max. (at max. DC load with all indicators lit)
20 MΩ min. at 500 VDC between external terminal and case.
Insulation provided between inputs, outputs, and power supply.
1,000 VAC for 1 min between external terminal and case.
Insulation provided between inputs, outputs, and power supply.
±480
V on power supply terminals in normal mode,
±1,500
V in common mode,
±1 µs,
or 100 ns for square-wave noise with 1 ns
10 to 55 Hz, 10 min each in X, Y, and Z directions; acceleration: 9.8 m/s
2
10 to 55 Hz, 30 min each in X, Y, and Z directions; acceleration: 19.6 m/s
2
Models with transistor outputs: 196 m/s
2
for 3 times each in X, Y, and Z directions
Models with relay contact outputs: 98 m/s
2
for 3 times each in X, Y, and Z directions
294 m/s
2
for 3 times each in X, Y, and Z directions
--10°C to 55°C (14°F to 131°F) with no condensation or icing
--25°C to 65°C (--13°F to 149°F) with no condensation or icing
25% to 85% with no condensation
Must be free of corrosive gas
EN55011 Group 1 class A
EN55011 Group 1 class A
EN61000-4-2:
ENV50140:
ENV50141:
EN61000-4-4:
4-kV contact discharge (level 2)
8-kV air discharge (level 3)
10 V/m (amplitude modulated, 80 MHz to 1 GHz) (level 3)
10 V/m (pulse modulated, 900 MHz)
10 V (0.15 to 80 MHz) (level 3)
2-kV power-line (level 3)
2-kV I/O signal-line (level 4)
UL Listed, File No. E41515 to UL508 standard
CSA Certified, File No. LR67027 to CSA22.2 No. 142--M1987 standard
Conforms to EN50081-2, EN50082-2, EN61010-1 (IEC1010-1); conforms to
VDE106/part 100 (finger protection) when the terminal cover is mounted.
Approx. 100 g
Weight
Note: A control power supply capacity greater than the rated capacity is required when the Digital Panel Meter is turned ON. Do not for-
get to take this into consideration when using several Digital Panel Meters. When power is supplied, all indicators will light and
outputs will be OFF. When using startup compensation time operation, the display will read “00000” and all outputs will be OFF.
J
Input/Output Ratings
Relay Contact Output
(Incorporating G6K Relays)
Load type
Rated load
Rated carry current
Max. contact voltage
Max. contact current
Max. switching capacity
Min. permissible load
(P level, reference value)
Mechanical life
Electrical life
(at an ambient temperature of 23°C)
Resistive load (cosφ = 1)
1 A at 30 VDC
1 A max. (at COM terminal)
60 VDC
1 A (at COM terminal)
30 VA
10 mV, 10
µA
50,000,000 times min. (at a switching frequency of 36,000 times/hr)
100,000 times min. (at the rated load with a switching frequency of 1,800 times/hr)
1/32 DIN Digital Panel Meter
K3GN
B--67
Transistor Output
Rated load voltage
Max. load current
Leakage current
24 VDC
50 mA
100
µA
max.
J
Communications (CompoWay/F)
Communications type
Transmission method
Synchronization method
Baud rate
Transmission code
Communications
Reading/Writing
to the K3GN
RS-485
2-wire, half-duplex
Start-stop synchronization
1,200/2,400/4,800/9,600/19,200 bps
ASCII
Read/write set values, read/write scaling values, enable/disable the writing of data through
communications, forced-zero control, and other data.
Refer to
N102 Operation Manual
for more details.
J
Measuring Ranges
Process Voltage/Current Inputs
Input
DC voltage
Measuring range
1.000 to 5.000 V/
0.000 to 5.000 V
--5.000 to 5.000 V
--10.00 to 10.00 V
DC current
4.00 to 20.00 mA/
0.00 to 20.00 mA
Measuring accuracy
±0.1%
FS
±1
digit max.
at 23±3°C (73.4±5.4°F)
±0.1%
FS
±1
digit max.
g
t 23 5°C (73 4 9°F)
at 23±5°C (73.4±9°F)
±0.1%
FS
±1
digit max.
at 23±3°C (73.4±5.4°F)
60
Ω
Input impedance
1 MΩ min.
Displayable range
--19999 to 99999
19999
( t sca g u ct o )
(with scaling function)
No-voltage Contact/Open Collector Inputs
Input
No-voltage contact (30 Hz max.) with
ON/OFF pulse width of 16 ms min.
Open collector (5 kHz max.) with
ON/OFF pulse width of 90
µs
min.
Measuring range
0.05 to 30.00 Hz
0.1 to 5000.0 Hz
Measuring accuracy
at 23±5°C (73.4±9°F)
±0.1%
FS
±1
digit max.
Displayable range
--19999 to 99999
(with scaling function)
( t sca g u ct o )
J
Digital Data Display (By RS-485 Communication)
Displayable range
--19999 to 99999
B--68
1/32 DIN Digital Panel Meter
K3GN
J
Characteristics
Item
Input signal
Process signal
Process voltage
(1 to 5 V, 0 to 5 V, --5 to +5 V,
--10 to +10 V)
Process current
(4 to 20 mA, 0 to 20 mA)
A/D conversion
method
Sampling period
Display refresh
period
Pulse measure-
ment method
Connectable
sensors
Double integral method
250 ms
Ratemeter/tachometer signal
No-voltage contact
(30 Hz max. with ON/OFF pulse
width of 16 ms min.)
Open collector
(5 kHz max. with ON/OFF pulse
width of 90
µs
min.)
---
---
Data display
Digital data display
(by RS-485 communication)
Sampling period (sampling times multiplied by number of averaging times if average processing is selected.)
---
---
Periodic measurement
---
ON residual voltage: 2.5 V max.
OFF leakage current: 0.1 mA max.
Load current:
Must have a switching capacity of 15 mA min.
Must be able to reliably switch load currents of
5 mA max.
Max. displayed
digits
Display
Polarity display
Zero display
Scaling function
External controls
(See Note 1)
Hysteresis setting
Other functions
5 digits (--19999 to 99999)
7-segment digital display, character height: 7.0 mm (0.28 in)
“--” is displayed automatically with a negative input signal
Leading zeros are not displayed
Programmable with front-panel key inputs (range of display: --19999 to 99999). The decimal point position can
be set as desired.
HOLD:
ZERO:
Measurement value held
Forced zero
---
HOLD:
ZERO:
Measurement value held
Forced zero
Programmable with front-panel key inputs (0001 to 9999)
Programmable Color Display (red and/or green; display can change color when output turns on)
Selectable output operating action
Teaching set values
Average processing (simple average)
Lockout configuration
Communications writing control (communications output models only)
Forced-zero set with front panel
keys
Control inputs (HOLD/ZERO)
selection via front panel keys
Field calibration
Startup compensation time
(0.00 to 99.9 s)
Auto-zero time (0.0 to 19.9 s)
Forced-zero set with front panel
keys
Control inputs (HOLD/ZERO)
selection via front panel keys
---
Output
Relays:
Transistors:
2 SPST-NO
3 NPN open collector
3 PNP open collector
Combinations:
Communications output (RS-485) + relay outputs (2 SPST-NO);
Communications output (RS-485) + transistor outputs (3 NPN open collector);
Communications output (RS-485) + transistor outputs (3 PNP open collector)
Communications
Delay in compara-
tive outputs
(transistor outputs)
Enclosure ratings
Communications function: RS-485 (See Note 2)
750 ms max.
Front panel: NEMA 4X for indoor use (equivalent to IP66)
Rear case: IEC standard IP20
Terminals:
IEC standard IP20
Non-volatile memory (EEPROM; possible to rewrite 100,000 times)
Memory protection
Note: 1. The minimum input time for control signals is 80 ms.
2. Refer to
N102 Operation Manual
for more details.
1/32 DIN Digital Panel Meter
K3GN
B--69

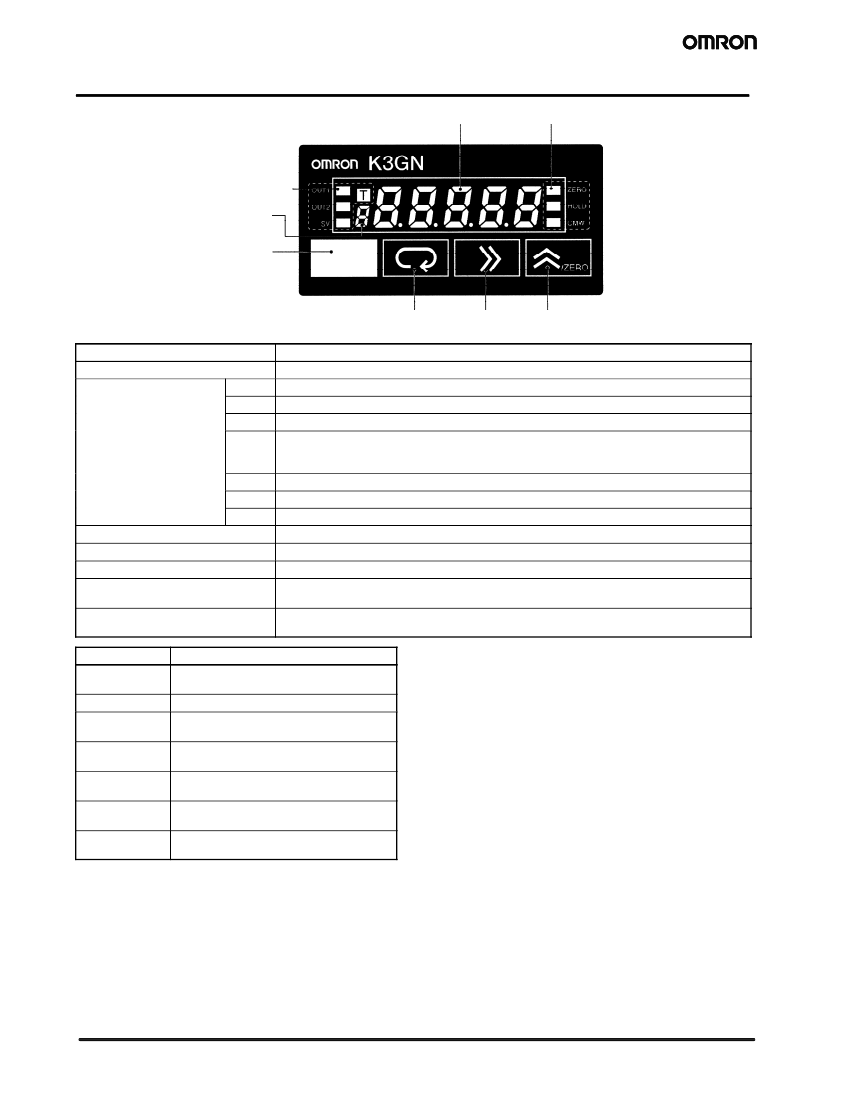

Nomenclature
1. Main display
2. Status indicators
2. Status indicators
3. Level indicator
4. Level key
5. Mode key
Name
1. Main display
2. Status indicators
OUT1
OUT2
SV
T
Lit when output 1 is ON.
Lit when output 2 is ON.
6. Shift key
7. Up/Zero key
Functions
Displays process values, parameters, and set values.
Lit when a set value is being displayed or changed.
Lit when the teaching function is enabled. Flashes when the K3GN is in teaching operation.
Lit when a calibration value is being displayed during user calibration. Flashes while reading a
calibration value.
Lit while the forced-zero function is activated.
Lit when HOLD input is ON.
Lit when communications writing is “enabled” and is out when it is “disabled.”
Displays the current level that the K3GN is in. (See below for details.)
Used to change the level.
Used to allow the Main display to indicate parameters sequentially.
Used to enable that set value to be changed. When changing a set value, this key is used to
move along the digits.
Used to change a set value. Used to set or clear a forced-zero function when a measurement
value is being displayed.
Level
ZERO
HOLD
CMW
3. Level indicator
4. Level Key
5. Mode Key
6. Shift Key
7. Up/Zero Key
Level indicator
p
Not lit
Protect
Operation
Adjustment
Initial setting
Communications setting
Advanced function setting
User calibration
a
s
c
f
u
B--70
1/32 DIN Digital Panel Meter
K3GN
京公网安备 11010802033920号
EEWORLD
