Crystal Oscillator
SMD 3225 (3.2mm
×
2.5mm
×
1mm)
Application
Used in Peripherals, Bluetooth, DSC, PC, Mobile phone, PDA, DVC, Telecommunications, NFC, etc.
Features
•
•
•
•
•
•
3225 size, 1mm high, ultra small SMD seam sealed clock oscillator unit
Low voltage operation
Frequency Range: 1MHz to 48MHz
3-state function
Automatic mounting and reflow soldering
Low current consumption
Electrical Specifications
Output Type
Output Load
Oscillation Mode
Supply Voltage
Frequency Range
Frequency stability
Operating Temperature Range
Storage Temperature Range
Voltage Vol (Max.) / Voh (Min.)
Rise(Tr) / Fall(Tf) Time
Supply Current
Symmetry
Start-up Time
Phase Jitter (12kHz ~ 20MHz)
Aging (at 25°C)
: CMOS
: 15pF
: Fundamental / 3rd Overtone
: 3.3V
: 1 ~ 48MHz
: ±25ppm, ±50ppm
: -20°C ~ +70°C, -40°C ~ +85°C
: -55°C ~ +125°C
: 0.1VDD / 0.9VDD
: 8ns Max.
: 15mA Max.
: 45 ~ 55%
: 5ms Max.
: 1ps Max.
: ±3ppm/Year Max.

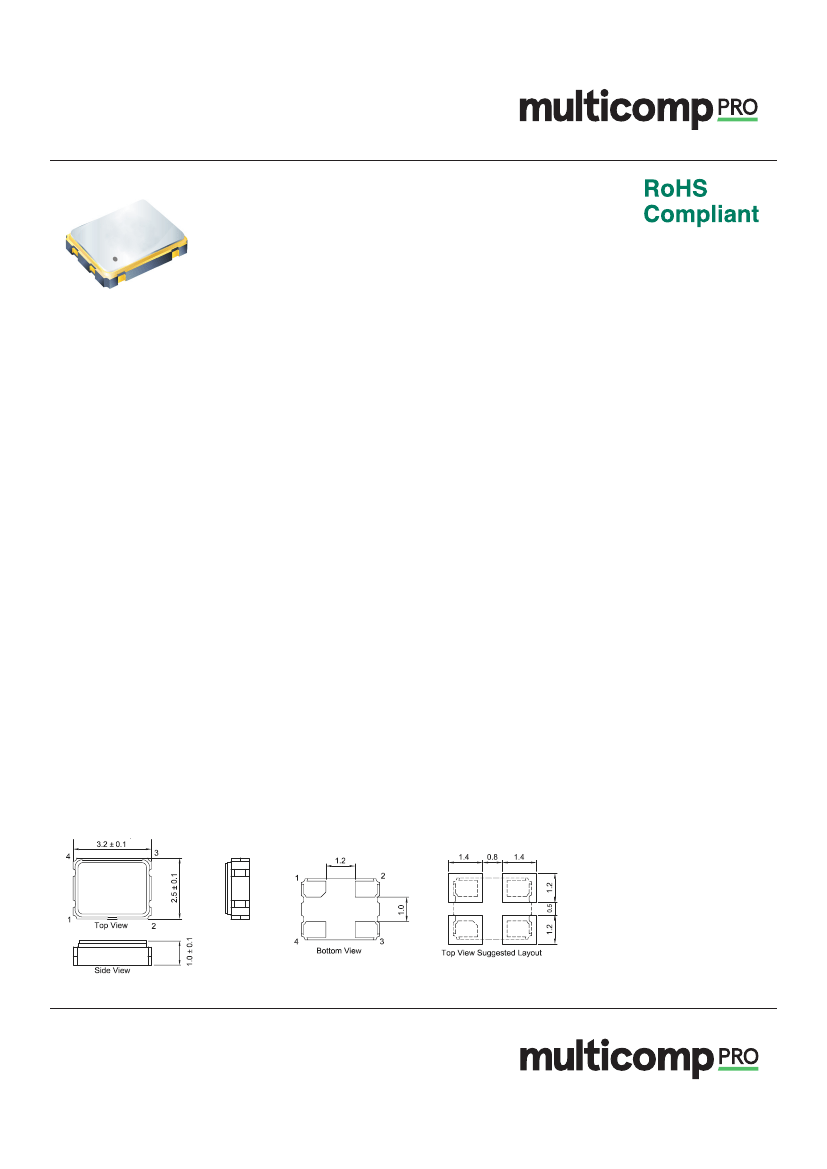

Diagram
PAD Function
1. Enable Control
2. GND
3. Out
4. VDD
Dimensions : Millimetres
Newark.com/multicomp-pro
Farnell.com/multicomp-pro
Element14.com/multicomp-pro
Page <1>
09/09/19
V1.0
Crystal Oscillator
Part Number Table
SMD 3225 (3.2mm
×
2.5mm
×
1mm)
Description
Crystal Oscillator, 3225, 1.8432MHz, 3.3V, ±25ppm, -20 ~ +70°C, 15pF
Crystal Oscillator, 3225, 1.8432MHz, 3.3V, ±25ppm, -40 ~ +85°C, 15pF
Crystal Oscillator, 3225, 1.8432MHz, 3.3V, ±50ppm, -20 ~ +70°C, 15pF
Crystal Oscillator, 3225, 1.8432MHz, 3.3V, ±50ppm, -40 ~ +85°C, 15pF
Crystal Oscillator, 3225, 4MHz, 3.3V, ±25ppm, -20 ~ +70°C, 15pF
Crystal Oscillator, 3225, 4MHz, 3.3V, ±25ppm, -40 ~ +85°C, 15pF
Crystal Oscillator, 3225, 4MHz, 3.3V, ±50ppm, -20 ~ +70°C, 15pF
Crystal Oscillator, 3225, 4MHz, 3.3V, ± 50ppm, -40 ~ +85°C, 15pF
Crystal Oscillator, 3225, 8MHz, 3.3V, ± 25ppm, -20 ~ +70°C, 15pF
Crystal Oscillator, 3225, 8MHz, 3.3V, ± 25ppm, -40 ~ +85°C, 15pF
Crystal Oscillator, 3225, 8MHz, 3.3V, ± 50ppm, -20 ~ +70°C, 15pF
Crystal Oscillator, 3225, 8MHz, 3.3V, ± 50ppm, -40 ~ +85°C, 15pF
Crystal Oscillator, 3225, 12MHz, 3.3V, ± 25ppm, -20 ~ +70°C, 15pF
Crystal Oscillator, 3225, 12MHz, 3.3V, ± 25ppm, -40 ~ +85°C, 15pF
Crystal Oscillator, 3225, 12MHz, 3.3V, ± 50ppm, -20 ~ +70°C, 15pF
Crystal Oscillator, 3225, 12MHz, 3.3V, ± 50ppm, -40 ~ +85°C, 15pF
Crystal Oscillator, 3225, 12.288MHz, 3.3V, ± 25ppm, -20 ~ +70°C, 15pF
Crystal Oscillator, 3225, 12.288MHz, 3.3V, ± 25ppm, -40 ~ +85°C, 15pF
Crystal Oscillator, 3225, 12.288MHz, 3.3V, ± 50ppm, -20 ~ +70°C, 15pF
Crystal Oscillator, 3225, 12.288MHz, 3.3V, ± 50ppm, -40 ~ +85°C, 15pF
Crystal Oscillator, 3225, 14.31818MHz, 3.3V, ± 25ppm, -20 ~ +70°C, 15pF
Crystal Oscillator, 3225, 14.31818MHz, 3.3V, ± 25ppm, -40 ~ +85°C, 15pF
Crystal Oscillator, 3225, 14.31818MHz, 3.3V, ± 50ppm, -20 ~ +70°C, 15pF
Crystal Oscillator, 3225, 14.31818MHz, 3.3V, ± 50ppm, -40 ~ +85°C, 15pF
Crystal Oscillator, 3225, 14.7456MHz, 3.3V, ± 25ppm, -20 ~ +70°C, 15pF
Crystal Oscillator, 3225, 14.7456MHz, 3.3V, ± 25ppm, -40 ~ +85°C, 15pF
Crystal Oscillator, 3225, 14.7456MHz, 3.3V, ± 50ppm, -20 ~ +70°C, 15pF
Crystal Oscillator, 3225, 14.7456MHz, 3.3V, ± 50ppm, -40 ~ +85°C, 15pF
Crystal Oscillator, 3225, 16MHz, 3.3V, ± 25ppm, -20 ~ +70°C, 15pF
Crystal Oscillator, 3225, 16MHz, 3.3V, ± 25ppm, -40 ~ +85°C, 15pF
Crystal Oscillator, 3225, 16MHz, 3.3V, ± 50ppm, -20 ~ +70°C, 15pF
Crystal Oscillator, 3225, 16MHz, 3.3V, ± 50ppm, -40 ~ +85°C, 15pF
Crystal Oscillator, 3225, 18.432MHz, 3.3V, ± 25ppm, -20 ~ +70°C, 15pF
Crystal Oscillator, 3225, 18.432MHz, 3.3V, ± 25ppm, -40 ~ +85°C, 15pF
Crystal Oscillator, 3225, 18.432MHz, 3.3V, ± 50ppm, -20 ~ +70°C, 15pF
Crystal Oscillator, 3225, 18.432MHz, 3.3V, ± 50ppm, -40 ~ +85°C, 15pF
Crystal Oscillator, 3225, 20MHz, 3.3V, ± 25ppm, -20 ~ +70°C, 15pF
Crystal Oscillator, 3225, 20MHz, 3.3V, ± 25ppm, -40 ~ +85°C, 15pF
Newark.com/multicomp-pro
Farnell.com/multicomp-pro
Element14.com/multicomp-pro
Part Number
MCSJK-3N-1.8432-3.3-25-B
MCSJK-3N-1.8432-3.3-25-C
MCSJK-3N-1.8432-3.3-50-B
MCSJK-3N-1.8432-3.3-50-C
MCSJK-3N-4.00-3.3-25-B
MCSJK-3N-4.00-3.3-25-C
MCSJK-3N-4.00-3.3-50-B
MCSJK-3N-4.00-3.3-50-C
MCSJK-3N-8.00-3.3-25-B
MCSJK-3N-8.00-3.3-25-C
MCSJK-3N-8.00-3.3-50-B
MCSJK-3N-8.00-3.3-50-C
MCSJK-3N-12.00-3.3-25-B
MCSJK-3N-12.00-3.3-25-C
MCSJK-3N-12.00-3.3-50-B
MCSJK-3N-12.00-3.3-50-C
MCSJK-3N-12.288-3.3-25-B
MCSJK-3N-12.288-3.3-25-C
MCSJK-3N-12.288-3.3-50-B
MCSJK-3N-12.288-3.3-50-C
MCSJK-3N-14.31818-3.3-25-B
MCSJK-3N-14.31818-3.3-25-C
MCSJK-3N-14.31818-3.3-50-B
MCSJK-3N-14.31818-3.3-50-C
MCSJK-3N-14.7456-3.3-25-B
MCSJK-3N-14.7456-3.3-25-C
MCSJK-3N-14.7456-3.3-50-B
MCSJK-3N-14.7456-3.3-50-C
MCSJK-3N-16.00-3.3-25-B
MCSJK-3N-16.00-3.3-25-C
MCSJK-3N-16.00-3.3-50-B
MCSJK-3N-16.00-3.3-50-C
MCSJK-3N-18.432-3.3-25-B
MCSJK-3N-18.432-3.3-25-C
MCSJK-3N-18.432-3.3-50-B
MCSJK-3N-18.432-3.3-50-C
MCSJK-3N-20.00-3.3-25-B
MCSJK-3N-20.00-3.3-25-C
Page <2>
09/09/19
V1.0
Crystal Oscillator
SMD 3225 (3.2mm
×
2.5mm
×
1mm)
Description
Crystal Oscillator, 3225, 20MHz, 3.3V, ± 50ppm, -20 ~ +70°C, 15pF
Crystal Oscillator, 3225, 20MHz, 3.3V, ± 50ppm, -40 ~ +85°C, 15pF
Crystal Oscillator, 3225, 24MHz, 3.3V, ± 25ppm, -20 ~ +70°C, 15pF
Crystal Oscillator, 3225, 24MHz, 3.3V, ± 25ppm, -40 ~ +85°C, 15pF
Crystal Oscillator, 3225, 24MHz, 3.3V, ± 50ppm, -20 ~ +70°C, 15pF
Crystal Oscillator, 3225, 24MHz, 3.3V, ± 50ppm, -40 ~ +85°C, 15pF
Crystal Oscillator, 3225, 24.576MHz, 3.3V, ± 25ppm, -20 ~ +70°C, 15pF
Crystal Oscillator, 3225, 24.576MHz, 3.3V, ± 25ppm, -40 ~ +85°C, 15pF
Crystal Oscillator, 3225, 24.576MHz, 3.3V, ± 50ppm, -20 ~ +70°C, 15pF
Crystal Oscillator, 3225, 24.576MHz, 3.3V, ± 50ppm, -40 ~ +85°C, 15pF
Crystal Oscillator, 3225, 25MHz, 3.3V, ± 25ppm, -20 ~ +70°C, 15pF
Crystal Oscillator, 3225, 25MHz, 3.3V, ± 25ppm, -40 ~ +85°C, 15pF
Crystal Oscillator, 3225, 25MHz, 3.3V, ± 50ppm, -20 ~ +70°C, 15pF
Crystal Oscillator, 3225, 25MHz, 3.3V, ± 50ppm, -40 ~ +85°C, 15pF
Crystal Oscillator, 3225, 26MHz, 3.3V, ± 25ppm, -20 ~ +70°C, 15pF
Crystal Oscillator, 3225, 26MHz, 3.3V, ± 25ppm, -40 ~ +85°C, 15pF
Crystal Oscillator, 3225, 26MHz, 3.3V, ± 50ppm, -20 ~ +70°C, 15pF
Crystal Oscillator, 3225, 26MHz, 3.3V, ± 50ppm, -40 ~ +85°C, 15pF
Crystal Oscillator, 3225, 30MHz, 3.3V, ± 25ppm, -20 ~ +70°C, 15pF
Crystal Oscillator, 3225, 30MHz, 3.3V, ± 25ppm, -40 ~ +85°C, 15pF
Crystal Oscillator, 3225, 30MHz, 3.3V, ± 50ppm, -20 ~ +70°C, 15pF
Crystal Oscillator, 3225, 30MHz, 3.3V, ± 50ppm, -40 ~ +85°C, 15pF
Crystal Oscillator, 3225, 32MHz, 3.3V, ± 25ppm, -20 ~ +70°C, 15pF
Crystal Oscillator, 3225, 32MHz, 3.3V, ± 25ppm, -40 ~ +85°C, 15pF
Crystal Oscillator, 3225, 32MHz, 3.3V, ± 50ppm, -20 ~ +70°C, 15pF
Crystal Oscillator, 3225, 32MHz, 3.3V, ± 50ppm, -40 ~ +85°C, 15pF
Crystal Oscillator, 3225, 40MHz, 3.3V, ± 25ppm, -20 ~ +70°C, 15pF
Crystal Oscillator, 3225, 40MHz, 3.3V, ± 25ppm, -40 ~ +85°C, 15pF
Crystal Oscillator, 3225, 40MHz, 3.3V, ± 50ppm, -20 ~ +70°C, 15pF
Crystal Oscillator, 3225, 40MHz, 3.3V, ± 50ppm, -40 ~ +85°C, 15pF
Crystal Oscillator, 3225, 48MHz, 3.3V, ± 25ppm, -20 ~ +70°C, 15pF
Crystal Oscillator, 3225, 48MHz, 3.3V, ± 25ppm, -40 ~ +85°C, 15pF
Crystal Oscillator, 3225, 48MHz, 3.3V, ± 50ppm, -20 ~ +70°C, 15pF
Crystal Oscillator, 3225, 48MHz, 3.3V, ± 50ppm, -40 ~ +85°C, 15pF
Part Number
MCSJK-3N-20.00-3.3-50-B
MCSJK-3N-20.00-3.3-50-C
MCSJK-3N-24.00-3.3-25-B
MCSJK-3N-24.00-3.3-25-C
MCSJK-3N-24.00-3.3-50-B
MCSJK-3N-24.00-3.3-50-C
MCSJK-3N-24.576-3.3-25-B
MCSJK-3N-24.576-3.3-25-C
MCSJK-3N-24.576-3.3-50-B
MCSJK-3N-24.576-3.3-50-C
MCSJK-3N-25.00-3.3-25-B
MCSJK-3N-25.00-3.3-25-C
MCSJK-3N-25.00-3.3-50-B
MCSJK-3N-25.00-3.3-50-C
MCSJK-3N-26.00-3.3-25-B
MCSJK-3N-26.00-3.3-25-C
MCSJK-3N-26.00-3.3-50-B
MCSJK-3N-26.00-3.3-50-C
MCSJK-3N-30.00-3.3-25-B
MCSJK-3N-30.00-3.3-25-C
MCSJK-3N-30.00-3.3-50-B
MCSJK-3N-30.00-3.3-50-C
MCSJK-3N-32.00-3.3-25-B
MCSJK-3N-32.00-3.3-25-C
MCSJK-3N-32.00-3.3-50-B
MCSJK-3N-32.00-3.3-50-C
MCSJK-3N-40.00-3.3-25-B
MCSJK-3N-40.00-3.3-25-C
MCSJK-3N-40.00-3.3-50-B
MCSJK-3N-40.00-3.3-50-C
MCSJK-3N-48.00-3.3-25-B
MCSJK-3N-48.00-3.3-25-C
MCSJK-3N-48.00-3.3-50-B
MCSJK-3N-48.00-3.3-50-C
Important Notice :
This data sheet and its contents (the “Information”) belong to the members of the AVNET group of companies (the “Group”) or are licensed to it. No licence is granted for
the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change
without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness,
any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make
any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or
where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group’s liability for death or personal injury resulting from its
negligence. Multicomp Pro is the registered trademark of Premier Farnell Limited 2019.
