ZRSG-0100 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Development board/suite/development tools> ZRSG-0100

ZRSG-0100: Descriptionzzigbee/802.15.1 module and development tools ieee 802.15.4-based signal generator; CategoryDevelopment board/suite/development tools; File Size845KB，2 Pages; ManufacturerHelicomm

Download Datasheet Parametric View All

ZRSG-0100 Overview

zzigbee/802.15.1 module and development tools ieee 802.15.4-based signal generator

ZRSG-0100 Parametric

Parameter Name	Attribute value
Maker	Helicomm
Product Category	ZZigbee/802.15.1 modules and development tools
RoHS	no
wireless frequency	868 MHz
Interface Type	USB, DB40
modulation	BPSK, OQPSK
Safety	CCM, CBC/MAC, AES

Preview

Download Datasheet

View All

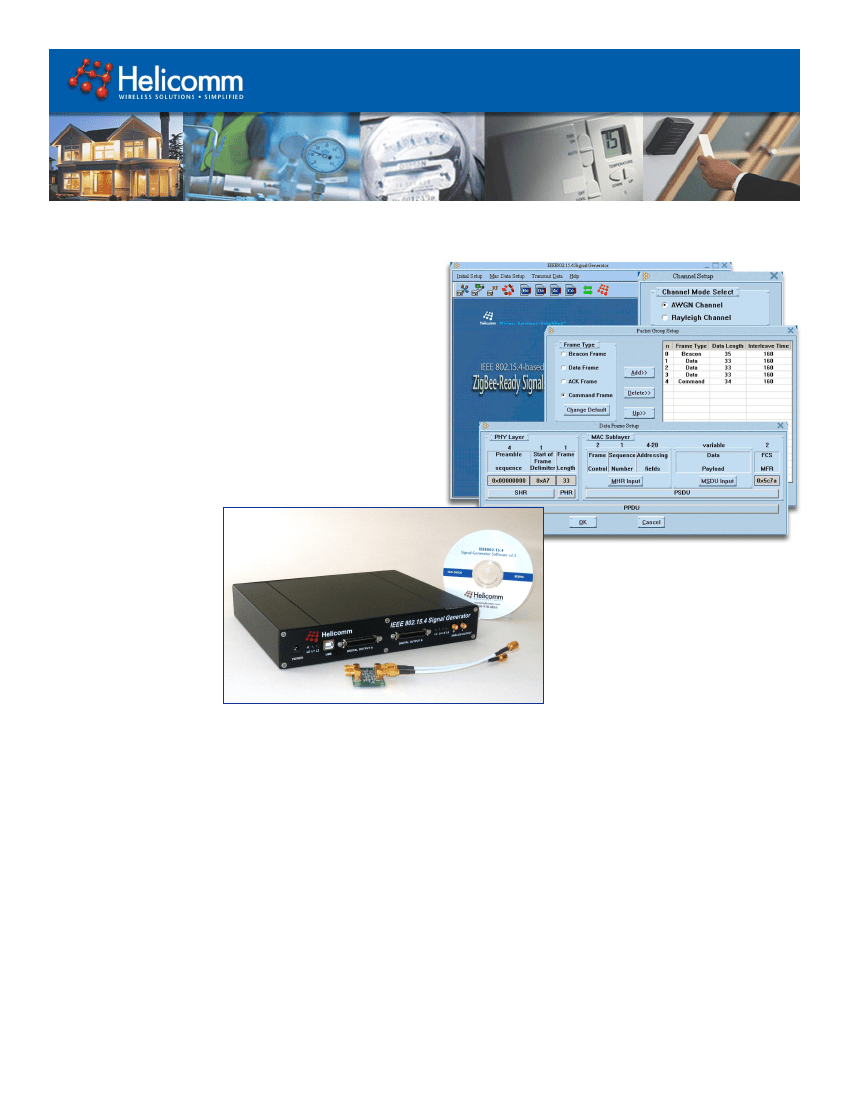

IEEE 802.15.4-based

ZigBee-Ready

Signal Generator

ZRSG-0100

Accelerate ZigBee Product Development

Validate System Design

& Simplify Testing

Helicomm’s IEEE 802.15.4-based,

ZigBee-Ready Signal Generator (ZRSG-

0100)

helps semiconductor vendors

and OEMs simplify the process of inter-

operability and compliance testing. The

powerful DSP-based, PHY Baseband

and MAC software along with easy-to-

use graphical interface allows you to

quickly and conveniently generate

15.4-compliant modulated Baseband

test signals. Validate the receive chain

of your IC design, test

product manufacturing

process stability, and pre-

certify products prior to

submission to a certified

ZigBee interoperability test

house.

The

ZRSG-0100

works

across all three IEEE

802.15.4 radio bands —

including 2.4 GHz,

915 MHz and 868 MHz —

providing you with bit-level

control over a complete 15.4 data

stream. Easily generate and test all

ZigBee frame types (Beacon, Data, ACK,

Command) in either burst or continu-

ous mode. The flexible Channel Mode

feature allows you to model signal/noise

ratio, in-band interference, multi-path

loss and frequency offset. The

ZRSG-

0100

also supports Guaranteed Time

Slots, BPSK and O-QPSK modulation

techniques, with a full suite of security

and encryption options.

™

Eliminate

the need for

customized

PHY Baseband

and MAC

testing tools —

while saving

development

time and

money.

Helicomm's

ZigBee-Ready Signal Generator

combines a powerful DSP-based platform with an

easy-to-use interface to accelerate your product

development.

• Multiple channel interference sources

including AWGN, Rayleigh,

signal/noise ratio and carrier offset

• Complete, bit-level control over MAC

frame elements including Beacon,

Data, ACK and Command frame types

• Customized frame groups including

Super Frames with Guaranteed Time

Slots

• Full security suite for encryption and

authentication

MCU integration and simplify ZigBee

Level 1 Testing

• Allows OEMs to validate production

test process stability and to pre-certify

products prior to submission to a

certified third party ZigBee interoper-

ability test house.

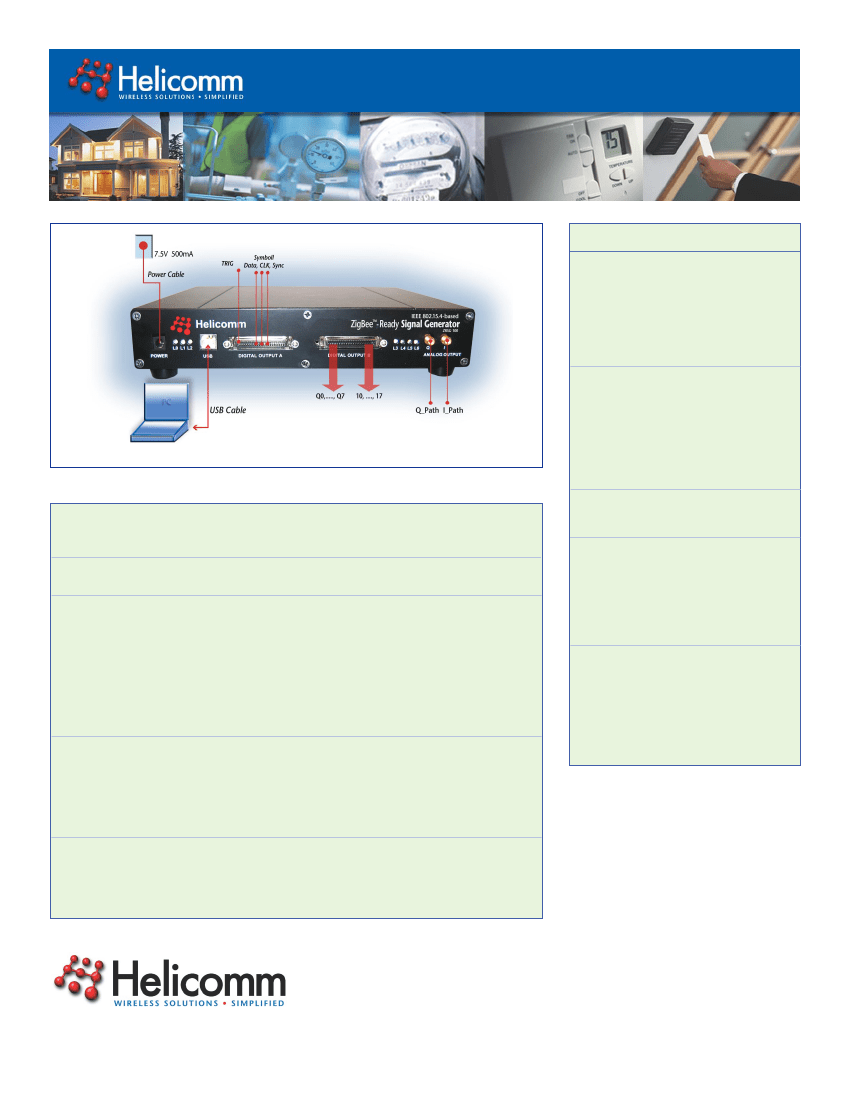

System Includes

• ZigBee-Ready Signal Generator

• 868MHz band filter board with

two matching cables

• 9V power supply

• CD with software and documentation

• Rugged metal case

•

9,999.00

Main Features

• 2.4GHz, 915MHz & 868 MHz bands

• BPSK & O-QPSK modulation schemes

Saves Development

Time and Money

• Allows IC vendors to test their RF

receiver chain, verify PHY Baseband

and MAC functionality, validate RF-

1947 Camino Vida Roble, Suite 109

•

Carlsbad, CA 92008

•

760-918-0856

•

www.helicomm.com
