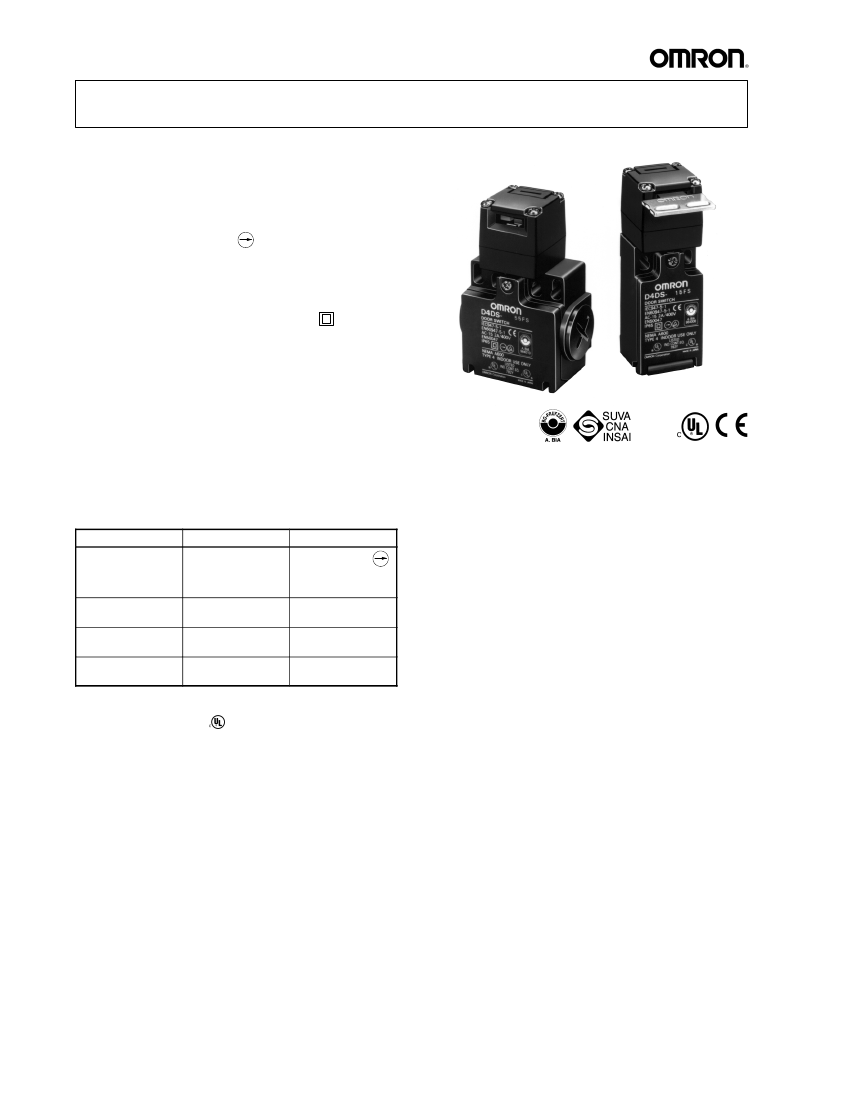

D4DS
Safety-Door Switch
Compact Safety Switch Saves Space
and is Ideal for a Variety of Doors
H
Conforms to EN (TÜV) standards. (positive
H
H
H
H
H
opening mechanism
is indicated on the
switch)
Wide standard operating temperature
range: --30 to 70°C
Double-insulation structure (with
mark)
requires no grounding terminals
Five-direction Operation Key
Approved by UL, CSA, BIA and SUVA
standards
Standards and EC Directives:
•
Conforms to the following EC Directives:
Machinery Directive
Low Voltage Directive
EN50047
EN1088
E
u
H
Approved Standards
Agency
TÜV Rheinland
Standard
EN60947-5-1
File No.
R9551708
(Positive opening:
approved)
UL (see note)
BIA
SUVA
UL508
CSA C22.2 No.14
GS-ET-15
SUVA
E76675
1-conduit: 9509915
2-conduit: 9509913
1-conduit: 6010Z
2-conduit: 6011Z
Note: CSA C22.2 No. 14 compliance was verified and approved
).
by UL (Marked with
2
D4DS
Ordering Information
J
MODEL NUMBER LEGEND
Switch
Operation Key
D4DS-jjjS
1
2
3
D4DS-Kj
1
1.
2.
Conduit size/type
1: Pg13.5
(1-conduit, European type)
2: G1/2 (1-conduit, Japanese type)
3: 1/2-14NPT
(1-conduit, North American type)
5: Pg13.5 (2-conduit)
(1-conduit, European type)
6: G1/2 (2-conduit Japanese type)
Built-in Switch
5: 1NC/1NO (Slow-action)
A: 2NC (Slow-action)
3.
Head Mounting Direction
F: Four mounting directions pos-
sible (Front-side mounting at
shipping)
1.
Operation Key Type
1: Horizontal mounting
2: Vertical mounting
3: Adjustable mounting (Horizontal)
5: Adjustable mounting (Horizontal/
Vertical)
Note: An order for the head part or the switch part alone cannot be accepted.
The Operation Key is sold separately.
J
SWITCHES
Description
Appearance
Conduit size/type
1-conduit
Pg13.5 (European)
G1/2 (Japanese)
1/2-14NPT (North American)
2-conduit
Pg13.5 (European)
G1/2 (Japanese)
Part number
1NC/1NO (Slow-action)
D4DS-15FS
D4DS-25FS
D4DS-35FS
D4DS-55FS
D4DS-65FS
2NC (Slow-action)
D4DS-1AFS
D4DS-2AFS
D4DS-3AFS
D4DS-5AFS
D4DS-6AFS
J
OPERATION KEYS (ORDER SEPARATELY)
Type
Horizontal mounting
Part number
D4DS-K1
Vertical mounting
D4DS-K2
Adjustable mounting (Horizontal)
D4DS-K3
Adjustable mounting (Horizontal/Vertical)
D4DS-K5
3
D4DS
Specifications
J
APPROVED STANDARD RATINGS
TÜV (EN60947-5-1)
Utilization category
Rated operating current (I
e
)
Rated operating voltage (U
e
)
AC-15
2A
400 V
Note: Use a 10-A fuse type gl or gG as a short-circuit protection device that conforms to IEC269.
UL (UL508/CSA C22.2 No.14)
A600
Rated voltage
120 VAC
240 VAC
480 VAC
600 VAC
Carry current
y
10 A
Current
Make
60 A
30 A
15 A
12 A
Break
6A
3A
1.5 A
1.2 A
Volt-amperes
Make
7,200 VA
Break
720 VA
J
CHARACTERISTICS
Degree of protection (see note 1)
Life expectancy (see note 2)
Operating speed
Contact gap
Operating frequency
Positive opening force (see note 3)
Positive opening travel (see note 3)
Insulation resistance
Contact resistance
Dielectric strength
Rated insulation voltage (U
i
)
Conditional short-circuit current
Short-circuit protective device (SCPD)
Switching overvoltage
Pollution degree (operating environment)
Conventional enclosed thermal current
(I
the
)
Protection against electric shock
Vibration resistance
Shock resistance
Ambient temperature
Ambient humidity
Weight
IP65 (EN60947-5-1)
Mechanical: 1,000,000 operations min.
Electrical: 150,000 operations min.
0.1 m/s to 0.5 m/s
2 x 2.0 mm min.
30 operations/minute min.
58.84 N min.
10 mm min.
100 MΩ min. (at 500 VDC) between terminals of same polarity, between terminals of
different polarity, between each terminal and ground, and between each terminal and
non-current-carrying metal part
25 mΩ max. (initial value)
U
imp
4 kV between terminals of same polarity, between terminals of different polarity, and
between each terminal and non-current-carrying metal part (EN60947-5-1)
400 V (EN60947-5-1)
100 A (EN60947-5-1)
10 A, fuse type gI or gG (IEC269)
1,500 V max. (EN60947-5-1)
3 (EN60947-5-1)
10 A (EN60947-5-1)
Class II (double insulation)
Malfunction: 10 to 500 Hz, 0.65-mm single amplitude with an imposed acceleration of
100 m/s
2
max.
Destruction: 1,000 m/s
2
min.
Malfunction: 300 m/s
2
min.
Operating: --30°C to 70°C (with no icing)
Operating: 95% max.
Approx. 76 g (for D4DS-15FS)
Note: 1. Although the Switch casing resists dust, oil, and water, make sure that the keyhole on the head is free from dust, oil, water, and
chemical, or the D4DS may wear out, break, or malfunction.
2. Life expectancy values are calculated at an operating temperature of 5°C to 35°C, and an operating humidity of 40% to 70%.
Contact your OMRON sales representative for more detailed information on other operating environments.
3. These figures are minimum requirements for safe operation.
4
D4DS
J
OPERATING CHARACTERISTICS
1-Conduit/2-Conduit Models
Model
Operating force (extraction)
Release force (insertion)
Pretravel
Total travel (reference value)
Min. positive opening force (see note)
Min. positive opening stroke (see note)
D4DS-jjjS
14.71 N
29.42 N
6±3 mm
28 mm
58.84 N
10 mm
Note: Make sure that the positive opening stroke is at least 16 mm in order to use the D4DS safely.

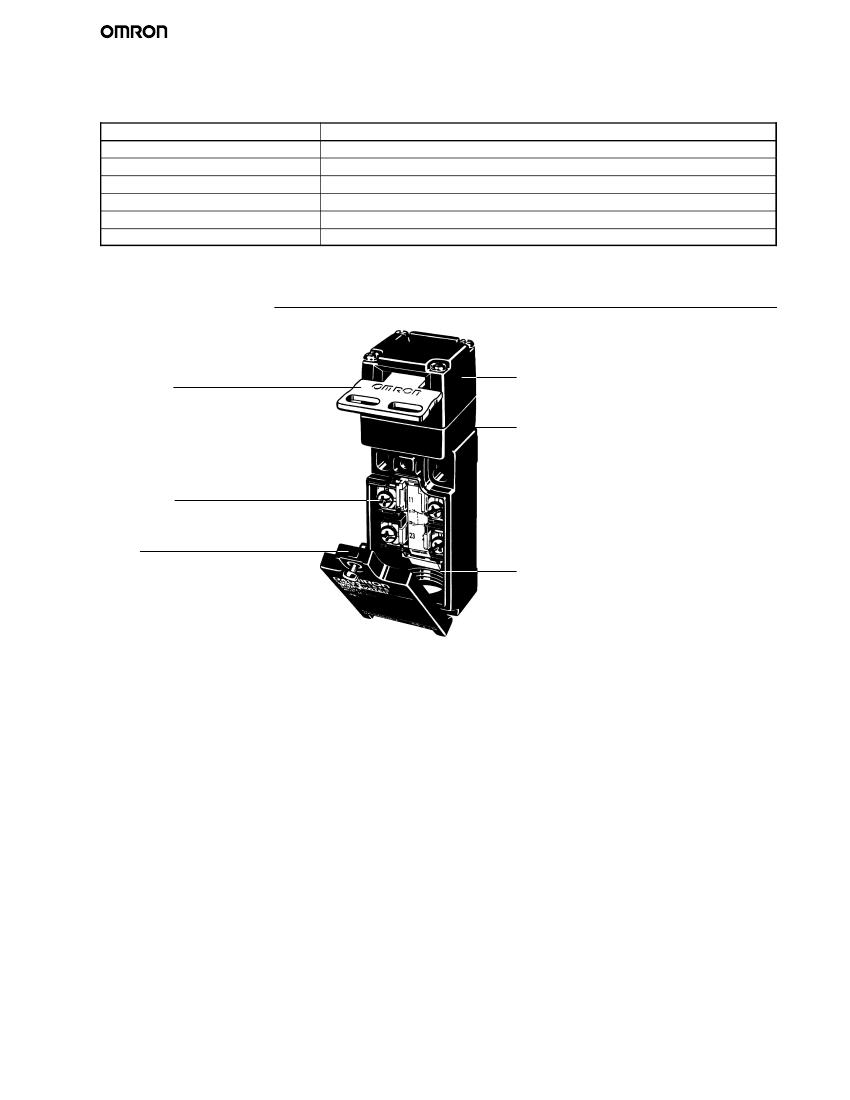

Nomenclature
Head
The head can be mounted in four directions. The Opera-
tion Key can be inserted in five directions including the
downward direction.
Oil Seal
The plunger has an O ring. The switch casing ensures
IP65 (except the keyhole, which ensures IP00). Use the
D4DS in places where the keyhole is free from oil and
metal chips.
Built-in Switch
Has a positive opening mechanism which forcibly separates
the NC contacts even if they are welded.
The built-in switch incorporates a pair each of NC contacts
and NO contacts or two pairs of NC contacts.
Cover
The cover, with a hinge on its lower part, can be opened
by removing the screw of the cover, which ensures ease
of maintenance and wiring.
Operation Key
The dedicated key prevents operational mistakes and forci-
bly separates the contacts.
Conduit
Wide switch variations.
Pg13.5:
1-conduit, 2-conduit models
G1/2:
1-conduit, 2-conduit models
1/2-14NPT: 1-conduit models
Note: The housing and head of the D4DS are made of synthetic resin.
If high mechanical durability is required, use the D4BS Safety
Door Switch.
5
D4DS
Operation
J
CONTACT FORM
(DIAGRAMS SHOW STATE WITH KEY INSERTED)
Model
D4DS-j5jS
Contact
1NC/1NO
11
23
Zb
12
24
Diagrams
11 - 12
23 - 24
Stroke
Operation Key
insertion comple-
tion position
ON
Pull-out
completion
position
Remarks
Only NC contact 11-12 has an
approved positive opening
mechanism.
The terminals 11-12 and 23-24 can
be used as unlike poles.
D4DS-jAjS
2NC
11
Zb
12
11 - 12
21 - 22
21
22
Stroke
Operation Key
insertion comple-
tion position
ON
Pull-out
completion
position
NC contacts 11-12 and 21-22 have
an approved positive opening
mechanism.
The terminals 11-12 and 23-24 can
be used as unlike poles.
Note: Terminals are numbered according to EN50013 and contacts are marked according to EN60947-5-1.
J
POSITIVE OPENING MECHANISM
1NC/1NO Contact (Slow-Action)
2NC Contact (Slow-Action)
Fixed contact (NC)
Fixed contact (NC)
Contact spring
Movable contact
Fixed contact (NO)
Plunger
Contact spring
Movable contact
Plunger
Return spring
Return spring
Only the NC contacts have a positive opening function.
When metal deposition occurs, the contacts are separated
from each other by pushing in the plunger.
Conforms to EN60947-5-1 Positive Opening
Both NC contacts incorporate a positive
opening function.
When metal deposition occurs, the contacts
are separated from each other by pushing in
the plunger.
Conforms to EN60947-5-1 Positive Opening
Note: The switches are marked with
indicating approval for the positive opening mechanism.
6
