SI7015-A10-GMR

Description
IC temp sensor RH 3% qfn
CategoryThe sensor
File Size337KB,39 Pages
ManufacturerSilicon Laboratories Inc
Environmental Compliance
Download Datasheet Parametric Compare View All

SI7015-A10-GMR Online Shopping

Suppliers Part Number Price MOQ In stock
SI7015-A10-GMR - - View Buy Now

SI7015-A10-GMR Overview

IC temp sensor RH 3% qfn

SI7015-A10-GMR Parametric

Parameter NameAttribute value
Datasheets
Si7015
Product Photos
336-2331-5-ND, SI7005-B-GM
Mfg Application Notes
Si70xx Designer Guide
Standard Package2,500
CategorySensors, Transducers
FamilyMoisture Sensors, Humidity
Sensor TypeHumidity and Temperature
Humidity Range0 ~ 100% RH
Operating Temperature-40°C ~ 85°C
Sensitivity-
Accuracy3%
Response Time18S
OutpuI²C
Voltage - Supply1.9 V ~ 3.6 V
Capacitance-
Other Names336-2538-2SI7015-A-GMR

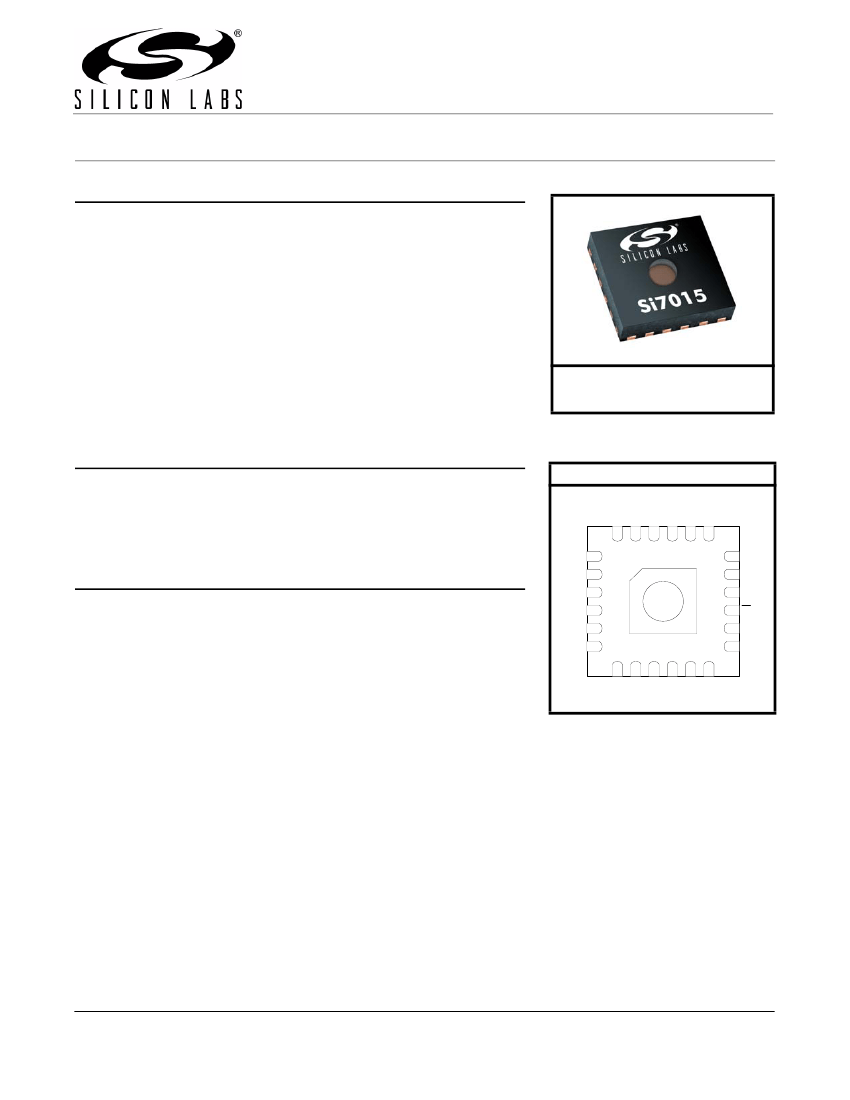

Si 70 1 5 -A1 0
D
IGITA L
I
2
C H
UMIDITY
Features
AND
T
EMPERATURE
S
ENSOR
Precision Relative Humidity Sensor

±
4.5% RH (max), 0–80% RH
ºC (max), –10 to 85 °C
Drop-In Upgrade for Si7005
Factory-calibrated
High-Accuracy Temperature Sensor

±1
0 to 100% RH operating range
0 to +70 °C operating range (FM)
–40 to +85 °C operating range (GM)
Low Voltage Operation (1.9 to 3.6 V)
Low Power Consumption
µA active current

60 nA standby current

150
I
2
C Interface
Integrated on-chip heater
4x4 mm QFN package
Excellent long term stability
Optional factory-installed
cover

Low-profile

Protection
Ordering Information
See page 31.
Patent protected; patents pending
Pin Assignments
GND
19
18 DNC
17 DNC
16 DNC
15 CS
14 DNC
13 DNC
10
11
GND
12
DNC
7
8
9
DNC
DNC
DNC
DNC
21
DNC
DNC
20
during reflow

Excludes liquids and
particulates
Applications
HVAC/R
Thermostats/humidistats
Instrumentation
White goods
Micro-environments/data centers
Industrial controls
Weather stations
Asset tracking and storage
GND
1
2
3
4
5
6
DNC
SCL
SDA
DNC
DNC
24
23
GND
Description
The Si7015 I
2
C Humidity and Temperature Sensor is a monolithic CMOS
IC integrating humidity and temperature sensor elements, an analog-to-
digital converter, signal processing, calibration data, and an I
2
C Interface.
The patented use of industry-standard, low-K polymeric dielectrics for
sensing humidity enables the construction of low-power, monolithic
CMOS Sensor ICs with low drift and hysteresis and excellent long term
stability.
Each unit is factory-calibrated, and the calibration data is stored in the on-
chip non-volatile memory. This ensures that the sensors are fully
interchangeable, with no recalibration or software changes required. The
Si7015 can be used as a drop-in upgrade for the Si7005 with only minor
software changes because the register sets are the same, and the
4x4 mm QFN package is footprint-compatible with that of the Si7005.
The device is compatible with standard SMT assembly processes, such
as reflow. The optional factory-installed cover offers a low profile and
convenient means of protecting the sensor during assembly (e.g., reflow
soldering) and throughout the life of the product, excluding liquids
(hydrophobic/oleophobic) and particulates.
The Si7015 offers an accurate, low-power, factory-calibrated digital
solution ideal for measuring humidity, dew-point, and temperature in
applications ranging from HVAC/R and asset tracking to industrial and
consumer platforms.
Rev. 1.0 3/14
Copyright © 2014 by Silicon Laboratories
DNC
V
DD
22
Si7015-A10

SI7015-A10-GMR Related Products

SI7015-A10-GMR SI7015-A10-FMR SI7015-A10-FM1R SI7015-A10-GM1R
Description IC temp sensor RH 3% qfn IC temp sensor RH 3% qfn IC temp sensor RH 3% qfn IC temp sensor RH 3% qfn
Standard Package 2,500 2,500 1 1
Category Sensors, Transducers Sensors, Transducers Sensors, Transducers Sensors, Transducers
Family Moisture Sensors, Humidity Moisture Sensors, Humidity Moisture Sensors, Humidity Moisture Sensors, Humidity
Sensor Type Humidity and Temperature Humidity and Temperature Humidity and Temperature Humidity and Temperature
Humidity Range 0 ~ 100% RH 0 ~ 100% RH 0 ~ 100% RH 0 ~ 100% RH
Operating Temperature -40°C ~ 85°C 0°C ~ 70°C 0°C ~ 70°C -40°C ~ 85°C
Accuracy 3% 3% 3% 3%
Response Time 18S 18S 18S 18S
Outpu I²C I²C I²C I²C
Voltage - Supply 1.9 V ~ 3.6 V 1.9 V ~ 3.6 V 1.9 V ~ 3.6 V 1.9 V ~ 3.6 V
Other Names 336-2538-2SI7015-A-GMR 336-2536-2SI7015-A-FMR 336-2535-1 336-2537-1
