R24-5D10-12FP: DescriptionReplacement relay rely 12vdc spdt 10a; CategoryTopical application Mechanical and electrical/engineering/automation; File Size100KB，1 Pages; ManufacturerNTE; Websitehttp://www.nteinc.com; Environmental Compliance

Download Datasheet Parametric View All

R24-5D10-12FP Overview

Replacement relay rely 12vdc spdt 10a

R24-5D10-12FP Parametric

Parameter Name	Attribute value
Maker	NTE
Product Category	Replace relay
RoHS	yes
product	General Purpose / Industrial Relays

Preview

Download Datasheet

View All

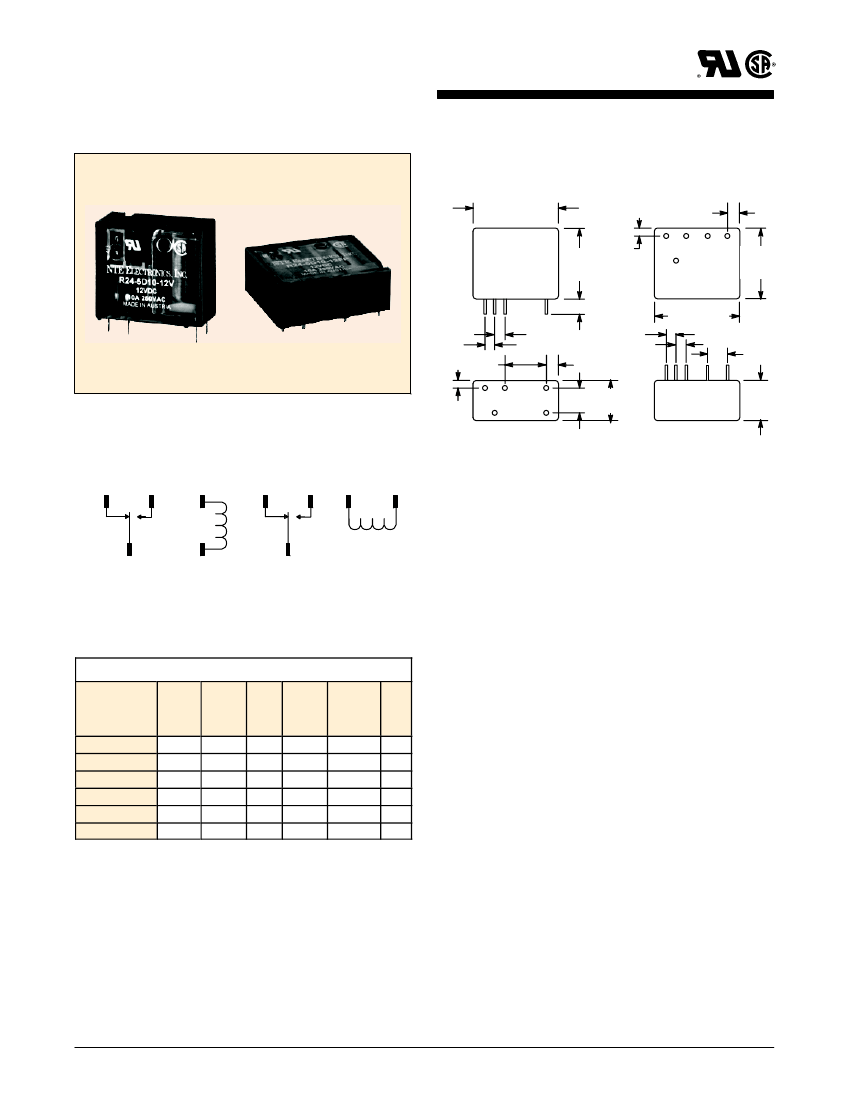

Features

•

Epoxy Sealed for Wave Soldering & Cleaning

Upright (V Suffix) or Flat−Pack (FP Suffix) Types

High Dielectric

−

4000 VRMS between Control and

Switching Circuits

Cut−Off Nib after PCB Washing

94 V−0 Enclosure

R24 Series

8 Amp & 10 Amp, SPDT Epoxy Sealed

Power Relay.

D15a

1.140 (29.0) Max

D15b

.100 (2.54)

1.030

(26.2)

Max

.200

(5.08)

1.030

(26.2)

Max

.158 (4.0)

.100 (2.54)

.700 (17.78)

1.140 (29.0)

Max

.100 (2.54)

.300

(7.62)

.110 (2.79)

.059

(1.5)

.300

(7.62)

.476

(12.1)

.476

(12.1)

SPDT, 1 Form “C”

1

3

5

3

5

1

2

Cut−off nib after PCB washing to extend contact

life and lower operating temperature.

Electrical Specifications

Contact

Rating Resistive Load:

10 Amp @ 380 VAC max switching (Upright)

8 Amp @ 250 VAC max switching (Flat−Pack)

Contact Material:

Silver Cadmium Oxide (Upright)

Silver, Gold Flashed (Flat−Pack)

Contact Resistance:

.03 Ohms Max. initial (Upright)

.05 Ohms Max. initial (Flat−Pack)

4

2

4

Upright

Flat−Pack

Coil

DC OPERATED

Coil

Res.

Ohms

(Typ)

58

80

215

330

740

1200

Max.

Contact

Cur. @

28VDC

or 120VAC

10A

8A

10A

8A

10A

8A

NTE Type No.

R24−5D10−6V

R24−5D10−6FP

R24−5D10−12V

R24−5D10−12FP

R24−5D10−24V

R24−5D10−24FP

Nom.

Voltage

6VDC

5/6VDC

12VDC

24VDC

Contact

Arr.

SPDT

Nom.

Power

600mW

Diag

No.

D15a

D15b

D15a

D15b

D15a

D15b

Coil Voltages:

See Chart

Pick−up Voltage:

80% of nom voltage or less @ 25

°

C

Drop−out Voltage:

10% of actual pull−in (min)

Resistance:

See chart

Min Sensitivity:

400 mW

Nominal Power:

600 mW

Operational Characteristics

Timing Values . . . . . Operate Time:

Approx 6 mS (Upright)

Approx 15 mS (Flat−Pack)

Release Time:

Approx 2 mS (Upright)

Approx 10 mS (Flat−Pack)

Max Switching Rate:

5 operations

per second

Insulation Characteristics

Dielectric Strength

Contact To Coil:

4000 VRMS

Across Open Contacts:

1000 VRMS

Resistance:

Contact to Coil/Frame:

1000 megohms min.

Across Open Contacts:

500 Megohms min.

Coil To Frame:

1000 megohms Min.

Environmental Characteristics

Operating:

−55°C

to +70°C

Mechanical Life:

5 x 10

6

operations min

Weight

Std:

15 gram approx.

NTE Electronics, Inc.

D

Voice (973) 748−5089

D

FAX (973) 748−6224

D

http://www.nteinc.com

35
