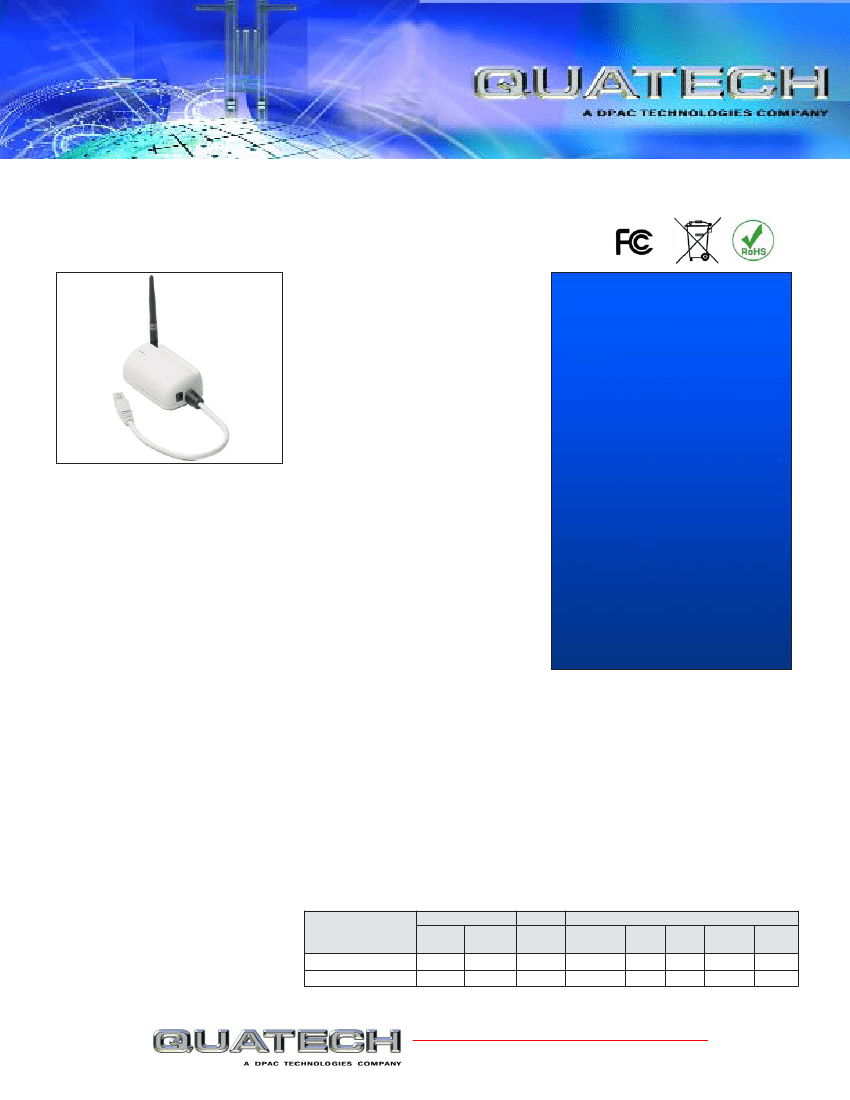

Airborne Enterprise Class Wireless Ethernet Bridge
Ethernet to 802.11b/g Wireless LAN
ABDG-ET-DP500 Enterprise Series
The integrated supplicant supports a wide
range of EAP processes including:
EAP-TLS/MSCHAPv2
EAP-TLS/MD5
EAP-TTLS/MSCHAPv2
PEAPv0/MSCHAPv2
LEAP
Airborne supports the most flexible
certificate delivery and management
available in the wireless device market,
along with WEP, WPA, WPA2, 802.11i
and Pre-shared Key (PSK), no other
wireless solution provides a more
comprehensive
security
solution.
KEY FEATURES
Extended operating temperatures
(-40° to +85°C) and environmental
specifications
Plug-n-Play Ethernet to 802.11
Connectivity
Enterprise Class wireless security
(WPA2-Enterprise, WPA2-PSK, WPA-
PSK, WEP, EAP) with Certificates
Plug-and-Play LAN and Internet
Connectivity
Compact Package Outline
Integrated External Antenna
Integrated Ethernet Cable and RJ-45
(Male) Connector
Software-configurable 802.11b/g
Interface
Advanced utilities for discovery,
configuration and management of
Airborne Ethernet device
Worldwide Certificate Support- FCC Part
15 Class B Sub C Modular Approval,
IOC, CE, ETSI, ROHS, WEEE
Airborne
TM
is a line of highly integrated
802.11 radios and device servers,
designed to address the demands of
complex machine-to-machine (M2M)
applications. Utilizing the latest 802.11
microprocessor
and
network
technologies, the Airborne family of
products provide a broad encompassing
solution for wireless applications requiring
performance, reliability and advanced
security.
The Airborne Ethernet bridge family
allows an Ethernet enabled device to
connect to a high performance wireless
802.11 network. The integrated Network
Address Translation (NAT) functionality
provides plug and play connectivity and
simple integration to any system with an
Ethernet port. The Ethernet interface
supports auto rate detection up to
100Mb/s. The ABDG-ET-DP501 includes
a full featured 802.11b/g radio and a high
performance ARM9 MCU running
embedded Linux.
Reliability
Designed by Quatech specifically to meet
the demands of the industrial, automotive
and medical markets, the Airborne
Ethernet Bridge has the widest operating
temperature range and highest level of
reliability available, all backed by a five
year limited warranty. Quatech also
provides FCC Modular certification,
minimizing requirements for further
regulatory testing by original equipment
manufacturers.
Applications
Previous generations of Airborne
Wireless Ethernet Bridge have been
integrated and deployed into a wide range
of
applications
across
various
industries including:
Medical equipment
Vehicle telematics & diagnostics
Material handling & logistics
Industrial Automation
Test & measurement
Security & access control
Quatech’s Airborne Enterprise Wireless
Ethernet Bridge extends the reputation of
the family further by drawing on
experience of Quatech application
engineers across hundreds of wireless
M2M deployments.
The advanced technologies implemented
in the Quatech Enterprise 802.11 Ethernet
Bridge
provide an industry-leading
solution with breakthrough performance
and security for M2M applications and
drop in replacements for existing 802.11b
and 802.11b/g networking modules.
Enterprise Class Security
WPA2-Enterprise is the leading wireless
security standard for enterprise networks
and is fully supported by the Airborne
Enterprise products.
Model Selection Guide
Interface
10/100
10 Base-T Ethernet
WiFi
WEP
802.11b/g (64 & 128 bit)
WPA
Security
WPA2
LEAP
EAP
Model No.
ABDG-ET-DP501
ABDG-ET-DP101
5675 Hudson Industrial Parkway Hudson, OH 44236
1.800.553.1170
www.quatech.com

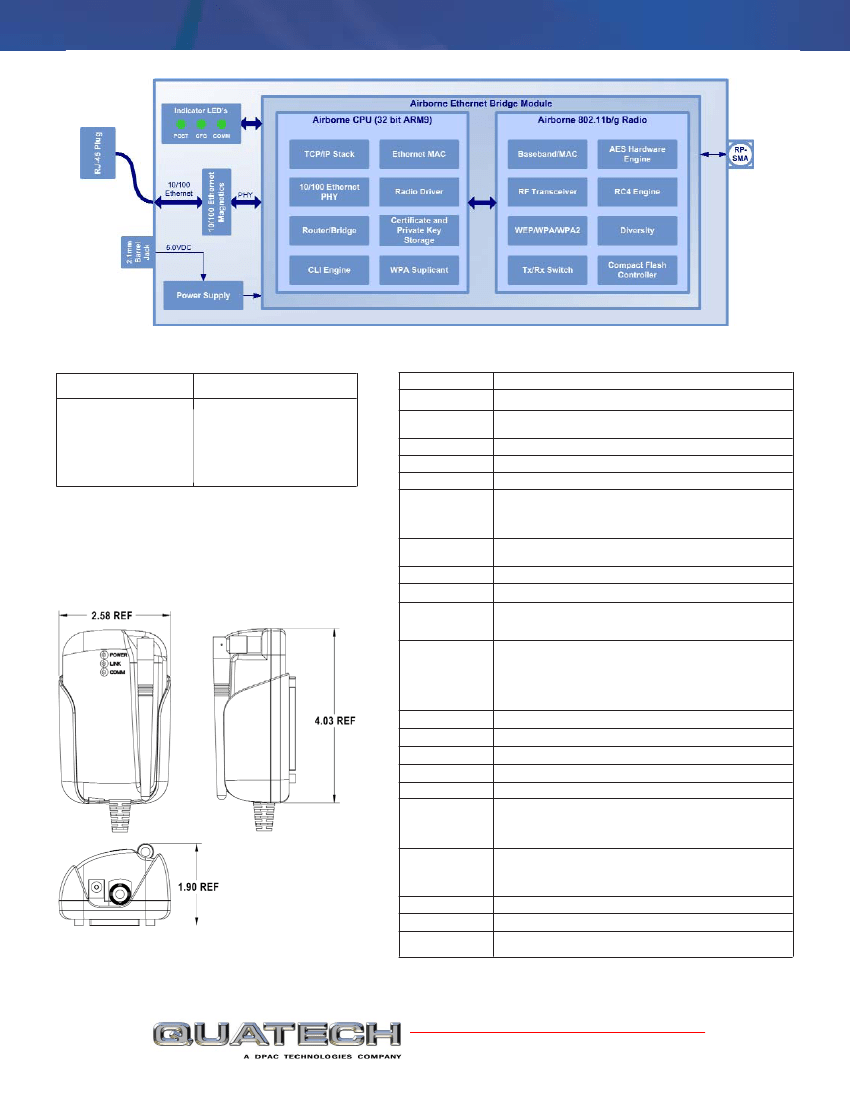

Block Diagram
Package Contents
Model No.
ABDG-ET-DP501
ABDG-ET-DP101
Package Includes:
Airborne Enterprise Ethernet Bridge
Omni-directional Wand Antenna
Power Supply
Mounting Bracket
Installation/Documentation CD
Specifications
Technology
Wired Interface
Frequency
Modulation Technology
Modulation Type
Network Access Modes
Channels
IEEE 802.11b/g, WiFi compliant
10/100 Ethernet (auto sense), RJ-45 Plug
2.4 ~ 2.4835 GHz (US/Canada/Europe)
2.4 ~ 2.497 GHz (Japan)
DSSS, CCK, OFDM
DBPSK, DQPSK, CCK, BPSK, QPSK, 16QAM, 64QAM
Infrastructure, Ad Hoc
USA/Canada: 11 channels
Europe: 13 channels
France: 4 channels
Japan: 14 channels (13 channels for 802.11g)
802.11b = 11, 5.5, 2, 1 Mbps
802.11g = 54, 48, 36, 24, 18, 12, 9, 6 Mbps
CSMA/CA with ACK, RTS, CTS
TCP/IP, ARP, ICMP, DHCP, DHS, UDAP, TFTP, UDP, PING
54Mb/s
6 Mb/s
1Mb/s
= -69dBm
= -86dBm
= -86dBm
Mechanical Outline
Wireless Data Rate
MAC
Network Protocols
Receive Sensitivity
Security Protocols
Disabled, WEP 64 & 128bit, WPA (TKIP), WPA (AES), WPA2
(AES), 802.1x (EAP) Supplicant
Supports WPA & WPA2 Enterprise supplicants EAP-TLS/MSCHAPV2, EAP-
TTLS/MSCHAPv2, EAP-TTLS(MD5), EAP-PEAPv0/MSCHAPv2, LEAP
Zero host security footprint
Supports Certificate, delivery and management
Integrated RP-SMA Omni-directional 3dBi Antenna
5.0VDC+/-5%, 500mA
3000mA (MAX) for 20ms
2.5W @5VDC
2.1mm Barrel Jack
Operating Current (Tx, 802.11g) = 500mA Typ.
Operating Current (Rx, 802.11g) = 530mA Typ.
Power Save (Snooze) = 10mA Typ.
Power Down (Sleep) = 1mA Typ.
Operating Temperature: -40
°
C - +85
O
C, Storage: -55
O
C - +150
O
C
Relative humidity: 5% - 95% (non-condensing)
Vibration: 20G peak-to-peak, 20Hz-2KHz swept
Shock: 1500G peak-to-peak, 0.5mS duration
Nylon (Gray)
3 Indicator LED (POST, LINK, COMM)
Worldwide Certificate Support- FCC Part 15 Class B Sub C Modular Approval,
IOC, CE, ETSI EN300 328, ETSI 60950-1, ROHS and WEEE Compliant
Antenna
Supply
Supply In-rush Current
Power Consumption
Power Connector
DC Characteristics
Environmental
Enclosure
LED Indicators
Agency Approvals
5675 Hudson Industrial Parkway Hudson, OH 44236
Quatech, Inc.
®2009
1.800.553.1170
www.quatech.com
Rev. D 3/2009
