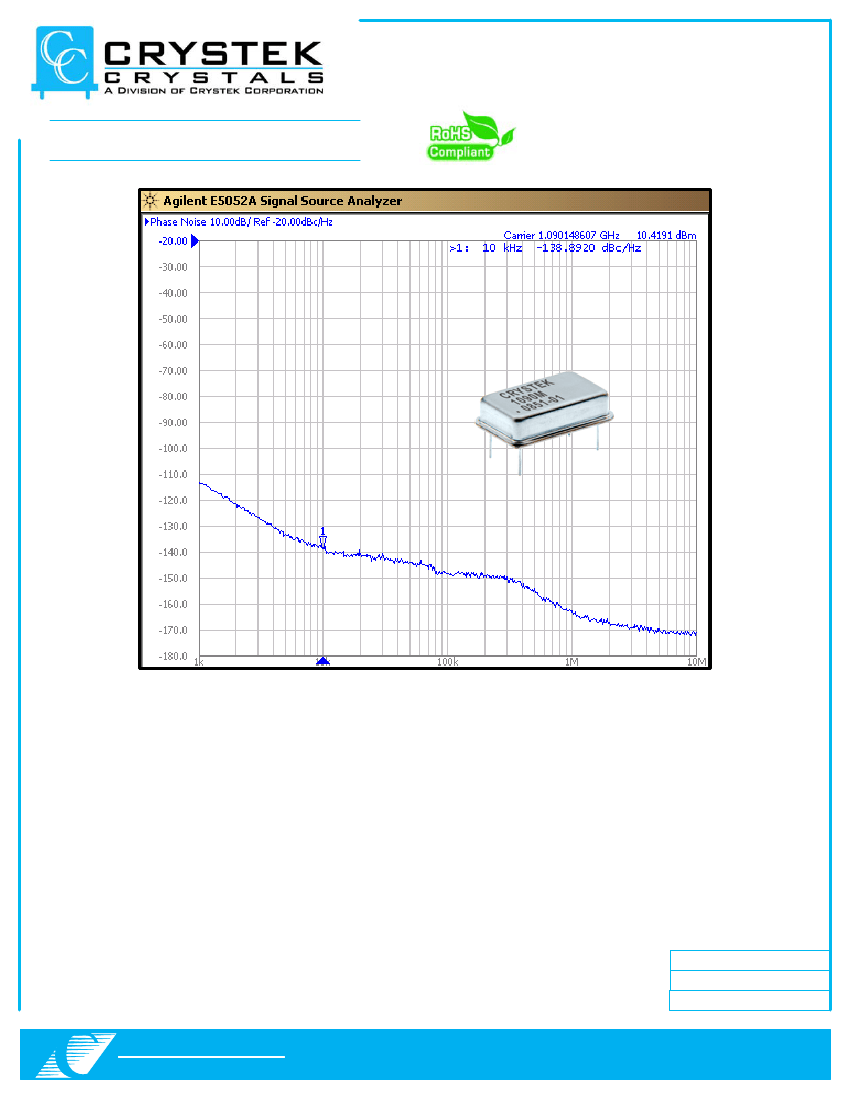

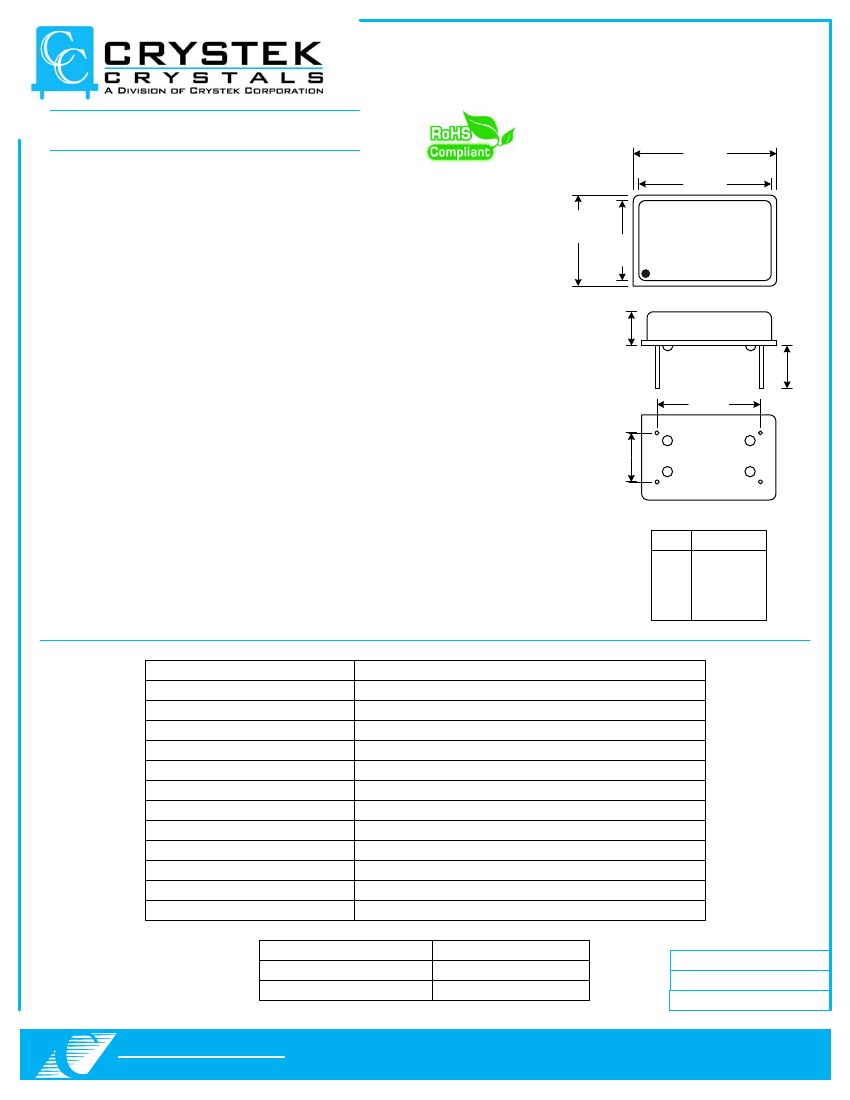

CCSO-014-1090
SAW Clock Oscillator
CCSO-014-1090 Model
14 Pin DIP,
12V, True Sinewave
Model CCSO-014-1090 is a 1.090GHz SAW (surface acoustic wave) Clock
Oscillator (CCSO). SAW crystal technology provides low-noise and low-jitter
performance with true sinewave output. Features include -138dBc/Hz phase
noise at 10kHz offset, +12V input voltage, -55°C to +105°C operating
temperature, 14 PIN DIP hermetic sealed package. The oscillator has no
sub-harmonic and the second harmonic is -40dBc Max.
Designed for Identification Friend or Foe (IFF) application.
Rev: D
Date: 18-Mar-10
Page 1 of 2
CRYSTEK
CORPORATION
12730 Commonwealth Drive • Fort Myers, Florida 33913
Phone: 239-561-3311 • 800-237-3061
Fax: 239-561-1025 • www.crystek.com
CCSO-014-1090
SAW Clock Oscillator
CCSO-014-1090 Model
14 Pin DIP,
12V, True Sinewave
Frequency:
Temperature Range:
Storage:
Input Voltage:
Supply Ripple:
Freq. vs Temp.:
Input Current:
Output:
Output Power:
Start-up time:
2nd Harmonic:
Sub-harmonics:
Load:
Jitter:
SONET OC-48(12kHz~80MHz)
SONET OC-192(50kHz~80MHz)
Phase Noise Typical:
1kHz
-110 dBc/Hz
10kHz
-138 dBc/Hz
100kHz
-150 dBc/Hz
1MHz
-160 dBc/Hz
1.090 GHz
-55°C to 105°C
-55°C to 110°C
12.0V ±0.25V
150mV p-p Max
±250ppm Typical
30mA Typ., 40mA Max
True SineWave
+12dBm ±2dBm
2ms Typ., 10ms Max
-35dBc Typ., -40dBc Max
None
50
Ω
0.820
(20.83)
0.750
(19.05)
0.520
(13.21)
0.450
(11.43)
CRYSTEK
CCSO-014-1090
1090MHz
Date Code
0.200
(5.08)
0.236
(6.00)
0.600
(15.24)
1
7
0.18ps RMS Typ., 0.20ps RMS Max
0.12ps RMS Typ., 0.15ps RMS Max
0.300
(7.62)
14
8
PIN
1
7
8
14
Connection
N/C
GND
Output
Vdd
Parameter
Mechanical Shock
Mechanical Vibration
Solderability
Solvent Resistance
Resistance to Soldering Heat
Thermal Shock
Moisture Resistance
Terminal Strength
Hermetic Seal
Humidity
High Temperature Life (Operating)
Acceleration
Conditions
MIL-STD-202, Method 213, Condition A
MIL-STD-202, Method 204, Condition A
MIL-STD-202, Method 208
MIL-STD-202, Method 215
MIL-STD-202, Method 210, Condition C
MIL-STD-202, Method 107, Condition A
MIL-STD-202, Method 106, 90% to 98% RH 10 Days
MIL-STD-202, Method 211, Condition A
MIL-STD-202, Method 112, Procedure III, Condition C
MIL-STD-202, Method 103
MIL-STD-202, Method 108, Condition D, 1,000 hrs at +70°C
MIL-STD-202, Method 212, Condition A
Parameter
Conditions
10°C Steps -55/105°C
-55°C and +85°C
100% Temperature Testing
100% Start-Up Testing
Rev: D
Date: 18-Mar-10
Page 2 of 2
