10TR416: DescriptionToggle switch illum red ON-ON; CategoryTopical application Mechanical and electrical/engineering/automation; File Size140KB，1 Pages; ManufacturerMountain Switch

Download Datasheet Parametric Compare View All

10TR416 Overview

Toggle switch illum red ON-ON

10TR416 Parametric

Parameter Name	Attribute value
Maker	Mountain Switch
Product Category	Toggle Switches
RoHS	no
Contact form	SPDT
switch function	ON - ON
Contact current rating	3 Amps at 125 Volts
Termination type	Solder Lug
Installation style	Panel
Terminal seal	Epoxy
Contact plating	Gold
Voltage ratingAC	1.7 Volts

Preview

Download Datasheet

View All

Last Update:

6-10-05

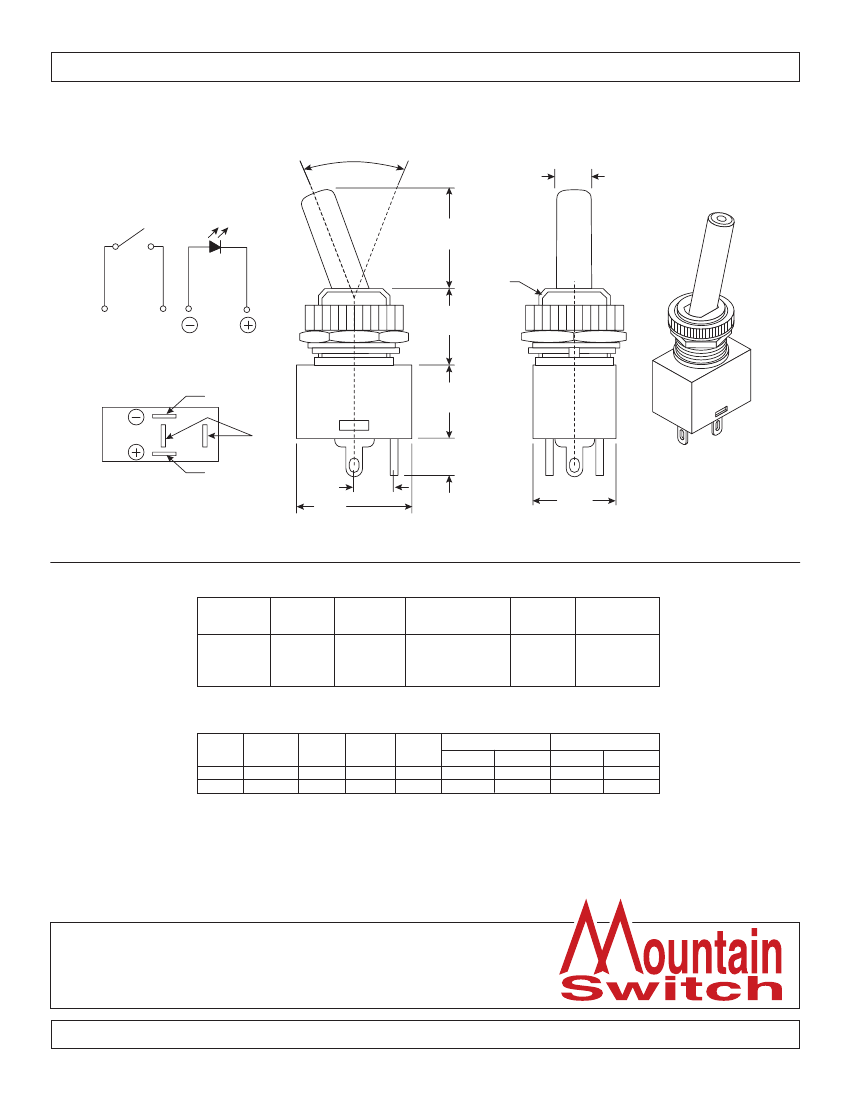

Dimensions: mm (In.)

24°

Ref. #:

MS-100570

ø5.58

(ø.22)

18.03

(.71)

Switch

LED

M12x1

(mm)

9.90

(.39)

LED lug

13.97

(.55)

Switch lug

LED lug

18.54

(.73)

6.35

(.25)

5.33

(.21)

12.70

(.50)

Mouser

Stock No.

10TR414

10TR415

10TR416

10TR417

Color

Red

Green

Red

Green

Type

SPST

SPDT

Circuit

On-Off

On-On

Mounting

Hole

.472

Voltage

(VDC)

1.7

2.0

1.7

2.0

Absolute Maximum Ratings

(LED Data)

Color

Red

Green

IF(mA)

40

30

VR(V)

4

P(mW)

80

85

Color

Red

Green

VP(V)

Typ.

Max

1.7

2.0

IF=20mA, Ta=25°C

Cd(mcd)

Min

Typ.

2.1

1.4

Electrical Specifications:

•

Rating: 3A / 125VAC

•

Contact Resistance: 20mΩ @ 2.5VDC

•

Insulation Resistance: 100MΩ @ 500VDC

•

Dielectric Strength: 1,000VAC for 1 minute

Materials:

•

Lever: brushed aluminum

Illuminated (LED) Toggle Switches

10TR414, 10TR415, 10TR416, 10TR417

Available from Mouser Electronics

www.mouser.com

1-800-346-6873

Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
