ePIR™ Motion Detection Zdots
®
Single Board Computer
PB022304-1108
ePIR
TM
ADVANTAGE
Complete Motion Detection
Solution
Best in Class Motion Detection
Performance
Extremely flexible interface
Scalable to meet your application
needs
ePIR™ Motion Detection Zdots
®
Single Board Computer
Overview
Zilog’s ePIR Motion Detection Zdots Single Board Computer (SBC) is a complete time to
market solution for a variety of motion detection applications. ePIR Motion Detection Zdots
SBC includes a passive infrared (PIR) sensor and Fresnel lens and provides a significant
performance improvement over today’s digital solutions. Using PIR sensor technology, it
combines the unique features of the Z8 Encore! XP
®
MCU, including Zilog’s Sigma-Delta
Technology
TM
, with powerful, new motion detection algorithms, providing a dramatic
improvement in both sensitivity and stability.
The ePIR Motion Detection Zdots Single Board Computer is a great time to market embedded
solution for any device that needs motion detection capability making it a great choice for
lighting controls, access control, display systems and general purpose proximity sensing. It is
also an easy way to add energy management capability to various applications such as vending
machines and appliances. And with Zilog’s development kit, it is quick and easy to customize
the application code and add features.
TARGET APPLICATIONS
Unattended Vending and Kiosks
Display Systems
Home Appliances
Lighting Control
Access Control
General Purpose Proximity
Sensing Application
Features
Complete, fully functional motion detection SBC including low profile Fresnel lens
Advanced software based motion detection algorithms provide superior sensitivity and
stability
Small form factor – Only 25.5 mm x 16.7 mm
Wide 5 m x 5 m, 60 degree detection pattern
Simple hardware or advanced serial (UART) based configuration and interface
Adjustable sensitivity, delay and ambient light threshold
SLEEP mode for low power applications
No temperature compensation required
Dynamic PIR sensor stabilization minimizes power-on time
Photocell input for ambient light detection in lighting applications
Minimal components ensure highest possible Mean Time Between Failure (MTBF)
Production ready solution or develop your own custom software application
Complete development system available
(ZEPIR000101ZCOG)

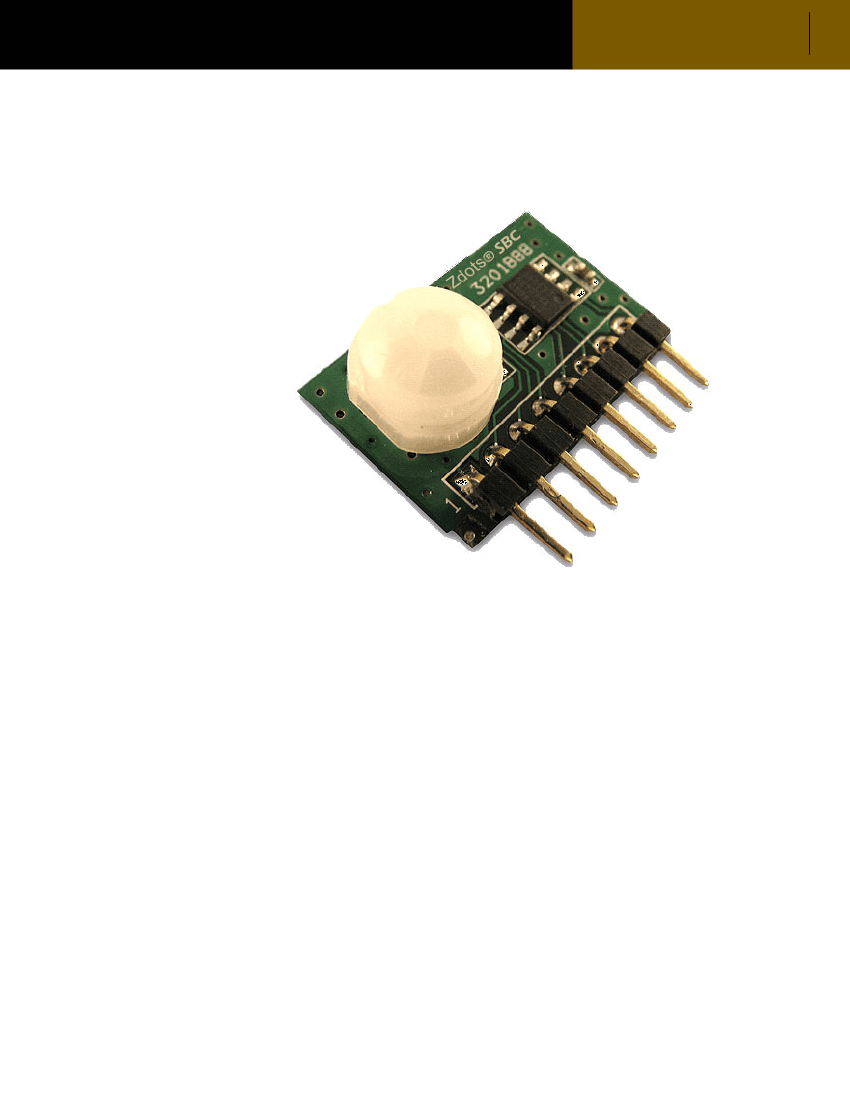

ePIR™ Motion Detection Zdots
®
Single Board Computer
2
APPLICATIONS
Unattended Vending and
Kiosks
Reduce energy consumption by
auto-dimming lights when people
are not present
Attract customers when they
come near
Automated guidance
ePIR™ Motion Detection Zdots
®
Single Board Computer
ZEPIR0AAS01SBCG
Display Systems
Reduce energy consumption by
turning off when people are not
present
Replace buttons with left/right
hand motion
Attract people when they come
near
Home Appliances
Save energy by turning off large
appliances when people are not
present
Air conditioners
Ventilators
Air purifiers
Televisions
The unique features of the Z8 Encore! XP
®
MCU have permitted a revised look at the
traditional PIR based motion detector design. Combined with innovative software
techniques, this new approach has overcome the typical performance limitations of the
traditional design.
This “fresh” look has produced a revolutionary step in PIR detector technology called:
ePIR™ with Sigma Delta Technology
TM
ePIR with Sigma Delta Technology combines the high performance and rich peripheral
set of the Z8F042A Encore! XP MCU with powerful new motion detection software
algorithms to provide exceptional motion detection performance.
Taking full advantage of the high processing capabilities of the Z8F042A MCU, ePIR with
Sigma-Delta Technology uses a powerful new statistical processing method to provide
superior sensitivity and stability vs. traditional solutions.
The software automatically adapts to the environment eliminating the need for discrete
temperature compensation.
ePIR™ Motion Detection Zdots
®
Single Board Computer
3
APPLICATIONS
Lighting Control
Conveniently turn lights on
automatically
Direct interface to the PIR sensor provides a true, unaltered signal, allowing the software
to identify and react to drift, sensor stability and other false alarm sources.
This direct interface also eliminates the need for external components including large
electrolytic capacitors; improving reliability and ensuring the smallest possible form factor.
Reduce energy consumption by
automatically turning off lights
when people are not in the room
Lights do not turn on when
ambient light is sufficiently high
ePIR™ Motion Detection Zdots
®

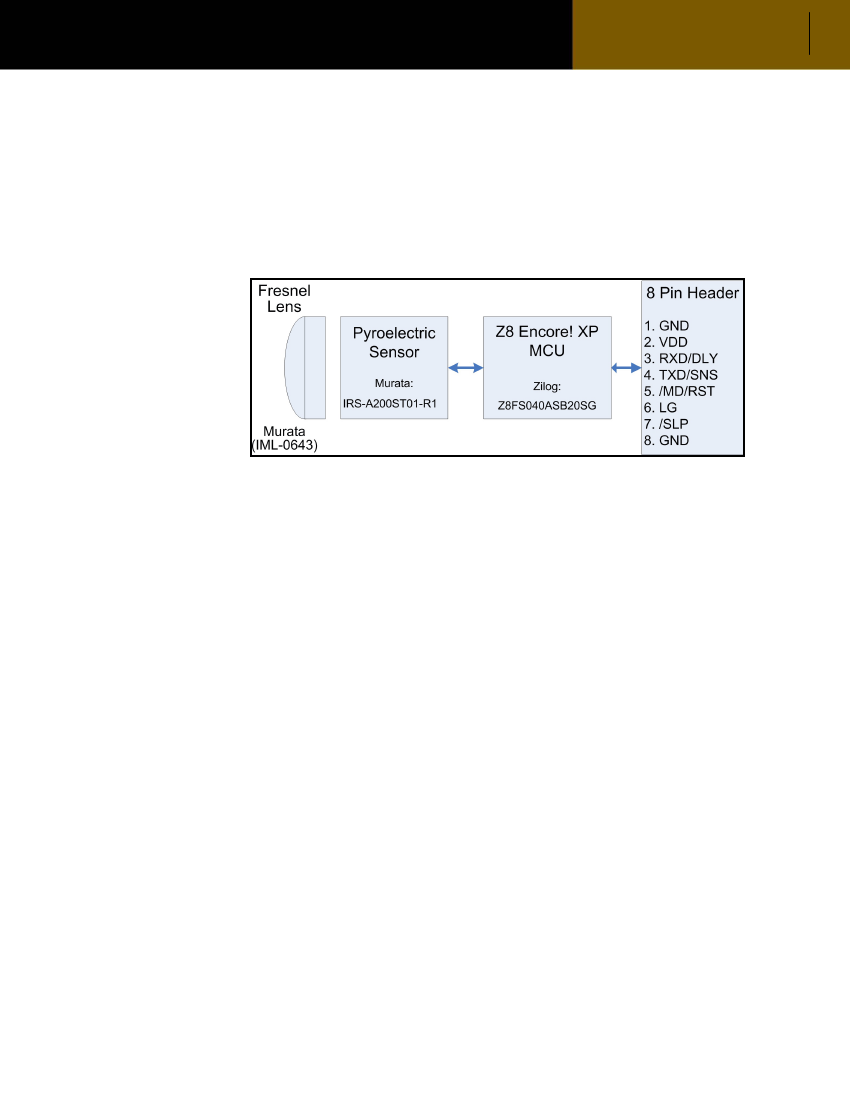

Single Board Computer Block Diagram
Adjustable delay from 1 second to
128 minutes
Access Control
Sense when someone
approaches a controlled entry
door
Automatically unlock the door
from one side while maintaining
access control on the other
Eliminates need for readers on
both sides of the door
The ePIR Motion Detection Zdots SBC uses a Fresnel lens to break up the radiated IR
energy into multiple concentrated images. These images are refracted on to the element
of the PIR sensor which generates a signal based on the change in energy. The signal is
fed directly to the Z8 Encore! XP MCU where it is analyzed by the motion detection
algorithms to determine if it is from a valid source.
Parameters for sensitivity and output timing are provided through a simple hardware
interface or more advanced settings and status are available through a serial interface
mode.
Modes of Operation
Hardware Interface Mode
Simple configuration via signal pins
Allows basic adjustments of sensitivity, delay and ambient light threshold
SLEEP mode to reduce power consumption (/SLP)
Digital output (/MD)
Analog inputs for Delay (DLY), Sensitivity (SNS) and Light Gate (LG)
ePIR™ Motion Detection Zdots
®
Single Board Computer
4
Serial Interface Mode
–
–
–
–
Advanced configuration and status via serial interface
/MD, LG and /SLP remain functional
The serial interface runs at: 9600 bps, no parity, 8 data bits and 1 stop bit
Provides access to additional features:
Wider selection of activation times, sensitivity and range
Low frequency rejection
Pulse count
Directional detection
Dynamic PIR Sensor Stabilization
In traditional motion detection designs, critical information about the PIR sensor health
and stability is lost. With a direct interface to the PIR sensor, the ePIR Motion Detection
Zdots SBC is able to dynamically monitor the PIR signal to determine when it has
stabilized. This significantly reduces the required power-on stabilization time.

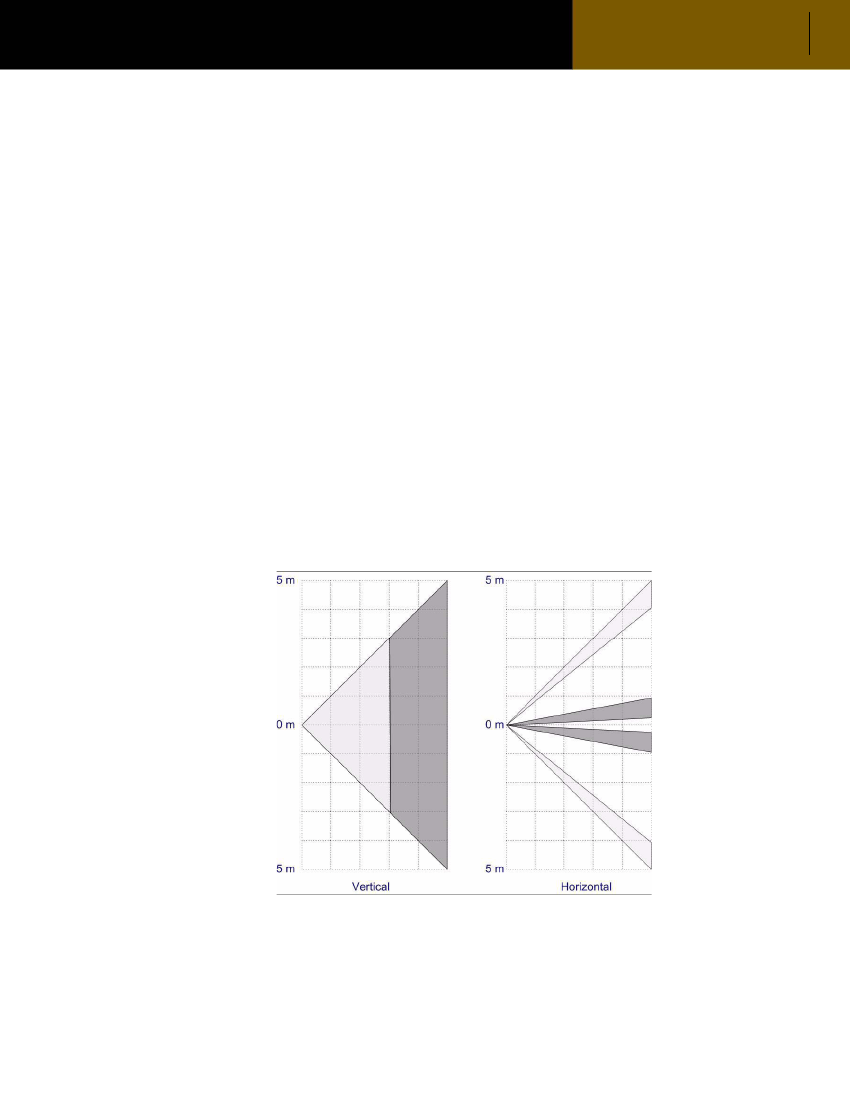

Detection Pattern
The lens on the ePIR Motion Detection Zdots Single Board Computer provides a typical
range of 5 m x 5 m with a 60 degree angle. The actual distance is dependent on the
sensitivity setting of the ePIR Motion Detection Zdots SBC.
ePIR™ Motion Detection Zdots
®
Single Board Computer
5
Electrical Characteristics
Power supply: 2.7 V to 3.6 V
Supply current: 8.9 mA (typical)
Supply current in SLEEP Mode: 2.3 mA
PIR Stabilization Timer: Dynamic
Output Drive Current: +/- 25 mA
Temperature Range: 0 °C to 70 °C
Ordering Information
Order the ePIR Motion Detection Zdots Single Board Computer from your local Zilog
Distributor using the part numbers below. For more information, or to download product
collateral and/or software, please visit us at
www.zilog.com.
Part Number
ZEPIR0AAS01SBCG
ZEPIR000101ZCOG
Description
ePIR™ Motion Detection Zdots
®
Single Board
Computer
ePIR™ Motion Detection Zdots
®
Single Board
Computer Development Kit
Documentation
The collateral referenced below is a sample of the documentation available for the ePIR
Motion Detection Zdots Single Board Computer. For a complete listing of all available
application notes, product specifications, user manuals, and sample libraries, please visit
us at
www.zilog.com.
Document
Number
PS0284
UM0223
Description
ePIR™ Motion Detection Zdots
®
Single Board Computer
Product Specification
ePIR™ Motion Detection Zdots
®
Single Board Computer
Development Kit User Manual
Z8 Encore! XP
®
F082A Series Product Specification
PS0228
