Evaluation Kit for PB50, PB58 Power Boosters
INTRODUCTION
This easy-to-use kit provides a platform for the evalua-
tion of the PB50 and PB58 high voltage power boosters.
The PB50 and PB58 are designed most commonly in
combination with a small signal, general purpose op
amp. However, they can also be used without a driver
amplifier. This kit can be used to analyze a multitude of
standard or proprietary circuit configurations.
GND
GND
GND
GND
GND
+Vcc
+Vcc
GND
1
1
OP AMP
OP AMP
+IN
PARTS LIST
Part #
HS13
EVAL01
MS03
HWRE02
HWRE05
TW0 3
Description
Heatsink
PC Board
Mating Socket
Hardware Kit
8-Pin Wire Wrap Socket
Thermal Washer
Quantity
1
1
1
1
1
1 Box/10
GND
GND
+Vs
–Vcc
–IN
GND
PB50
PB58
PB58
GND
GND
IN
GND
COM
GND
–Vs
GND
8"
HWRE02 contains the following:
4 #8 x .375" Panhead Screws
4 #8 x .375" Hex Spacers
4 #8 x 2.00" Hex Stand Offs
2 #6 x 1.25" Panhead Screws
2 #6 x 5/16" Hex Nuts
GND
GND
GND
GND
GND
GND
GND
RCL
RCL
GND
GND
GND
EVAL01
REV–B
REV–B
PIN1
CC
OUT
GND
GND
RG
RG
GND
GND
GND
EK 50

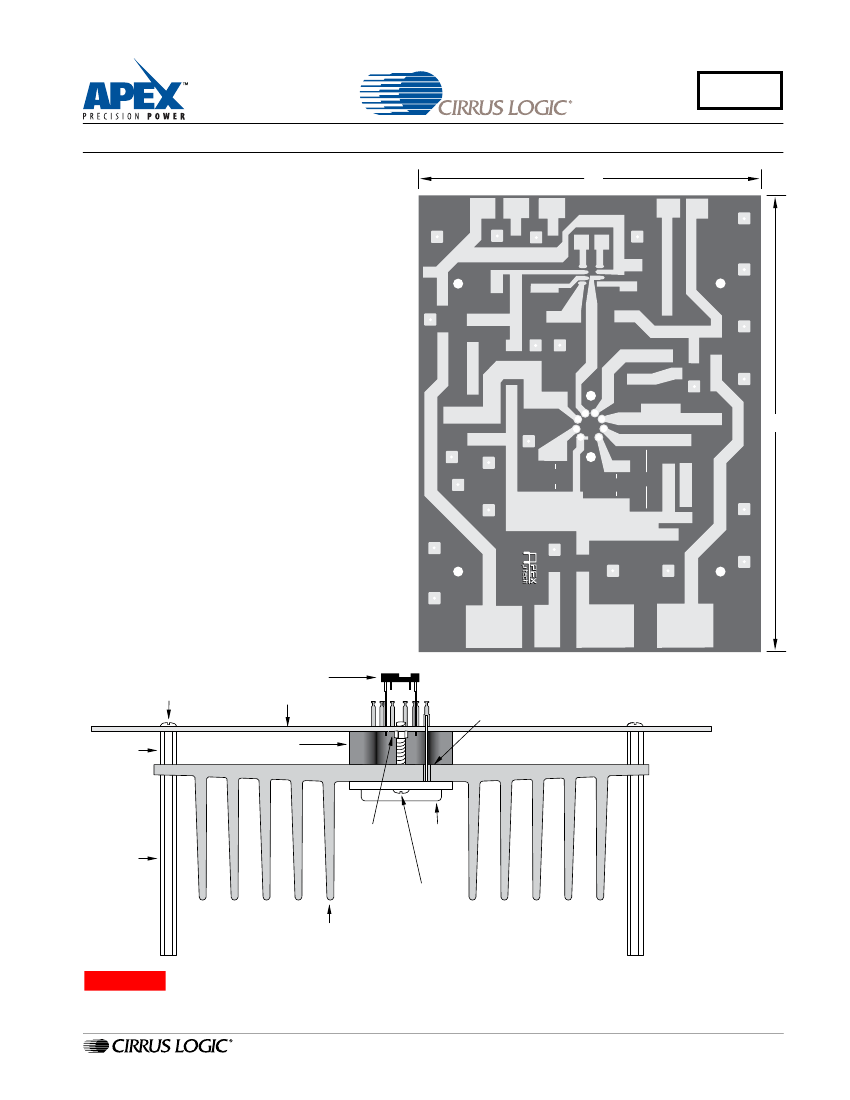

ASSEMBLY
#8 x .375" Panhead Screw
4 places typ
8-pin wire wrap socket
Eval01 PC Board
Teflon Tubing
(2 Opposite Pins
Minimum)
#8 x .375"
Hex Spacer
4 places typ
MS03 Mating Socket
#8 x 2.00"
Hex Standoff
4 places typ
Recessed Nuts
#6 x 5/16"
2 PlacesTyp
PB50/PB58
Package
#6 x 1.25"
Panhead Screws
2 Places Typ
HS13 Heatsink
CAUTION
1. Use thermal grease or Apex Precision Power Thermal Washer TW03 between power booster and heatsink.
2. Use 18 gauge teflon sleeve on at least two opposite pins
3. Mounting torque greater than 7 in•lbs on power booster mounting bolts will void warranty!
Copyright © Cirrus Logic, Inc. 2009
(All Rights Reserved)
EK50U
http://www.cirrus.com
MAY 2009
1
APEX − EK50UREVE
EK50
EQUIVALENT SCHEMATIC
P r o d u c t I n n o v a t i o nF r o m
+
+
+
–VCC
–VS
+
+
–IN
2
8
–
4
–VCC
+VCC
6
5
4
IN
6
RG
7
–VS
GAIN
1
PB50
OUT
PB58
COMP
5
CC
8
COM CL
+
2
+VS
3
+
AD707
+IN
3
OUT
+
1
7
GND
RCL
+VCC
+
+
+
+
+VS
