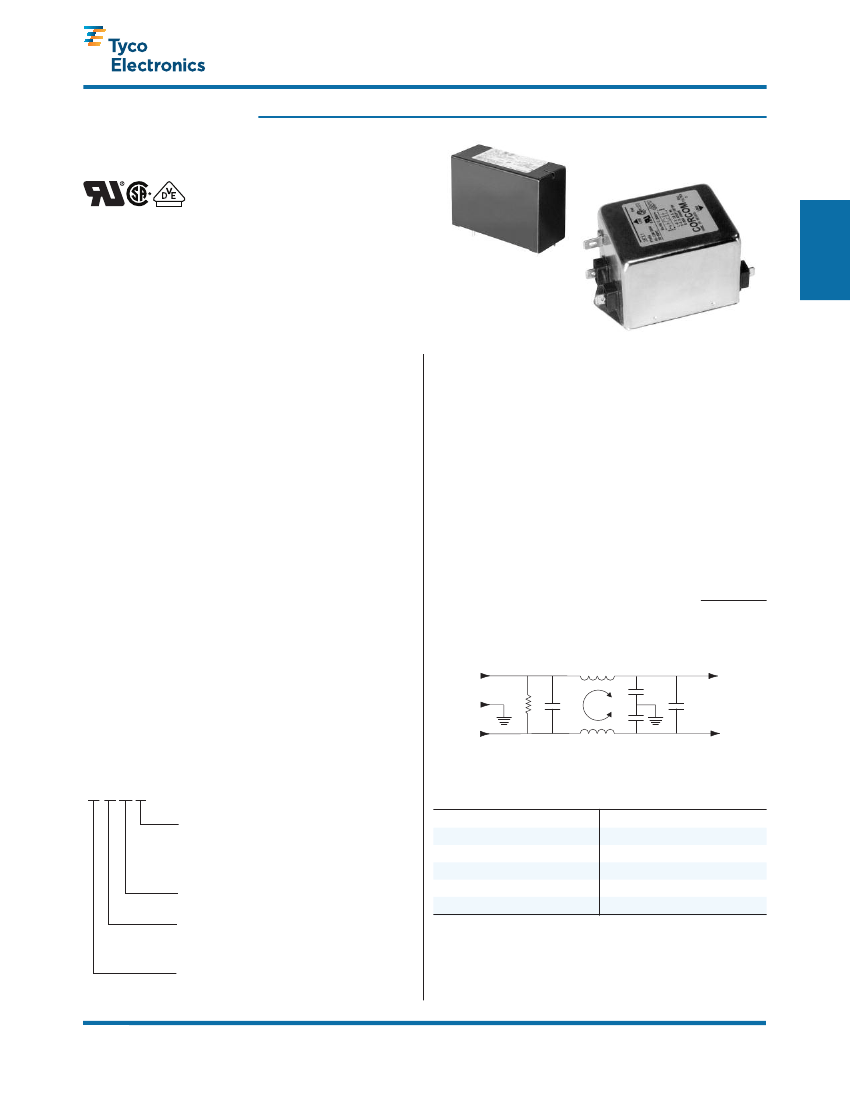

Corcom Product Guide
Catalog: 1654001
Issue Date: 08.2010
Chassis or PC Board Mountable Power Line Filters for Emission Control
X, Y, Z Series
UL Recognized
CSA Certified
VDE Approved
XP / YP / ZP
1
RFI Power Line Filters
3EX1 / 3EZ1
X, Y, Z Series
• Compact chassis or PC board mountable
• Three levels of performance
• Complete filtering solution in minimal size
Specifications
Maximum leakage current each Line to Ground:
@ 120 VAC 60 Hz:
.30 mA
@250 VAC 50 Hz:
.50 mA
Hipot rating (one minute):
Line to Ground:
Line to Line:
Rated Voltage (max):
Operating Frequency:
Rated Current:
2250 VDC
1450 VDC
250 VAC
50/60 Hz
1 to 6A
X Series
• Designed to bring most digital equipment
(including those with switching power supplies)
into compliance with FCC Part 15J, Class B
conducted emission limits
Y Series
• Designed to bring most digital equipment
(including those with switching power supplies)
into compliance with EN55022, Level A and FCC
Part 15J, Class B conducted emission limits
Operating Ambient Temperature Range
(at rated current Ir):
-10°C to +40°C
In an ambient temperature (Ta) higher than +40°C
the maximum operating current (Io) is calculated as
follows: Io = Ir
√(85-Ta)/45
Z Series
• Designed to bring most digital equipment
(including those with switching power supplies)
into compliance with EN55022, Level B and FCC
Part 15J, Class B conducted emission limits
Electrical Schematic
LINE
LOAD
Ordering Information
3EX1
Input / Output Style
1 – .250 [6.3] spade terminals
P – PC board pins
X, Y or Z Series
Leakage current designation
E – Low leakage
(<0.5 mA)
Current Rating
1, 2, 3, 4 or 6A
Available Part Numbers
3EXP
3EX1
4EXP
6EXP
2EYP
3EYP
4EYP
1EZP
2EZP
3EZP
3EZ1
91
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
tycoelectronics.com/help
corcom.com
Corcom Product Guide
Catalog: 1654001
Issue Date: 08.2010
(continued)
Chassis & PC Board Mountable RFI Filters for Emission Control
X, Y, Z Series
Case Styles
X1 & Z1
Case Dimensions
Part No.
3EXP
B
A
(max)
B
(max)
C
(max)
± .015
± .38
D
E
(max)
3EX1
D
E
A
Typical Dimensions:
Line/Load Terminals (4):
Ground Terminal (1):
Mounting Holes (2):
C
4EXP
6EXP
.250 [6.3] with .07 [1.8] Dia. hole
.250 [6.3] with .07 x .16 [1.8
x 3.8]
slot
.188 [4.78] Dia.
2EYP
3EYP, 4EYP
XP, YP & ZP
A
1EZP
2EZP, 3EZP
3EZ1
2.61
66.3
3.01
76.7
2.61
66.6
2.61
66.3
2.61
66.3
2.61
66.3
2.61
66.3
2.61
66.3
3.54
89.9
1.13
28.7
1.84
46.8
1.13
28.7
1.13
28.7
1.13
28.7
1.13
28.7
1.13
28.7
1.13
28.7
2.08
52.8
1.62
41.1
1.16
29.46
1.62
41.1
1.75
44.5
1.62
41.1
1.75
44.5
1.62
41.1
1.75
44.5
1.31
33.3
—
2.375
60.33
—
—
—
—
—
—
2.938
74.63
—
2.79
70.87
—
—
—
—
—
—
3.35
85.1
C
Recommended PC Board Layout
2.660
67.56
0.123
Min.
3.12
.605
15.37
1.050
26.67
1.850
46.99
Grounds
B
Line
side
Load
side
1.190 .700
30.23 17.78
.350
8.89
Typical Dimensions:
Pins (5):
0.065 [0.635] max. diagonal
.245
6.22
.150
3.81
Tolerance ± .006 [.152]
Holes(6): .075 [1.91] Dia.
92
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
tycoelectronics.com/help
corcom.com
Corcom Product Guide
Catalog: 1654001
Issue Date: 08.2010
(continued)
Chassis & PC Board Mountable RFI Filters for Emission Control
X, Y, Z Series

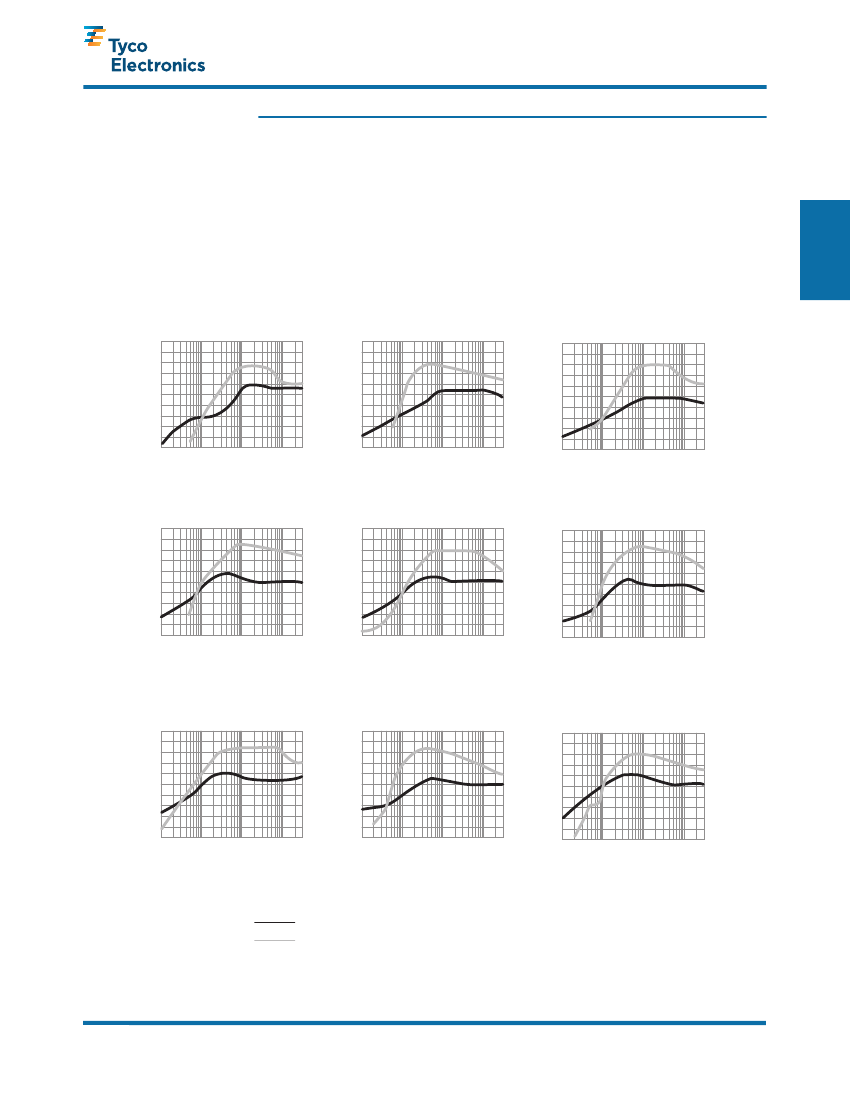

Performance Data
Typical Insertion Loss
Measured in closed 50 Ohm system
1
4EX
db
100
90
80
70
60
50
40
30
20
10
3EX
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
6EX
db
100
90
80
70
60
50
40
30
20
10
RFI Power Line Filters
0
0.01
0.1
1
10
30
Frequency in MHz
0
0.01
0.1
1
10
30
Frequency in MHz
2EY
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
3EY
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
4EY
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
1EZ
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
2EZ
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
3EZ
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
Common Mode / Asymmetrical (L-G)
Differential Mode / Symmetrical (L-L)
93
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
tycoelectronics.com/help
corcom.com
Corcom Product Guide
Catalog: 1654001
Issue Date: 08.2010
(continued)
Chassis & PC Board Mountable RFI Filters for Emission Control
Performance Data
(Continued)
Minimum Insertion Loss
Measured in closed 50 Ohm system
Common Mode / Asymmetrical (Line to Ground)
Part No.
X Series
3A
4A
6A
Y Series
2A
3A
4A
Z Series
1A
2A
3A
18
18
15
32
32
29
43
45
39
47
41
43
44
40
42
43
40
40
43
40
40
45
40
40
8
11
5
21
24
18
31
36
28
49
43
45
44
40
40
40
40
40
40
40
40
40
40
36
2
2
2
13
13
11
21
22
20
35
38
35
46
44
40
44
44
40
44
44
40
44
38
36
.01
.05
Frequency – MHz
.15 .5
1
5
10
30
Differential Mode / Symmetrical (Line to Line)
Part No.
X Series
3A
4A
6A
Y Series
2A
3A
4A
Z Series
1A
2A
3A
7
2
-
29
15
10
34
31
26
43
40
34
62
57
53
70
75
75
70
70
75
70
65
70
60
55
60
55
50
55
-
-
-
-
-
-
10
10
6
19
20
18
40
42
41
70
68
67
75
68
75
70
67
70
60
62
65
55
50
55
-
-
-
-
-
-
-
-
-
5
10
3
34
37
31
60
70
65
65
70
70
60
70
70
45
65
65
50
55
55
Frequency – MHz
.02 .03 .05 .07 .15 .5 1 5
10 30
94
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
tycoelectronics.com/help
corcom.com
