Corcom Product Guide
Catalog: 1654001
Issue Date: 08.2010

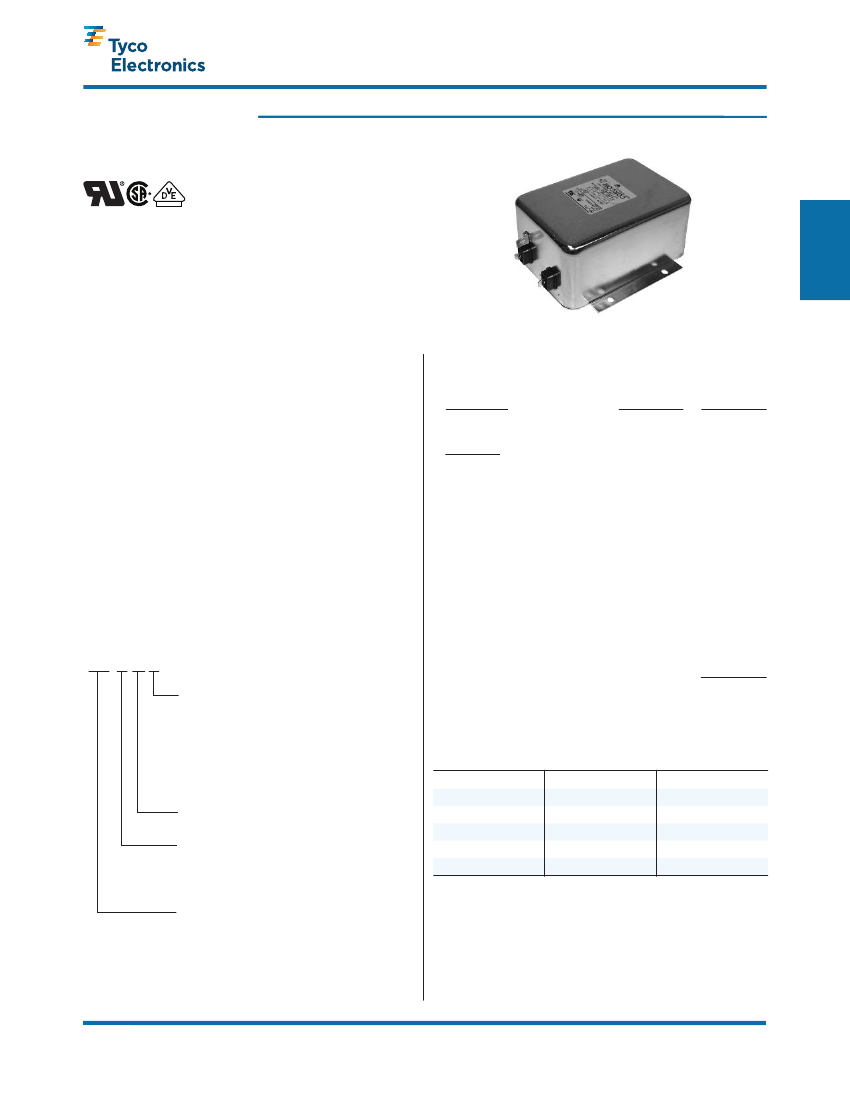

High Performance RFI Power Line Filters for Switching Power Supplies
T Series
UL Recognized
CSA Certified
VDE Approved
1
RFI Power Line Filters
Specifications
Maximum leakage current each Line to Ground:
3, 6 & 10A
ET Models VT Models
@120 VAC 60 Hz:
.30 mA
.75 mA
@250 VAC 50 Hz:
.50 mA
1.2 mA
15 & 20A
@120 VAC 60 Hz:
.30 mA
1.2 mA
@250 VAC 50 Hz:
.50 mA
2.0 mA
Hipot rating (one minute):
Line to Ground:
Line to Line:
Rated Voltage (max):
Operating Frequency:
Rated Current:
T Series
• Superior common-mode and premium
differential-mode attenuation
• Smaller package sizes than the EP Series
• Size and cost-effective
• ET models can help meet very low leakage
current requirements
2250 VDC
1450 VDC
250 VAC
50/60 Hz
3 to 20A
Ordering Information
10 E T 1
Input / Output Style
1 – .250 [6.3] spade terminals
3 – Wire leads
6 – Threaded bolt
7 – IEC inlet*
(line side)
.250 [6.3] spade terminals
(load side)
Operating Ambient Temperature Range
(at rated current Ir):
-10°C to +40°C
In an ambient temperature (Ta) higher than +40°C
the maximum operating current (Io) is calculated as
follows: Io = Ir
√(85-Ta)/45
Available Part Numbers
3ET1
3ET3
3ET7
6ET1
6ET3
6ET7
10ET1
10ET3
15ET1
15ET6
20ET1
20ET6
10VT1
10VT3
15VT1
15VT6
20VT1
20VT6
T Series
Leakage current designation
E – Low leakage
(<0.5 mA)
V – Standard
Current Rating
3, 6, 10, 15 or 20A
*IEC 60320-1 C14 inlet mates with C13 connector
79
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
tycoelectronics.com/help
corcom.com
Corcom Product Guide
Catalog: 1654001
Issue Date: 08.2010
(continued)
High Performance RFI Filters for Switching Power Supplies

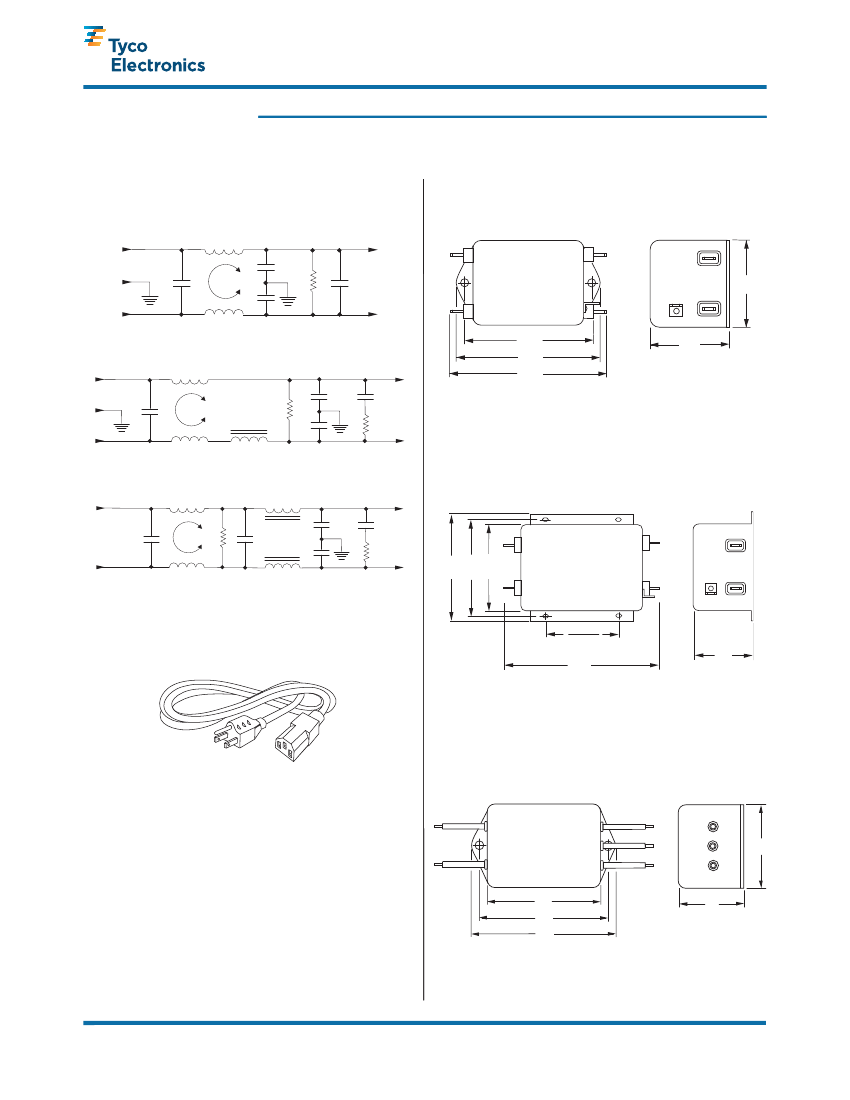

T Series
Electrical Schematics
3 & 6A
LINE
LOAD
Case Styles
T1
(3, 6, 10A)
B
10A
LINE
LOAD
D
E
A
Typical Dimensions:
Line/Load Terminals (4):
Ground Terminal (1):
Mounting Holes (2):
C
.250 [6.3] with .07 [1.8] Dia. hole
.250 [6.3] with .07 x .16 [1.8
x 3.8]
slot
.188 [4.78] Dia.
15 & 20A
LINE
LOAD
T1
(15 & 20A)
E
D B
Accessories
GA400: NEMA 5-15P to IEC 60320-1 C-13 line cord
Typical Dimensions:
Line/Load Terminals (4):
Ground Terminal (1):
Mounting Slots (4):
2.00± .01
50.8± .25
A
.250 [6.3] with .07 [1.8] Dia. hole
.250 [6.3] with .07 x .16 [1.8
x 3.8]
slot
.250 x .156 [6.35
x 3.96]
Dia.
C
T3
Blue
Blue
Grn/Yel
Brown
Brown
B
A
D
E
Typical Dimensions:
Wire Leads (5):
Mounting Holes (2):
4.0 [101.6] Min., AWG18
.188 [4.78] Dia.
C
80
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
tycoelectronics.com/help
corcom.com
Corcom Product Guide
Catalog: 1654001
Issue Date: 08.2010
(continued)
High Performance RFI Filters for Switching Power Supplies
T Series
Case Styles
(continued)
T6
Case Dimensions
Part No.
3ET1, 6ET1
E
D
B
A
(max)
B
(max)
C
(max)
± .015
± .38
D
E
(max)
3ET3, 6ET3
3ET7, 6ET7
2.00 ± .01
50.8 ± .25
10ET1, 10VT1
C
8-32, Torque 18 lbf-in. [2.03 N-m] max. ± 2 [.22]
.250 x .156 [6.35
x 3.96]
Dia.
A
Typical Dimensions:
Terminals (5):
Mounting Slots (4):
10ET3, 10VT3
15ET1, 15VT1,
20ET1, 20VT1
15ET6, 15VT6,
20ET6, 20VT6
T7
Tapped insert
3.56
90.4
2.55
64.8
3.52
89.4
4.69
119.1
3.69
93.7
5.45
138.4
5.95
151.1
2.15
54.6
2.15
54.6
2.25
57.2
2.27
57.7
2.27
57.7
3.12
79.2
3.12
79.2
1.81
46.0
1.81
46.0
1.78
45.2
1.80
45.7
1.80
45.7
2.18
55.4
2.18
55.4
2.938
74.63
2.938
74.63
1.575
40.01
4.063
103.2
40.63
103.2
3.5
88.9
3.5
88.9
3.38
85.9
3.38
85.9
0.63
*
16.0
*
4.47
113.5
4.47
113.5
3.96
100.6
3.96
100.6
*±0.02 [0.5]
1
RFI Power Line Filters
D B
E
A
Typical Dimensions:
Load Terminals (2):
Ground Terminal (1):
Line Inlet (1):
Tapped Inserts (2):
C
.250 [6.3] with .07 [1.8] Dia. hole
.250 [6.3] with .07 x .16 [1.8
x 3.8]
slot
IEC 60320-1 C14
6-32 x 1/4
Recommended Panel Cutout
.235
R
5.96
.157 Dia.
3.98
.910
23.1
1.295
32.89
1.575
40.01
Tolerance ± .005 [0.13]
81
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
tycoelectronics.com/help
corcom.com
Corcom Product Guide
Catalog: 1654001
Issue Date: 08.2010
(continued)
High Performance RFI Filters for Switching Power Supplies
T Series

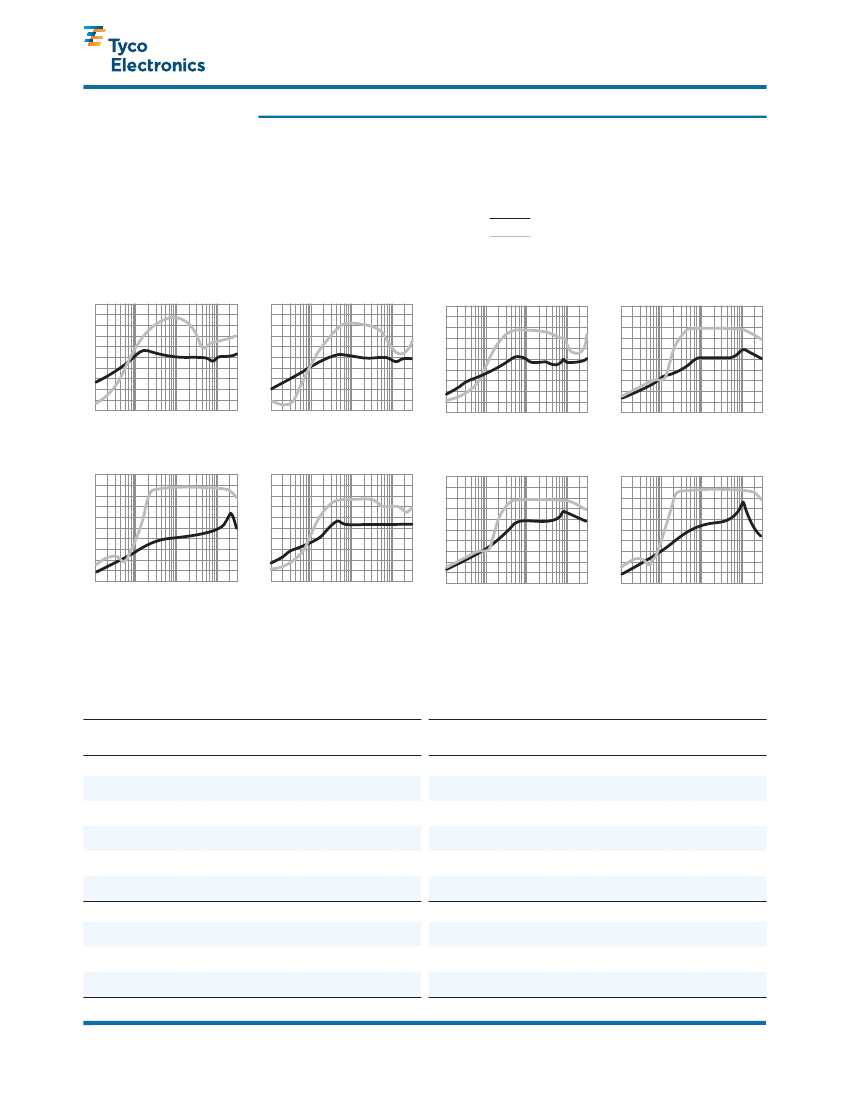

Performance Data
Typical Insertion Loss
Measured in closed 50 Ohm system
Common Mode / Asymmetrical (L-G)
Differential Mode / Symmetrical (L-L)
3ET
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
6ET
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
10ET
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
15ET
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
20ET
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
10VT
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
15VT
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
20VT
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
Minimum Insertion Loss
Measured in closed 50 Ohm system
Common Mode / Asymmetrical (Line to Ground)
Current
Rating
ET Models
3A
6A
10A
15A
20A
VT Models
10A
15A
20A
82
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
tycoelectronics.com/help
corcom.com
Differential Mode / Symmetrical (Line to Line)
Current
Rating
ET Models
3A
6A
10A
15A
20A
VT Models
Frequency – MHz
.01 .03 .05 .15 .5 1 2 5 10 20 30
3
4
7
1
2
30 61
14 51
70
70
70
70
70
70
70
70
70
70
70
70
70
70
70
50
65
65
70
70
50
47
55
70
67
50
50
50
65
65
55
55
60
60
60
Frequency – MHz
.01 .03 .05 .15 .5 1 2 5 10 20 30
22 32 36 46
16 26 30 41
12 22 26 36
8
3
17 22 31
12 17 26
47
47
47
43
34
44
44
42
44
36
43
43
42
44
37
40
43
40
42
37
42
40
42
47
42
42
42
42
52
47
42
42
45
43
38
12 17 52
12 19 15 51
10 17 13 51
12 22 26 38
8
3
17 22 33
12 17 29
52
52
42
50
52
47
50
52
50
50
52
51
50
57
55
50
45
40
50
35
30
10A
15A
20A
7
12 17 52
70
70
70
70
70
70
70
70
70
65
70
70
65
70
67
50
65
65
65
60
60
12 19 15 51
10 17 13 51
