RV24A-40-15R1-B13: DescriptionPanel mount potentiometer linear PC 1K right angle PC mount; CategoryPassive components; File Size20KB，1 Pages; ManufacturerAll Sensors

Download Datasheet Parametric Compare View All

RV24A-40-15R1-B13 Overview

Panel mount potentiometer linear PC 1K right angle PC mount

RV24A-40-15R1-B13 Parametric

Parameter Name	Attribute value
Maker	All Sensors
RoHS	no
resistance	1 KOhms
Power rating	0.5 Watt (1/2 Watt)
Termination type	Pi
taper	Line
Shaft type	Round / Plai
Shaft length	0.591 i
Shaft diameter	0.25 i
product	Panel Mount Potentiometers

Preview

Download Datasheet

View All

MOUSER STOCK NO.

MOUSER

E LECTRONICS

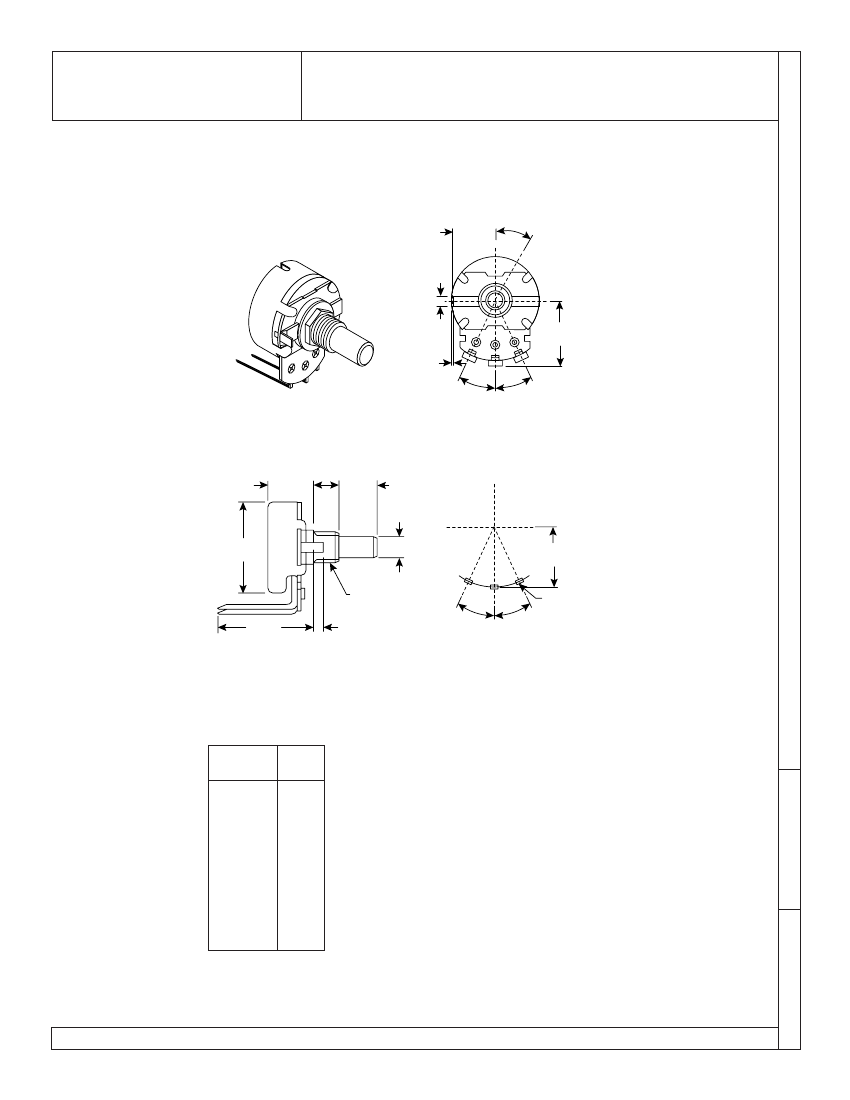

31VQ Series

Potentiometers

.472

30°

31VQ Series

.110

.740

.047

25°

Shaft Shown in

Full C.C.W. Position

.256

.453

.335

ø.945

ø.250

R .720

M8 x .75mm

.972

.098

25°

.039 x .087

Potentiometers

Dimensions (In.)

(except where noted)

Mouser

Stock No.

31VQ205

31VQ301

31VQ305

31VQ401

31VQ403

31VQ405

31VQ501

31VQ503

31VQ505

31VQ601

Value

(Ω)

500

1K

5K

10K

25K

50K

100K

250K

500K

1 Meg

Specifications:

•

Type: linear taper with PCB terminals

•

Total rotation angle: 300° ± 5°

•

Rotation torque: 20~200 gf.cm

•

Shaft Stop Strength: >6Kgf.cm min.

•

Rated voltage: 500V

•

Power rating: 0.5W

•

Dielectric: 500VAC for 1 minute

•

Insulation resistance: >100MΩ @ 500VDC

8-

143116

Date:

6-25-97

Quality, Speed, & Service

(800) 346-6873

http://www.mouser.com
