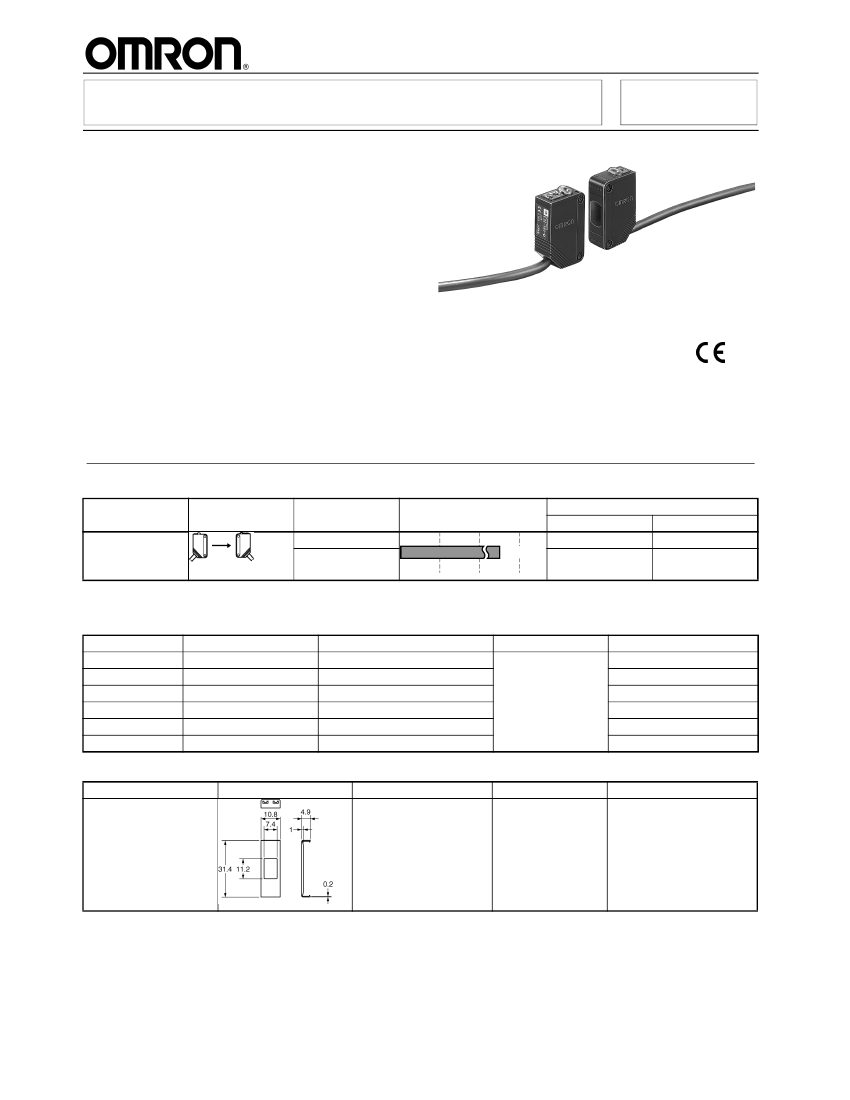

Through-Beam Sensor with Visible Red LED
Visible Beam Allows Visual
Confirmation of the Detection Spot, for
Easy Installation and Maintenance
I
I
I
I
I
I
I
E3Z-TA
Built-in amplifier
Mutual interference protection filter included
in product offering
Long sensing distance: 10 M
Prewired or connector models
Light-ON/Dark-ON switch-selectable
Noise Immunity due to IC chip design
IP67, CE approved
Ordering Information
I
Standard Models
Appearance
Connection method Sensing distance
Prewired (2 m)
Connector
Part number
NPN output
E3Z-T61A
E3Z-T66A
PNP output
E3Z-T81A
E3Z-T86A
Sensing method
Through-beam
10 m
I
Accessories (Order Separately)
Sensing distance (typical)
35 mm
150 mm
550 mm
700 mm
1.5 m
3.5 m
Minimum sensing target (typical)
0.2 mm dia.
0.4 mm dia.
0.7 mm dia.
0.2 mm dia.
0.5 mm dia.
0.8 mm dia.
Quantity
One for the emitter
and one for the
receiver
Part number
E39-S65A
E39-S65B
E39-S65C
E39-S65D
E39-S65E
E39-S65F
Slit
Slit width
0.5 mm dia.
1 mm dia.
2 mm dia.
0.5
×
10 mm
1
×
10 mm
2
×
10 mm
Mutual Interference Protection Filter
Sensing distance
3m
Dimensions
Comments
The arrow indicates the
direction of polarized light.
Mutual interference can be
prevented by altering the
direction of polarized light
from or to adjacent
emitters and receivers.
Quantity
Two filters for the
emitter and two for
the receiver (total of
four)
Part number
E39-E11
I
Brackets
(All
E3Z Models Use Common Brackets)
To order, you’ll find the appropriate brackets for the E3Z-TA when you refer to the basic E3Z Photoelectric Sensor data sheet on Omron’s
web site @www.omron.com/oei, or refer to the Sensing Products Catalog.
I
M8 Connectors
(All
E3Z Models Use Common Connectors)
To order M8 Connectors, see the basic E3Z Photoelectric Sensor data sheet on Omron’s web site @www.omron.com/oei, or refer to the
Sensing Products Catalog.
1
E3Z-TA
E3Z-TA
Specifications
I
Ratings/Characteristics
Sensing method
NPN output
PNP output
Through-beam
E3Z-T61A/T66A
E3Z-T81A/T86A
10 m
Opaque: 12-mm dia. min.
Both emitter and receiver: 3
°
to 5
°
Red LED (700 nm)
12 to 24 VDC ±10%
Emitter: 15 mA
Receiver: 20 mA
Load power supply voltage: 26.4 VDC max.
Load current: 100 mA max. (Residual voltage: 1 V max.)
Open collector output (NPN or PNP depending on model)
L-ON/D-ON switch-selectable
Protection from load short-circuit and reversed power supply connection
Operation or reset: 1 ms max.
One-turn potentiometer
Incandescent lamp: 3,000 lux max.
Sunlight: 10,000 lux max.
Operating:
−
25
°
C to 55
°
C (
−
13
°
F to 131
°
F)
Storage:
−
40
°
C to 70
°
C (
−
40
°
F to 158
°
F) with no icing or condensation
Operating: 35% to 85%/Storage: 35% to 95% (with no condensation)
20 M
Ω
min. at 500 VDC
1,000 VAC, 50/60 Hz for 1 min
10 to 55 Hz, 1.5-mm double amplitude or 300 m/s
2
for 2 hours each in X, Y, and Z directions
500 m/s
2
3 times each in X, Y, and Z directions
IP67 (IEC60529)
Prewired cable (standard length: 2 m) or M8 connector model
Operation indicator (orange)
Stability indicator (green)
Emitter has power indicator (orange) only.
Approx. 120 g (4.23 oz.)
Approx. 30 g (1.06 oz.)
PBT (polybutylene terephthalate)
Methacrylate resin
Instruction manual
Item
Sensing distance
Standard sensing target
Directional angle
Light source (wave length)
Power supply voltage
Current consumption
Control output
Circuit protection
Response time
Sensitivity adjustment
Ambient illumination (receiver side)
Ambient temperature
Ambient humidity
Insulation resistance
Dielectric strength
Vibration resistance
Shock resistance
Degree of protection
Connection method
Indicator
Weight (packed state) Prewired cable (2 m)
Connector
Material
Case
Lens
Accessories

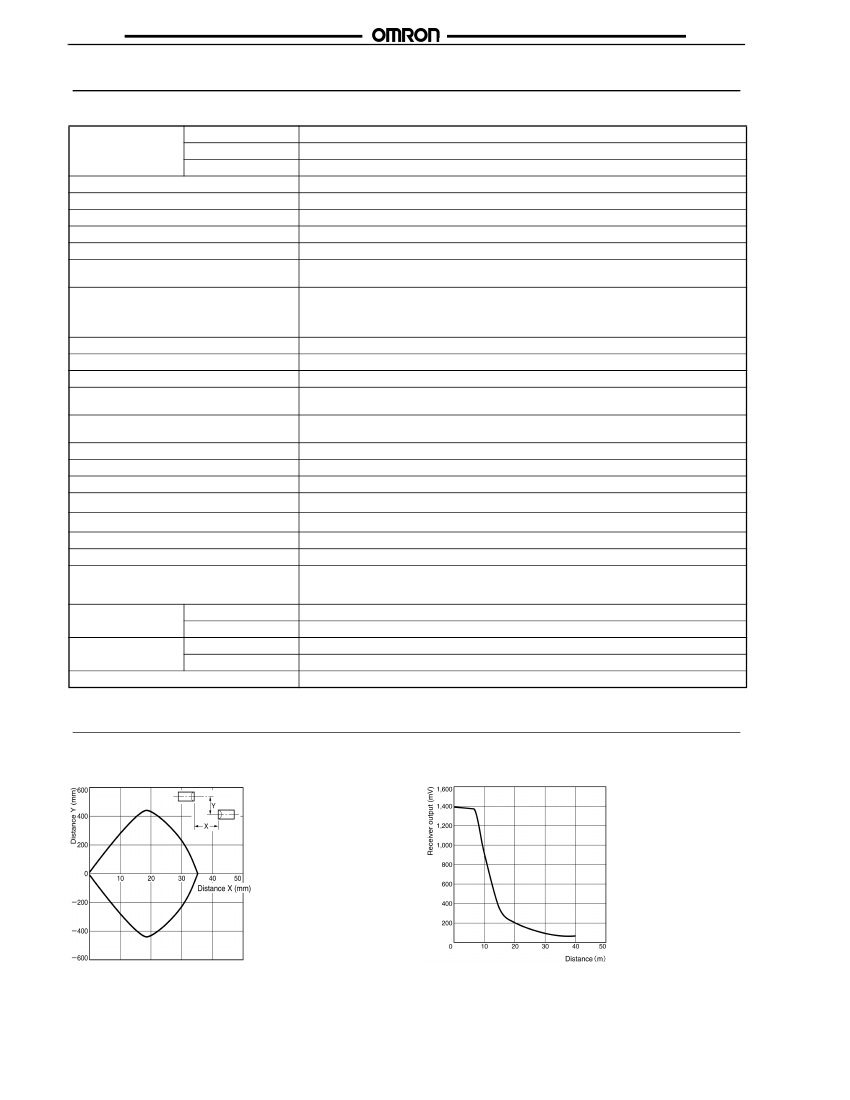

Engineering Data
I
Parallel Operating Range (Typical)
I
Receiver Output vs. Distance (Typical)
E3Z-T!A
!
E3Z-T!A
!
2
E3Z-TA
E3Z-TA

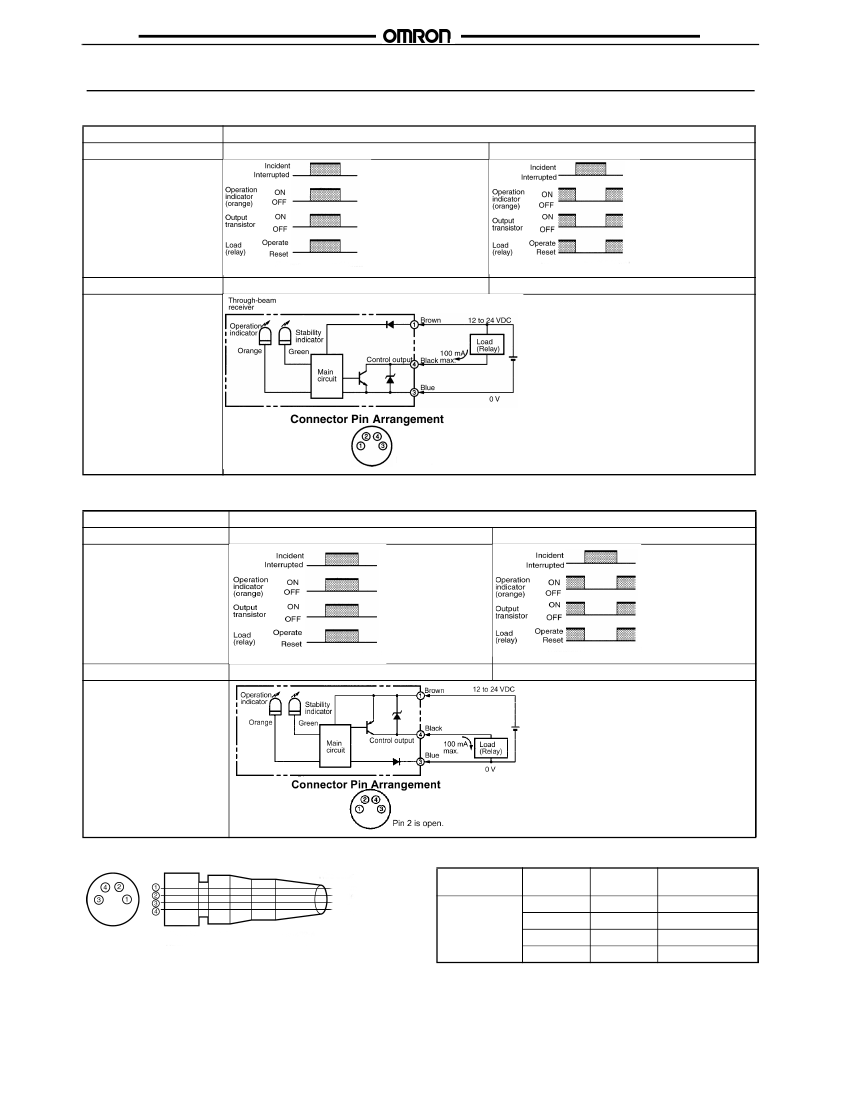

Operation
I
NPN Output
E3Z-T61A/E3Z-T66A
Light ON
Dark ON
Model
Output transistor status
Timing chart
Mode selector
Output circuit
Light ON (L/ON)
Dark ON (D/ON)
I
PNP Output
E3Z-T81A/T86A
Light ON
Dark ON
Model
Output transistor status
Timing chart
Mode selector
Output circuit
Light ON (L/ON)
Dark ON (D/ON)
Structure of Sensor I/O Connector
Wire color
Brown
White
Blue
Black
XS3F-M421-402-A
XS3F-M421-405-A
XS3F-M422-402-A
XS3F-M422-405-A
Classification
DC
Wire color
Brown
White
Blue
Black
Connector
pin No.
1
2
3
4
Use
Power supply (+V)
Pin 2 is not used.
Power supply (0 V)
Output
3
E3Z-TA
E3Z-TA

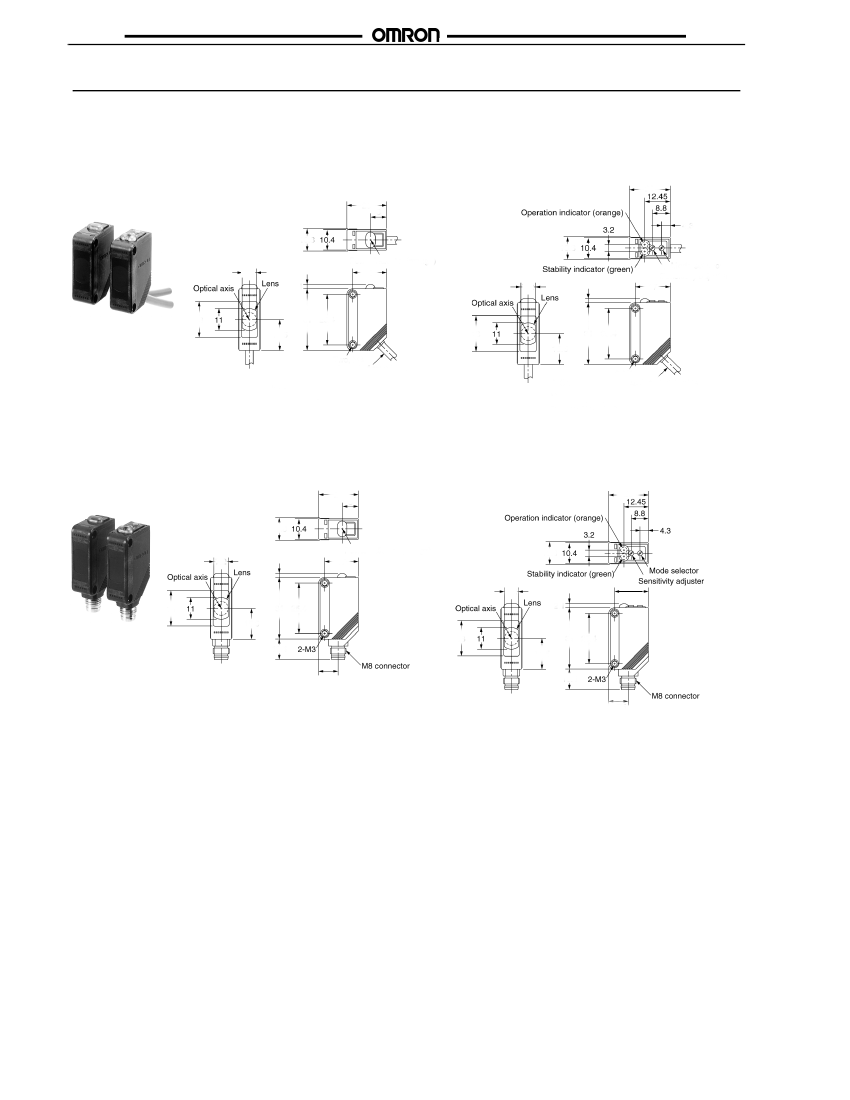

Dimensions
Unit: mm (inch)
I
Sensors
Prewired Through-beam Models
E3Z-T61A
E3Z-T81A
20 (0.79)
20 (0.79)
8 (0.31)
4.3 (0.17)
10.8 (0.43)
10.8 (0.43)
7.2 (0.28)
2.1 (0.08)
17 (0.67)
7.2 (0.28)
18
(0.71)
15.5
(0.61)
31
(1.22) 25.4
(1.00)
2.1 (0.08)
Mode selector
Sensitivity adjuster
17 (0.67)
18
(0.71)
31
25.4
(1.22) (1.00)
15.5 (0.61)
2-M3
4-dia., 2-core vinyl-insulated round cable (Conductor
cross-section: 0.02mm
2
; Insulator diameter: 1.1 mm)
Standard length: 2m
2-M3
4-dia., 2-core vinyl-insulated round cable (Conductor
cross-section: 0.02mm
2
; Insulator diameter: 1.1 mm)
Standard length: 2m
Through-beam Models with Connector
E3Z-T66A
E3Z-T86A
20 (0.79)
8 (0.31)
10.8 (0.43)
Power indicator (orange)
17 (0.67)
10.8 (0.43)
(0.17)
20 (0.79)
7.2 (0.28)
2.1 (0.08)
18
(0.71)
15.5 (0.61)
31
(1.22) 25.4
(1.00)
18
(0.71)
7.2 (0.28)
2.1 (0.08)
17 (0.67)
10.4 (0.41)
9.75 (0.38)
15.5 (0.61)
31
(1.22) 25.4
(1.00)
10.4
(0.41)
9.75 (0.38)
I
Accessories
Brackets, M8 Connectors, and Slits
For dimensions of Brackets, M8 Connectors, or Slits, see the Dimensions Section in the basic E3Z Photoelectric Sensor data sheet on
Omron’s web site @www.omron.com/oei, or refer to the E3Z in Omron’s Sensing Products Catalog.
4
E3Z-TA
E3Z-TA

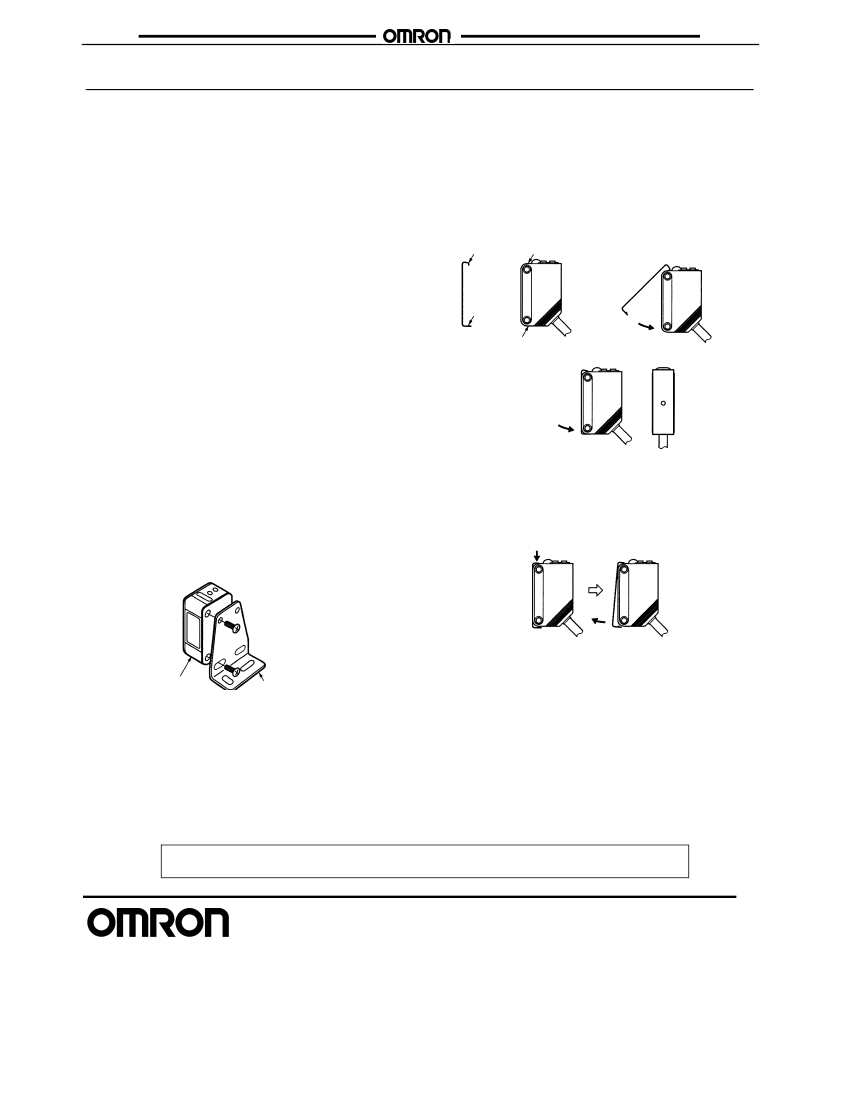

Precautions
To ensure safe sensor operation, please follow these precautions.
I
Wiring
I
Mounting and Adjusting Slits
Power Supply Voltage
Make sure that the power supply to the Sensor is within the rated
voltage range.
Load Short-Circuiting
Do not short-circuit the load, or the Sensor may be damaged.
Polarity
Correct polarity wiring is required to prevent damage to the sensor.
• Hook the upper protruding portion of the Slit to the upper
indented mounting portion of the Sensor and adjust the
position of the Slit so that the Slit will be parallel to
the lens side of the Sensor. (See area 1, in the
illustration below.)
• Then, press the lower protruding portion of the Slit onto
the indented mounting portion of the Sensor until the Slit
snaps in. (See area 2, shown below.)
Sensor
Slit
Hook
Upper indented
mounting portion
1
Connection without Load
Do not connect the power supply to the Sensor when no load
is connected, or the internal elements may explode or burn.
I
Operating Environment
Settings
Do not use the Sensor in locations with explosive or flammable
gas.
I
Protruding
portion
2
Lower indented
mounting portion
Power Reset Time
When the E3Z-TA is turned ON, there is a 100 ms delay time
before operation. If the load and the Sensor are connected to
independent power supplies, be sure to turn ON the sensor
before
turning ON the load.
I
• Mounting views
Side view
Front view
Connections
Removal Method
M8 Metal Connector
• Turn OFF the power before disconnecting the sensor.
• Remove the connector cover before connecting or disconnecting
the metal connector.
• Secure the connector cover by hand. Do not use pliers, or the
connector may be damaged.
• The proper tightening torque range is between 0.3 and 0.4 N
"
m.
• Press the upper portion of the Slit. (See area 1, shown below.)
• Then, disconnect the lower protruding portion of the Slit from the
Sensor and remove the Slit. (See area 2, shown below.)
1
2
E3Z-TA
(bracket sold separately)
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
OMRON ELECTRONICS LLC
One East Commerce Drive
Schaumburg, IL 60173
OMRON ON-LINE
Global - http://www.omron.com
USA - http://www.omron.com/oei
Canada - http://www.omron.com/oci
OMRON CANADA, INC.
885 Milner Avenue
Scarborough, Ontario M1B 5V8
1-800-55-OMRON
Cat. No. CEDSAX4
11/01
416-286-6465
Printed in USA
Specifications subject to change without notice
5
