MTSMC-G2-GP-ED-SP datasheet, PDF

Datasheet> All Categories > Module/solution> MTSMC-G2-GP-ED-SP

MTSMC-G2-GP-ED-SP: DescriptionRF modules and development tools 900/1800mhz w/uni IP+gps quad band; CategoryModule/solution; File Size424KB，2 Pages; ManufacturerMultiTech; Websitehttps://www.multitech.com; Environmental Compliance

Download Datasheet Parametric Compare View All

MTSMC-G2-GP-ED-SP Overview

RF modules and development tools 900/1800mhz w/uni IP+gps quad band

MTSMC-G2-GP-ED-SP Parametric

Parameter Name	Attribute value
Maker	MultiTech
Product Category	RF modules and development tools
RoHS	yes
product	RF Modules
maximum frequency	1900 MHz
Output Power	1.2 W
antenna	UFL
Supply voltage (maximum)	5 V
Supply current	113 mA
Maximum operating temperature	+ 85 C
Encapsulation	Bulk
Board size	3.1 in x 1.4 in x 0.5 i
minimum frequency	850 MHz
Minimum operating temperature	- 40 C

Preview

Download Datasheet

View All

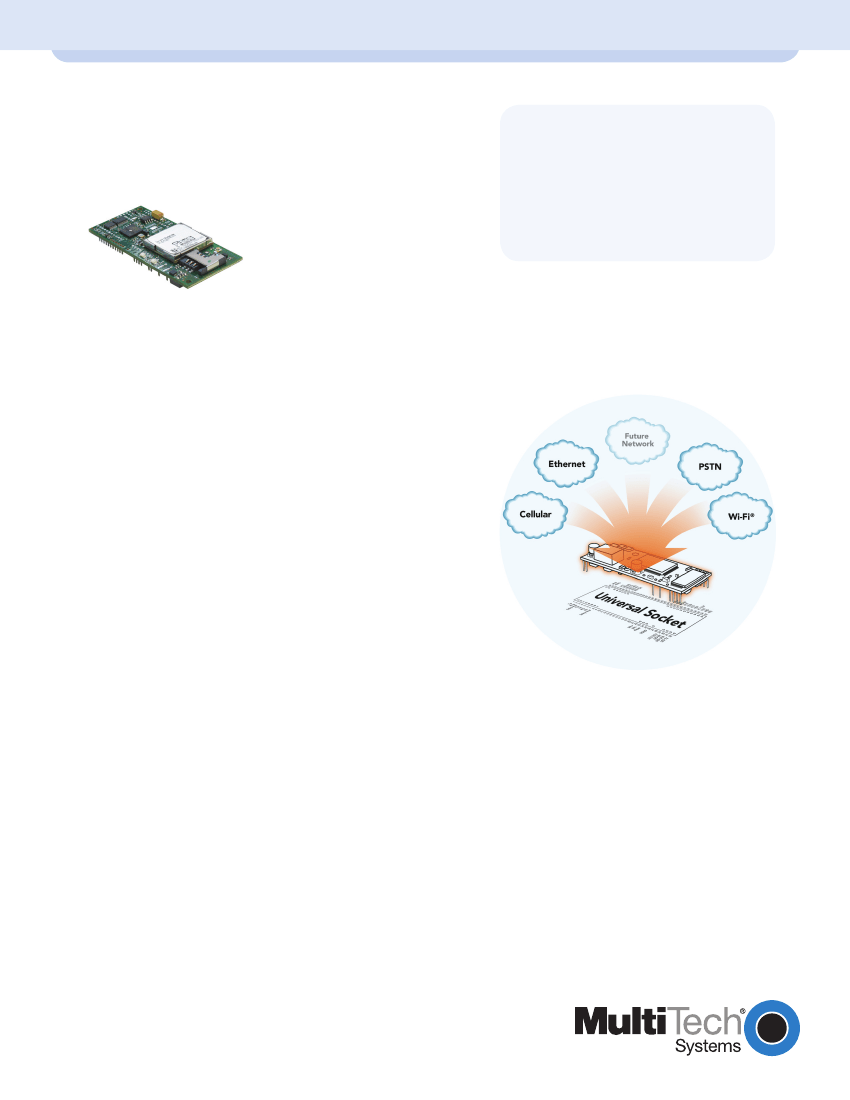

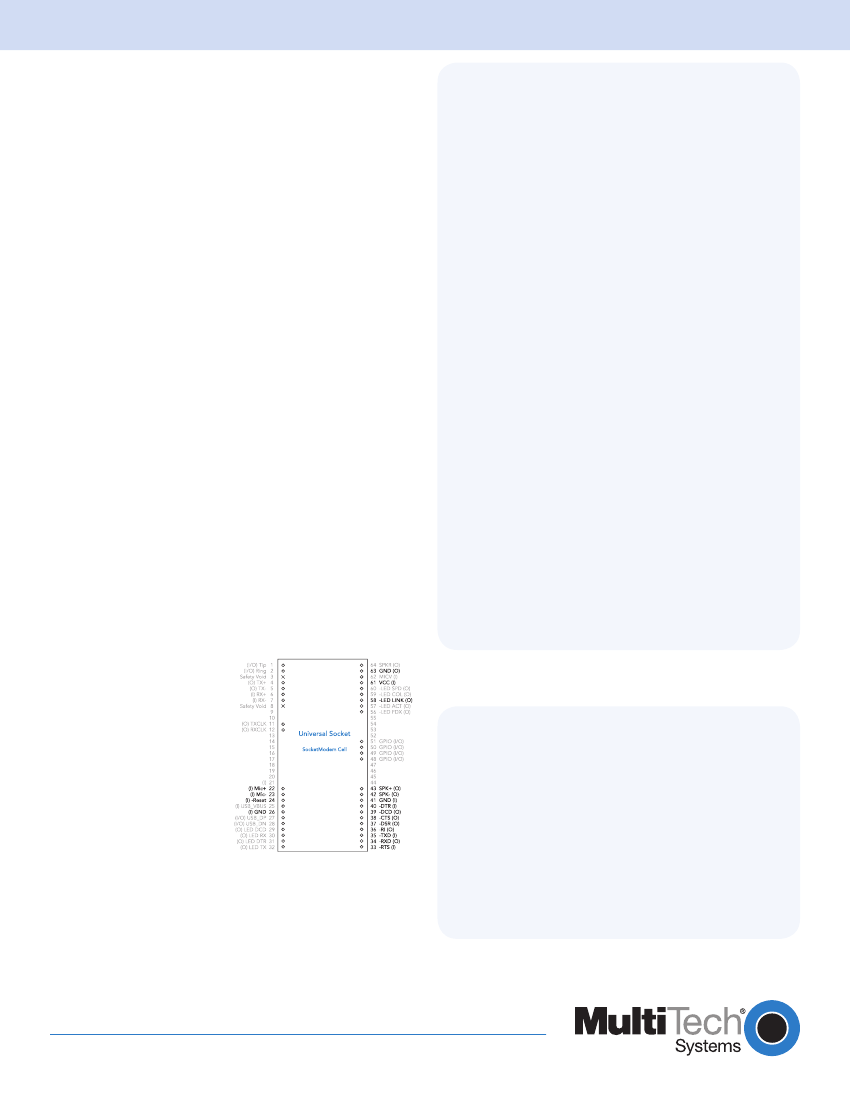

SocketModem Cell

Universal Socket Benefits

• Interchangeable

communications

device

• Quick-to-market

• Global approvals

• Easy migration to future networks

GPRS Cellular Modem

The SocketModem

Cell cellular modem is a complete, ready-to-integrate communications device that offers

standards-based quad-band GSM/GPRS Class 10 performance. This quick-to-market communications device

allows developers to add wireless communication to products with a minimum of development time and expense.

The SocketModem Cell cellular modem is based on industry-standard open interfaces and utilizes Multi-Tech's

Universal Socket design.

Features

• GPRS Class 10

• Quad-band GSM 850/900/1800/1900 MHz

• Packet data up to 85.6K bps

• Universal Socket connectivity

• Circuit-switched data up to 14,400 bps transparent and

non-transparent

• Short Message Services (SMS)

• Advanced management features include phone book

management, fixed dialing number, real time clock and alarm

management

• UFL antenna connector and SIM socket

• Serial interface supports DTE speeds to 115.2K bps

• AT command compatible

• MNP 2 error correction, V.42bis compression

• Two-year warranty

MTSMC-G2-GP-ED-SP Related Products

	MTSMC-G2-GP-ED-SP	MTSMC-G2-V-ED-SP	MTSMC-G2-V	MTSMC-G2	MTSMC-G2-SP	MTSMC-G2-GP-SP	MTSMC-G2-IP-SP	MTSMC-G2-ED-SP	MTSMC-G2-ED	MTSMC-G2-V-SP
Description	RF modules and development tools 900/1800mhz w/uni IP+gps quad band	modem socket gprs quad-band gsm	modem socket gprs quad-band gsm	RF modules and development tools quad-band gprs class 10 850/1900 MHz 5V	RF modules and development tools 850/1900 5V quad band	RF modules and development tools 850/1900mhz w/uni IP+gps quad band	RF modules and development tools 850/1900mhz w/uni IP-5V quad band	RF modules and development tools 900/1800 5V quad band	modem socket gprs quad-band gsm	RF modules and development tools 850/1900 5V quad band
Maker	MultiTech	-	-	MultiTech	MultiTech	MultiTech	MultiTech	MultiTech	-	-
Product Category	RF modules and development tools	-	-	RF modules and development tools	RF modules and development tools	RF modules and development tools	RF modules and development tools	RF modules and development tools	-	-
RoHS	yes	-	-	yes	yes	yes	yes	yes	-	-
product	RF Modules	-	-	RF Modules	RF Modules	RF Modules	RF Modules	RF Modules	-	-
maximum frequency	1900 MHz	-	-	1900 MHz	1900 MHz	1900 MHz	1900 MHz	1900 MHz	-	-
Supply voltage (maximum)	5 V	-	-	5 V	5 V	5 V	5 V	5 V	-	-
Supply current	113 mA	-	-	113 mA	113 mA	113 mA	113 mA	113 mA	-	-
Maximum operating temperature	+ 85 C	-	-	+ 70 C	+ 85 C	+ 85 C	+ 85 C	+ 85 C	-	-
Board size	3.1 in x 1.4 in x 0.5 i	-	-	78 mm x 35 mm x 12 mm	3.1 in x 1.4 in x 0.5 i	3.1 in x 1.4 in x 0.5 i	3.1 in x 1.4 in x 0.5 i	3.1 in x 1.4 in x 0.5 i	-	-
minimum frequency	850 MHz	-	-	850 MHz	850 MHz	850 MHz	850 MHz	850 MHz	-	-
Minimum operating temperature	- 40 C	-	-	- 30 C	- 40 C	- 40 C	- 40 C	- 40 C	-	-
