RV24AF-22-15R1-B25 datasheet, PDF

Datasheet> All Categories > Passive components> RV24AF-22-15R1-B25

RV24AF-22-15R1-B25: DescriptionPanel mount potentiometer linear 200k; CategoryPassive components; File Size39KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

RV24AF-22-15R1-B25 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RV24AF-22-15R1-B25	-	-	View	Buy Now

RV24AF-22-15R1-B25 Overview

Panel mount potentiometer linear 200k

RV24AF-22-15R1-B25 Parametric

Parameter Name	Attribute value
Maker	All Sensors
Product Category	Panel mount potentiometer
RoHS	yes
resistance	200 KOhms
Tolerance	20 %
Power rating	0.5 Watt (1/2 Watt)
Termination type	Pi
taper	Line
Component type	Carb
Shaft type	Round / Plai
Shaft length	0.591 i
Shaft diameter	0.25 i
size	0.95 in Dia. x 0.45 in L
product	Panel Mount Potentiometers
Voltage rating	500 Volts

Preview

Download Datasheet

View All

Date:

11-17-10

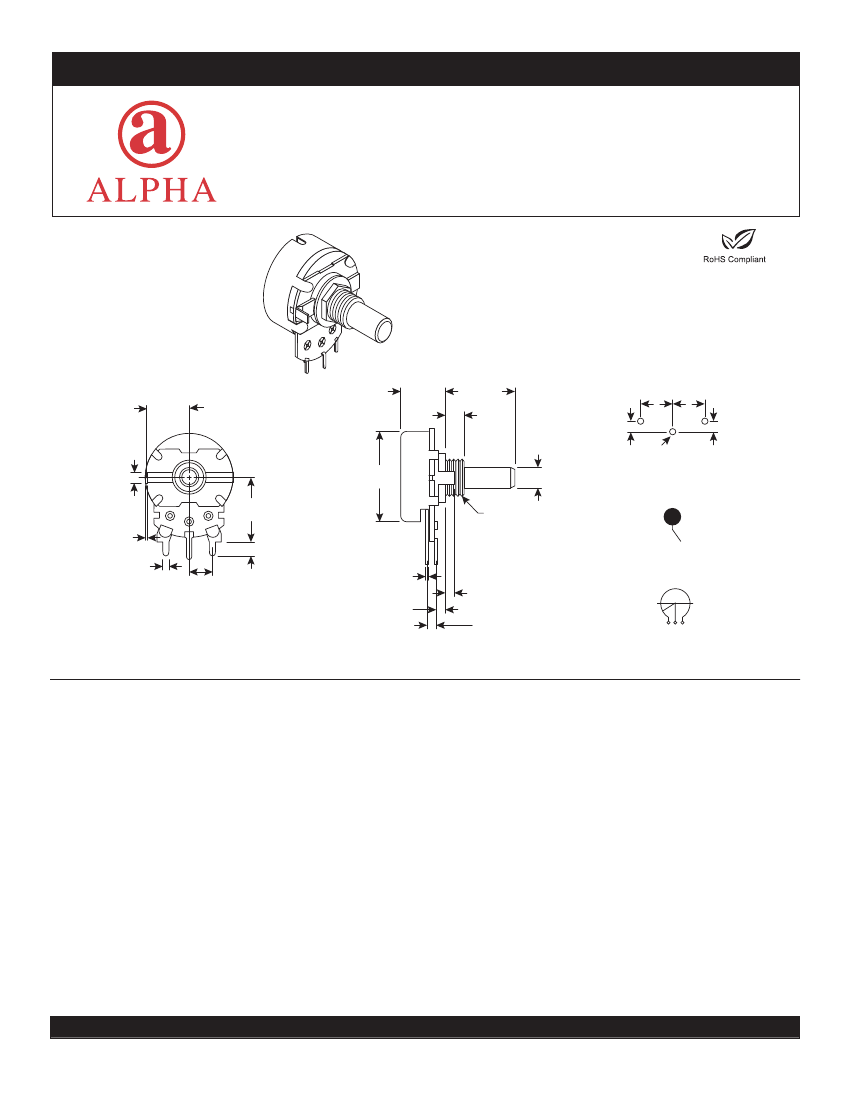

Potentiometers

314-1410F-Value

Ref.#:

TW-700165

.461

.453

.591

±.020

.256

ø.250

.098

.303

.110

.047

.709

.157

ø.945

PCB Mounting Hole Detail

3- .067

.098

M8 x .75mm

.020

.079

.059

Dimensions: in.

(except where noted)

.303

300° Rotation Mono Unit

.098

Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.

Available from Mouser Electronics

Specifications:

•

Type: PC Mount

•

Taper: Linear

•

Withstand Voltage: 500VAC for 1 minute

•

Rated Wattage: .5W

•

Resistance Tolerance: ±20%

•

Rated Voltage: 500V

•

Insulation Resistance: >100MΩ @ 500VDC

•

Minimum Resistance: If total resistance <2K then >20Ω

if total resistance >2K then >100Ω

•

Rotational Noise(20VDC between terminals 1&3):

< 47mV @ 30 cycles per minute

•

Rotation Angle: 300º±5º

•

Rotational Torque: 20~200gf.cm

•

Anti-Rotational Torque: 9Kgf.cm

•

Rotational Life: 15,000 cycles

•

Values: 1K, 5K, 10K, 50K, 100K, 200K, 500K, 1M

•

RoHS Compliant

www.mouser.com

(800) 346-6873
