IC SOCKETS
ADAM TECHNOLOGIES
INTRODUCTION:

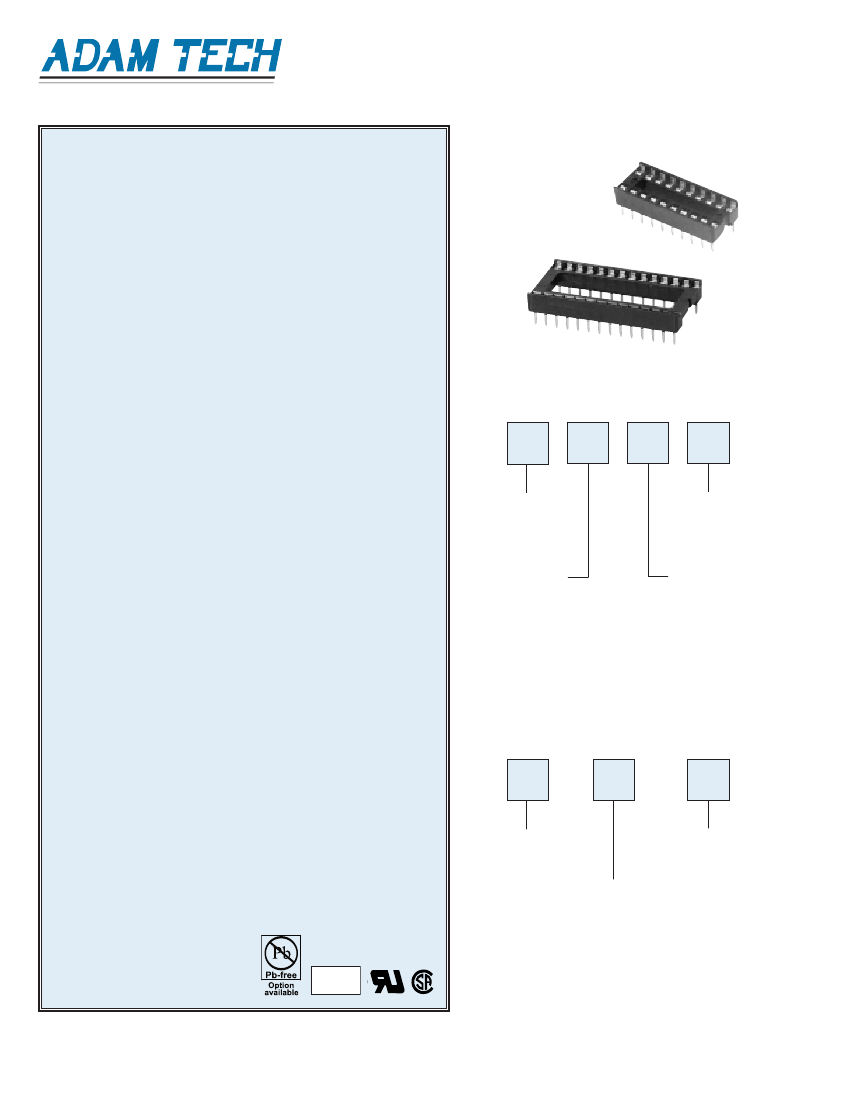

Adam Tech ICS Series IC Sockets are a low profile design available
in single or dual row on .100” centerline pin spacing and .300” or
.600” row spacing. Our ISD Series is a fine pitch socket on .070”
centerlines with .600” or .750” row spacing. All Adam Tech sockets
are manufactured with our exclusive single beam dual wipe contact
design which produces a high pressure wiping action for superior
connectivity. In addition to an internal contact stop which prevents
over stressing of the contact, each has a wide lead in to eliminate
mis-mating and a closed bottom anti-solder wicking design.
FEATURES:
High Pressure Contacts
Single Beam, Dual Wipe Contacts
Anti-Solder Wicking design
Machine Insertable
Single or Dual Row
Low Profile
MATING COMPONENTS:
All industry standard components with SIP or DIP leads
SPECIFICATIONS:
Material:
Insulator: PBT, Glass reinforced, rated UL94V-0
Insulator Color: Black
Contacts: Phosphor Bronze
Contact Plating:
Tin over copper underplate overall
Electrical:
Operating voltage: 250V AC max.
Current rating: 1 Amp max.
Contact resistance: 20 mΩ max. initial
Insulation resistance: 5000 MΩ min.
Dielectric withstanding voltage: 1000V AC for 1 minute
Mechanical:
Insertion force: 11.5 oz max with .024” X .006: leads
Withdrawal force: 0.85 oz min with .024” X .006” leads
Temperature Rating:
Operating temperature: -55°C to +105°C
PACKAGING:
Anti-ESD plastic tubes
SAFETY AGENCY APPROVALS:
UL Recognized File No. E224053
CSA Certified File No. LR1578596
SERIES
INDICATOR
SIS
= Single
Row Socket
POSITIONS
02-20
PLATING
T
= Tin plated
SINGLE & DUAL ROW SOCKETS
ICS SERIES
ORDERING INFORMATION
IC SOCKETS
ICS
6
28
T
SERIES
INDICATOR
ICS
= IC Socket
ISD
= Shrink Dip
ROW SPACING
3
= .300" row spacing
Positions: 06, 08, 14,
16, 18, 20, 24, 28
6
= .600" row spacing
Positions: 24, 28,
32, 40, 48
PLATING
T
= Tin plated
POSITIONS
06 Thru 48
ORDERING INFORMATION
SINGLE ROW SOCKETS
SIS
08
T
RoHS
COMPLIANT
RoHS
L
U
COMPLIANT
®
OPTION AVAILABLE
®
®
D E
V
OPTIONS:
Add designator(s) to end of part number
OF
= Open Frame without center bar
RC
= RoHS compliant lead-free product
with Hi-Temp insulator
136
909 Rahway Avenue • Union, New Jersey 07083 • TEL: 908-687-5000 • FAX: 908-687-5710 • WWW.ADAM-TECH.COM
IC SOCKETS
ADAM TECHNOLOGIES

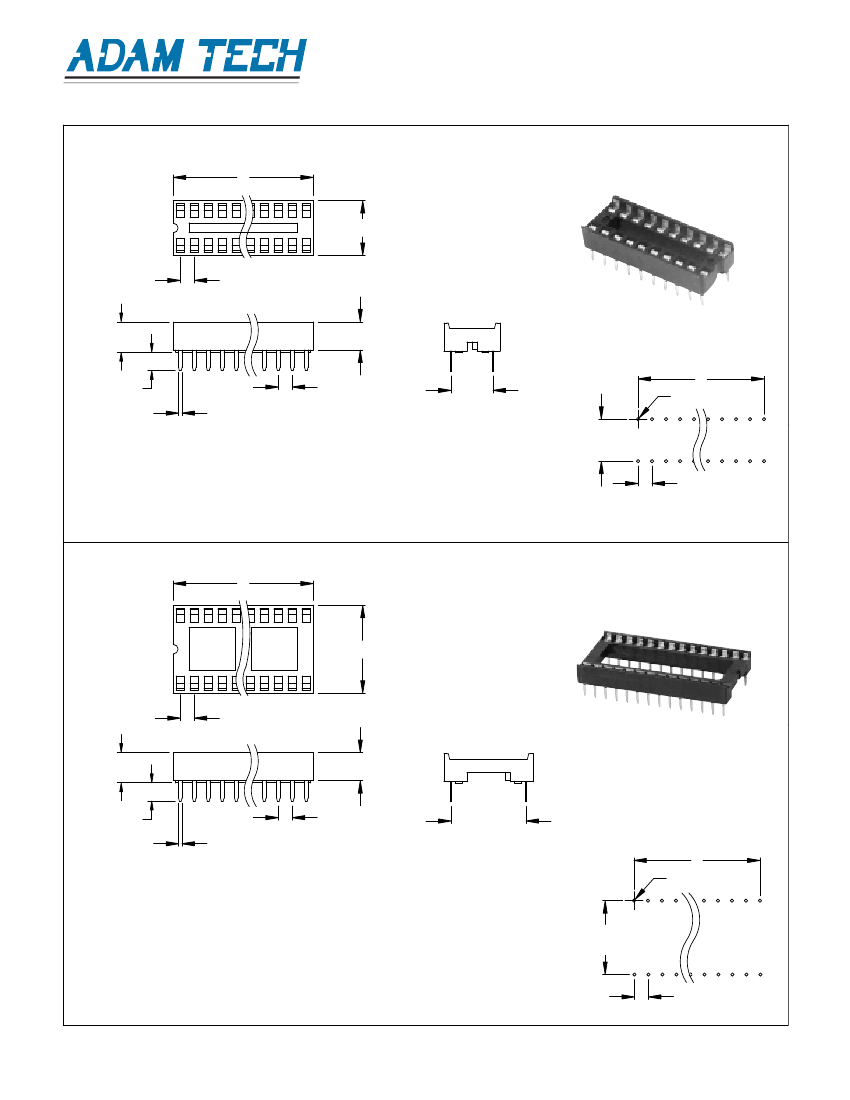

ICS - .300" ROW CENTERLINE
A
SINGLE & DUAL ROW .100" [2.54] CENTERLINE
ICS SERIES
.300" Row Centerline Sockets
.300" Row Centerline Sockets
Positions: 6, 8, 14, 18, 20, 24 & 26
Positions: 6, 8, 14, 16, 18, 20, 24 & 26
.394 [10.00]
.100 [2.54]
ICS-320-T
.200
[5.10]
.189 [4.80]
RECOMMENDED
PCB LAYOUT
.100 [2.54]
.024 X .006
[.60 X 0.15]
.300
[7.62]
OPTIONAL
.300
[7.62]
A = .100 [2.54] X No. of Positions Per Row
.100 [2.54]
B
ø .031 [ ø 0.80]
.124 [3.15]
Recommended PCB Layout
ICS - .600" ROW CENTERLINE
A
.600" Row Centerline Sockets
.600" Row Centerline Sockets
Positions: 20, 24, 28, 32, 40 & 48
Positions: 20, 24, 28, 32, 40 & 48
.689 [17.50]
.100 [2.54]
ICS-628-T
.200
[5.10]
.189 [4.80]
.124 [3.15]
.024 X .006
[.60 X 0.15]
A = .100 [2.54] X No. of Positions Per Row
.100 [2.54]
.600
[15.24]
Recommended PCB Layout
PCB LAYOUT
B
ø .031 [ ø 0.80]
OPTIONAL
RECOMMENDED
.600
[15.24]
.100 [2.54]
909 Rahway Avenue • Union, New Jersey 07083 • TEL: 908-687-5000 • FAX: 908-687-5710 • WWW.ADAM-TECH.COM
137
IC SOCKETS
ADAM TECHNOLOGIES

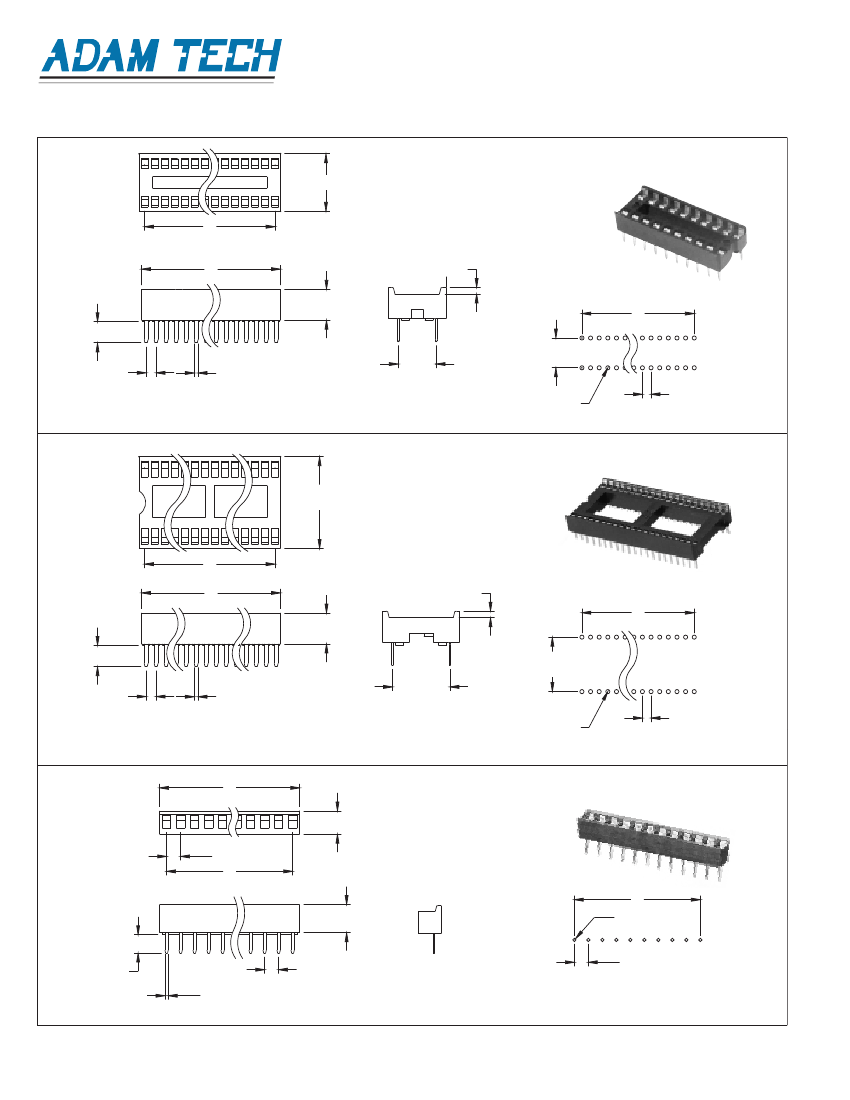

.070" [1.78] SHRINK DIP & SINGLE ROW SOCKET
ISD & SIS SERIES
ISD SERIES .300" ROW CENTERLINE SHRINK DIP SOCKETS
POSITIONS: 24, 28, 30
.395 [10.16]
B
A
.039 [1.00]
ISD-24-T
.187 [4.75]
B
.138 [3.51]
.300
[7.62]
.300
[7.62]
.070
[1.78]
.019x.006
[.48x.15]
.070 [1.78]
A = .070 [1.78] X No. of Positions Per Row
B = .070 [1.78] X No. of Spaces
ø
.024 [.610]
Recommended PCB Layout
PCB LAYOUT
RECOMMENDED
ISD SERIES .600" ROW CENTERLINE SHRINK DIP SOCKETS
POSITIONS: 40, 42
.690
[17.53]
B
A
.039 [1.00]
ISD-40-T
B
.187 [4.75]
.138 [3.51]
.600
[15.24]
.070 [1.78]
ø.024 [.610]
A = .070 [1.78] X No. of Positions Per Row
B = .070 [1.78] X No. of Spaces
PCB LAYOUT
Recommended PCB Layout
RECOMMENDED
.600
[15.24]
.019x.006
[.48x.15]
.070
[1.78]
A
SIS SERIES SINGLE ROW .100" CENTERLINE SOCKETS
POSITIONS: 2P THRU 20P
.157 [4.00]
.100 [2.54]
B
RECOMMENDED
SIS-12-T
PCB LAYOUT
B
.189 [4.80]
ø.031 [ ? 0.80]
.124 [3.15]
.024 X .006
[.60 X 0.15]
.100 [2.54]
.100 [2.54]
Recommended PCB Layout
A = .100 [2.54] X No. of Positions
B = .100 [2.54] X No. of Spaces
138
909 Rahway Avenue • Union, New Jersey 07083 • TEL: 908-687-5000 • FAX: 908-687-5710 • WWW.ADAM-TECH.COM
