RV170S-10-15R1-B53 datasheet, PDF

Datasheet> All Categories > Passive components> RV170S-10-15R1-B53

RV170S-10-15R1-B53: DescriptionPanel mount potentiometer linear 5K solder lugs; CategoryPassive components; File Size20KB，1 Pages; ManufacturerAll Sensors

Download Datasheet Parametric Compare View All

RV170S-10-15R1-B53 Overview

Panel mount potentiometer linear 5K solder lugs

RV170S-10-15R1-B53 Parametric

Parameter Name	Attribute value
Maker	All Sensors
Product Category	Panel mount potentiometer
RoHS	no
resistance	5 KOhms
Power rating	0.1 Watt (1/10 Watt)
Termination type	Lug
taper	Line
Component type	Carb
Shaft type	Round / Plai
Shaft length	0.951 i
Shaft diameter	0.25 i
product	Panel Mount Potentiometers

Preview

Download Datasheet

View All

MOUSER STOCK NO.

MOUSER

E L E CT R O N I C S

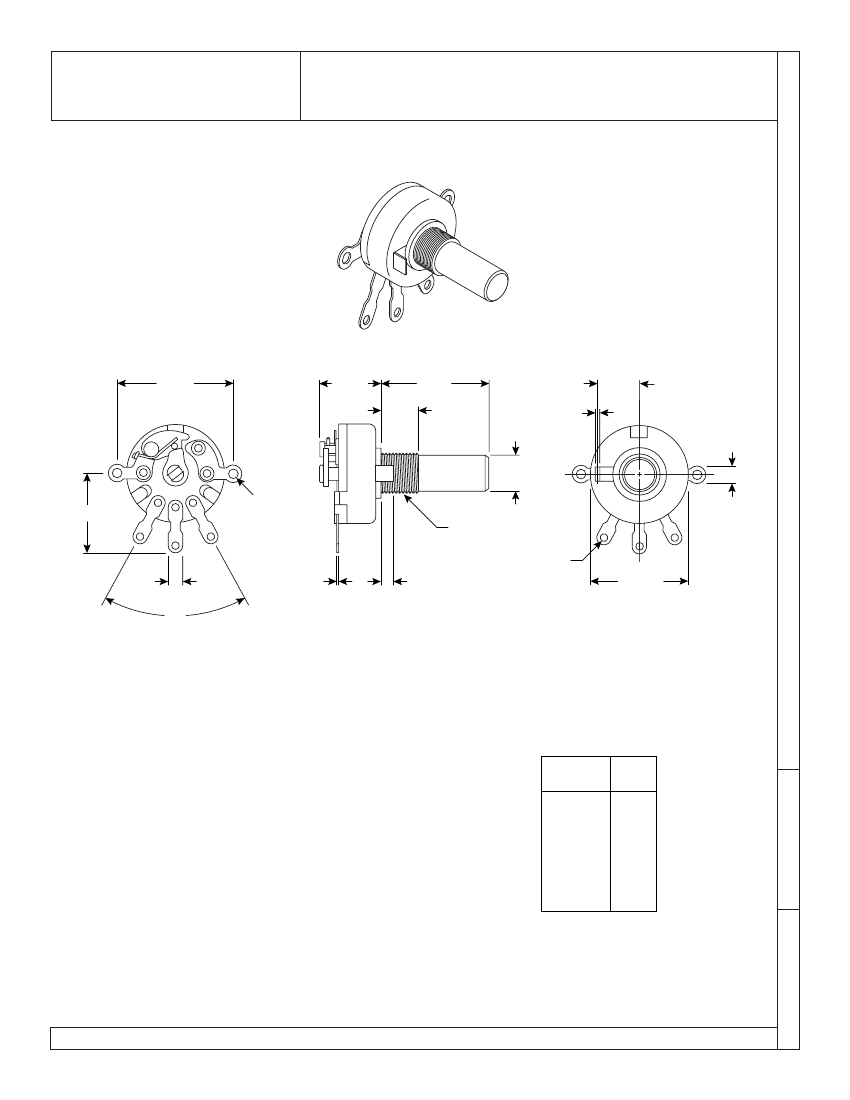

31CQ Series

Potentiometer w/switch

31CQ Series

.807

.472

.197

.591

±.020

.016

.295

Potentiometer w/switch

.250

ø.071

.531

M7x0.75mm

ø.051

.094

60°

.012

.059

.669

.110

Dimensions (In.)

(except where noted)

Specifications:

•

Taper: linear

•

Resistance element: carbon composition

•

Wattage: .1W

•

Voltage: 200VDC

•

Rotation angle: 260±5°

•

Rotational torque: 20~200gf.cm

•

Anti-rotational torque: >3Kg.cm min.

•

Insulation resistance: >50MΩ @ 500VDC

•

Withstanding voltage: 500VAC for 1 minute

•

Rotational life: 15,000 cycles

•

Switch rating: 12VDC 1A

•

Switch circuit: SPST

•

Switch contact resistance: <20mΩ

•

Switching angle: 30±10°

•

Switching torque: 70~400gf.cm

Mouser

Stock No.

31CQ301

31CQ305

31CQ401

31CQ405

31CQ501

31CQ505

31CQ601

Value

(Ω)

10K

50K

100K

500K

1 Meg

143104

Date:

8-13-98

Quality, Speed, & Service

(800) 346-6873

http://www.mouser.com

RV170S-10-15R1-B53 Related Products

	RV170S-10-15R1-B53	RV170S-10-15R1-B55
Description	Panel mount potentiometer linear 5K solder lugs	Panel mount potentiometer linear 500k solder lugs
Maker	All Sensors	All Sensors
Product Category	Panel mount potentiometer	Panel mount potentiometer
RoHS	no	no
resistance	5 KOhms	500 KOhms
Power rating	0.1 Watt (1/10 Watt)	0.1 Watt (1/10 Watt)
Termination type	Lug	Lug
taper	Line	Line
Component type	Carb	Carb
Shaft type	Round / Plai	Round / Plai
Shaft length	0.951 i	0.951 i
Shaft diameter	0.25 i	0.25 i
product	Panel Mount Potentiometers	Panel Mount Potentiometers
