BX2274JT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> BX2274JT

BX2274JT: DescriptionAudio and signal converter adsl xfmr; CategoryPassive components; File Size68KB，1 Pages; ManufacturerPulse A Technitrol Company; Websitehttp://www.pulseeng.com

Download Datasheet Parametric View All

BX2274JT Overview

Audio and signal converter adsl xfmr

BX2274JT Parametric

Parameter Name	Attribute value
Maker	Pulse A Technitrol Company
Product Category	Audio and signal converters
RoHS	no
Frequency Range	30 KHz
Insulation voltage	1500 Volts
range of working temperature	- 40 C to + 85 C
Termination type	SMD/SMT
size	9.5 mm L x 7.4 mm W x 12 mm H

Preview

Download Datasheet

View All

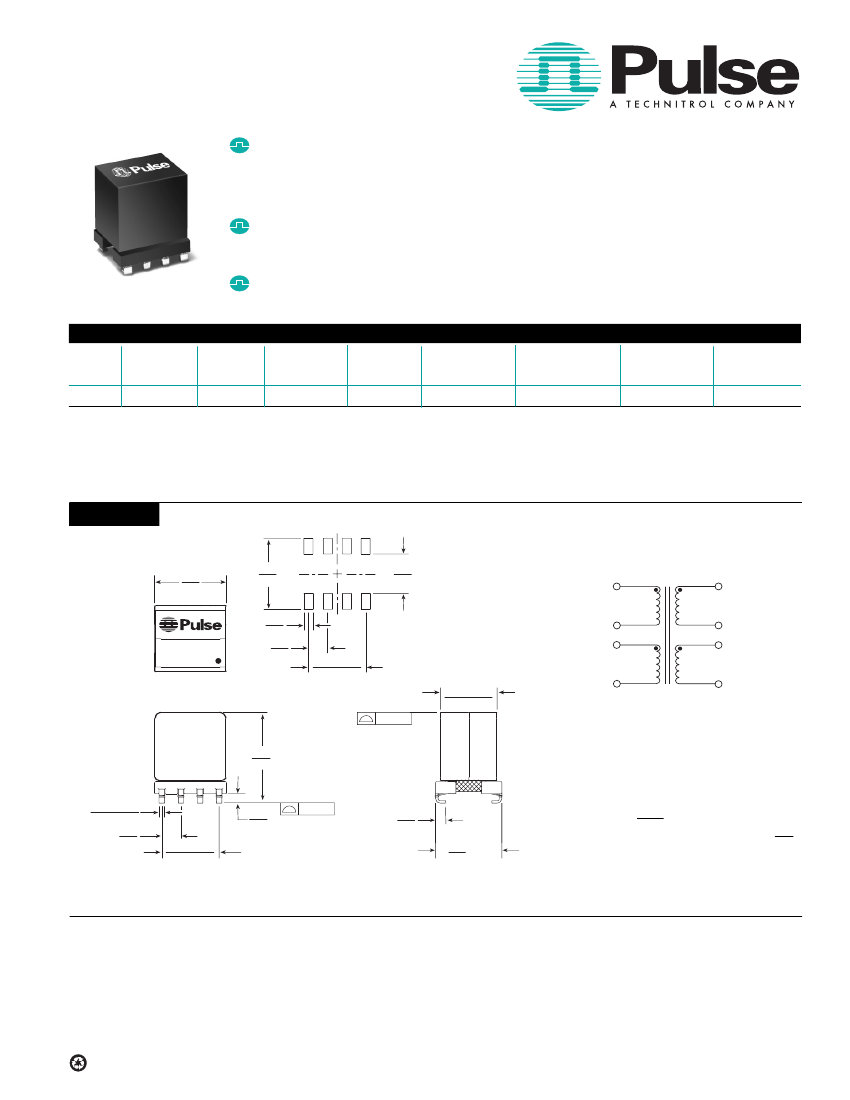

ADSL LINE TRANSFORMER

For Infineon GEMINAX Chipset

Matched to Infineon PEB22716 — dual line driver for the

GEMINAX Octal chipsets PEB55508 and PEB22720 and

Broadband SLIC PEB4565

Designed to comply with EN60950

supplementary insulation

requirements for working voltages up to 250 Vrms

Compact footprint for high density board layouts

Electrical Specifications @ 25°C — Operating Temperature -40°C to 85°C

Part

Number

BX2274J

Turns Ratio

Ratio

(Line:Chip)

1 : 1.33

OCL

Primary

(mH ±5%)

1.4

Leakage

Inductance

(µH MAX)

5.0

Isolation

Voltage

(Vrms)

1500

DCR Primary

(1-3 & 2-4)

(Ω MAX)

4.00

DCR Secondary

(7-5 & 8-6)

(Ω MAX)

3.00

THD @ 10kHz,

5 Vrms

(dB MIN)

-65

THD @ 30kHz,

5 Vrms

(dB MIN)

-85

NOTES:

1. Transformers are shipped in trays, unless Tape & Reel packaging is specified

by adding the suffix

“T”

to this part number (BX2274JT)

2. Alternative FUNCTIONAL insulation versions for specific CO applications are

available on request (BX2293C and

BX2293W).

3. Both 6.8mH and 20mH coupled line inductors are also available. Please contact

Pulse Applications Engineering.

Mechanical

BX2274J

Schematic

.374

9,50

MAX

.366

9,29

.202

5,13

Date Code

Country of Origin

BX2274J

.046

1,17

.098

2,59

LINE

.295

± .012

7,50

± 0,30

.291

± .006

7,40

± 0,15

CHIP

SUGGESTED LAND PATTERN

.002/0,05

2 SURFACES

.472

12,00 MAX

.028 ± .004

0,71 ± 0,10

.098

2,50

.047

1,20

.295

± .012

7,50

± 0,30

.005/0,13

8 SURFACES

.055

1,40

.358 MAX

9,09

Weight

. . . . . . . . . . . . . .3.8 grams

Tape & Reel

. . . . . . . . . . . .175/reel

Tray

. . . . . . . . . . . . . . . . . .105/tray

Dimensions:

Inches

Unless otherwise specified, all tolerances are ± .004

0,10
