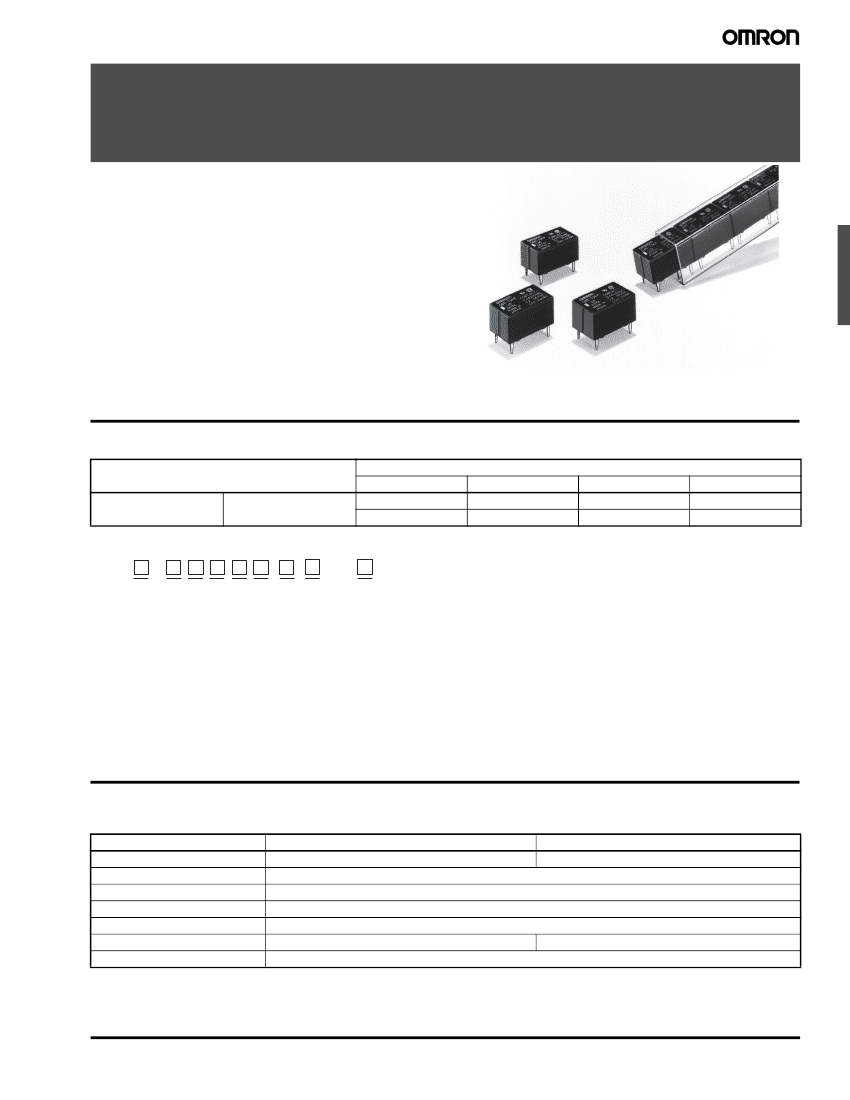

Low Signal Relay
G6E
Subminiature, Sensitive Signal Relay
• Subminiature 7.87 H x 9.91 W x 16 L mm.
• High sensitivity with pick-up coil power of 98 mW.
• Surge withstand voltage meets FCC Part 68 requirements.
• Unique moving loop armature reduces relay size, magnetic
interference, and contact bounce time.
• Bifurcated crossbar contact assures high reliability.
• Single and Dual coil latching versions available.
• Fully sealed construction.
• RoHS Compliant.
R
C
Ordering Information
To Order: Select the part number and add the desired coil voltage rating, (e.g., G6E-134P-ST-US-DC6).
Model
Terminal style
Straight
Self-clinching
Standard
G6E-134P-US
G6E-134C-US
Single coil latching
G6EU-134P-US
G6EU-134C-US
Dual coil latching
G6EK-134P-US
G6EK-134C-US
Contact form
SPDT
Bifurcated crossbar
Model Number Legend
G6E
1
-
2 3 4
5 6
-
7
-
8
DC
9
1. Relay Function
None: Single-side stable
U:
Single-winding latching
K:
Double-winding latching
2. Contact Form
1:
SPDT
3. Contact Type
5. Terminals
7. Standoff dimension
P: Straight PCB
3: Bifurcated crossbar
Blank: 0.3 mm
Ag (Au-Alloy) contact
C: Curved tail
ST:
0.64 mm
6. Special Function
4. Enclosure Ratings
8. Approved Standards
L: Low sensitivity coil (400 mW)
4: Fully sealed
US: UL, CSA certified
9. Rated Coil Voltage
3, 5, 6, 9, 12, 24, 48
VDC
Specifications
■
Contact Data
Load
Rated load
Contact material
Carry current
Max. operating voltage
Max. operating current
Max. switching capacity
Ag (Au clad)
3A
250 VAC, 220 VDC
3A
50 VA, 60 W
25 VA, 30 W
Resistive load (p.f. = 1)
0.40 A at 125 VAC, 2 A at 30 VDC
Inductive load (p.f. = 0.4) (L/R = 7 ms)
0.20 A at 125 VAC, 1 A at 30 VDC
Min. permissible load (See note)
10 ?A, 10 mVDC
Note:
P level:
λ
60
= 0.1 x 10
–6
/operation
This value was measured at a switching frequency of 120 operations/min and the criterion of contact resistance is 50
Ω.
This value may vary
depending on the switching frequency and operating environment. Always double-check relay suitability under actual operating conditions.
Low Signal Relay
G6E
89
■
Coil Data
Standard Non-latching Type (G6E-134P(-ST)-US, G6E-134C(-ST)-US)
Rated
voltage
(VDC)
3
5
6
9
12
24
48
Rated
current
(mA)
66.70
40
33.30
22.20
16.70
8.30
8.30
Coil
resistance
(Ω)
45
125
180
405
720
2,880
5,760
Coil inductance
(ref. value) (H)
Armature
OFF
0.08
0.18
0.31
0.62
1.20
4.70
5.35
Armature
ON
0.06
0.17
0.24
0.50
0.99
3.90
5.12
170% at 23°C Approx. 400
70% max.
Pick-up
voltage
Dropout
voltage
% of rated voltage
10% min.
Maximum
voltage
Power
consumption
(mW)
190% at 23°C Approx. 200
Low-sensitivity Non-latching Type (G6E-134PL(-ST)-US)
Rated
voltage
(VDC)
3
5
6
9
12
24
Rated
current
(mA)
133
79.40
66.60
44.30
33.30
16.70
Coil
resistance
(Ω)
22.50
63
90
203
360
1,440
Coil inductance
(ref. value) (H)
Armature
OFF
0.03
0.08
0.12
0.21
0.45
1.77
Armature
ON
0.03
0.07
0.10
0.19
0.42
1.65
70% max.
Pick-up
voltage
Dropout
voltage
% of rated voltage
10% min.
Maximum
voltage
Power
consumption
(mW)
190% at 23°C Approx. 400
Standard Single Coil Latching Type (G6EU-134P(-ST)-US, G6EU-134C(-ST)-US)
Rated
voltage
(VDC)
3
5
6
9
12
24
Rated
current
(mA)
66.70
40
33.30
22.20
16.70
8.30
Coil
resistance
(Ω)
45
125
180
405
720
2,880
Coil inductance
(ref. value) (H)
Armature
OFF
0.05
0.13
0.19
0.45
0.84
3.56
Armature
ON
0.04
0.12
0.17
0.40
0.79
3.10
70% max.
Set pick-up
voltage
Reset pick-up
voltage
% of rated voltage
70% min.
190% max.
at 23°C
Maximum
voltage
Power
consumption
(mW)
Approx. 200
Standard Dual Coil Latching Type (G6EK-134P(-ST)-US, G6EK-134C(-ST)-US)
Rated
voltage
(VDC)
3
5
6
7
12
24
Rated
current
(mA)
66.70
40
33.30
22.20
16.70
8.30
Coil
resistance
(Ω)
45
125
180
405
720
2,880
Coil inductance
(ref. value) (H)
Armature
OFF
0.05
0.09
0.12
0.25
0.44
1.66
Armature
ON
0.04
0.08
0.11
0.22
0.41
1.62
70% max.
Set pick-up
voltage
Reset pick-up
voltage
% of rated voltage
70% min.
190% max.
at 23°C
Maximum
voltage
Power
consumption
(mW)
Approx. 200
Note: 1.
The rated current and coil resistance are measured at a coil temperature of 23°C with a tolerance of
±10%.
2.
Operating characteristics are measured at a coil temperature of 23°C.
3.
The maximum voltage is the highest voltage that can be imposed on the relay coil.
90
Low Signal Relay
G6E
Low-sensitivity Dual Coil Latching Type (G6EK-134PL(-ST)-US)
Rated
voltage
(VDC)
3
5
6
9
12
24
Rated
current
(mA)
133
79.40
66.60
44.30
33.30
16.70
Coil
resistance
(Ω)
22.50
63
90
203
360
1,440
Coil inductance
(ref. value) (H)
Armature
OFF
0.02
0.04
0.06
0.12
0.21
0.80
Armature
ON
0.01
0.03
0.04
0.09
0.15
0.58
70% max.
Set pick-up
voltage
Reset pick-up
voltage
% of rated voltage
70% min.
170% max.
at 23°C
Maximum
voltage
Power
consumption
(mW)
Approx. 400
Note: 1.
The rated current and coil resistance are measured at a coil temperature of 23°C with a tolerance of
±10%.
2.
Operating characteristics are measured at a coil temperature of 23°C.
3.
The maximum voltage is the highest voltage that can be imposed on the relay coil.
■
Characteristics
Contact resistance (See note 1)
Operate time (set) time (See note 2)
Release time (reset) time (See note 2)
Min. set/reset signal width
Operating frequency
(max.)
Mechanical
Electrical
50 mΩ max.
5 ms max. (mean value approx. 2.90 ms, 48 VDC type, approx. 2.40 ms)
5 ms max. (mean value approx. 1.30 ms)
Latching type: 15 ms min. (at 23°C)
36,000 operations/hour
1,800 operations/hour (under rated load)
1,000 MΩ min. (at 500 VDC)
1,500 VAC, 50/60 Hz for 1 minute between coil contacts
1,000 VAC, 50/60 Hz for 1 minute between contacts of same pole
1,500 V (10 x160
μs)
(conforms to FCC Part 68)
2,500 V (2 x 10
μs)
(Telcordia Requirement)
Mechanical durability
Malfunction durability
Shock
Ambient temperature
Humidity
Service life
Mechanical
Electrical
Mechanical durability
Malfunction durability
10 to 55 Hz; 5 mm double amplitude
10 to 55 Hz; 3.3 mm double amplitude
1,000 m/s
2
, approx. 100G
300 m/s
2
, approx. 30G
-40°C to 70°C with no icing
5% to 85% RH
100 million operations min. (at 36,000 operations/hour)
100,000 operations min (0.4A at 125 VAC resistive; 0.2A at 125VAC inductive)
500,000 operations min. (2A at 30 VDC resistive; 1A at 30VDC inductive)
200,000 operations min. (3A at 30 VDC resistive)
See “Characteristic Data”
Approx. 2.7 g
The contact resistance was measured with 1A at 5VDC with a fall-of-potential method.
Values in parentheses are typical values unless otherwise stated.
The insulation resistance was measured with a 500-VDC megohmmeter applied to the same parts as those for checking the dielectric strength
The above values are initial values.
Insulation resistance (See note 3)
Dielectric strength
Surge withstand voltage
Vibration
Weight
Note: 1.
2.
3.
4.
■

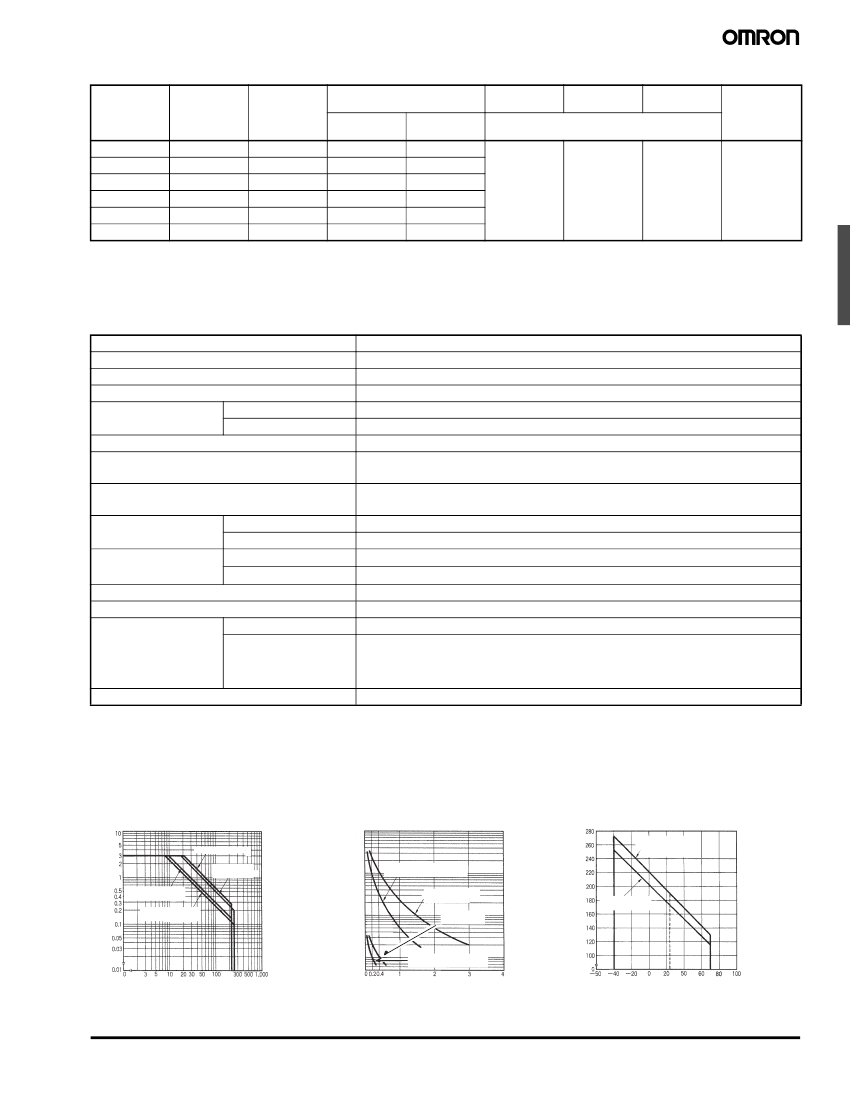

Characteristic Data
Maximum Switching Capacity
Service life (x10
3
operations)
Electrical Service Life
100,000
50,000
3,000
10,000
5,000
3,000
1,000
500
300
100
50
125-VAC inductive load
(cosφ = 0.4)
30-VDC inductive load
(L/R = 7 ms)
30-VDC resistive
load
125-VAC
resistive load
Ambient Temperature vs.
Maximum Coil Voltage
Maximum coil
voltage
(%)
G6E-134P-US
G6EK-134P-US
G6EU-134P-US
Rated operating current (A)
DC resistive load
AC resistive
load
DC inductive load
(L/R = 7 ms)
AC inductive load
(cosf = 0.4)
G6E-134P-US
Only at 48VDC
Rated operating
voltage
(V)
Rated operating current (A)
Note:
The maximum coil
voltage
refers to the maximum
value
in a
varying
range of
operating power
voltage,
not a continuous
voltage.
Ambient temperature (°C)
Low Signal Relay
G6E
91

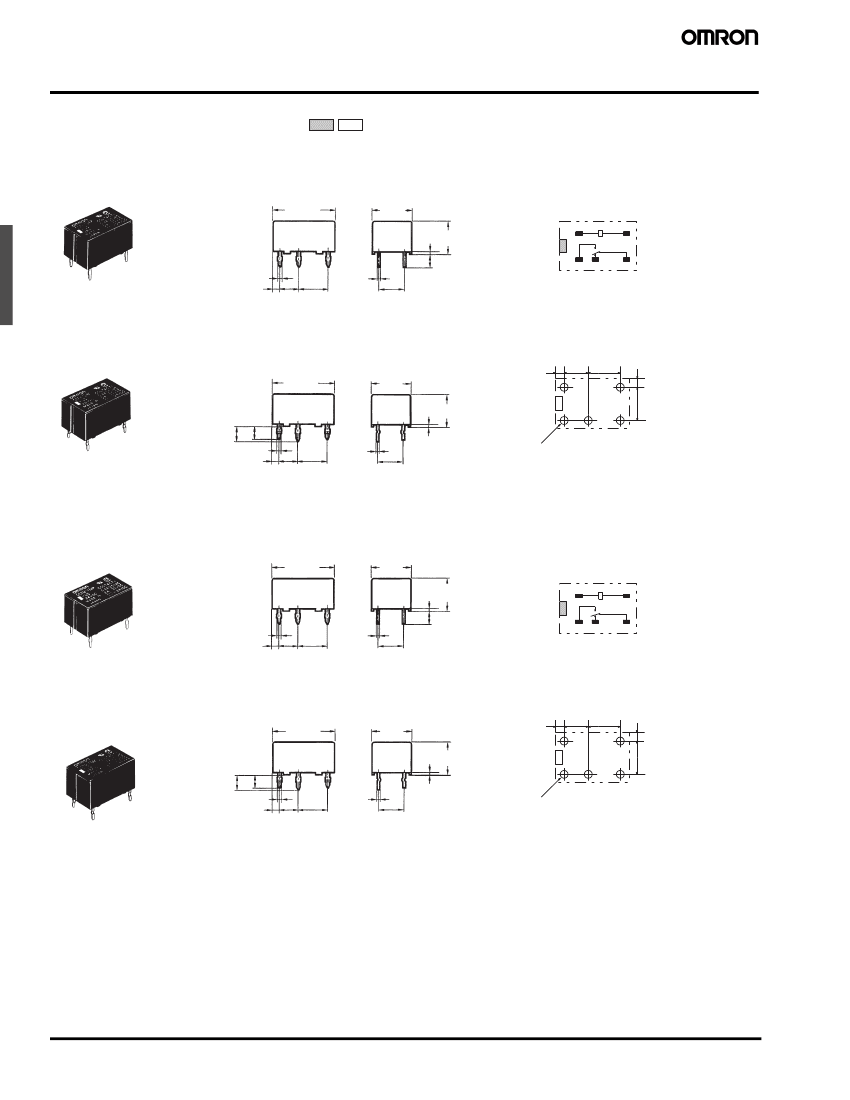

Dimensions
Note: 1.
All units are in millimeters unless otherwise indicated.
2.
Orientation marks are indicated as follows:
Standard coil
G6E-134P(L)(-ST)-US
16 max.
(15.9) *
10 max.
(9.9) *
8
max.
**0.3 (7.9) *
3.5
0.6
1.6
5.08 7.62
0.25
7.62
*Average
value
** 0.64mm for “-ST” models
12 10
7
Terminal Arrangement/
Internal Connections
(Bottom View)
1+
-6
G6E-134C(-ST)-US
10 max.
(9.9) *
8
max.
**0.3 (7.9) *
3.16
2.86
0.6
1.6
5.08 7.62
0.25
7.62
*Average
value
** 0.64mm for “-ST” models
(1.65)
Mounting Holes
(Bottom View)
Tolerance:
±0.1
5.08
7.62
(1.19)
7.62
16 max.
(15.9) *
Five, 1.0-dia. holes
Single coil latching
G6EU-134P(L)(-ST)-US
16 max.
(15.9) *
10 max.
(9.9) *
8
max.
**0.3 (7.9) *
3.5
0.6
1.6
5.08 7.62
0.25
7.62
*Average
value
** 0.64mm for “-ST” models
12 10
7
Terminal Arrangement/
Internal Connections
(Bottom View)
+1
-
S
-6
R +
Mounting Holes
(Bottom View)
Tolerance:
±0.1
5.08
7.62
(1.19)
(1.65)
G6EU-134C(-ST)-US
16 max.
(15.9) *
10 max.
(9.9) *
**0.3
8
max.
(7.9) *
3.16
2.86
0.6
1.6
0.25
5.08 7.62
7.62
*Average
value
** 0.64mm for “-ST” models
Five, 1.0-dia. holes
7.62
92
Low Signal Relay
G6E
Dual coil latching
G6EK-134P(L)(-ST)-US
16 max.
(15.9) *
10 max.
(9.9) *
8
max.
**0.3 (7.9) *
3.5
0.6
1.6
0.25
5.08
7.62
7.62
*Average
value
** 0.64mm for “-ST” models
12
10
7
Terminal Arrangement/
Internal Connections
(Bottom View)
+1 S 3
-
R +6
Mounting Holes
(Bottom View)
Tolerance:
±0.1
5.08
(1.65)
7.62
(1.19)
G6EK-134C(-ST)-US
16 max.
(15.9) *
10 max.
(9.9) *
**0.3
8
max.
(7.9) *
3.16
2.86
0.6
1.6
5.08 7.62
0.25
7.62
*Average
value
** 0.64mm for “-ST” models
Six, 1.0-dia. holes
7.62
■
Approvals
UL Recognized (File No. E41515) / CSA Certified (File No. LR31928) - - Ambient Temp. = 40°C
Contact form
SPDT
Coil ratings
3 to 48 VDC
Contact ratings
0.2 A at 250 VAC (General Use)
6,000
0.6 A at 125 VAC (General Use)
2 A at 30 VDC (Resistive)
0.6 A at 125 VDC (Resistive, Ag contact only)
Number of test operations
Note: 1.
The rated values approved by each of the safety standards (e.g., UL, CSA, TUV) may be different from the performance characteristics
individually defined in this catalog.
2.
In the interest of product improvement, specifications are subject to change.
Low Signal Relay
G6E
93
京公网安备 11010802033920号
EEWORLD
