RV16AF-10-15R1-B16-0C

Description
Panel mount potentiometer linear b1m solder lugs
CategoryPassive components
File Size118KB,1 Pages
ManufacturerAll Sensors
Environmental Compliance
Download Datasheet Parametric Compare View All

RV16AF-10-15R1-B16-0C Overview

Panel mount potentiometer linear b1m solder lugs

RV16AF-10-15R1-B16-0C Parametric

Parameter NameAttribute value
MakerAll Sensors
Product CategoryPanel mount potentiometer
RoHSyes
resistance1 MOhms
Tolerance30 %
Power rating0.2 Watt (1/5 Watt)
Termination typeLug
taperLine
Component typeCarb
Shaft typeRound / Plai
Shaft length0.59 i
Shaft diameter0.24 i
productPanel Mount Potentiometers
Center Detent Miniature Potentiomenters
SPECIFICATIONS
Rated wattage: 0.2W
Rated voltage: 200V
Insulation resistance: >100MΩ @ 500VDC
Breakdown voltage: 500VAC for 1 minute
Rotation life: 15,000 cycles
Element material: carbon
Wiper tracking: ±10%
Nominal tolerance: ±20%
Rotational noise: 47mV
End resistance: 20Ω @ each end
Shaft material: zinc alloy
Case material: steel
Case finish: zinc plate
Total rotation angle: 300° ± 5°
Shaft stop strength: 6Kgf. cm/min.
Resistance taper: linear
RoHS Compliant

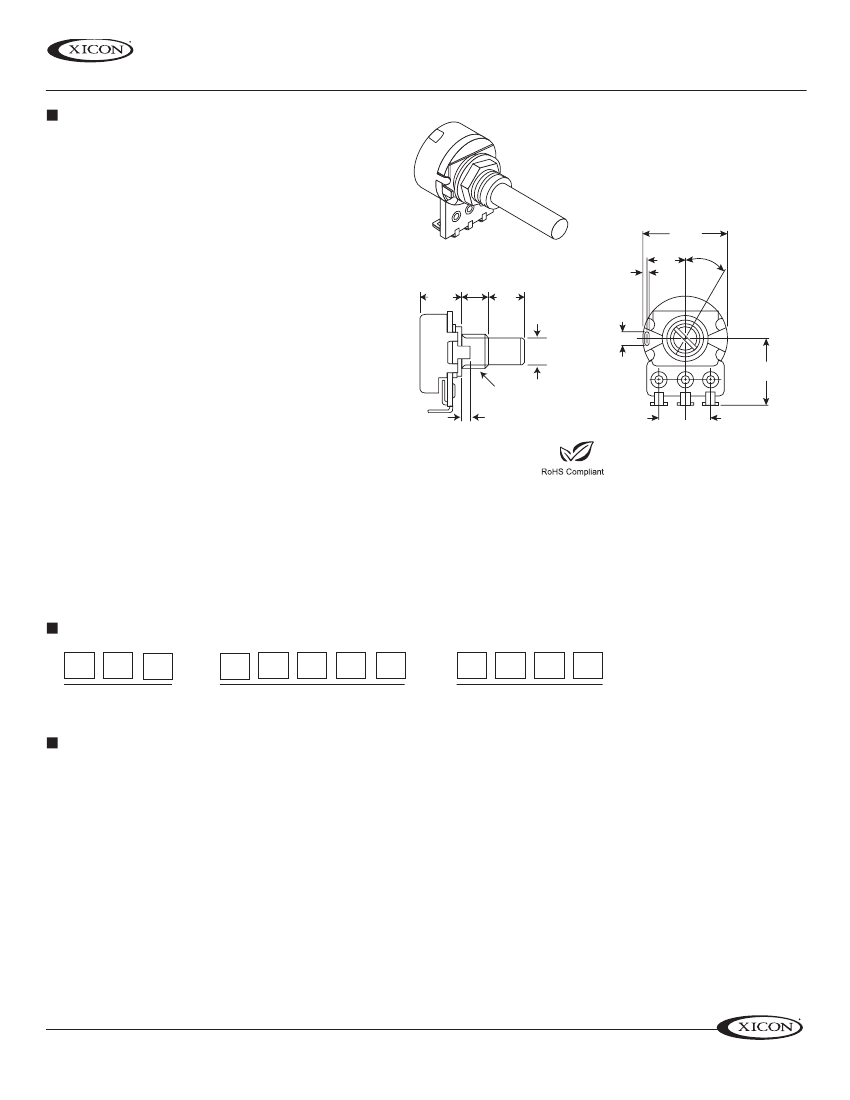

313-2000F Series
DIMENSIONS: in.
ø.67
.31
.05
.375
.26
.33
30°
.11
.24
.53
ø.28
.08
.20 .20
Shaft shown in full
C.C.W. position
PART NUMBERING SYSTEM
3
1
3
-
2
0
0
0
F
-
5
0
0
K
Value
VALUES
1K, 2K, 5K, 10K, 25K, 50K, 100K, 250K, 500K, 1M
XICON PASSIVE COMPONENTS • (800) 628-0544
XC-600177
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
Date Revised: 1/4/07
