Solid State Relays
G3NE
CSM_G3NE_DS_E_4_1
Compact, Low-cost, SSR Switching 5 to 20 A
• Wide load voltage range: 75 to 264 VAC. Both 100-V and
200-V loads can be handled with the same model.
• Dedicated, compact aluminum PCB and power elements used.
• Built-in varistor effectively absorbs external surges.
• Quick-connect #110 input terminals and #250 output
connections. (#187 input terminals and #250 output
connections are available.)
• “-US” models certified by UL, CSA, and IEC/EN (TÜV).
Refer to
Safety Precautions for All Solid State
Relays.
For the most recent information on models that have been certified for
safety standards, refer to your OMRON website.
Model Number Structure
■
Model Number Legend
G3NE-@@@@-@-@
1
2 3 4 5 6
7
5. Zero Cross Function
Blank:
Equipped with zero cross function
L:
Not equipped with zero cross function
6. Special Specifications
Blank:
Standard models
2:
#187 input terminals
7. Certification
US:
Certified by UL, CSA, and TÜV
1. Basic Model Name
G3NE:
Solid State Relay
2. Rated Load Power Supply Voltage
2:
200 VAC
3. Rated Load Current
05:
5A
10:
10 A
20:
20 A
4. Terminal Type
T:
Quick-connect terminals
1
G3NE
Ordering Information
■
List of Models
Isolation
Phototriac
Yes
Zero cross
function
Indicator
No
Rated output load
5 A at 100 to 240 VAC
Rated input voltage
(See note 1, 2.)
5VDC
12VDC
24VDC
10 A at 100 to 240 VAC
5VDC
12VDC
24VDC
20 A at 100 to 240 VAC
5VDC
12VDC
24VDC
No
5 A at 100 to 240 VAC
5VDC
12VDC
24VDC
10 A at 100 to 240 VAC
5VDC
12VDC
24VDC
20 A at 100 to 240 VAC
5VDC
12VDC
24VDC
Model
G3NE-205T-US DC5
G3NE-205T-2-US DC5
G3NE-205T-US DC12
G3NE-205T-2-US DC12
G3NE-205T-US DC24
G3NE-205T-2-US DC24
G3NE-210T-US DC5
G3NE-210T-2-US DC5
G3NE-210T-US DC12
G3NE-210T-2-US DC12
G3NE-210T-US DC24
G3NE-210T-2-US DC24
G3NE-220T-US DC5
G3NE-220T-2-US DC5
G3NE-220T-US DC12
G3NE-220T-2-US DC12
G3NE-220T-US DC24
G3NE-220T-2-US DC24
G3NE-205TL-US DC5
G3NE-205TL-2-US DC5
G3NE-205TL-US DC12
G3NE-205TL-2-US DC12
G3NE-205TL-US DC24
G3NE-205TL-2-US DC24
G3NE-210TL-US DC5
G3NE-210TL-2-US DC5
G3NE-210TL-US DC12
G3NE-210TL-2-US DC12
G3NE-210TL-US DC24
G3NE-210TL-2-US DC24
G3NE-220TL-US DC5
G3NE-220TL-2-US DC5
G3NE-220TL-US DC12
G3NE-220TL-2-US DC12
G3NE-220TL-US DC24
G3NE-220TL-2-US DC24
Note: 1.
The rated input voltage depends on the ambient temperature. For details, refer to
Load Current vs. Ambient Temperature
in
Engineering
Data
on page 4.
2.
When ordering, specify the input voltage.
3.
Refer to
List of Certified Models
for a list of products that comply with safety standards. When ordering a UL, CSA, and EN(TÜV) certified
model, add “-US” to the model number.
■
Accessories (Order Separately)
One-touch Mounting Plates
Model
R99-12
FOR G3NA
G3NE
Applicable SSR
Heat Sinks
The following heat sinks are thin and can be DIN-track mounted.
See
Dimensions
for details.
Model
Y92B-N50
Y92B-N100
Applicable SSR
G3NE-205T(L)(-2)-US/-210T(L)(-2)-US
G3NE-220T(L)(-2)-US
2
G3NE
Specifications
■
Ratings (at an Ambient Temperature of 25°C)
Input
5 VDC
12 VDC
24 VDC
Rated voltage
Operating voltage
4 to 6 VDC
9.6 to 14.4 VDC
19.2 to 28.8 VDC
Voltage level
Must operate
4 VDC max.
9.6 VDC max.
19.2 VDC max.
Must release
1 VDC min.
250
Ω±20%
600
Ω±20%
1.6 kΩ±20%
Input impedance
With zero cross function Without zero cross function
300
Ω±20%
800
Ω±20%
Note:
Each model has 5-VDC, 12-VDC, and 24-VDC input versions.
Output
Model
Rated load voltage Load voltage range
Applicable load
Load current
(See note 1.)
With heat sink
G3NE-205T(L)(-2)-US
G3NE-210T(L)(-2)-US
G3NE-220T(L)(-2)-US
100 to 240 VAC
75 to 264 VAC
0.1 to 5 A at 40°C
0.1 to 10 A at 40°C
(See note 2.)
0.1 to 20 A at 40°C
(See note 2.)
Without heat sink
0.1 to 5 A at 40°C
0.1 to 5 A at 40°C
0.1 to 5 A at 40°C
60 A (60 Hz, 1 cycle)
150 A (60 Hz, 1 cycle)
220 A (60 Hz, 1 cycle)
Inrush current
Note: 1.
The load current varies depending on the ambient temperature. Refer to
Load Current vs. Ambient Temperature
under
Engineering Data
for details on page 4.
2.
These values apply when using a dedicated heat sink or a radiation plate of specified size.
■
Characteristics
Item
Operate time
Release time
Output ON voltage drop
Leakage current
Insulation resistance
Dielectric strength
Vibration resistance
Shock resistance
Ambient temperature
Ambient humidity
Certified standards
EMC
Weight
G3NE-2@@T(-2)-US
1/2 of load power source cycle + 1 ms max.
1/2 of load power source cycle + 1 ms max.
1.6 V (RMS) max.
2 mA max. (at 100 VAC)
5 mA max. (at 200 VAC)
100 MΩ min. (at 500 VDC)
2,000 VAC, 50/60 Hz for 1 min
Destruction: 10 to 55 to 10 Hz, 0.75-mm single amplitude
Destruction: 1,000 m/s
2
Operating: –30°C to 80°C (with no icing or condensation)
Storage: –30°C to 100°C (with no icing or condensation)
Operating: 45% to 85%
UL508 File No.E64562/CSA C22.2 (No.0, No.14) File No. LR35535
TÜV R9051064 (VDE0435) (EN60950)
Emission: EN55011 Group 1 Class B
Immunity: EN61000-6-2
Approx. 37 g
1 ms max.
G3NE-2@@TL(-2)-US
3
G3NE
Engineering Data

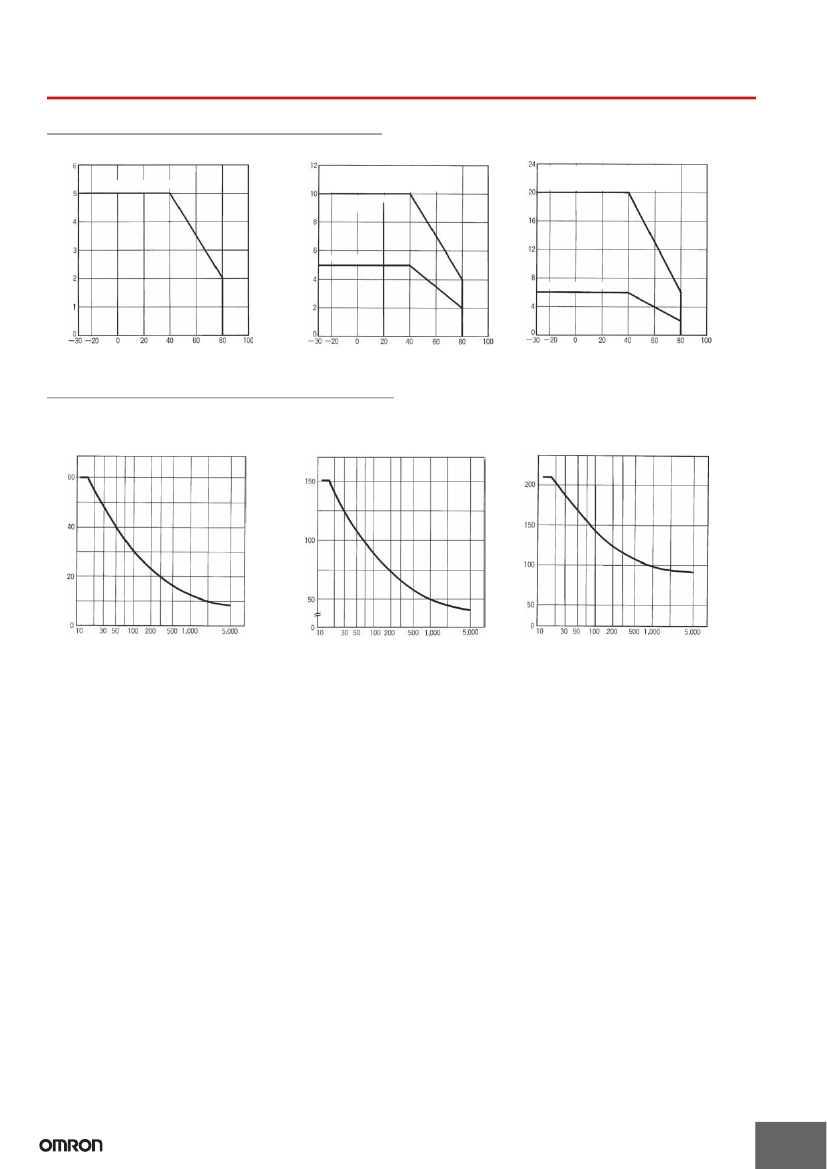

Load Current vs. Ambient Temperature
G3NE-205T(L)(-2)-US
Without heat sink
G3NE-210T(L)(-2)-US
With standard heat sink (Y92B-N50)
or aluminum plate measuring 100 mm
x 100 mm x t2 mm (W x H x D)
G3NE-220T(L)(-2)-US
With standard heat sink (Y92B-N100) or
aluminum plate measuring 300 mm x
300 mm x t3 mm (W x H x D)
Load current (A)
Load current (A)
Without heat sink
Load current (A)
Without heat sink
Ambient temperature (°C)
Ambient temperature (°C)
Ambient temperature (°C)
One Cycle Surge Current: Non-repetitive
Note:
Keep the inrush current to half the rated value if it occurs repetitively.
G3NE-205T(L)(-2)-US
Inrush current (A. Peak)
Inrush current (A. Peak)
G3NE-210T(L)(-2)-US
Inrush current (A. Peak)
Energized time (ms)
G3NE-220T(L)(-2)-US
Energized time (ms)
Energized time (ms)
4
G3NE

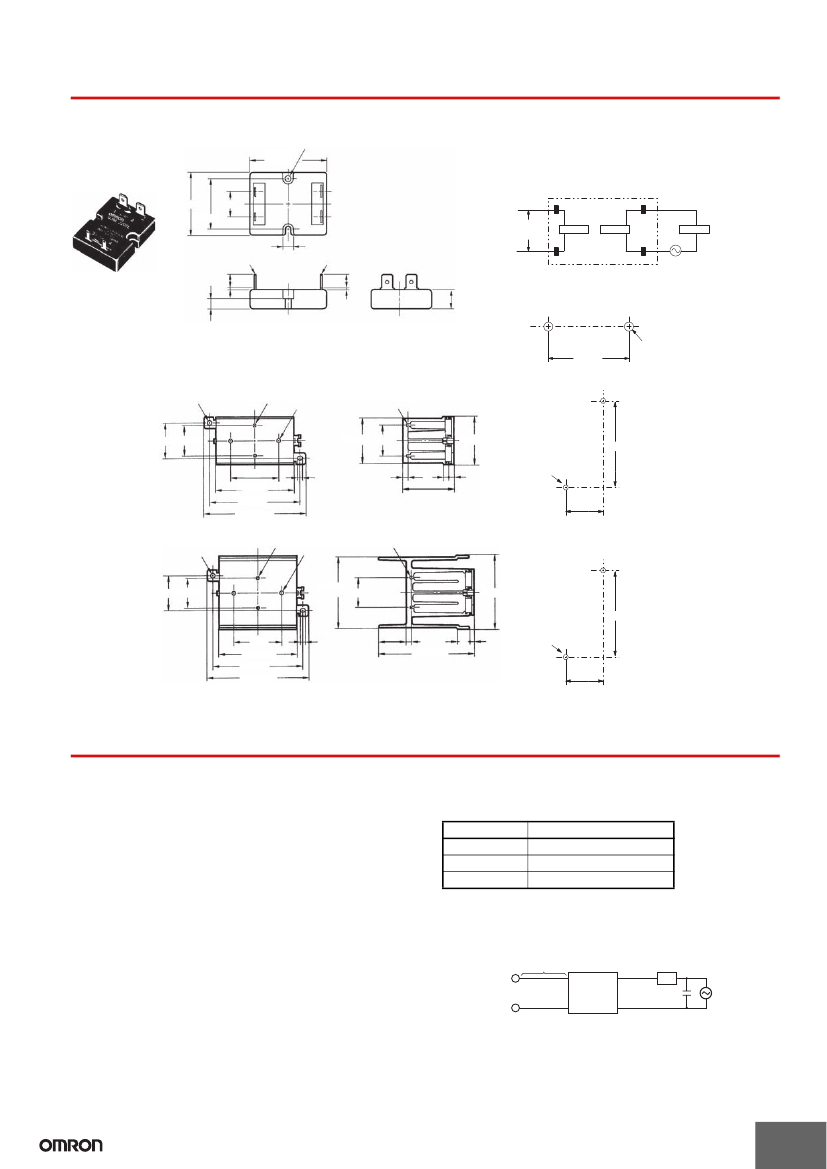

Dimensions
Note:
All units are in millimeters unless otherwise indicated.
G3NE-205T(L)/210T(L)/220T(L)(-2)-US
3.5 dia. hole
47.5
max.
Terminal Arrangement/
Internal Connections
(Top View)
3+
Input
voltage
Input
Output
37.5 max.
14.5
1
Load
30+0.5
Two #110 (t = 0.5) (Faston
tab or equivalent)*
7.1
2.9
6
6.5
Two #250 (t = 0.8) (Faston
tab or equivalent)
7.95
3
11.5 max.
4
−
2
Load power
supply
Mounting Holes
* G3NE-2@@T(L)-2-US: Two, #187 (t=0.5) (Faston tab or equivalent)
Two, 3.5-dia. or M3 holes
30±0.2
Heat Sink
Y92B-N50
Mounting Holes
4.6 dia. hole
Two, M3 holes
Two, M4 holes
Two, 3.2-dia.
holes
44 max. 30
47 max.
Two, 4.4-dia.
or M4 holes
35 30.5±0.3
90±0.4
47.6
77 max.
90±0.3
100 max.
5.6
5
6
51 max.
4.5
Weight: approx. 200 g
35±0.2
Two, M4
holes
Two, 3.2-dia. holes
Y92B-N100
4.6 dia. hole
Two, M3 holes
Mounting Holes
35 30.5±0.3
71 max. 30
75 max.
90±0.4
47.6
77 max.
90±0.3
100 max.
5.6
28
5
100 max.
13
4.5
Two, 4.4-dia.
or M4 holes
35±0.2
Weight: approx. 400 g
Safety Precautions
Refer to
Safety Precautions for All Solid State Relays.
■
Precautions for Correct Use
Please observe the following precautions to prevent failure to
operate, malfunction, or undesirable effect on product performance.
Do not apply excessive force to the terminals. Be careful when
pulling or inserting the terminal clips for the Quick Connector (QC).
When attaching a heat sink to the G3NE, in order to facilitate heat
dissipation, apply heat-conductive grease on the heat sink.
For DIN Track mounting, use a separately sold Heat Sink. Refer to
information on the G3NA.
G3NE-210T(L): Y92B-N50
G3NE-220T(L): Y92B-N100
Tighten the mounting screws of the heat sink with a torque of 0.59 to
0.98 N·m.
■
Thermal Resistance Rth (Back
of Junction SSR)
Model
Thermal resistance (°C/W)
G3NE-205T (L) 2.72
G3NE-210T (L) 2.12
G3NE-220T (L) 2.22
■
EMC Directive Compliance
The G3NE complies with EMC Directives under the following
conditions ("-US" models only).
10 m max.
Load
Input
G3NE-US
Output
Film capacitor:
•
1
μF,
250 VAC
•
Connect a film capacitor to the load power supply.
•
The input cable must be less than 10 m.
5
PCB Design
