G3VM-SW-S

Description
Solid state relay 8-pin sop dpst-NO 350v load voltage
Categorysemiconductor    Other integrated circuit (IC)
File Size242KB,4 Pages
ManufacturerAll Sensors
Environmental Compliance
Download Datasheet Parametric View All

G3VM-SW-S Online Shopping

Suppliers Part Number Price MOQ In stock
G3VM-SW-S - - View Buy Now

G3VM-SW-S Overview

Solid state relay 8-pin sop dpst-NO 350v load voltage

G3VM-SW-S Parametric

Parameter NameAttribute value
MakerAll Sensors
Product Categorysolid state relay
RoHSyes
Control voltage range1 V to 1.3 V
Load voltage rating350 V
Off state leakage current (maximum)1 uA
Load current rating120 mA
Contact form2 Form A
output deviceMOSFET
Package/boxSOP-8
Installation styleSMD/SMT
Relay typeMOSFET Relay
Termination typeSolder Pad
Turn on the switchFET

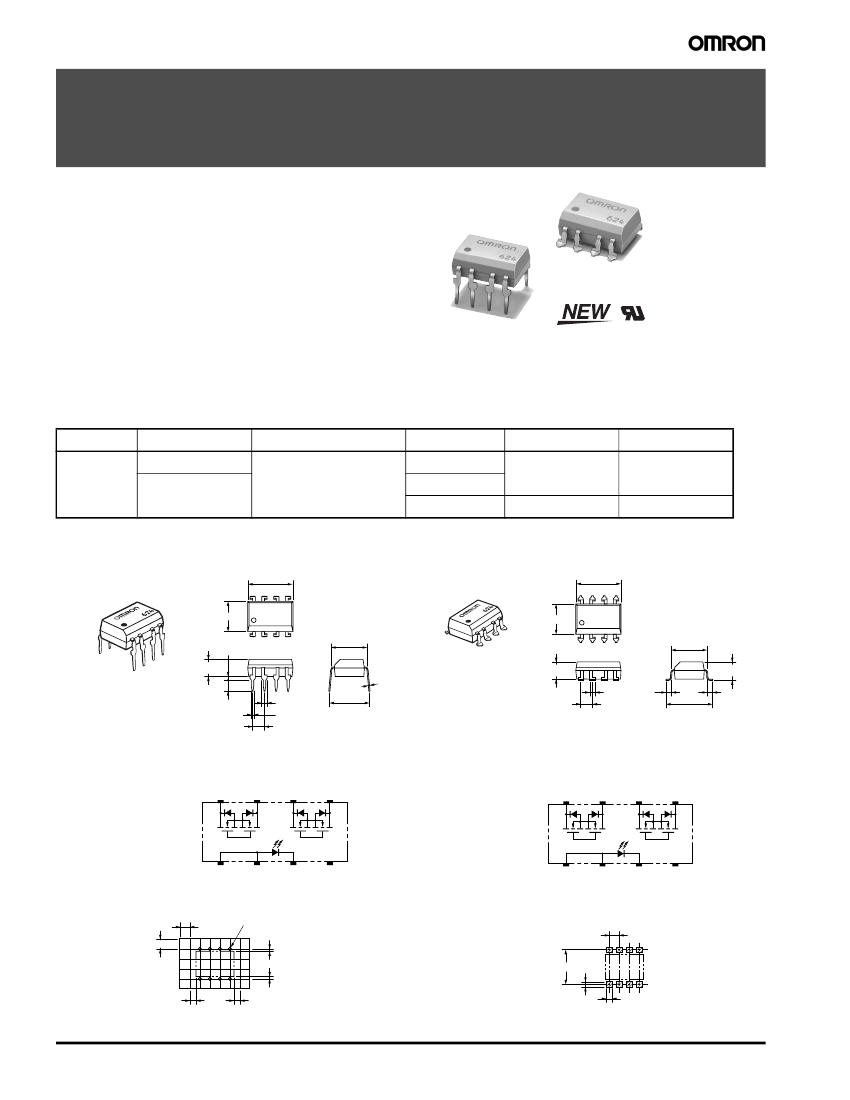

MOS FET Relays
G3VM-22CO/FO
New MOS FET Relay Featuring Unique Contact
Construction (1 Input Channel Drives 2 Output
Channels)
• Ideal for application in line interface and data logging blocks.
• Switches minute analog signals.
• Switching AC and DC.
• RoHS Compliant.
I
Application Examples
• ADSL modems and routers
• Edge routers
• Data storage devices
Approval pending
Note:
The actual product is marked differently from the image
shown here.
I
List of Models
Contact form
DPST-NO
Terminals
PCB terminals
Surface-mounting
terminals
Load voltage (peak value)
20 VAC
Model
G3VM-22CO
G3VM-22FO
G3VM-22FO(TR)
---
1,500
Number per stick
50
Number per tape
---
I
Dimensions
Note:
All units are in millimeters unless otherwise indicated.
9.66±
0.25
G3VM-22CO
G3VM-22FO
9.66±
0.25
6.4±
0.25
7.62±
0.25
0.8±
0.25
3.65
−0.25
+0.15
+0.1
−0.05
6.4±
0.25
7.62±
0.25
+0.15
+0.25
−0.2
3.65
−0.25
0.25
4.0
1.2±
0.15
2.54±
0.25
1.0
min.
10.0 max.
Note:
The actual product
is marked different-
ly from the image
shown here.
2.5 min.
1.2±
0.15
0.5±
0.1
2.54±
0.25
7.85 to 8.80
Weight: 0.54 g
Note:
The actual product
is marked different-
ly from the image
shown here.
1.0 min.
Weight: 0.54 g
I
Terminal Arrangement/Internal Connections
(Top View)
G3VM-22CO
8
7
6
5
G3VM-22FO
8
7
6
5
1
2
3
4
1
2
3
4
I
PCB Dimensions (Bottom View)
G3VM-22CO
2.54
2.54
Eight 0.8-dia. holes
(0.61)
I
Actual Mounting Pad Dimensions
(Recommended Value, Top View)
G3VM-22FO
8.3 to 8.8
2.54
(1.52)
(0.61)
(1.52)
1.3
1.5
354
MOS FET Relays
G3VM-22CO/FO
