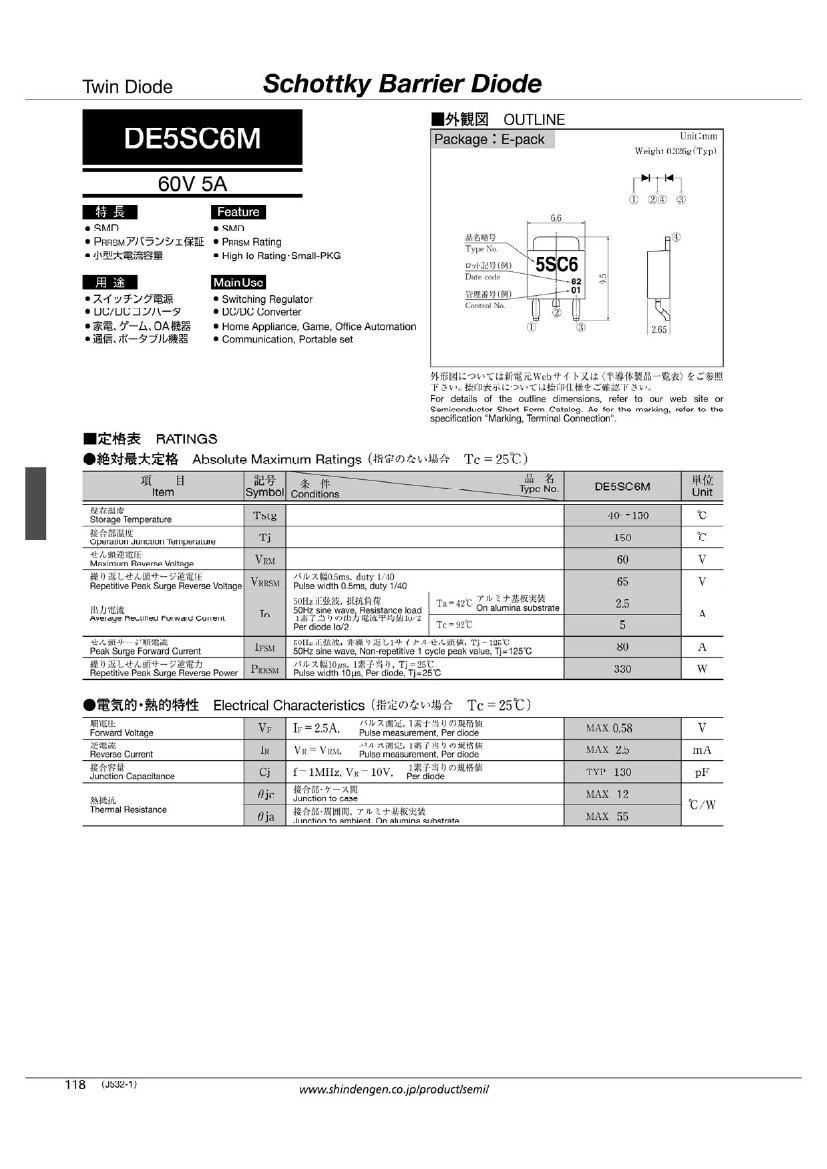

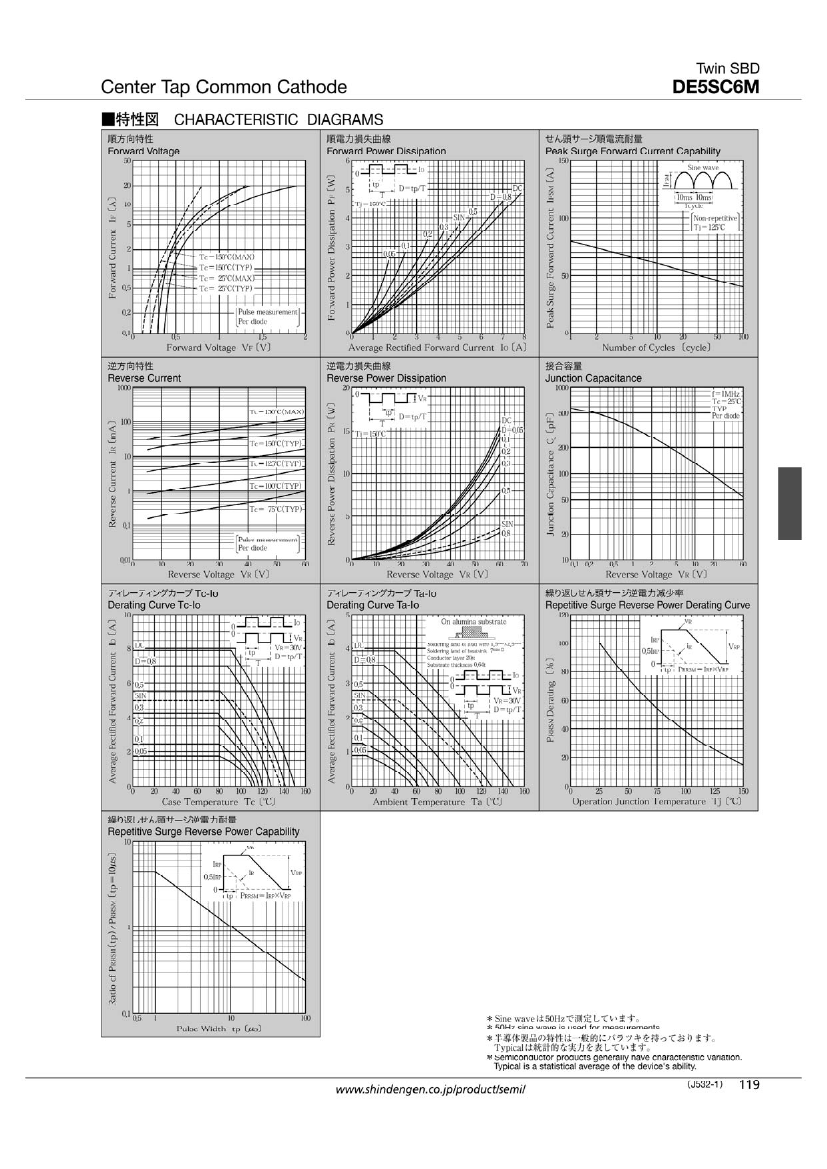

DE5SC6M-4061 datasheet, PDF - EEWORLD Datasheet

DE5SC6M-4061: DescriptionSchottky (diode and rectifier) vrm=60 ifsm=80; CategoryDiscrete semiconductor diode; File Size542KB，2 Pages; ManufacturerSHINDENGEN; Websitehttps://www.shindengen.com

Download Datasheet Parametric Compare View All

DE5SC6M-4061 Overview

Schottky (diode and rectifier) vrm=60 ifsm=80

Parameter Name	Attribute value
Maker	SHINDENGEN
package instruction	EPACK-3
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
application	GENERAL PURPOSE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.58 V
JESD-30 code	R-PSIP-T3
Maximum non-repetitive peak forward current	80 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	125 °C
Maximum output current	2.5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	60 V
Maximum reverse current	2500 µA
surface mount	NO
technology	SCHOTTKY
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

	DE5SC6M-4061	DE5SC6M-4071	DE5SC6M-4100
Description	Schottky (diode and rectifier) vrm=60 ifsm=80	Schottky (diode and rectifier) vrm=60 ifsm=80	Schottky (diode and rectifier) vrm=60 ifsm=80
Maker	SHINDENGEN	SHINDENGEN	-
package instruction	EPACK-3	EPACK-3	-
Contacts	3	3	-
Reach Compliance Code	unknow	unknown	-
ECCN code	EAR99	EAR99	-
application	GENERAL PURPOSE	GENERAL PURPOSE	-
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	-
Diode component materials	SILICON	SILICON	-
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	-
Maximum forward voltage (VF)	0.58 V	0.58 V	-
JESD-30 code	R-PSIP-T3	R-PSIP-T3	-
Maximum non-repetitive peak forward current	80 A	80 A	-
Number of components	2	2	-
Phase	1	1	-
Number of terminals	3	3	-
Maximum operating temperature	125 °C	125 °C	-
Maximum output current	2.5 A	2.5 A	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-
Package shape	RECTANGULAR	RECTANGULAR	-
Package form	IN-LINE	IN-LINE	-
Certification status	Not Qualified	Not Qualified	-
Maximum repetitive peak reverse voltage	60 V	60 V	-
Maximum reverse current	2500 µA	2500 µA	-
surface mount	NO	NO	-
technology	SCHOTTKY	SCHOTTKY	-
Terminal form	THROUGH-HOLE	THROUGH-HOLE	-
Terminal location	SINGLE	SINGLE	-
