Part Number:
Status:
Description:
5011751192
Contact Molex
1.30mm (.051") Pitch miniSD Memory Card Connector, Reverse Mount Type, SMT,
2.20mm (.087") Mounted Height, without Pegs
Documents:
3D Model
Drawing (PDF)
Product Specification PS-501175-002 (PDF)
RoHS Certificate of Compliance (PDF)
Series

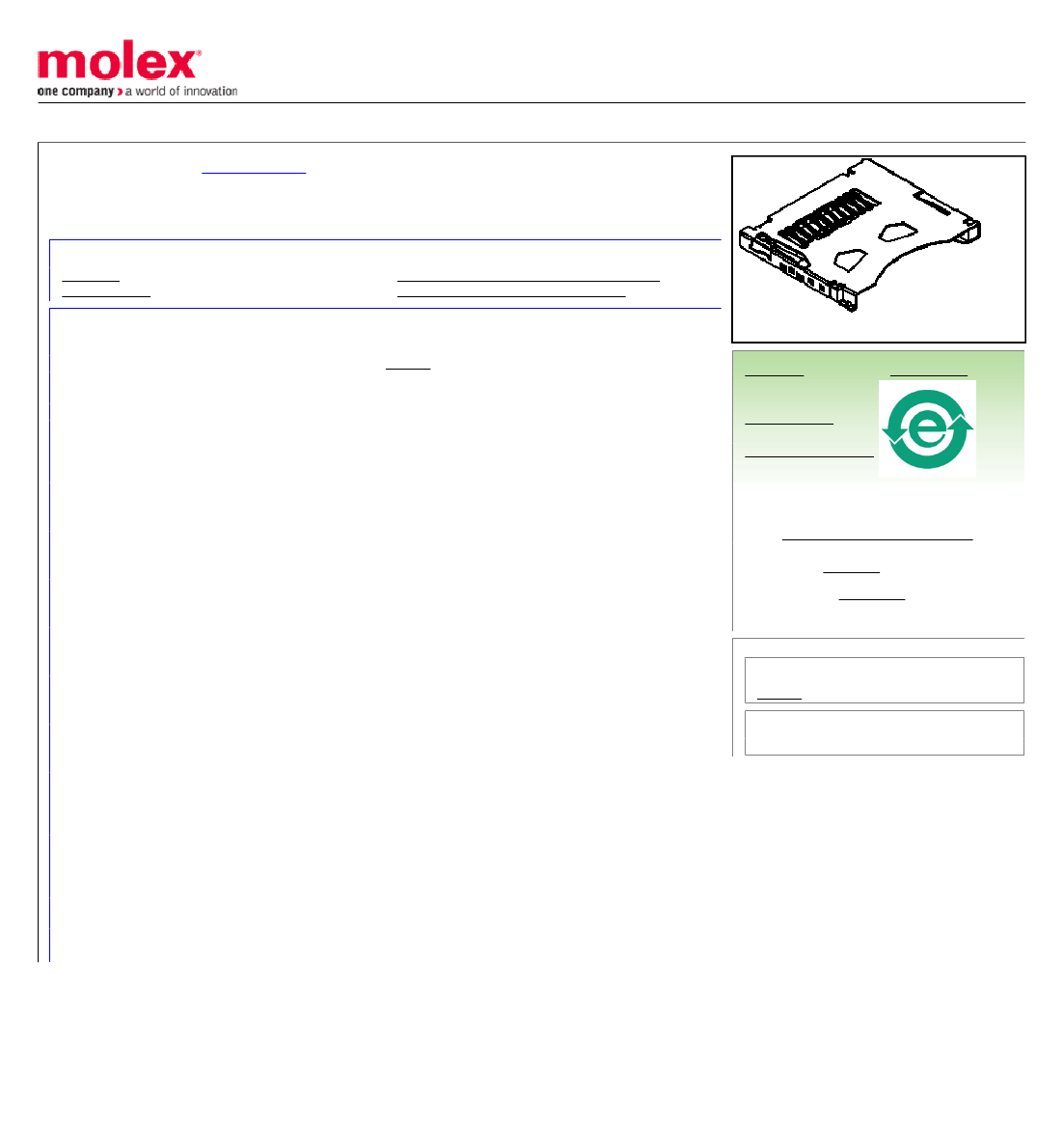

image - Reference only
Memory Card Sockets
501175
Header & Ejector (Host)
miniSD Card
Push-Push
N/A
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Reviewed
China RoHS
General
Product Family
Series
Component Type
Product Name
Style
Type
Physical
Card Detection Switch
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Ejector Button
Ejector Button Side
Entry Angle
Keying to Mating Part
Material - Resin
PCB Locator
PCB Mounting Side
PCB Retention
Packaging Type
Pitch - Mating Interface
Pitch - Termination Interface
Ports
Surface Mount Compatible (SMC)
Temperature Range - Operating
Yes
11
11
Black
10,000
No
N/A
90° Angle
Yes
High Temperature Thermoplastic
No
Reverse
Yes
Embossed Tape on Reel
1.30mm (.051")
1.30mm (.051")
1
Yes
-25°C to +85°C
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
501175Series
Use With
miniSD Card
Electrical
Current - Maximum per Contact
Shielded
Voltage - Maximum
Voltage Key
0.5A
Yes
10V AC (RMS)/DC
N/A
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-501175-002, RPS-501175-002
SD-501175-003, SD-501175-004
