RV120F-20-15F-A1K

Description
Panel mount potentiometer audio D-shaft 1K 20mm shaft length
CategoryPassive components
File Size85KB,1 Pages
ManufacturerAll Sensors
Environmental Compliance
Download Datasheet Parametric View All

RV120F-20-15F-A1K Overview

Panel mount potentiometer audio D-shaft 1K 20mm shaft length

RV120F-20-15F-A1K Parametric

Parameter NameAttribute value
MakerAll Sensors
Product CategoryPanel mount potentiometer
RoHSyes
resistance1 KOhms
Tolerance5 %
Power rating0.04 W
Termination typeLug
taperAudi
Number of revolutions1
Shaft typeFlatted / D
Shaft length15 mm
Shaft diameter6 mm
size6 mm Dia.
productPanel Mount Potentiometers
Voltage rating100 V

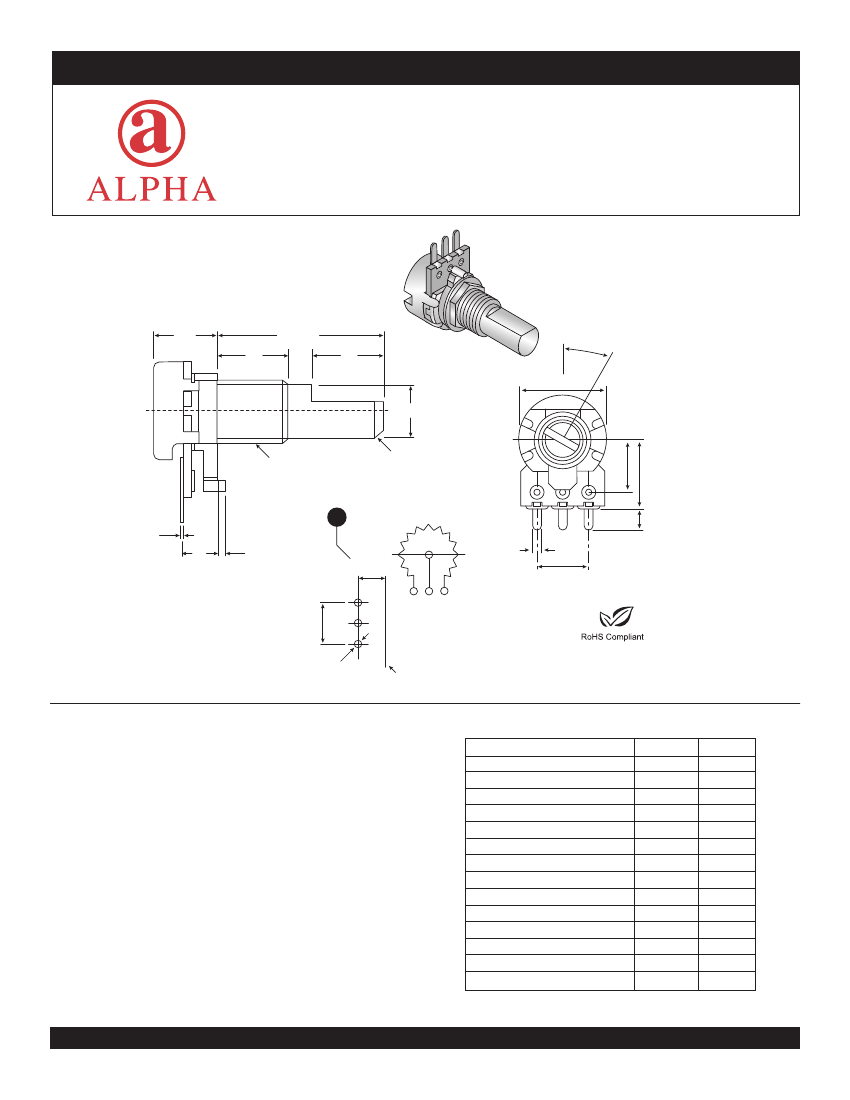

Date:
11-4-09
Ref.#:
TW-700151
Potentiometers
RV120F-20-15F-SERIES
10
7
15±0.5
7
ø13.0
ø6.0
30
M7x0.75
C1
300 rotation
angle unit
7.5
10
3.0
3-0.4
5.0
1.0
5.0
1 2 3
7.5
3-ø1.2 0.2
-0
Mounting Surface
P.C.B. Mounting Hole Detail
7.5
3 -1.0
Dimensions: mm
Specifications:
Total rotation angle: 300° ± 5°
Rotational life: 15,000 cycles
Termination: solder lugs
Flat/ “D” Shaft: 6.0mm diameter
Rated wattage:
linear= 0.08W
audio=0.04W
Maximum working voltage:
linear= 150V
audio= 100V
Nominal Tolerance (Ω): ±5%
Alpha Part Number
RV120F-20-15F-A1K
RV120F-20-15F-A5K
RV120F-20-15F-A10K
RV120F-20-15F-A50K
RV120F-20-15F-A100K
RV120F-20-15F-A500K
RV120F-20-15F-A1M
RV120F-20-15F-B1K
RV120F-20-15F-B5K
RV120F-20-15F-B10K
RV120F-20-15F-B50K
RV120F-20-15F-B100K
RV120F-20-15F-B500K
RV120F-20-15F-B1M
Value
1K
5K
10K
50K
100K
500K
1M
1K
5K
10K
50K
100K
500K
1M
Taper
Audio
Audio
Audio
Audio
Audio
Audio
Audio
Linear
Linear
Linear
Linear
Linear
Linear
Linear
Available from Mouser Electronics
www.mouser.com
(800) 346-6873
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
