75ø Ultra- Miniature Push-on Lock Coaxial Connectors
PL75 Series

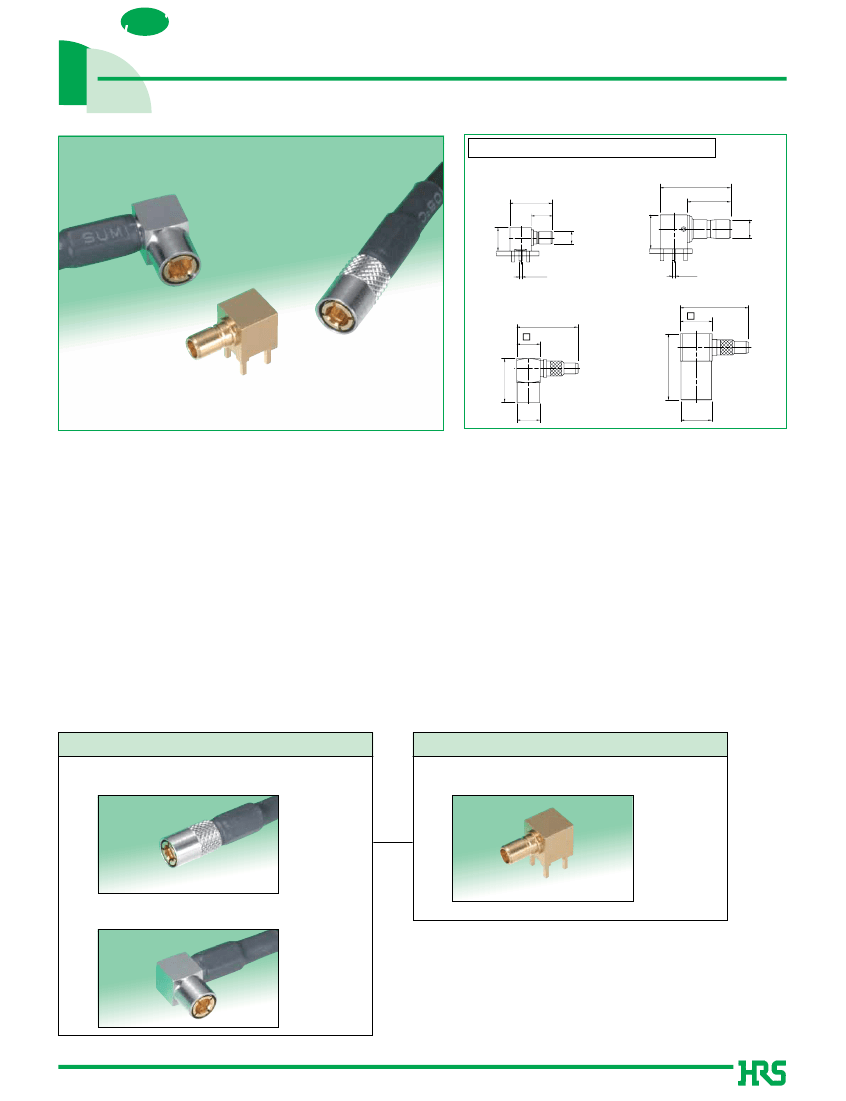

PL75 and PL71 Size Comparison
●Right-angle
receptacles
[PL75]
9
4.5
Ø2.65
5
7.2
[PL71]
14.9
9.2
Ø3.95
Ø0.7
[PL71]
14.4
6.7
14
9.3
Ø4.8
Ø6.5
Ø0.7
●Right-angle
plugs
[PL75]
13
5
■
Features
1.Further reduction in size
Reflecting the need for smaller devices, the size is
reduced by approximately 30% when compared with the
PL71 Series 75 Ohm connectors.
■
Applications
Satellite digital networks, CATV, broadcasting
equipment, visual equipment and other
applications requiring highly reliable coaxial cable
connections.
2.Secure lock
Unique design of the lock/release, protected by outer
shell, assures reliable and stable electrical and
mechanical connection.
3.High degree of impedance matching
V.S.W.R of 1.3 max for frequencies of DC to 1.5 GHz.
4. RoHS compliant
All components and materials comply with the
requirements of EU Directive 2002/95/EC.
■
Mating Chart
Plugs
■
Straight
PL75-P-1.5CV
Receptacle
■
Right-angle
PL75-LR-PC
■
Right-angle
PL75-LP-1.5CV
PL75-LP-1.5CW
2008.3
1
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued,
Miniature Push-on Lock
check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
ø
PL75 Series●75ø Ultra-
or will be discontinued soon. Please
Coaxial Connectors
■Specifications
Ratings
Item
1. Insulation resistance
2. Withstanding voltage
3. Contact resistance
4. Center contact retention force
5. V.S.W.R. *
6. Vibration
1,000 Mø min.
No flashover or insulation breakdown
Center contact : 15 mø max.
Outer shell: 6 mø max.
0.2 N min.
1.3max.
No electrical discontinuity of 1 μs or longer
No damage, cracks, or parts dislocation
Insulation resistance: 10 Mø min. (high humidity)
Measured with 0.3 mm diameter pin gauge
DC to 1.5GHz
Frequency: 10 to 500 Hz, single amplitude of 0.75 mm,
acceleration of 98m/s
2
, 2 hours in each of the 3 axis
Nominal characteristic impedance: 75ø
Frequency range
: DC to 1.5 GHz
Operating temperature range:-30°C to +85°C
Operating humidity
: RH 95% max.
Specification
250 V DC
250 V AC / 1 minute
100 mA max.
Conditions
7.Moisture resistance
Insulation resistance: 1,000 Mø min. (dry)
No damage, cracks, or parts dislocation
Contact resistance Center contact : 19 mø max.
96 hours at +40ç and humidity of 90% to 95%
Temperature:-30ç
➝
+5ç to +35ç
➝
+85ç
➝
+5ç to +35ç
Time: 30 min.
➝
5 min.max.
➝
30 min.➝ 5 min.max.
5 cycles
8. Temperature cycle
Outer shell
: 10 mø max.
No damage, cracks, or parts dislocation
Contact resistance: Center contact : 19 mø max.
9. Durability
10. Salt spray
No corrosion
Outer shell
: 10 mø max.
500 cycles
No damage, cracks, or parts dislocation
5% salt water solution, 48 hours
* V.S.W.R. Measurement System
The above V.S.W.R. standard values were measured using the measurement system shown below.
Network Analyzer
Note 1: Cable connectors were measured with PL75 and
BNC(75) connectors connected with 10cm long coaxial cable.
D .U . T
Test Port Cable
■Materials
/ Finishes
●Plugs
Part
Shell
Male center contact
Female center contact
Insulator
Crimp sleeve
Material
Brass
Phosphor bronze
Beryllium copper
PTFE
Brass
Finish
Gold plated
Gold plated
Gold plated
---------------
Nickel plated
●Receptacle
Part
Shell
Male center contact
Female center contact
Insulator
Material
Brass
Phosphor bronze
Beryllium copper
PTFE
Finish
Gold plated
Gold plated
Gold plated
---------------
■Ordering
information
:PL75
1
Series name
2
Connector type
P
:Straight plug
LP
:Right-angle plug
LR
:Right-angle plug receptacle
3
Applicable cable (plug) or board mounting (receptacle) style
1.5CV
:1.5CCA-EXBV(LF)
1.5CW :1.5C-QEW.CW
PC
:DIP mounting
PL75 -
1
2
-
3
2
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose
Series●75ø Ultra- Miniature Push-on
or contact your Hirose sales representative.
ø
PL75
website RoHS search at www.hirose-connectors.com,
Lock Coaxial Connectors

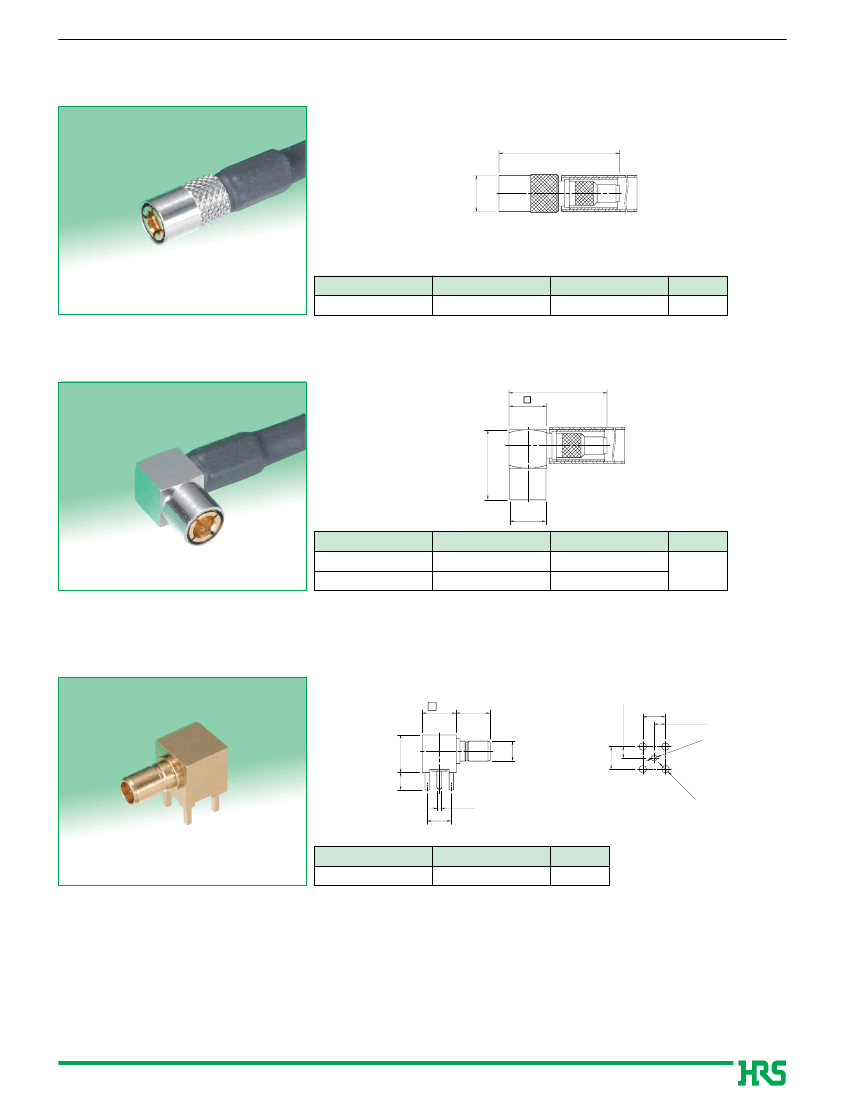

■Plugs
●Straight
16
Ø4.8
All dimensions: mm
Part Number
PL75-P-1.5CV
•Must be terminated only with the specified cable.
CL No.
334-0078-0
Applicable cable
1.5CCA-EXBV(LF)
RoHS
YES
●Right
angle
13
5
9.3
Ø4.8
All dimensions: mm
Applicable cable
1.5CCA-EXBV(LF)
1.5C-QEW.CW
RoHS
YES
Part Number
PL75-LP-1.5CV
PL75-LP-1.5CW
•Must be terminated only with the specified cable.
CL No.
334-0076-4
334-0080-1
■Receptacle
●Right
angle
●PCB
mounting pattern
3±0.05
1.5±0.05
4.5
4.5
3±0.05
1.5±0.05
0
Ø0.8
+0.
1
Ø2.65
5
4-
2.3
Ø1
+
1
0.
0
Ø0.7
3
All dimensions: mm
Part Number
PL75-LR-PC
CL No.
334-0075-1
RoHS
YES
3
