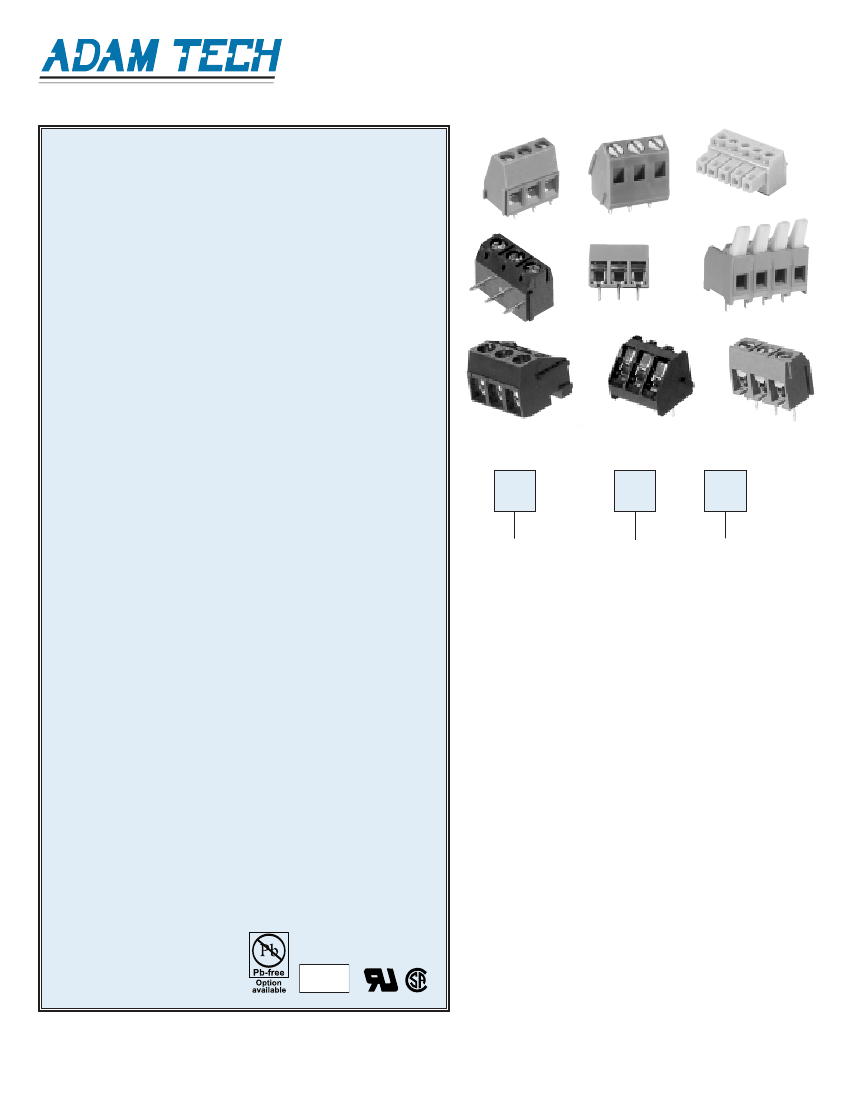

EURO BLOCKS
ADAM TECHNOLOGIES
INTRODUCTION:
Adam Tech EB Series Euro Blocks are a broad range of PCB
mounted blocks in various sizes and profiles including Standard,
Miniature and Micro blocks with pitches ranging from 15.00mm down
to 3.50mm. Included are types that have wire entry from Top, Side
or Side Angle.
Two piece ‘pluggable’ versions and Lever Actuated styles are also
available. Each contains our unique wire guard design and is
precision manufactured for smooth operation and ease of use.
SPECIFICATIONS:
Material:
Insulator: PBT or Nylon, glass reinforced, rated UL94V-0
Insulator Color: Green, Black (Blue and Gray optional)
Metal cage: Brass, tin plated
Screw: Steel, Galvanized or Chromatized
Wire Guard: Stainless Steel, Tin plated
Electrical:
Operating voltage: 250V AC max.
Current rating: 7 to 15 Amp max
Contact resistance: 20 mΩ max. initial
Insulation resistance: 5000 MΩ min.
Dielectric withstanding voltage: 1500V AC for 1 minute
Mechanical:
Recommended wire size:
EBC & EBF Series: 16 to 26 Awg
EBA, EBB, EBD, EBE, EBG & EBJ Series: 14 to 22 Awg
EBH, EBK, EBM, EBN, EBP, EBQ, EBR, EBS & EBV Series: 12 to 24 Awg
Mating durability: 500 Cycles min.
Temperature Rating:
Operating temperature: -55°C to +105°C
PACKAGING:
Anti-ESD plastic trays
SAFETY AGENCY APPROVALS:
UL Recognized File No. E224053
CSA Certified File No. LR1578596
TS & EB SERIES
ORDERING INFORMATION
EBA
03
C
SERIES INDICATOR NO. OF POLES
EBA
= .492” Straight 02 thru 24
EBB
= .394” Straight
EBC
= .327” Straight
EBD
= .354” Right Angle
EBE
= .295” Right Angle
EBF
= .275” Right Angle
EBG
= .472” Angled
EBH
= .590” Plugable
EBJ
= .433” Plugable
EBK
= .440” Plugable
EBM
= .386” Right Angle
EBN
= .291” Right Angle
EBP
= Header, Straight
EBQ
= Header, Right Angle
EBR
= Header, Straight
EBS
= Header, Right Angle
EBT
= Pin Header, Straight
EBV
= .543” Straight
EBW
= .335” Straight
TSE
= Lever block
CENTERLINE
SPACING
A = .138” [3.50mm]
B = .150” [3.81mm]
C = .197” [5.00mm]
D = .200” [5.08mm]
E = .276” [7.00mm]
G = .300” [7.62mm]
H = .394” [10.00mm]
J = .400” [10.16mm]
K = .591” [15.00mm]
Standard body colors:
Black:
Series EBA, EBB, EBC, EBD, EBE, EBF, EBG, EBJ, EBT
Green:
Series EBH, EBP, EBQ, EBK, EBR, EBS, EBV, EBM, EBN, EBW
Other colors also available
RoHS
COMPLIANT
RoHS
L
U
COMPLIANT
®
OPTION AVAILABLE
®
®
D E
V
OPTIONS:
Add designator(s) to end of part number
C
= Closed sides, body styles EBP, EBQ, EBR & EBS
E
= Mounting ears, body styles EBH & EBK
FL
= Flat lever option (TSE only)
RC=
RoHS compliant lead-free product with Hi-Temp insulator
284
909 Rahway Avenue • Union, New Jersey 07083 • TEL: 908-687-5000 • FAX: 908-687-5710 • WWW.ADAM-TECH.COM

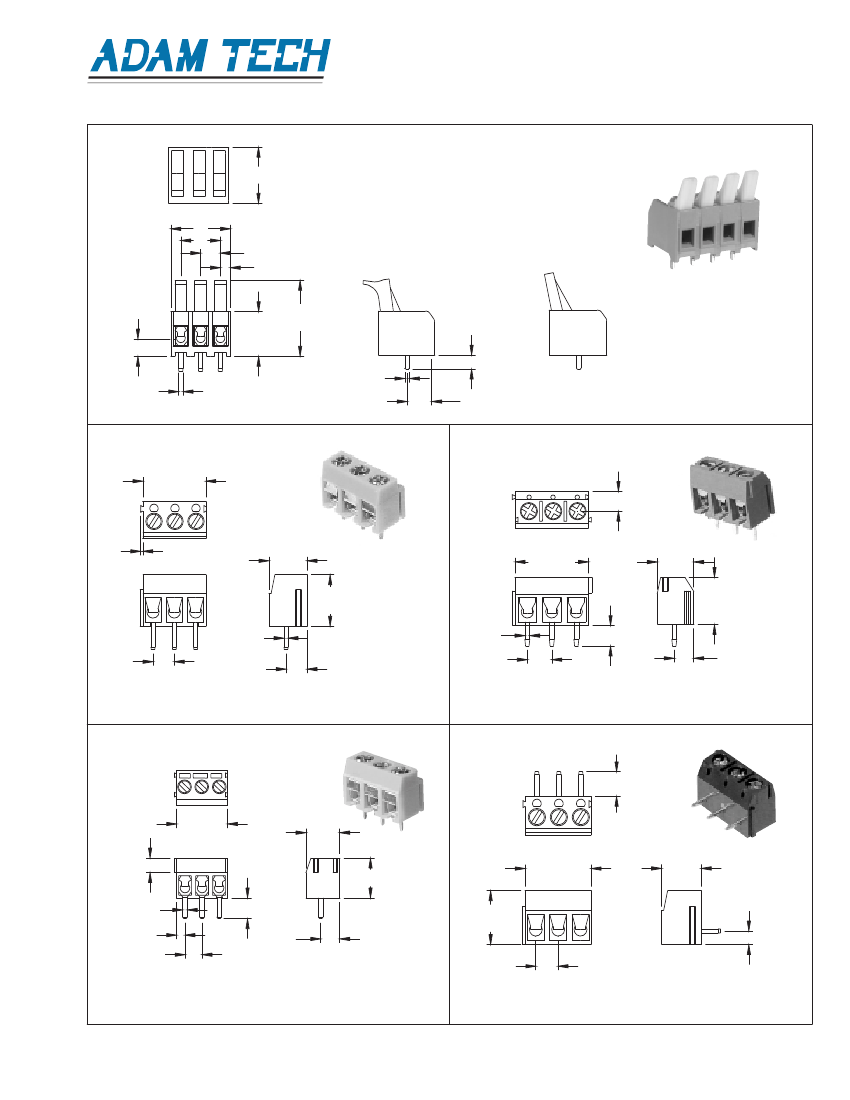

EURO BLOCKS
ADAM TECHNOLOGIES

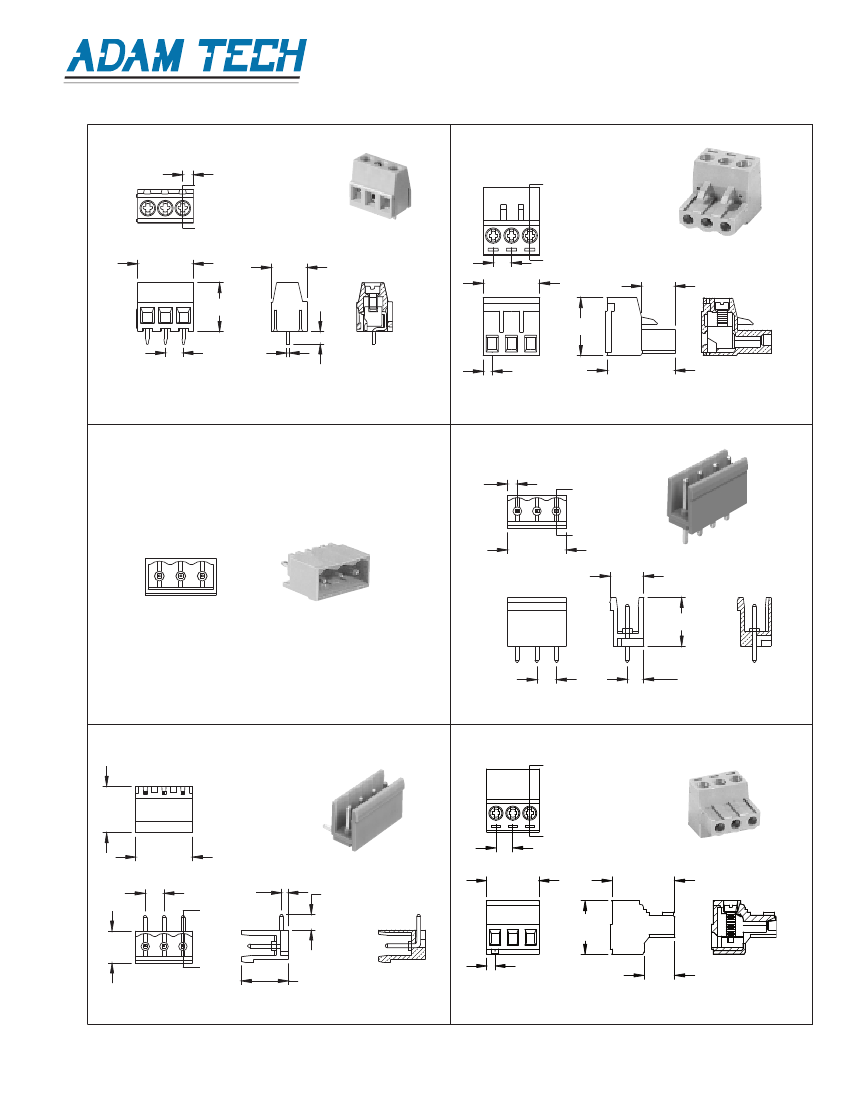

EBW
EBW
.069 [1.75]
A
A
TS & EB SERIES

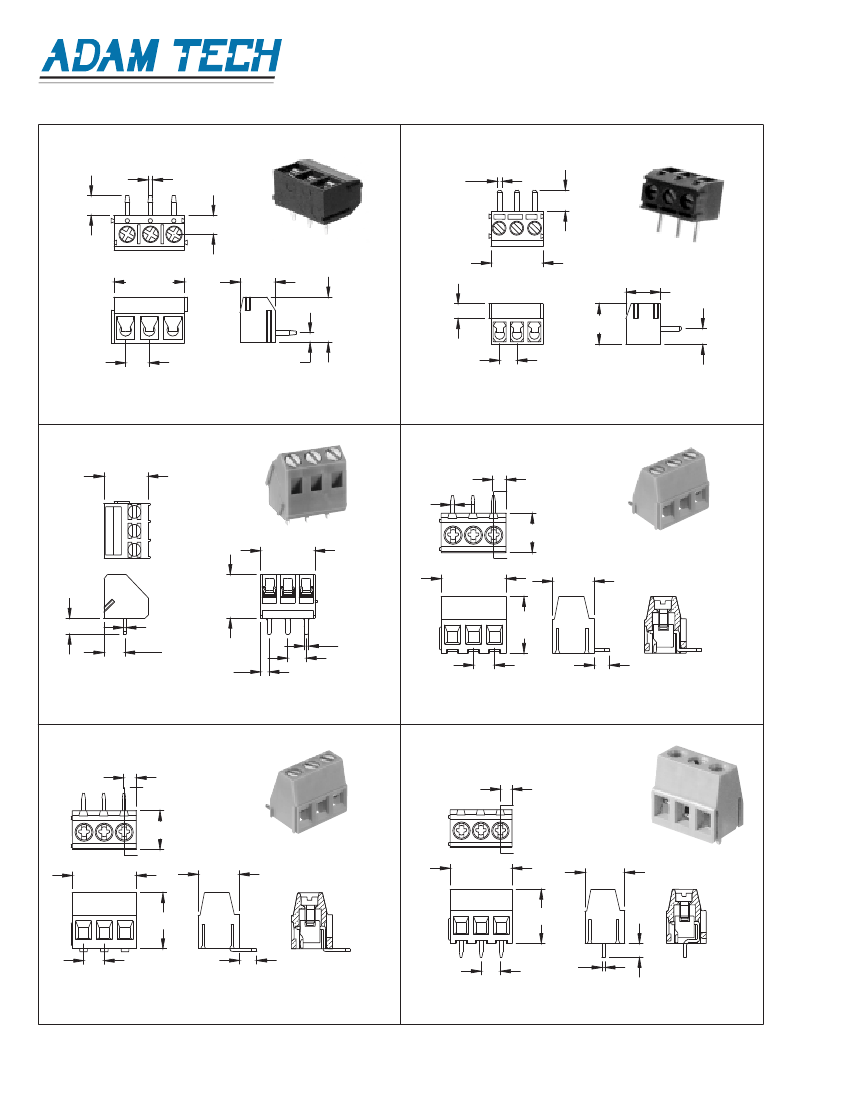

EBH
EBH
A
'Y' X No
of POLES
.291
[7.40]
'Y'
'Y' X No
of POLES
A
.329
[8.35]
.335 [8.50]
.590 [15.00]
.138 [3.50]
'Y'
.031
[.80]
SECTION A-A
.098 [2.50]
REPLACE 'Y' WITH PITCH
A = .138 [3.50] B = .150 [3.81]
REPLACE 'Y' WITH PITCH
C = .197 [5.00] D = .200 [5.08]
.709 [18.00]
SECTION A-A
E = .276 [7.00]
G = .300 [7.62]
H = .394 [10.00]
J = .400 [10.16]

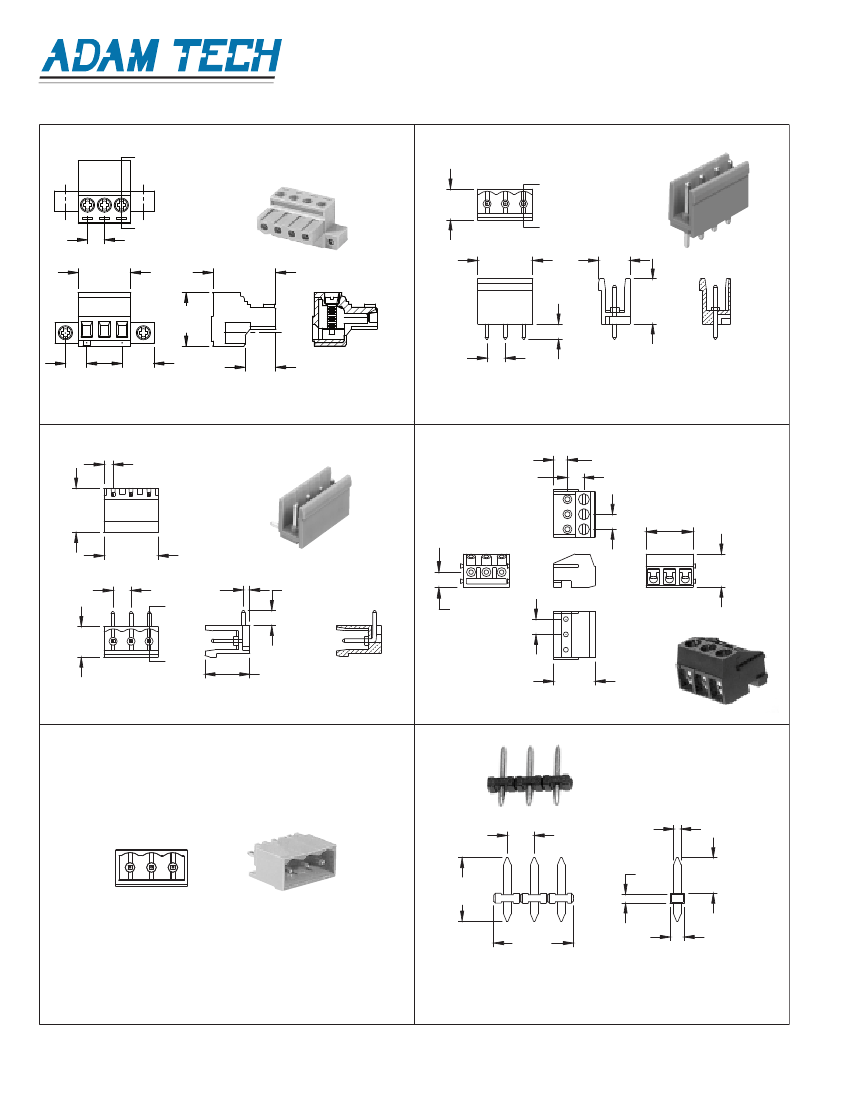

EBP
EBP
EBH WITH
EBP - STRAIGHT & EBQ - RIGHT ANGLE
MOUNTING EARS
WITH -C CLOSED SIDE OPTION
A
.098
[2.50]
A
'Y'
'Y' X No
of POLES
A
.329
[8.35]
'Y' X No
of POLES
A
.325
[8.25]
.590
[15.00]
.472 [12.00]
.244
[6.20]
.362
[9.20]
.71 [18.0]
SECTION A-A
'Y'
REPLACE 'Y' WITH PITCH
C = .197 [5.00] D = .200 [5.08]
EBQ
EBQ
A
A
.146
[3.70]
H = .394 [10.00]
SECTION A-A
CLOSED SIDES OPTION AVAILABLE ON STRAIGHT OR
REPLACE 'Y' WITH PITCH
RIGHT ANGLE HOUSING. EBP & EBQ SERIES
C = .197 [5.00] D = .200 [5.08] H = .394 [10.00] J = .400 [10.16]
J = .400 [10.16]
EBK
EBK
.472
[12.00]
A
A
EBK
'Y' X No
of POLES
'Y'
'Y'
'Y'
A
.073
[1.85]
.157
[4.00]
'Y'
No
'Y' X
X No
of POLES
of POLES
.614 [15.60]
.260
[6.60]
.440
[11.10]
.440
[11.10]
.325
[8.25]
A
.472 [12.00]
REPLACE 'Y' WITH PITCH
C = .197 [5.00] D = .200 [5.08]
H = .394 [10.00]
SECTION A-A
.090 [2.30]
.069 [1.75]
.260
.614 [15.60]
[6.60]
E = .276 [7.00]
E = .276 [7.00]
SECTION A-A
SECTION A-A
G = .300
G = .300 [7.62]
J = .400 [10.16]
REPLACE 'Y' WITH PITCH
REPLACE 'Y' WITH
= .150 [3.81]
A = .138 [3.50] B
PITCH
A = .138 [3.50] B = .150 [3.81]
[7.62]
909 Rahway Avenue • Union, New Jersey 07083 • TEL: 908-687-5000 • FAX: 908-687-5710 • WWW.ADAM-TECH.COM
287
