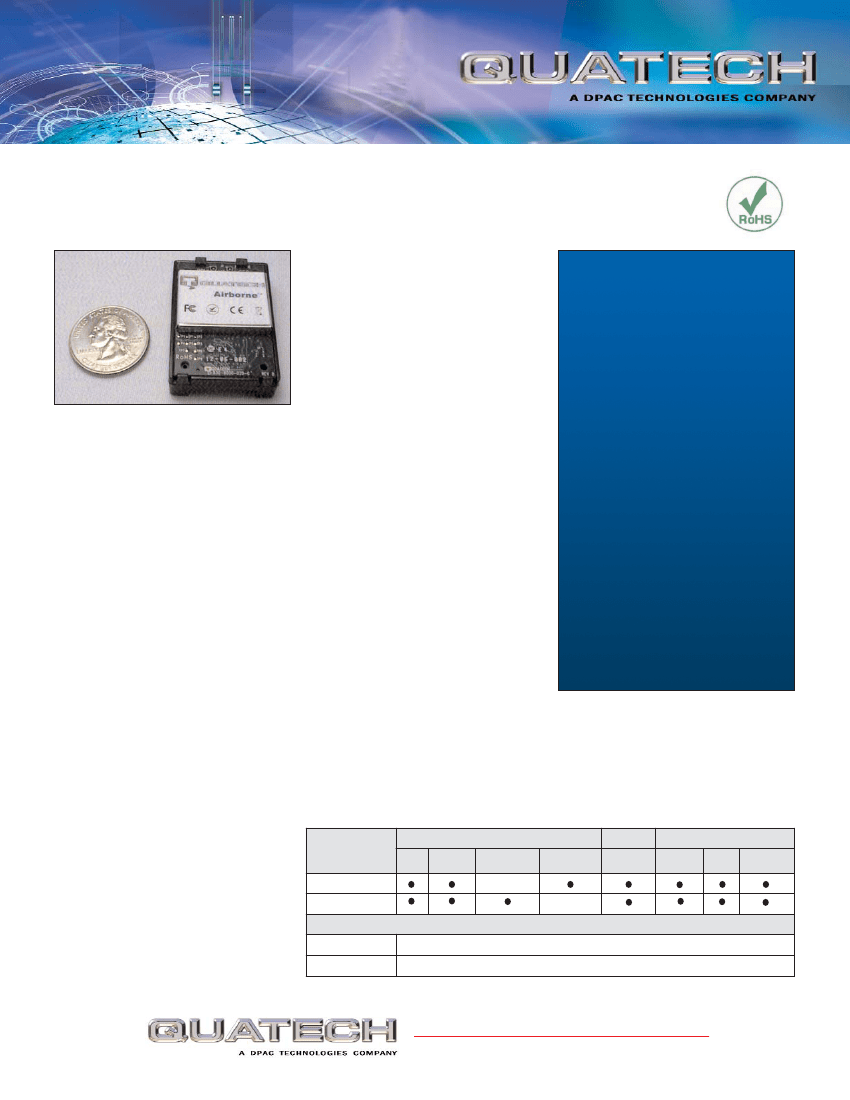

Airborne
TM
Embedded Wireless Device Server Module
Serial to 802.11b/g Wireless LAN
WLNG-AN-DP100 Enterprise Series
WLNG-SE-DP100 Enterprise Series
easy to use, management interfaces. The
Airborne units allow you to customize their
settings to meet your application
demands.
KEY FEATURES
Extended operating temperature range
(-30°C to +85°C) and environmental
specifications, including shock and
vibration tolerance
Advanced security: WEP
(64 & 128 bit), WPA and 802.1x
(LEAP) authentication
Highly integrated 802.11b/g wireless
module with radio, base-band &
application processor
Quick time to market & reduced
development costs
Software-configurable 802.11b/g
interface
Configurable serial, digital & analog
I/O ports
Integrated RTOS, TCP/IP Stack
and CLI
FCC Part 15 Class B Sub C Modular
Approval
Reduces need for RF and
communications expertise
5 year warranty
Applications
The Airborne modules have been
designed and tested to provide wireless
LAN (WLAN) and Internet connectivity
across the harshest of machine to
machine environments including:
transportation
medical
warehouse and logistics
point-of-sale (POS)
industrial automation
military
scientific research
Equipment with an embedded Airborne
TM
module can be monitored and controlled
by a handheld device, by a PC in a central
location or over the Internet.
The Evaluation & Design Kit provides
software and utilities that allow a
developer to quickly and easily operate
and evaluate the Wireless Device Server
module.
High performance device
networking solutions
Airborne
TM
is a line of highly integrated
802.11 radios and modules. The wireless
device server module includes a radio,
(which may be purchased separately) a
base-band processor, an application
processor and software for a “drop-in”
web-enabled WiFi solution. Since there’s
no need to develop the software, or to
develop the RF and communications
expertise in-house, OEMs can realize
reduced product development costs and a
quick time-to-market. Airborne modules
provide instant LAN and Internet
connectivity, and connect through
standard serial interfaces (other Airborne
modules offer an Ethernet interface) to a
wide variety of applications.
Highly interoperable with
advanced security
The extremely small footprint design
makes Airborne easy to embed in both
existing and new designs. Supporting
advanced security modes, including WEP,
WPA and LEAP, the module is
interoperable with industry standard
802.11 Access Points and stations.
Provides access to existing infrastructure
that enables use of access to corporate
WLANs, WANs and even the internet.
The built-in TCP/IP stack and application
software provide embedded devices with
this level of connectivity, without requiring
any software development - only simple
configuration using one of the available,
Model Selection Guide
Interface
Model No.
WiFi
Digital &
Analog I/O
WEP
802.11b/g
(64 & 128 bit)
Security
WPA
LEAP
UART
RS-232
RS-422/485
WLNG-AN-DP101
WLNG-SE-DP101
To evaluate all available features and receive evaluation tools, order below.
WLNG-EK-DP001
WLNG-EK-DP003
Evaluation & Design Kit
Evaluation & Design Kit
All Quatech 802.11b/g products are RoHS-compliant.
5675 Hudson Industrial Parkway Hudson, OH 44236
1.800.553.1170
+1330.655.9000
www.quatech.com

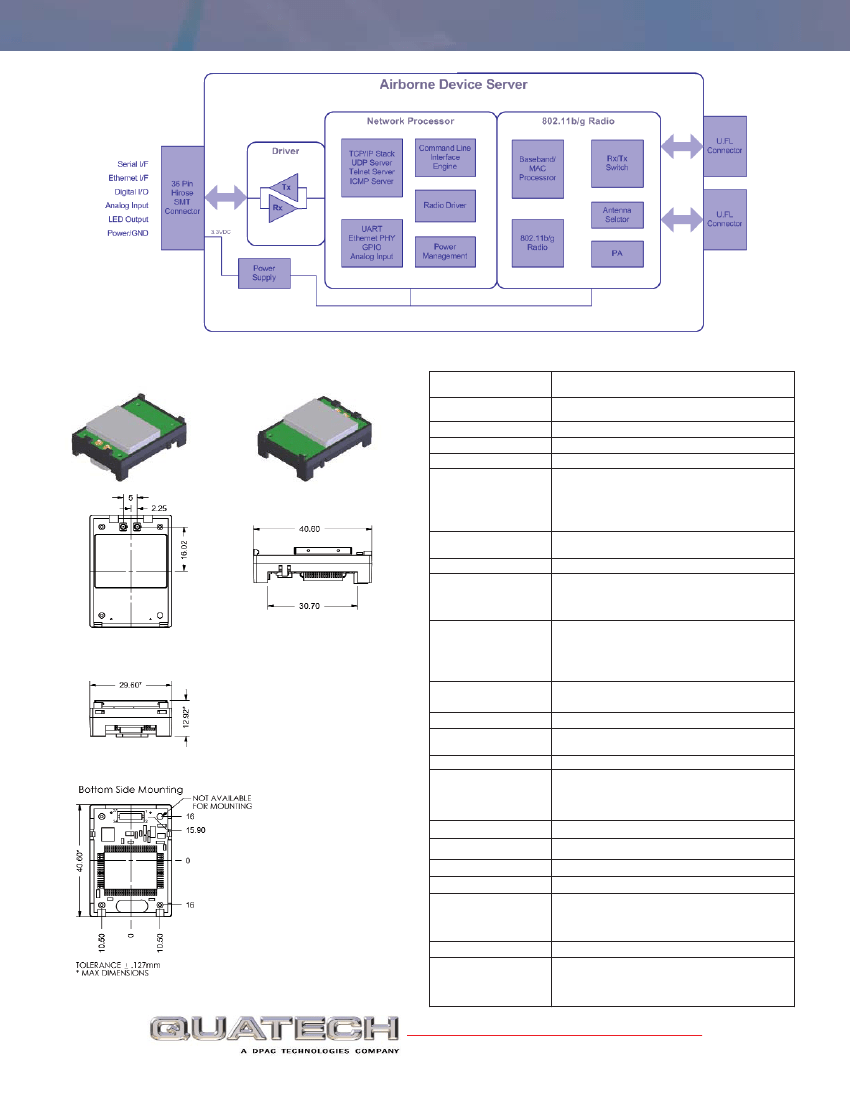

Block Diagram
Mechanical Outline
Specifications
Technology
Frequency
Modulation Technology
Modulation Type
Network Access Modes
Channels
IEEE 802.11b/g, WiFi compliant
(802.11i, 802.11e, 802.11d capable)
2.400 ~ 2.4835 GHz (US/Can/Europe)
2.400 ~ 2.497 GHz (Japan)
DSSS, CCK, OFDM
DBPSK, DQPSK, CCK, BPSK, QPSK, 16QAM, 64QAM
Ad-hoc, infrastructure
USA/Canada: 11 channels (1 - 11)
Europe:
13 channels (1 - 13)
Japan:
14 channels (1 - 13 for g rates)
(1 - 14 for b rates)
France:
4 channels (10 - 13)
802.11b - 11, 5.5, 2, 1 Mbps
802.11g - 54, 48, 36, 24, 18, 12, 9, 6 Mbps
CSMA/CA with ACK, RTS, CTS
+19.3 dBm (typical) Approx. 85 mW peak for B rates
+15 dBm (typical) Approx. 32 mW average for B rates
+21.5 dBm (typical) Approx. 143 mW peak for G rates
+12 dBm (typical) Approx. 16 mW average for G rates
-71dBm for 54Mbps
-77dBm for 36Mbps
-83dBm for 18 Mbps
-85dBm for 11Mbps
-87dBm for 1Mbps
TCP/IP, ARP, ICMP, DHCP, DNS, UDAP Discovery
TCP/IP, TFTP, UDP
WEP 64 and 128bit (RC4), WPA (TKIP), 802.1x (LEAP)
Two U.FL coaxial connectors, 50 ohms, supports receive
diversity
3.3 Vdc +/-5%
575mA - transmit mode (typical)
375mA - receive mode (typical)
To be spec’d - power save mode (IEEE)
To be spec’d - (full power down)
3000 mA (MAX) 20ms
UART: Up to 460K BAUD rate
Up to 8 digital I/O ports and status
Up to 8 channels, 10-bit resolution, single ended, 0-2.5V
Temperature: -30°C - +85°C
Relative humidity: 5% - 95% (non-condensing)
Vibration: 20G peak-to-peak, 20 Hz-2KHz
Shock: 1500G, peak-to-peak, 0.5mS
36 Pin (Hirose DF12-36DS-0.5 V) 4-mm height
FCC Part 15 Class B Sub C Intentional Radiator
CE ETSI EN300 328, EN301 489, ETSI 60950-1
IC RSS210
RoHS and WEEE complaint
Wireless Data Rate
MAC
RF Power
Sensitivity
Protocols
Data Transfer
Security
Antenna
Supply
Current Consumption
Power Up Inrush Current
Serial Interface Data
Throughput
Digital I/O
Analog Inputs
Operating Temperature
Connector
Agency Approvals
5675 Hudson Industrial Parkway Hudson, OH 44236
© 2006 Quatech, Inc.
1.800.553.1170
+1330.655.9000
www.quatech.com
Rev. F 10/2006
