851-93-050-10-001: DescriptionIC and device socket use 575-501101; CategoryThe connector The connector; File Size251KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

851-93-050-10-001 Overview

IC and device socket use 575-501101

851-93-050-10-001 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	COMPATIBLE CONTACT: 0489-0-15-01-11-02-04-0
body width	0.087 inch
subject depth	0.161 inch
body length	2.5 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.5838 N
Insulation resistance	10000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	851
Plug contact pitch	0.05 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.096 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	50
UL Flammability Code	94V-0
Evacuation force-minimum value	.278 N
Base Number Matches	1

Preview

Download Datasheet

View All

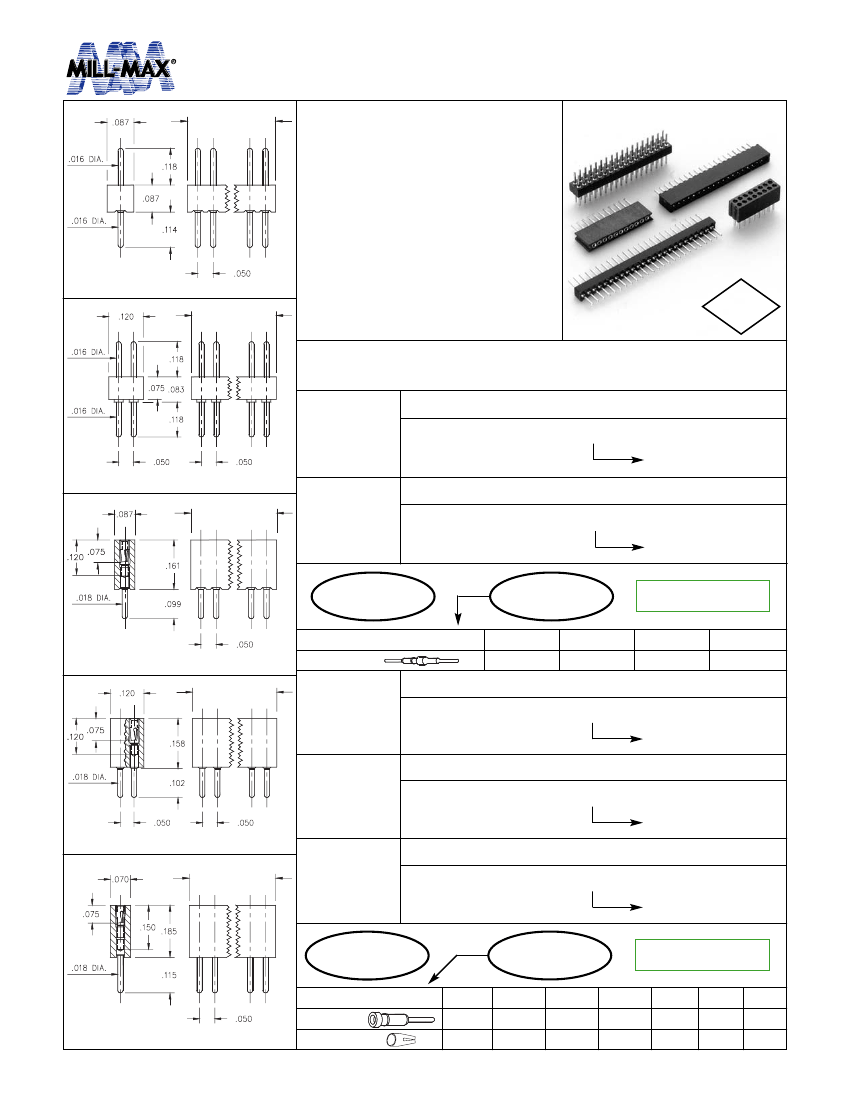

INTERCONNECTS

.050” Grid Headers and Sockets

Single and Double Row

(Number of Pins

X .050”) + .015”

Series 850, 851

852, 853

•

Series 850 single and double row

interconnects have .050” pin spacing &

permit board stacking as low as .248”.

•

Pin headers have .016” dia. pins ( MM

#4006-0 ). See page 175 for details.

•

MM #0467 and MM #4890 receptacles

use Hi-Rel, 3-finger BeCu #11 contacts

rated at 3 amps. ( #11 contact accepts

pin diameters from .015”-.020” ). See

pages 129 and 131 for details.

•

Insulators are high temp. thermoplastic,

suitable for all soldering operations.

2002/95/EC

Fig. 1

(Number of Pins

X .050”/2) + .015”

RoHS

Ordering Information

Single Row

.087” Profile Pin Header

850-XX-0_ _-10-001000

Specify # of pins

Fig. 2

(Number of Pins

X .050”) + .015”

Fig. 1

01-50

.075” Profile Pin Header

Double Row

Fig. 2

852-XX-_ _ _-10-001000

Specify # of pins

002-100

For RoHS compliance

select

plating code.

For Electrical,

Mechanical & Enviromental

Data, See pg. 4

XX=Plating Code

See Below

SPECIFY PLATING CODE XX=

10

10μ” Au

90

200μ” Sn/Pb

40

200μ” Sn

Fig. 3

(Number of Pins

X .050”/2) + .015”

Pin Plating

Single Row

.161” Profile Socket

851-XX-0_ _-10-001000

01-50

.161” Profile Socket

002-100

.185” Profile Socket

851-XX-0_ _-10-002000

01-77

For RoHS compliance

select

plating code.

Fig. 3

Specify # of pins

Double Row

Fig. 4

(Number of Pins

X .050”) + .040”

853-XX-_ _ _-10-001000

Specify # of pins

Single Row

Fig. 5

Specify # of pins

For Electrical,

Mechanical & Enviromental

Data, See pg. 4

XX=Plating Code

See Below

SPECIFY PLATING CODE XX=

13

10µ” Au

30µ” Au

91

10µ” Au

93

30µ” Au

99

200µ”Sn/Pb

41

10µ” Au

43

44

Sleeve (Pin)

200µ” Sn/Pb

200µ” Sn/Pb 200µ”Sn/Pb

200µ”Sn

30µ” Au

200µ”Sn

Fig. 5

Contact (Clip)

w w w. m i l l - m a x . c o m

66

516-922-6000
