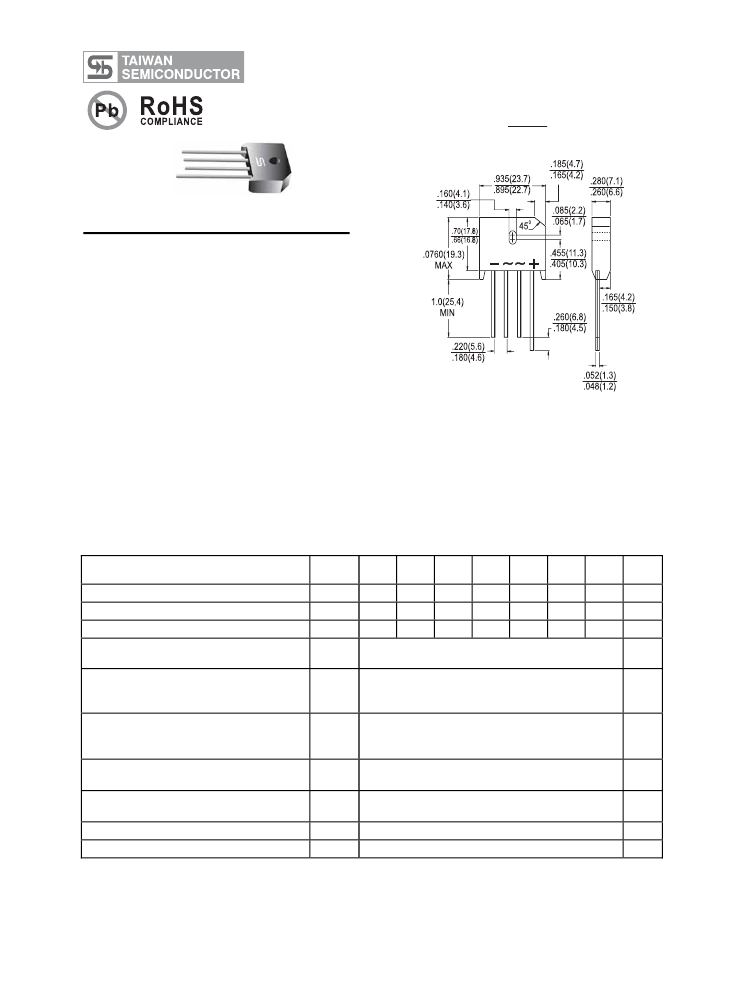

KBU401 - KBU407
Single Phase 4.0 AMPS. Silicon Bridge Rectifiers
KBU
Features
UL Recognized File # E-96005
High surge current capability
Ideal for printed circuit board
Reliable low cost construction technique
results in inexpensive product
High temperature soldering guaranteed:
260
o
C / 10 seconds / 0.375” ( 9.5mm )
lead length at 5 lbs., ( 2.3 kg ) tension
Weight: 8 grams
Dimensions in inches and (millimeters)
Maximum Ratings and Electrical Characteristics
Rating at 25
o
C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Type Number
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
@T
A
= 65
o
C
Peak Forward Surge Current, 8.3 ms Single
Half Sine-wave Superimposed on Rated Load
(JEDEC method )
Maximum Instantaneous Forward Voltage
@ 2.0A
@ 4.0A
o
Maximum DC Reverse Current @ T
A
=25 C
at Rated DC Blocking Voltage @ T
A
=125
o
C
Typical Thermal resistance (Note 1)
(Note 2)
Operating Temperature Range
Symbol KBU KBU KBU KBU KBU KBU KBU
Units
401 402 403 404 405 406 407
V
RRM
50
100 200 400 600 800 1000
V
V
RMS
35
70
140 280 420 560 700
V
V
DC
50
100 200 400 600 800 1000
V
I
(AV)
I
FSM
4.0
200
A
A
V
F
I
R
R
θJA
R
θJL
T
J
Storage Temperature Range
T
STG
1. Units Mounted on P.C.B. with 0.5” x 0.5” (12mm x 12mm) Copper Pads and 0.375” (9.5mm)
Notes:
Lead Length.
2. Units Mounted on a 2.0” x 1.6” x 0.3” Thick (5 x 4 x 0.8cm) Al. Plate
1.0
1.1
10
500
19
4.0
-55 to +125
-55 to +150
V
uA
uA
o
C/W
o
C
o
C
- 634 -
Version: A06
