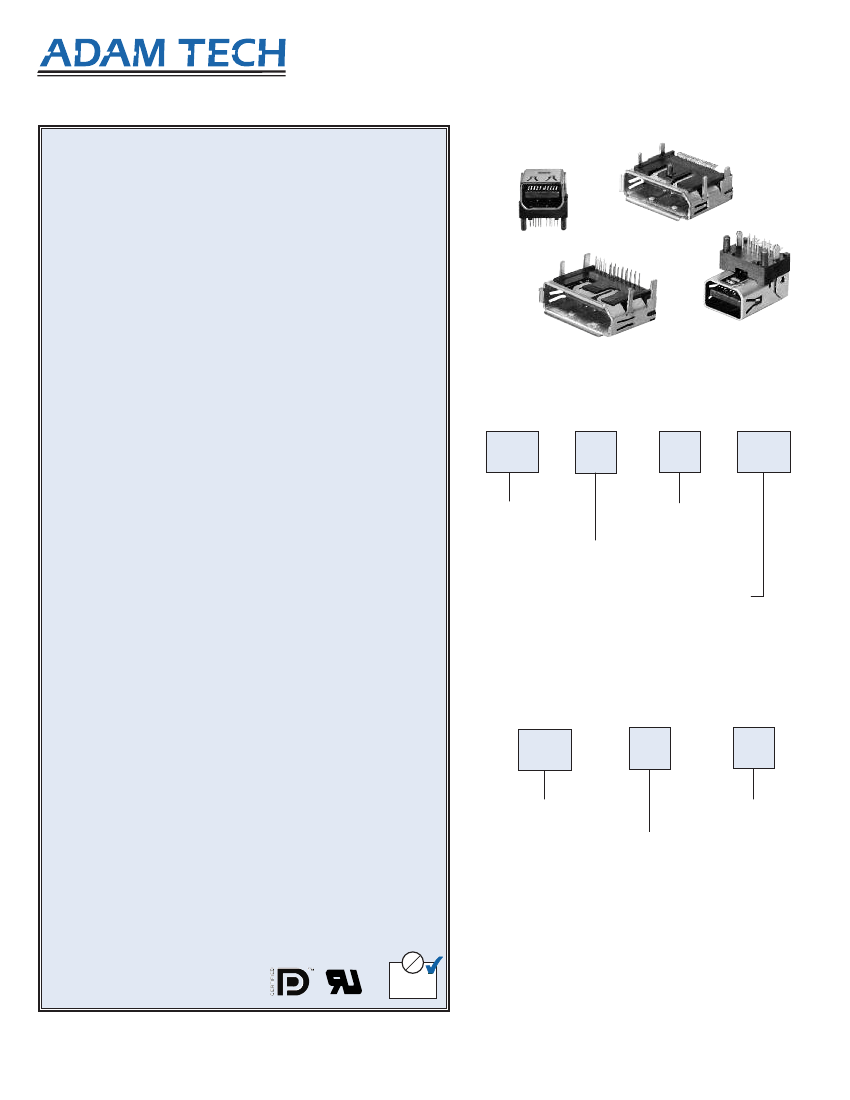

Adam Technologies, Inc.
INTRODUCTION:
Adam Tech DisplayPort series is a new high band width digital
interface connection designed to provide true digital imaging while
providing a multitude of colors and crystal clear sound through one
small plug which can also supply power. There are 4 main links, one
auxiliary channel and one hot-plug signal line. Adam Tech
DisplayPort connectors are designed to work on a broad array of
devices, including computers, televisions, camcorders, cameras
and DVD players. Our DisplayPort connectors are fully compatible
with industry standards and are backwards compatible to VGA,
DVI & HDMI.
FEATURES:
Ultra small size package
Hot Pluggable
Supports color depth of 6, 8, 10, 12 and 16 bits per color components
Supports a maximum of 8.64 Gbit/s data rate over a 2 meter cable
Can be used in applications up to 15 meters (49.21 feet)
MATING CONNECTORS:
Adam Tech Display Port custom cables and all industry standard
Display Port Cables
SPECIFICATIONS:
Material:
Insulator: Nylon 66, Glass filled, rated UL94V-0, color Black
Contacts: Copper Alloy
Shell: Copper Alloy, nickel plated
Contact Plating:
Gold Flash over nickel underplate on mating area, Tin over Copper
underplate on tails
Electrical:
Operating Voltage: 40V AC
Current Rating: 0.5 Amps max.
Contact Resistance: 30 mø max.
Insulation Resistance: 100 Mø min.
Dielectric Withstanding Voltage: 500V AC for 1 minute
Mechanical:
Mating Cycles: 10,000 Cycles Min
Terperature Ratings:
Operating Temperature: -20°C to +85°C
PACKAGING:
Anti-ESD plastic trays or tubes
APPROVALS AND CERTIFICATIONS:
UL Recognized & CSA Certified, File no. E224053
Display port &
Mini Display port
DPC SerieS
ORDERING INFORMATION

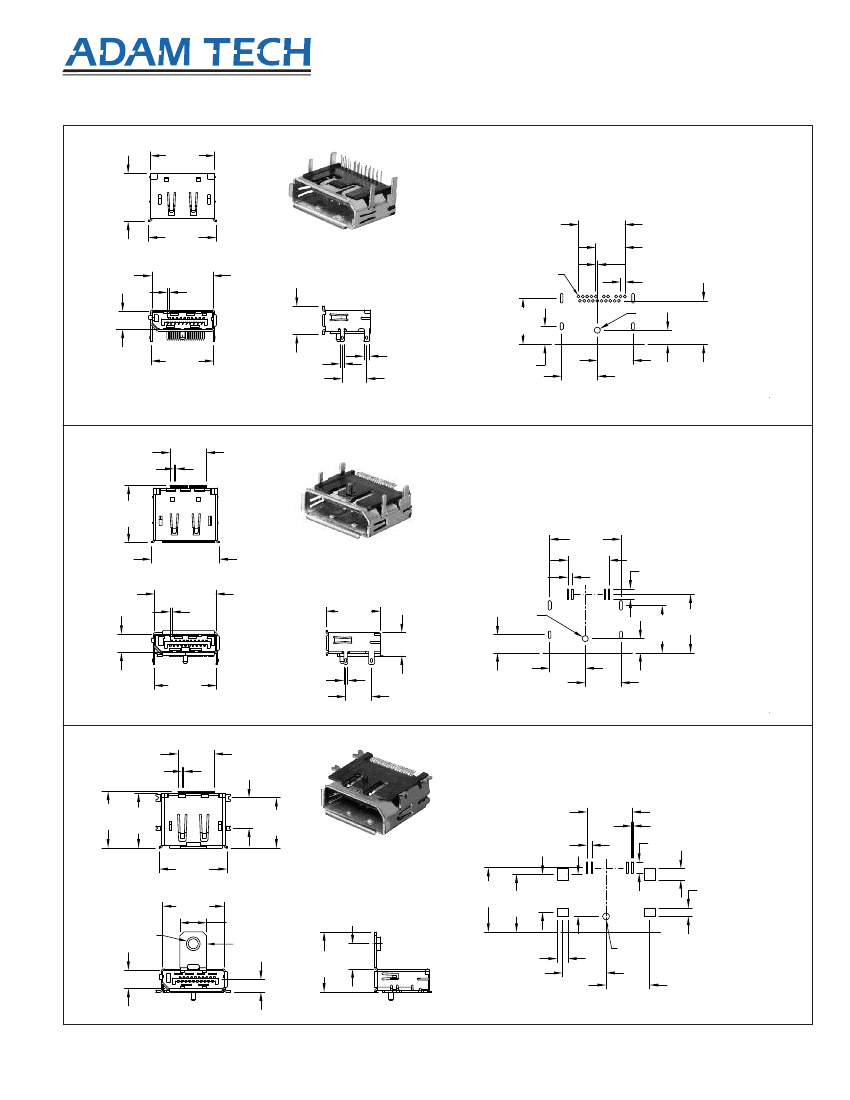

DISPLAY PORT CONNECTOR
DPC
S
RA
SMT
SERIES
INDICATOR
DPC
=
Display Port
Connector
ENTRY ANGLE
RA
= Right Angle
PORTS
S
= Single Port
MOUNTING TYPE
Blank
= Thru-Hole
SMT
= Surface Mount
TSMT
= True Surface Mount

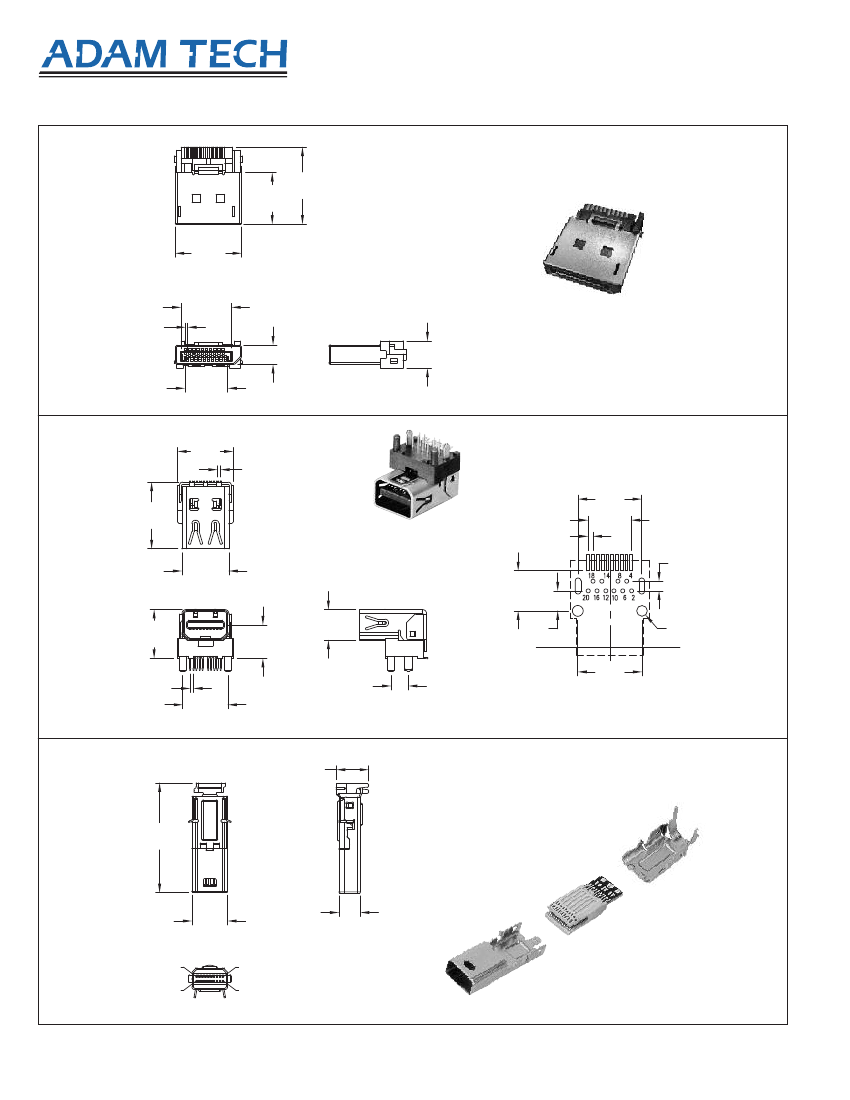

MINI DISPLAY PORT CONNECTOR
MDPC
S
RA
SERIES INDICATOR
MDPC
= Mini Display
Port Connector
ENTRY ANGLE
RA
= Right Angle
PORTS
S
= Single Port
®
Pb
US
C
E
RoHS
COMPLIANT
2002 / 95 / EC
®
OPTIONS:
Add designator(s) to end of part number
MF
= Mounting Flange (DPC series only)
136
909 rahway Avenue
•
Union, New Jersey 07083
•
T: 908-687-5000
•
F: 908-687-5710
•
www.ADAm-TeCh.Com
