DLP31DN361SL4L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> DLP31DN361SL4L

DLP31DN361SL4L: Descriptionemi/rfi suppressor and ferrite dlp31dn361sl4l; CategoryAnalog mixed-signal IC filter; File Size25KB，1 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric Compare View All

DLP31DN361SL4L Overview

emi/rfi suppressor and ferrite dlp31dn361sl4l

DLP31DN361SL4L Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Murata
package instruction	EIA STD PACKAGE SIZE 1206
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	MAGNETICALLY SHIELDED TWO CIRCUIT TYPE
Maximum DC resistance	2.5 Ω
filter type	DATA LINE FILTER
high	1.15 mm
Minimum insulation resistance	100 MΩ
JESD-609 code	e3
length	3.2 mm
Manufacturer's serial number	DLP31D
Installation type	SURFACE MOUNT
Number of functions	4
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output impedance	360 OHM Ω
method of packing	TAPE AND REEL
physical size	L3.2XB1.6XH1.15 (mm)
Rated current	0.1 A
Rated voltage	10 V
Terminal surface	Tin (Sn)
width	1.6 mm
Base Number Matches	1

Preview

Download Datasheet

View All

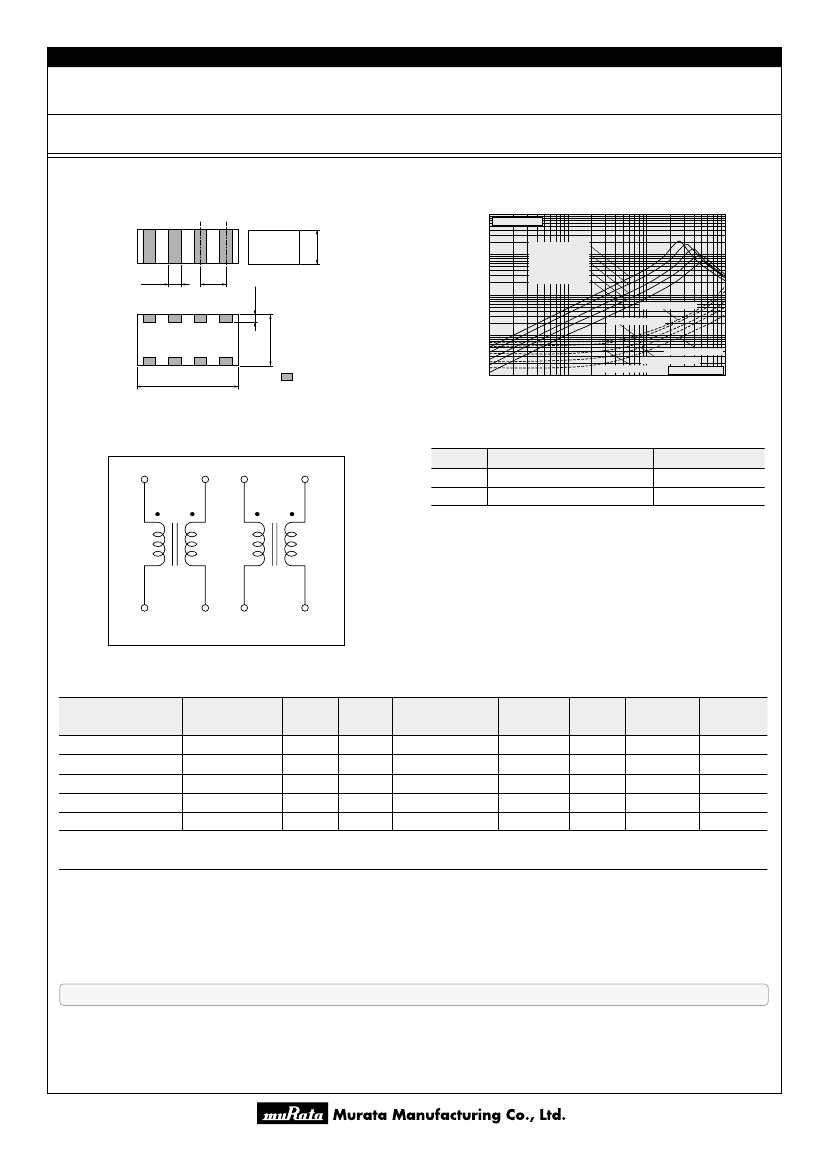

Noise Suppression Products/EMI Suppression Filters > Common Mode Choke Coil > Film Type (Array)

Data Sheet

Common Mode Choke Coil

Dimensions

1.15±0.15

Film Type (Array)

DLP31D Series (1206 Size)

Impedance-Frequency Characteristics (Main Items)

10000

Common mode

1000

Impedance (Ω)

0.4±0.2

0.8±0.1

0.3±0.2

DLP31DN441ML4

DLP31DN321ML4

DLP31DN201ML4

DLP31DN131ML4

DLP31DN900ML4

100

DLP31DN441ML4

DLP31DN321ML4

(1)

(2)

(3)

(4)

1.6±0.15

DLP31DN900ML4

DLP31DN131ML4

DLP31DN201ML4 Differential mode

Frequency (MHz)

100

1000

(5)

(6)

(7)

(8)

: Electrode

(in mm)

3.2±0.15

Equivalent Circuit

(1)

(2)

(3)

(4)

Packaging

Code

Packaging

180mm Embossed Tape

Bulk(Bag)

Minimum Quantity

3000

500

(5)

(6)

(7)

No polarity.

(8)

Rated Value (p: packaging code)

Part Number

DLP31DN900ML4p

DLP31DN131ML4p

DLP31DN201ML4p

DLP31DN321ML4p

DLP31DN441ML4p

Common Mode Impedance

Rated Current Rated Voltage

(at 100MHz/20°C)

90ohm±20%

130ohm±20%

200ohm±20%

320ohm±20%

440ohm±20%

160mA

120mA

100mA

80mA

70mA

10Vdc

Insulation Resistance (min.)

100M ohm

Withstand Voltage DC Resistance

25Vdc

1.1ohmmax.

1.6ohmmax.

2.2ohmmax.

3.5ohmmax.

4.3ohmmax.

Operating

Number of Circuit

Temperature Range

-40°C to +85°C

!Caution/Notice

!Caution

(Rating)

Do not use products beyond the rated current and

rated voltage as this may create excessive heat

and deteriorate the insulation resistance.

Notice

Solderability of Tin plating termination chip might be

deteriorated when low temperature soldering profile

where peak solder temperature is below the Tin melting

point is used. Please confirm the solderability of Tin

plating termination chip before use.

This data sheet is applied for CHIP COMMON MODE CHOKE COIL used for General Electronics equipment for your design.

Note:

1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our

products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.

2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product

specifications or transact the approval sheet for product specifications before ordering.

2009.5.1

http://www.murata.com/

DLP31DN361SL4L Related Products

	DLP31DN361SL4L	DLP31DN900SL4L	DLP31DN201SL4L	DLP31DN471SL4L
Description	emi/rfi suppressor and ferrite dlp31dn361sl4l	emi/rfi suppressor and ferrite dlp31dn900sl4l	emi/rfi suppressor and ferrite 16v 0.1A 200 ohm com	emi/rfi suppressor and ferrite 16v 0.1A 470 ohm com
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	Murata	Murata	Murata	Murata
package instruction	EIA STD PACKAGE SIZE 1206	EIA STD PACKAGE SIZE 1206	EIA STD PACKAGE SIZE 1206	EIA STD PACKAGE SIZE 1206
Reach Compliance Code	compliant	compliant	compliant	compli
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	MAGNETICALLY SHIELDED TWO CIRCUIT TYPE	MAGNETICALLY SHIELDED TWO CIRCUIT TYPE	MAGNETICALLY SHIELDED TWO CIRCUIT TYPE	MAGNETICALLY SHIELDED TWO CIRCUIT TYPE
Maximum DC resistance	2.5 Ω	0.7 Ω	1.6 Ω	3 Ω
filter type	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER
high	1.15 mm	1.15 mm	1.15 mm	1.15 mm
Minimum insulation resistance	100 MΩ	100 MΩ	100 MΩ	100 MΩ
JESD-609 code	e3	e3	e3	e3
length	3.2 mm	3.2 mm	3.2 mm	3.2 mm
Manufacturer's serial number	DLP31D	DLP31D	DLP31D	DLP31D
Installation type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	4	4	4	4
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Output impedance	360 OHM Ω	90 OHM Ω	200 OHM Ω	470 OHM Ω
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
physical size	L3.2XB1.6XH1.15 (mm)	L3.2XB1.6XH1.15 (mm)	L3.2XB1.6XH1.15 (mm)	L3.2XB1.6XH1.15 (mm)
Rated current	0.1 A	0.1 A	0.1 A	0.1 A
Rated voltage	10 V	10 V	10 V	10 V
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
width	1.6 mm	1.6 mm	1.6 mm	1.6 mm
Base Number Matches	1	1	1	-
