SB28B5630 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> SB28B5630

SB28B5630: Descriptionemi/rfi suppressor and ferrite bar 5.63 1-pass 500@100mhz; CategoryPassive components; File Size527KB，1 Pages; ManufacturerFerriShield; Environmental Compliance

Download Datasheet Parametric Compare View All

SB28B5630 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SB28B5630	-	-	View	Buy Now

SB28B5630 Overview

emi/rfi suppressor and ferrite bar 5.63 1-pass 500@100mhz

SB28B5630 Parametric

Parameter Name	Attribute value
Maker	FerriShield
Product Category	EMI/RFI Suppressors and Ferrites
RoHS	yes
product	Ferrite Bars & Fingerstock
impedance	500 Ohms
Termination type	Axial
shield	Unshielded
Test frequency	100 MHz

Preview

Download Datasheet

View All

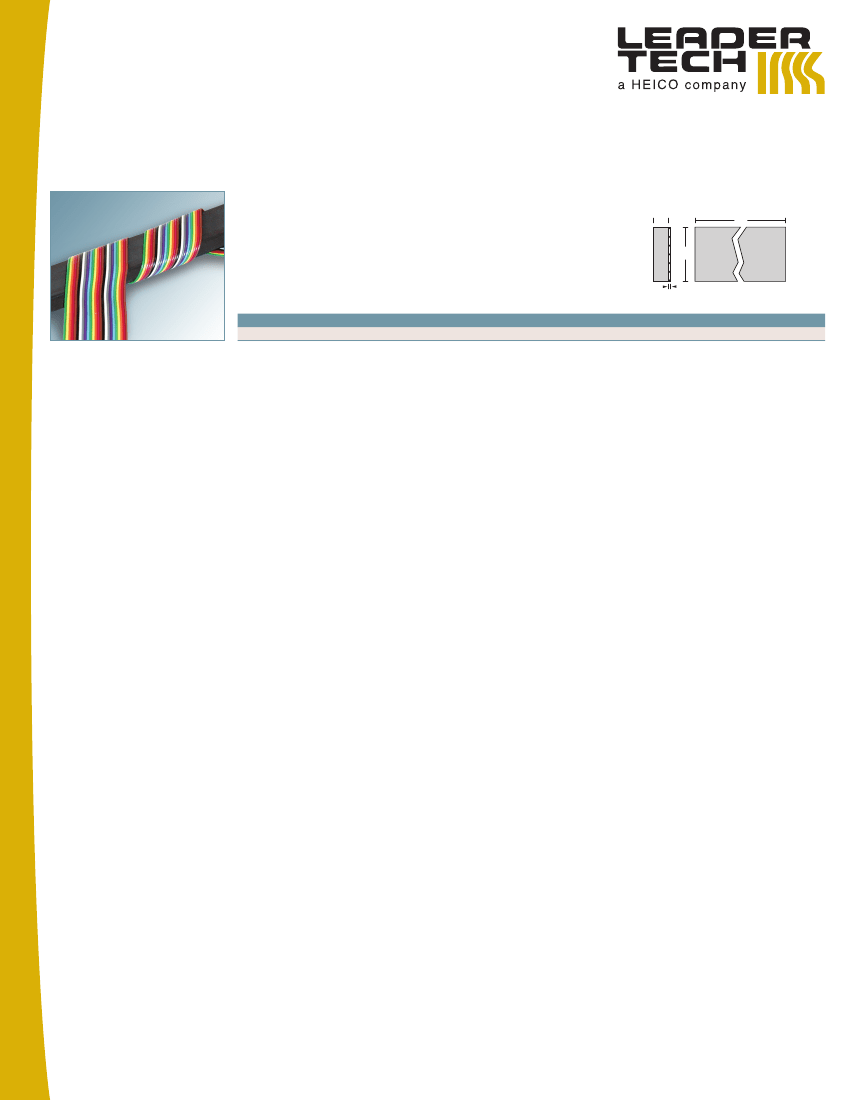

The Leading Source for EMI Shielding

Reliable Board, Enclosure and Cable Solutions

special purpose shielding bar

For situations where extremely high amounts of attenuation are needed

and/or multiple passes through a traditional ferrite I.D. are not practical or

sufficient. Simply wrap cable in a spiral around bar for optimum absorption.

• One individual size fits most applications

• For round or flat cables wound axially or attached longitudinally

• Attachment with cable ties or optional adhesive pad

• Sandwiching cable between two bars provides up to three times the

impedance of a single bar depending on frequency

PART No.

SB28B5630

w/ adhesive

SB28B5630A

.365

9,3

5.630

143,0

* Optional Adhesive pad .030 (0,76)

1.00

25,4

IMPEDANCE IN OHMS

one pass: 500 @ 100MHz

14100 McCormick Drive

Tampa, FL 33626

866.TECH.EMI (866.832.4364)

www.leadertechinc.com

T: 813.855.6921

F: 813.855.3291

SB28B5630 Related Products

	SB28B5630	SB28B5630A
Description	emi/rfi suppressor and ferrite bar 5.63 1-pass 500@100mhz	emi/rfi suppressor and ferrite bar 5.63 adhesive base
Maker	FerriShield	FerriShield
Product Category	EMI/RFI Suppressors and Ferrites	EMI/RFI Suppressors and Ferrites
RoHS	yes	yes
product	Ferrite Bars & Fingerstock	Ferrite Bars & Fingerstock
impedance	500 Ohms	500 Ohms
Termination type	Axial	Axial
shield	Unshielded	Unshielded
Test frequency	100 MHz	100 MHz
