Heat Conducting Magnetic Sheet
Liqualloy
(with Noise Suppression)
TM
HMFTW
Series
Multi-functions of heat conduction and noise suppression in one device
through our original magnetic material technology.
The best heat and noise solutions for GPU/CPU optimum performance.
Applications
Flat panel TVs, car navigation systems, notebook PCs, etc.

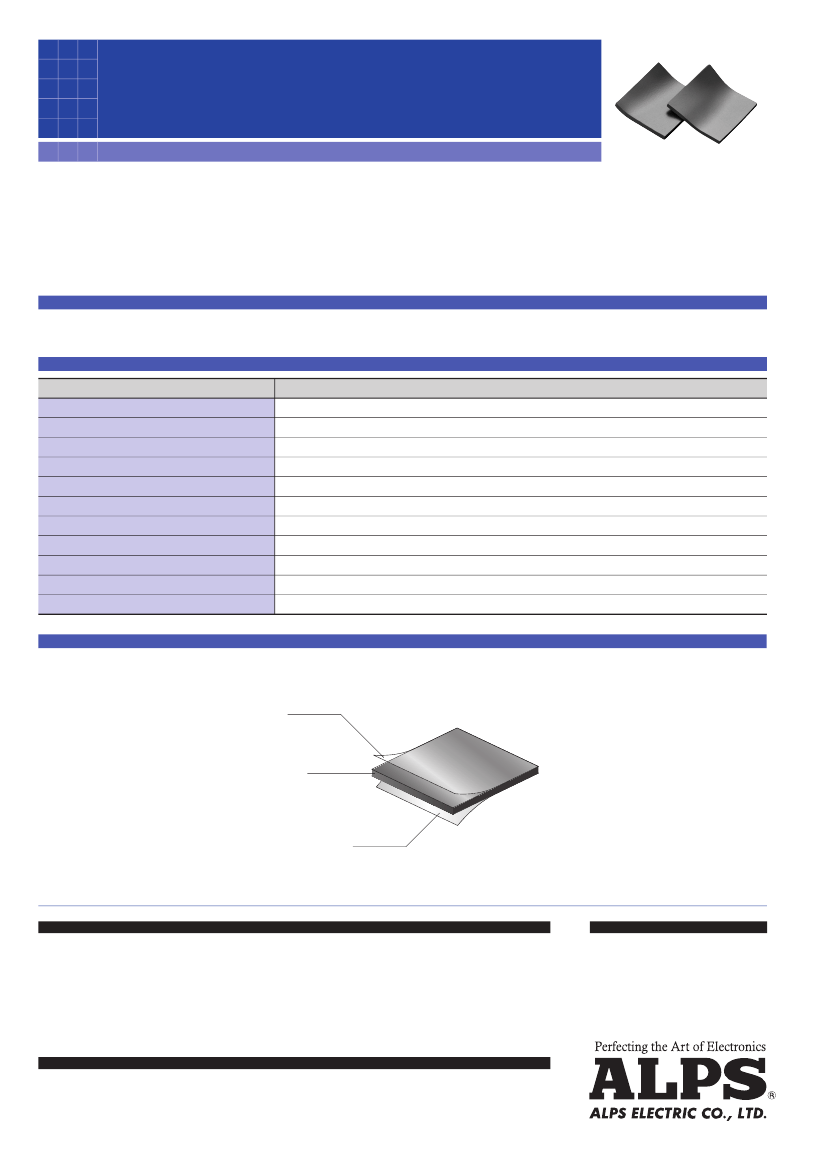

Typical Specifications
Items
Frequency range
Operating temperature range
Specific gravity
Hardness
Volume resistance
Thermal conductivity
Initial permeability
B
）
（
Low molecule siloxane
Flame resistance
Maximum dimensions
Standard thickness
Specifications
10MHz to 5GHz
−40℃ to ＋150℃
3.4g/cm
3
E40
1.0×10
13
Ω½cm
1.2W/mk(Hot-wire method)
10
20 ppm max.
94V-0
100mm×100mm
1mm, 2mm, 3mm
Structure
Remove release liners before use.
Release liner
Heat Conducting Magnetic Sheet
Liqualloy
TM
Release liner
Precautions when handling our products
1. For the export of products which are controlled items subject to foreign and domestic export laws and regulations, you must obtain approval and/or
follow the formalities of such laws and regulations.
2. Products must not be used for military and/or antisocial purposes such as terrorism, and shall not be supplied to any party intending to use the products
for such purposes.
3. Unless provided otherwise, the products have been designed and manufactured for application to equipment and devices which are sold to end-users in
the market, such as AV (audio visual) equipment, home electric equipment, office and commercial electronic equipment, information and communication
equipment or amusement equipment. The products are not intended for use in, and must not be used for, any application of nuclear equipment, driving
control equipment for aerospace or any other unauthorized use.
With the exception of the above mentioned banned applications, for applications involving high levels of safety and liability such as medical equipment,
burglar alarm equipment, disaster prevention equipment and undersea equipment, please contact an Alps sales representative and/or evaluate the total
system on the applicability. Also, implement a fail-safe design, protection circuit, redundant circuit, malfunction protection and/or fire protection into the
complete system for safety and reliability of the total system.
4. Before using products which were not specifically designed for use in automotive applications, please contact an Alps sales representative.
Inquiries about products
Products information center
＋
81 (3) 5499-8154
Products information site
http://www3.alps.com/e/
Cautions for using this catalog
1. The colors of the products in the catalog may slightly differ from those of the actual products.
2. The external appearance, functions and other specifications herein may be changed for improvement and other reasons without prior notice.
Furthermore, the products herein may discontinue without prior notice.
3. Liqualloy is a trademark of Alps Electric Co., Ltd.
4. All product names, company names and names of standards described in this catalog are trademarks or registered trademarks of their respective owners.
5. The contents of this catalog are according to Alps Electric as of January 2009.
6. This catalog is valid until the end of December 2009.
1-7, Yukigaya-otsukamachi, Ota-ku, Tokyo, 145-8501, Japan
