RV24A02F-10-15S1-BF4: Descriptionpanel mount potentiometer linear spdt 25k screwdrvr solder lug; CategoryPassive components; File Size88KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

RV24A02F-10-15S1-BF4 Overview

panel mount potentiometer linear spdt 25k screwdrvr solder lug

RV24A02F-10-15S1-BF4 Parametric

Parameter Name	Attribute value
Maker	All Sensors
Product Category	Panel mount potentiometer
RoHS	yes
resistance	25 KOhms
Power rating	0.5 Watt (1/2 Watt)
Termination type	Lug
taper	Line
Component type	Carb
Shaft type	Slotted
Shaft length	0.591 i
Shaft diameter	0.25 i
size	0.95 in Dia. x 0.8 in L
product	Panel Mount Potentiometers
Voltage rating	500 Volts

Preview

Download Datasheet

View All

Date:

10-06-08

Ref.#:

TW-700166

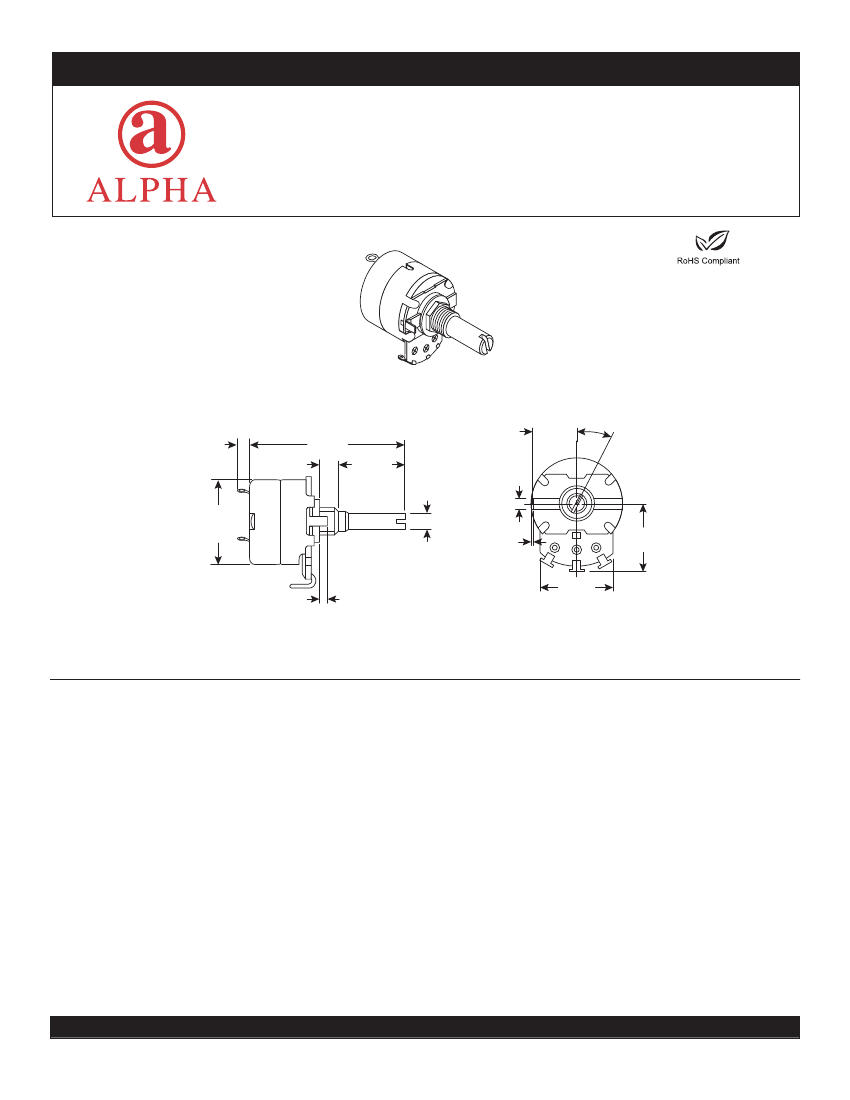

Potentiometers

315-2415F-Value

30°

.472

.177

.256

.799

.335

.110

.940

.250

.047

.740

.787

.098

Shaft Shown In

Full C.C.W. Position

Dimensions (in.)

Specifications:

•

Type: Linear Taper W/SPDT

•

Breakdown Voltage: 500VAC for 1 minute

•

Insulation Resistance: >100MΩ min. @ 500VDC

•

Rated Wattage: 0.5W

•

Rated Voltage: 500VDC

•

Switch Rating: 125VAC 1 amp

•

Rotation Angle: 300º ± 5º

•

Rotation Torque: 20 ~ 200g.cm

•

Rotational Life: 15,000 cycles

•

Switch Working Angle: 50º ± 10º

•

Switch Working Torque: 150 ~ 450g.

•

Values(Ω) : 1K, 5K, 10K, 25K, 50K, 100K, 250K, 500K, & 1M

•

RoHS Compliant

Available from Mouser Electronics

www.mouser.com

(800) 346-6873

Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
