TX6A-SD
™
10Gig
™
UTP Patch Cords
with MaTriX Technology
specifications
Category 6A/Class E
A
, UTP patch cords shall be constructed of 26 AWG
stranded copper cable with an enhanced performance modular plug on each
end. Copper conductors in patch cable shall be twisted in pairs and
separated by a quadrant separator. All four pairs shall be surrounded by
matrix tape and a flame retardant jacket. The patent pending matrix tape
shall suppress alien crosstalk and allow 10 Gb/s transmission. Patch cord
cable shall be offered in multiple colors and lengths for design flexibility.
S P E C I F I C AT I O N S H E E T
TX6A-SD
™
10Gig
™
UTP Copper Cabling
System with MaTriX Technology
TX6A-SD
™
10Gig
™
UTP Patch Cords
with MaTriX Technology
CM (foot lengths):
UTP6ASD^BU
CM (meter lengths):
UTP6ASD^^MBU
LSZH
(meter lengths):
UTP6ASDL^^MBU
®
™
Mini-Com TX6A 10Gig
™
UTP
Jack Module with MaTriX Split
Foil Technology
Jack module:
CJ6X88TG*
Shuttered
jack module:
CJD6X88TG*
™
™
TX6A-SD 10Gig UTP Copper Cable
with MaTriX Technology
(70 meter solution)
Plenum:
PUP6ASD04
+
-UG
Riser:
PUR6ASD04
+
-CG
LSZH (60332-1):
PUL6ASD04
+
-EG
LSZH (60332-3):
PUZ6ASD04
+
-EG
CM:
PUC6ASD04
+
-EG
TX6A
™
10Gig
™
UTP Copper Cable
with MaTriX Technology
(100 meter solution)
Plenum:
PUP6A04*-UG
Riser:
PUR6A04*-UG
1
LSZH (60332-1):
PUL6A04*-CEG
LSZH (60332-3):
PUZ6A04*-EG
CM:
PUC6A04*-EG
®
Mini-Com Angled Modular
Patch Panels
24-port, 1 RU:
CPPA24FMWBLY
48-port, 2 RU:
CPPA48FMWBLY
72-port, 2 RU:
CPPLA72WBLY
Mini-Com
®
Flat Modular
Patch Panels
24-port, 1 RU:
CPP24FMWBLY
48-port, 1 RU:
CPP48HDWBLY
48-port, 2 RU:
CPP48FMWBLY
72-port, 2 RU:
CPP72FMWBLY
For additional modular patch panels
reference www.panduit.com
technical information
Category 6A/Class E
A
channel performance:
Certified channel performance in a 4-connector configuration up to 70 meters as
part of the TX6A-SD
™
10Gig
™
UTP Cabling System. Exceeds the electrical and
alien crosstalk performance requirements of ANSI/TIA-568-C.2 Category 6A and
ISO 11801 Class E
A
standards for supporting 10GBASE-T transmission over
twisted-pair cabling systems. TX6A-SD
™
10Gig
™
UTP Patch Cords with MaTriX
Technology support 4-connector configurations up to 100 meters, as part of the
TX6A
™
10Gig
™
UTP Copper Cabling System.
0.240 in. (6.1mm) nominal
Meets ANSI/TIA-1096-A; contacts are plated with 50 microinches of
gold for superior performance
Meets IEC 60603-7
Compliant
14°F to 140°F (-10°C to 60°C)
-40°F to 158°F (-40°C to 70°C)
Meets IEEE 802.3af and IEEE 802.3at for PoE applications
UL 1863, CSA standard C22.2
CM or LSZH
Attenuation de-rating factor:
1.5
Cable diameter:
FCC and ANSI compliance:
IEC compliance:
RoHS compliance:
Operating temperature:
Storage temperature:
PoE compliance:
C(UL)US listed:
Flammability rating:
key features and benefits
Interoperable
MaTriX Technology
Compatible with components of the TX6A
™
10Gig
™
UTP Copper Cabling
System for increased design flexibility in channels up to 100 meters
Provides superior suppression of both PSANEXT and PSAACR-F; improves
the installation flexibility by allowing cable combing in existing pathways
without compromising performance
Improved cable routing and management in high density applications
enabling easier installations
Confidence that each patch cord delivers critical component level performance
Smaller cable diameter than
most Category 6 patch cords
and flexible cable design
100% performance tested
for wire map, NEXT
and return loss
Superior headroom warranty

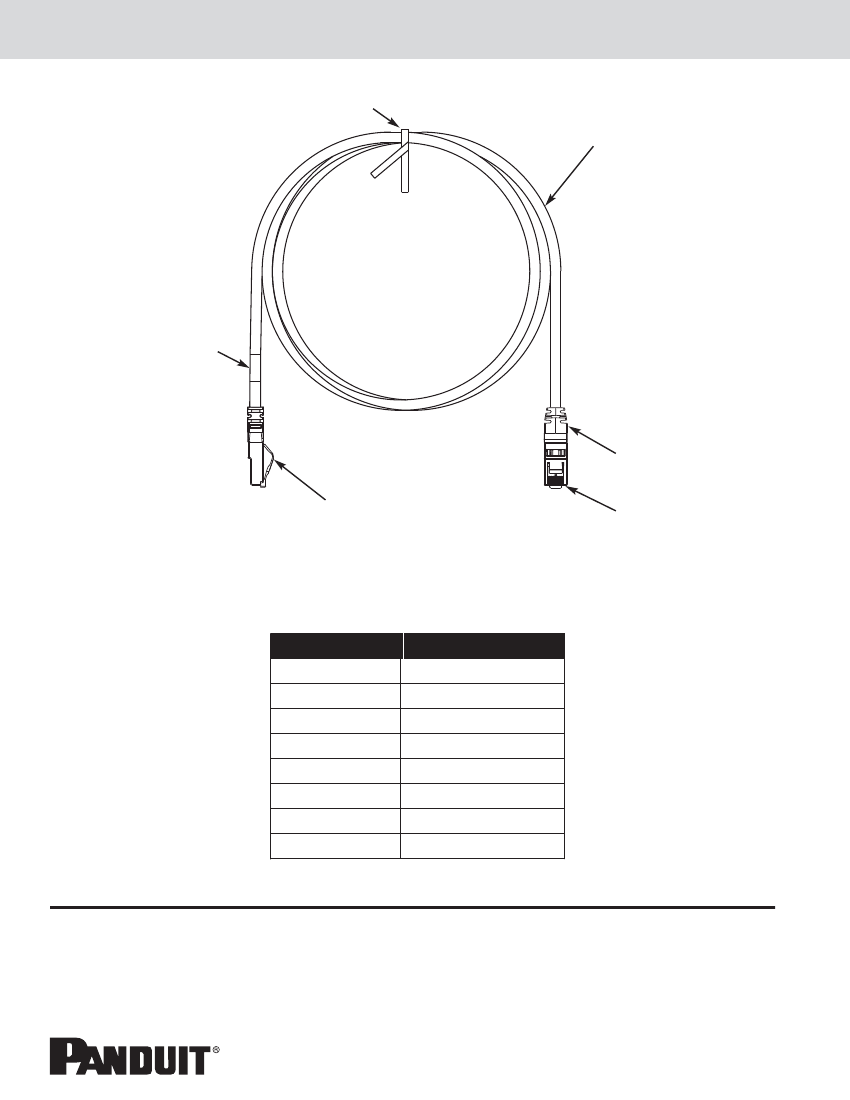

Center de-embedded plug
Integral pair manager
Patented tangle-free latch
Slender strain relief boot
Robust construction
Identification
Variety of cable colors
and lengths
Color bands (optional)
RJ45 plug lock-in device
(optional)
Tools and Accessories
Patch cord
PCRT1
removal tool:
Flashlight kit:
KPCRT1-FL
Patch cord
PCBAND***-Q
color band:
Standard RJ45
plug lock-in device:
PSL-DCPLX‡
Recessed RJ45
plug lock-in device:
PSL-DCPLRX‡
^ For lengths 3 to 20 feet (increments of one foot) 20,
25, 30, 35, or 40 feet change the length designation in
part number to the desired length. For standard cable
colors other than Off White, add suffix BL (Black),
BU (Blue), GR (Green), RD (Red), YL (Yellow),
OR (Orange), GY (Gray) or VL (Violet) at the end of the
part number. For example, the part number for a blue,
15-foot patch cord is UTP6ASD15BU.
^^ For lengths 1,1.5, 2, 2.5, 3, 5, 6, 7 meters, change the
length designation in the part number to the desired
length. For standard cable colors other than Off White,
add suffix BL (Black), BU (Blue), RD (Red), YL (Yellow),
GR (Green), OR (Orange), GY (Gray) or VL (Violet).
For example, the part number for a blue, 5-meter patch
cord is UTP6ASD5MBU.
*To designate color, add suffix IW (Off White),
EI (Electric Ivory), AW (Arctic White), WH (White),
IG (International Gray), OR (Orange), RD (Red),
BU (Blue), GR (Green), YL (Yellow), or VL (Violet).
+
To designate color, add suffix BU (Blue), WH (White),
YL (Yellow), or IG (International Gray).
1
Substitute PUR6A04*-CG for alternative manufacturing
location.
***To designate color, add suffix WH (White),
EI (Electric Ivory), IG (Int’l Gray), BL (Black), BU (Blue),
RD (Red), YL (Yellow), GR (Green), OR (Orange), or
VL (Violet) before -Q in part number. 25/package.
‡For colors other than Red, add -BL (Black),
-BU (Blue), -GR (Green), -YL (Yellow), -OR (Orange),
-IW (International White), or -IG (International Gray) to
the end of the part number. 10/package. Add -C for
bulk packages of 100. Contact customer service for
keyed connectivity, bulk packaged jack modules and
patch cords.
Provides the highest margins above the industry standard for both electrical
and alien crosstalk performance
Performs in center of ANSI/TIA-568-C.2 component range ensuring
interoperability and superior performance
Optimizes performance, consistency, and reliability by reducing untwist at plug
Prevents snags and provides easy release, saving time and providing
reliability on frequent moves, adds, and changes
Provides easy access in high-density applications
Rated to 2500 mating cycles
Provides identification of performance level, length, and quality control
number for future traceability
Meets individual length and color-coding requirements for greater
system flexibility
Snap onto cable, allowing additional color-coding options
Secures plug into jack to prevent unauthorized removal of patch cord
applications
The TX6A-SD
™
10Gig
™
UTP Patch Cords is a component of the TX6A-SD
™
and TX6A
™
10Gig
™
Copper Cabling
Systems with MaTriX Technology. Interoperable and backward compatible, these end-to-end systems provide
design flexibility to protect network investments well into the future. Key applications include:
• 10GBASE-T Ethernet
• Data center I/O consolidation
• Data center server virtualization
• Back-bone aggregation
• Parallel processing and high speed computing
w w w. p a n d u i t . c o m
