2SC6026
TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT Process)
2SC6026
General-Purpose Amplifier Applications
•
•
•
•
•
High voltage and high current
: V
CEO
= 50 V, I
C
= 100 mA (max)
Excellent h
FE
linearity : h
FE
(I
C
= 0.1 mA)/h
FE
(I
C
= 2 mA) = 0.95 (typ.)
0.6±0.05
0.15±0.05
Unit: mm
0.35±0.05
High h
FE
Lead (Pb) free
:
h
FE
= 120~400
Complementary to 2SA2154
1
3
2
0.8±0.05
1.0±0.05
0.1±0.05
Maximum Ratings
(Ta = 25°C)
Characteristic
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Base current
Collector power dissipation
Junction temperature
Storage temperature range
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
B
P
C
T
j
T
stg
Rating
60
50
5
100
30
50
150
−55~150
Unit
V
V
V
mA
mA
mW
°C
°C
0.48
-0.04
+0.02
0.1±0.05
fSM
JEDEC
JEITA
TOSHIBA
1.BASE
2.EMITTER
3.COLLECTOR
―
―
2-1E1A
Weight: 0.0006 g (typ.)
Electrical Characteristics
(Ta = 25°C)
Characteristic
Collector cutoff current
Emitter cutoff current
DC current gain
Collector-emitter saturation voltage
Transition frequency
Collector output capacitance
Symbol
I
CBO
I
EBO
h
FE
(Note)
V
CE (sat)
f
T
C
ob
Test Condition
V
CB
=
60 V, I
E
=
0
V
EB
=
5 V, I
C
=
0
V
CE
=
6 V, I
C
=
2 mA
I
C
=
100 mA, I
B
=
10 mA
V
CE
=
10 V, I
C
=
1 mA
V
CB
=
10 V, I
E
=
0, f
=
1 MHz
Min
⎯
⎯
120
⎯
60
⎯
Typ.
⎯
⎯
⎯
0.1
⎯
0.95
Max
0.1
0.1
400
0.25
⎯
⎯
Unit
µA
µA
⎯
V
MHz
pF
Note: h
FE
classification Y (F): 120~240, GR (H): 200~400
( ) marking symbol
Marking
Type Name
h
FE
Rank
7F
1
2005-03-23
0.2±0.05
2SC6026

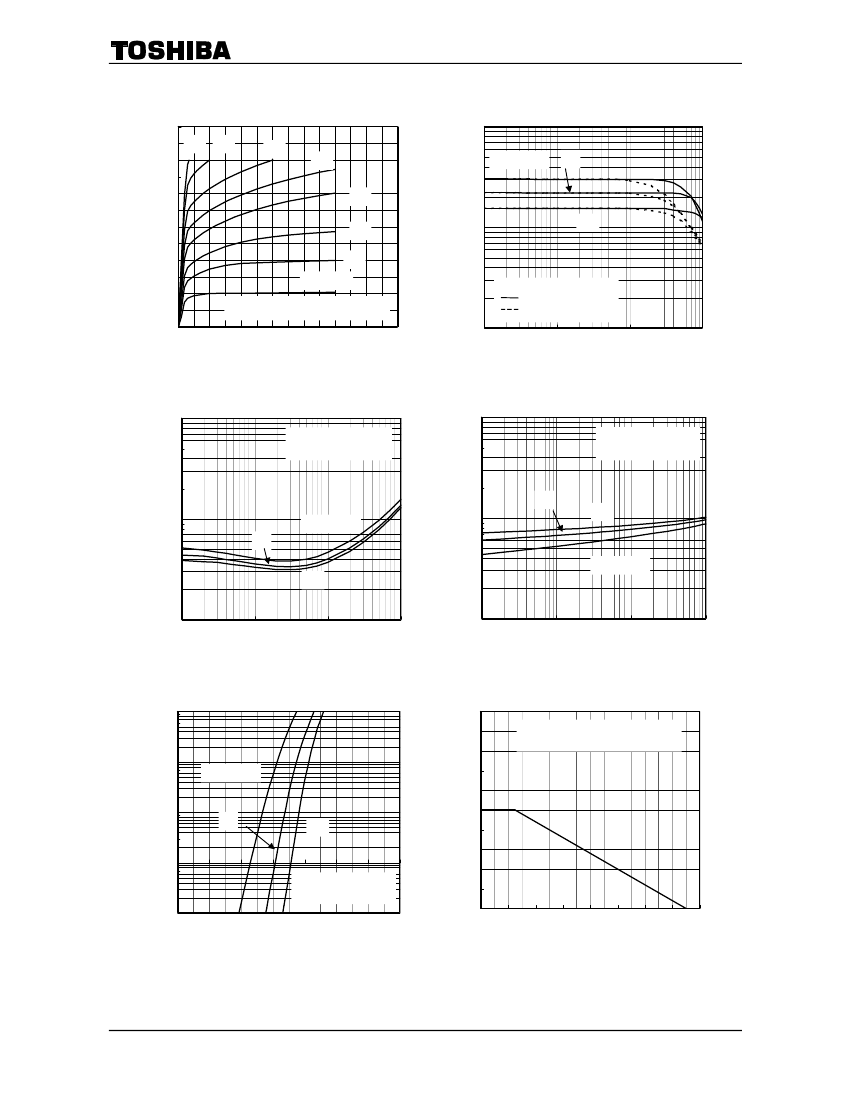

IC - VCE
120
2.0
COLLECTOR CURRENT IC (mA)
hFE - IC
1000
1.5
100
80
60
40
20
1.0
0.7
0.5
0.3
0.2
IB=0.1mA
DC CURRENT GAIN hFE
Ta = 100°C
25
100
-25
COMMON EMITTER Ta=25°C
0
0
1
2
3
4
5
6
7
COLLECTOR-EMITTER VOLTAGE VCE (V)
10
0.1
COMMON EMITTER
VCE = 6V
VCE
= 1V
1
10
100
COLLECTOR CURRENT IC (mA)
VCE(sat) - IC
1
COLLECTOR-EMITTER SATURATION
VOLTAGE VCE(sat) (V)
BASE-EMITTER SATURATION
VOLTAGE VBE(sat) (V)
VBE(sat) - IC
10
COMMON EMITTER
IC/ IB = 10
COMMON EMITTER
IC/IB = 10
25
1
-25
0.1
25
Ta = 100°C
Ta = 100°C
-25
0.01
0.1
1
10
100
COLLECTOR CURRENT IC (mA)
0.1
0.1
1
10
100
COLLECTOR CURRENT IC (mA)
PC - Ta
COLLECTOR POWER DISSIPATION PC (mV)
IB - VBE
1000
100
90
80
70
60
50
40
30
20
10
0
0
20
40
Mounted on FR4 board
(10 mm × 10 mm × 1 mmt)
BASE CURRENT IB (µA)
100
Ta = 100°C
10
25
-25
1
COMMON EMITTER
VCE = 6V
0.1
0
0.2
0.4
0.6
0.8
1
1.2
1.4
60
80
100
120 140
160
BASE-EMITTER VOLTAGE VBE (V)
AMBIENT TEMPERATURE Ta (°C)
2
2005-03-23
2SC6026
RESTRICTIONS ON PRODUCT USE
•
The information contained herein is subject to change without notice.
030619EAA
•
The information contained herein is presented only as a guide for the applications of our products. No
responsibility is assumed by TOSHIBA for any infringements of patents or other rights of the third parties which
may result from its use. No license is granted by implication or otherwise under any patent or patent rights of
TOSHIBA or others.
•
TOSHIBA is continually working to improve the quality and reliability of its products. Nevertheless, semiconductor
devices in general can malfunction or fail due to their inherent electrical sensitivity and vulnerability to physical
stress. It is the responsibility of the buyer, when utilizing TOSHIBA products, to comply with the standards of
safety in making a safe design for the entire system, and to avoid situations in which a malfunction or failure of
such TOSHIBA products could cause loss of human life, bodily injury or damage to property.
In developing your designs, please ensure that TOSHIBA products are used within specified operating ranges as
set forth in the most recent TOSHIBA products specifications. Also, please keep in mind the precautions and
conditions set forth in the “Handling Guide for Semiconductor Devices,” or “TOSHIBA Semiconductor Reliability
Handbook” etc..
•
The TOSHIBA products listed in this document are intended for usage in general electronics applications
(computer, personal equipment, office equipment, measuring equipment, industrial robotics, domestic appliances,
etc.). These TOSHIBA products are neither intended nor warranted for usage in equipment that requires
extraordinarily high quality and/or reliability or a malfunction or failure of which may cause loss of human life or
bodily injury (“Unintended Usage”). Unintended Usage include atomic energy control instruments, airplane or
spaceship instruments, transportation instruments, traffic signal instruments, combustion control instruments,
medical instruments, all types of safety devices, etc.. Unintended Usage of TOSHIBA products listed in this
document shall be made at the customer’s own risk.
•
TOSHIBA products should not be embedded to the downstream products which are prohibited to be produced and
sold, under any law and regulations.
3
2005-03-23
