23TL062 Overview

Basic/snap action/limit switch 2 door interlock SW

23TL062 Parametric

Parameter Name	Attribute value
Maker	All Sensors
Product Category	Basic/Snap Action/Limit Switch
RoHS	yes
Contact form	SPDT
Contact rating	15 Amps at 125 Volts, 250 Volts
Actuator	Plunger, Pi
Termination type	Screw

Preview

Download Datasheet

View All

C&K TL Series

Door Interlock Switches

Features/Benefits

•

Push/pull motion

•

Multiple mounting configurations

•

Wide variety of termination options

•

Ratings up to 15 AMPS

Typical Applications

•

Computer enclosures

•

Panel builders

•

Industrial enclosures

Specifications

CONTACT RATING: 15 AMPS @ 125 & 250 V AC; 0.25 AMP @

250 V DC; 0.5 AMP @ 125 V DC; 1/2 HP @ 125 & 250 V AC;

3 AMPS @ 125 V AC “L”.

ELECTRICAL LIFE: 150,000 cycles at 15 AMPS @ 250 V AC.

INSULATION RESISTANCE: 1,000 M

Ω

min.

DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level.

OPERATING TEMPERATURE: –67ºF to 302ºF (–55ºC to 150ºC).

NOTE:

Specifications and materials listed above are for switches with standard options.

For information on specific and custom switches, consult Customer Service Center.

Materials

SWITCH HOUSING: Thermoplastic or general purpose

phenolic (UL 94V-0).

MOUNTING BRACKET: Stainless steel.

PLUNGER: Stainless steel.

ACTUATOR BUTTON: Thermoplastic (UL 94V-0).

SPRING: Copper alloy.

PIVOT: Brass alloy.

MOVABLE CONTACT: Fine silver.

STATIONARY CONTACTS: Fine silver.

TERMINALS: Copper alloy.

Snap-acting

Build-A-Switch

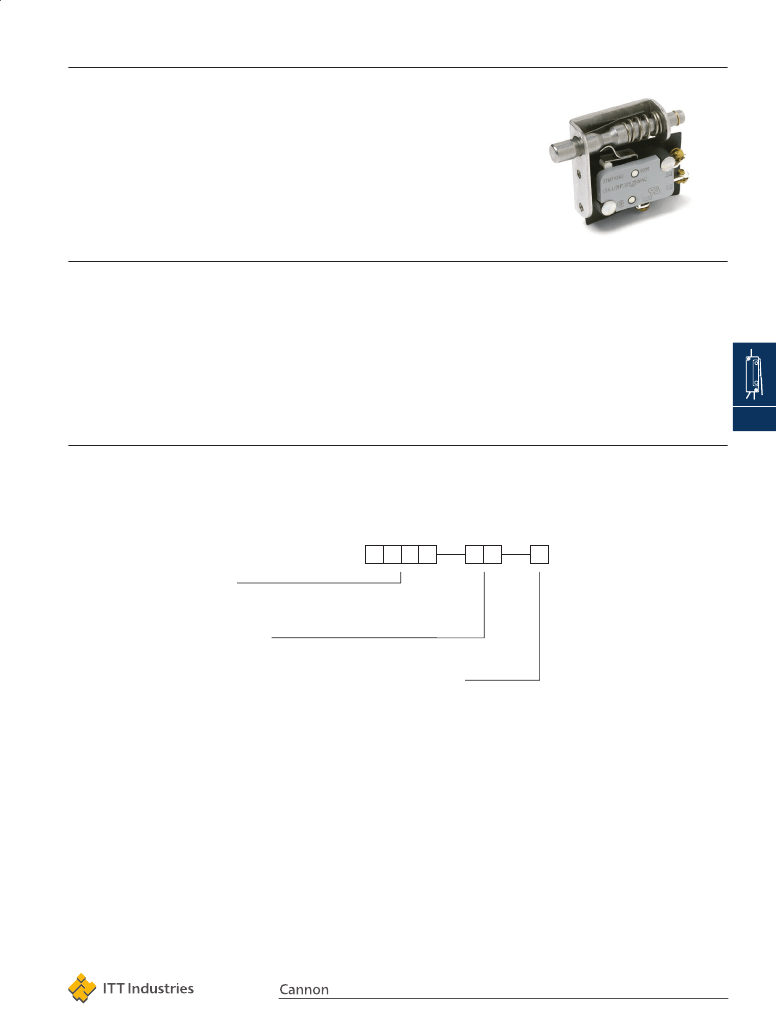

To order, simply select desired option from each category and place in the appropriate box. Available options are shown and

described on pages J-42 and J-43. For additional options not shown in catalog, consult Customer Service Center.

Model

11TL

(STD.) One TM Series SPDT switch

12TL

One TM Series SPDT switch

23TL

Two TM Series SPDT switches

Terminations

(STD.) Screw

.187" Quick connect

.250" Quick connect

Plunger

(STD.) Stainless steel, not tapped

Stainless steel, tapped

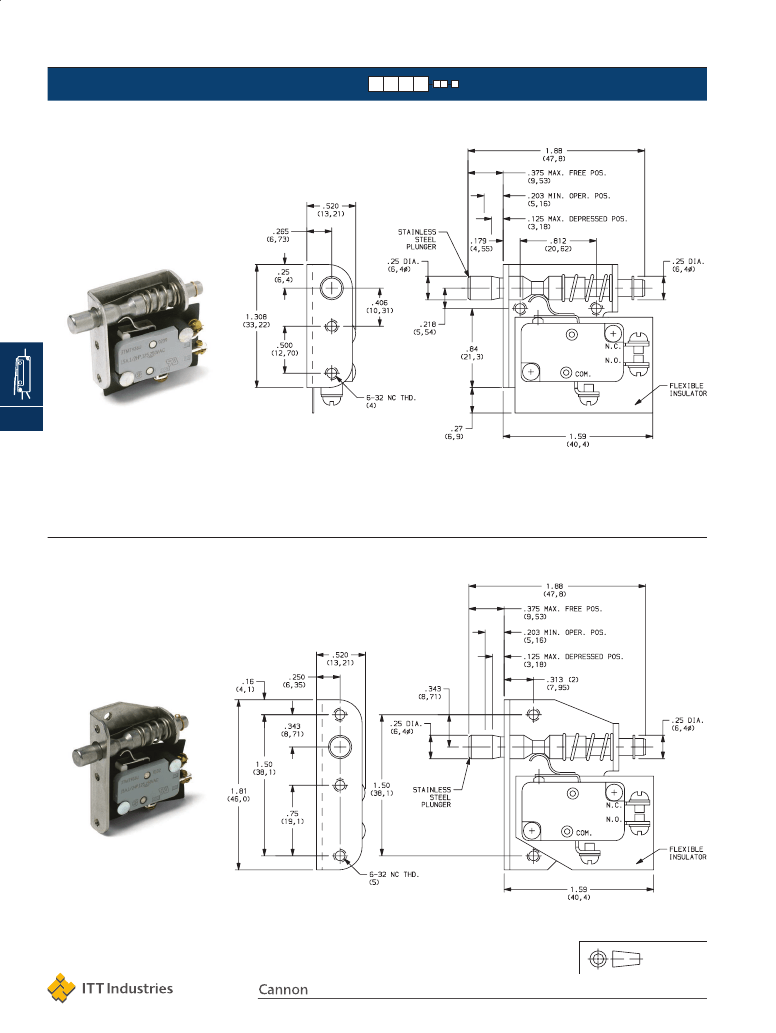

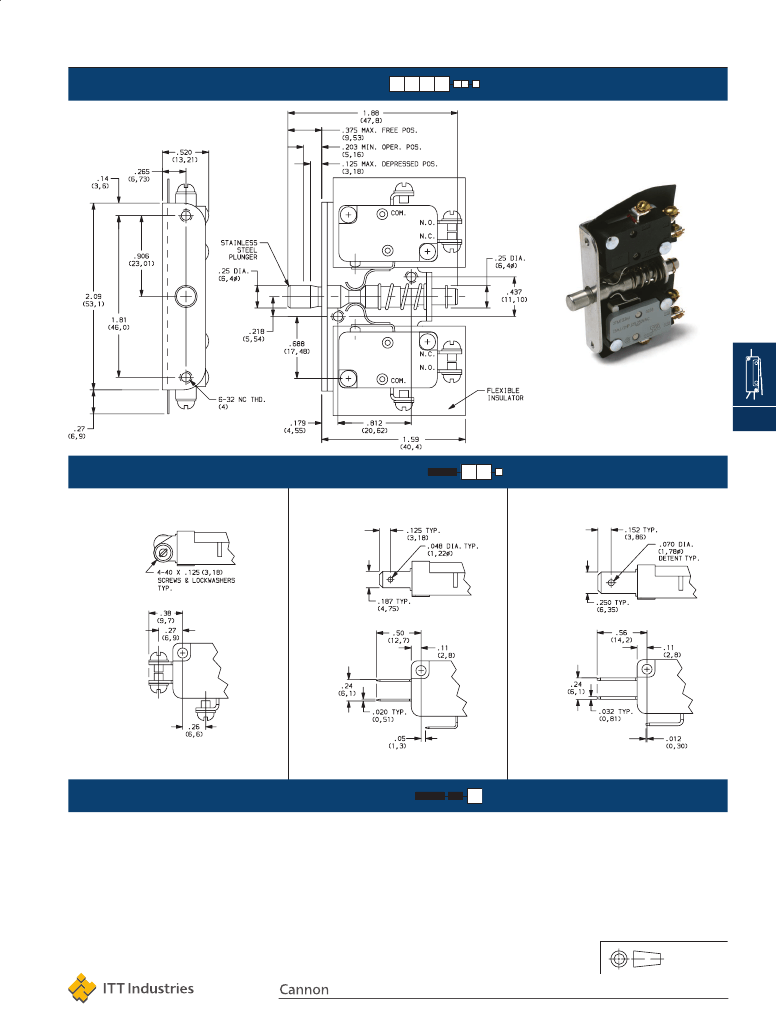

Dimensions are shown: IN (mm)

Dimensions subject to change

J-41

www.ittcannon.com
