Product Selection Guide
Amplifiers
Control Products
Filters
Integrated Products
Optical Components
Connecting the Digital World
to the Global Network
®
Table of Contents
ABOUT TRIQUINT SEMICONDUCTOR ...............2
GUIDE BY MARKET
Automotive ........................................... 4
Base Station ......................................... 5
BWA / WiMAX ...................................... 9
Cable ...................................................10
Defense & Aerospace......................... 11
Mobile Devices ...................................12
Optical .................................................16
PtP Radio ............................................. 17
RFID .................................................... 20
Space ..................................................21
VSAT ................................................... 22
GUIDE BY PRODUCT TYPE
Amplifiers
Up to 1W ....................................... 24
1W to 4W ....................................... 25
More than 4W ............................... 26
Gain Block .................................... 27
Low Noise ..................................... 27
Discrete Transistors ...................... 28
Control Products
Frequency Converters & Mixers ... 29
Signal Conditioning ...................... 30
Switches ........................................ 30
Filters
SAW ................................................31
BAW .............................................. 36
Integrated Products ........................... 37
Optical Components .......................... 39
PRODUCTS BY FREQUENCY ..................... 40
CUSTOMER SUPPORT .............................. 43
About
TriQuint Semiconductor
TriQuint Semiconductor
‘Connects
the Digital World to
the Global Network
®
’
by designing, developing and
manufacturing advanced, high-performance RF solutions
with Gallium Arsenide (GaAs), Gallium Nitride (GaN),
Surface Acoustic Wave (SAW) and Bulk Acoustic Wave
(BAW) technologies. TriQuint is an innovation and market
diversity leader, serving customers in mobile device,
3G / 4G wireless base station, optical, CATV / FTTH, WLAN,
GPS / PND, defense and aerospace markets.
ge
Ima
Cou
rte
fU
sy o
.S. N
avy
This guide contains a subset of the total
selection of products available from TriQuint.
If you are unable to locate the product you need,
please contact your local sales representative or
the factory for more information.
TriQuint solutions, designed and crafted with the
industry’s largest in-house technology portfolio, enable
quicker design turns while lowering overall system
costs. We are an award-winning provider of innovative
RF products serving start-up firms as well as the
world’s largest, most well-established companies. We
also support the need for custom solutions through the
industry’s widest selection of foundry processes based
on GaAs and GaN technologies.
In 2009 TriQuint expanded its CATV portfolio with the
TriAccess™ line of cable TV and FTTH solutions. CATV
products now include ‘green’ Edge QAM amplifiers
(40%+ PAE), low-loss FTTH amplifiers, SAW filters and
integrated devices for cable headend, infrastructure
and home applications. In 2008, TriQuint acquired
WJ Communications in Silicon Valley, California to
expand its Networks product line, with an emphasis on
standard solutions for 3G / 4G base stations.
TriQuint’s wide-ranging technology portfolio enables us
to make highly reliable, high-performance products.
Our design and manufacturing processes can reduce
design time, enhance performance and reduce BOMs.
Key advantages of GaAs, GaN,
SAW and BAW technologies:
• GaAs can operate effi
ciently at higher
breakdown voltages compared to silicon-
based semiconductor technologies while
generating less noise in frequencies in
excess of 250 MHz. GaAs offers high
efficiency, linearity and good wide-
band performance.
• GaN offers greater power handling and
density than GaAs beginning at 20 MHz;
this enables performance at a given
power level using fewer or smaller devices.
GaN offers strong linearity and effi
ciency,
plus greater wideband capability.
• SAW filter technology offers excellent
performance and economy through 2.5 GHz.
• BAW filters offer superior loss levels,
stronger ESD performance and greater
resistance to temperature effects from 2.5
to 6 GHz.
TriQuint products are available through worldwide sales, representative and distribution networks. Visit
www.triquint.com/sales
to connect with TriQuint representatives serving your market.
Connecting the Digital World to the Global Network
®
www.triquint.com
Page 3
GUIDE BY MARKET
|
Automotive
GPS
Receiver
19 GHz VCO
PLL
19 GHz / 38 GHz Doubler
X2
38 GHz / 76 GHz Doubler / MPA
X2
77 GHz SP3T
Rx Filters
Single; 2-in-1
Cell
To Antenna
Tx
÷N
2G / 3G
CDMA2000 /
1x EV-DO
Transceiver
(RTR)
PCS
Rx
PCS
Triplexer
for S-GPS
TRITIUM PA-Duplexer Module
TM
Triplexer
for S-GPS
77 GHz IQ
Mixer
Base
Band
77 GHz LNA
77 GHz SP4T
Rx
Cell
TRITIUM PA-Duplexer Module
TM
Example of a 77 GHz Radar Front-End
Amplifiers & Low Noise Amplifiers
Description
77 GHz LNA
77 GHz MPA
Cellular & GPS Transceiver for Auto Telematics
Gain
(dB)
20
12
Frequency
Range (GHz)
72 - 80
76 - 80
Psat
(dBm)
5
14
NF
(dB)
5
–
Voltage / Current
(V / mA)
3.5 / 54
3.5 / 75
Package
Style
Die
Die
Part
Number
TGA4705-FC
TGA4706-FC
Switches
Description
SP3T
SP4T
SP5T VPIN 77 GHz
Frequency
Range (GHz)
60 - 90
70 - 90
71 - 90
Insertion
Loss
2.3
3
2.5
Isolation
(dB)
20
20
25 / 40
P1dB
(dBm)
>-13
>-8
>-8
Control Voltage
(V)
-5 / 1.35
-5 / 1.35
-5 / 1.35
Package
Style
Die
Die
Die
Part
Number
TGS4305-FC
TGS4306-FC
TGS4307
Frequency Converters & Mixers
Description
19 GHz VCO w/8:1 Prescaler
19 / 38 GHz Converter / MPA
Down Converting I/Q Mixer
38 / 77 GHz Converter / MPA
Frequency
Range (GHz)
18.5 - 19.5
36 - 40
75 - 80
76 - 78
Conversion
Gain (dB)
–
9
-13.5
6
LO / RF
Isolation
(dB)
-105**
–
22
–
IIP3 / Psat Voltage / Current
(dBm)
(V / mA)
– / 7.0
– / 14.5
–
– / 15.0
5 / 158
3.5 / 65
1.1 / 7
4 / 230
Package
Style
Die
Die
Die
Die
Part
Number
TGV2204-FC
TGC4703-FC
TGC4702-FC
TGC4704-FC
NOTES: ** = Phase Noise (dBc / Hz @ 1 MHz Offset)
Integrated Products
Description
QB GSM / GPRS Tx Module; PA / LPF / SP6T Switch
QB GSM / GPRS / EDGE-Polar PA Module
Frequency Bands
GSM850 / 900, DCS / PCS
GSM850 / 900, DCS / PCS
Package Size (mm)
6.0x6.0x1.1
5.0x5.0x1.0
Part Number
TQM6M4003
TQM7M5012
Filters
Description
Duplexer, Cell Band
GSM850 Rx Filter
CDMA 2-in-1 Rx Filter
GPS RF Filter
GPS RF Filter
GPS RF Filter
GPS RF Filter, Auto
GPS RF Filter, Auto
GSM1900 Rx Filter
SDARS Filter
Frequency
(MHz)
836.5 / 881.5
881.5
881.5 / 1960
1575.42
1575.42
1575.42
1575.42
1575.42
1960
2332.5
Bandwidth
(MHz)
25 / 25
25
25 / 60
2
2
2
2
2
60
45
Typical
IL (dB)
1.9 / 1.9
1.6
1.6 / 2.2
1.25
0.75
1.1
1.8
1.3
1.5
1.7
I/O
Configuration
SE / SE
SE / BAL
SE / BAL
SE / SE
SE / SE
SE / BAL
SE / SE
SE / SE
SE / BAL
SE / BAL
Rejection {dB @ BW
or Freq (MHz)}
–
40 @ 836.5
–
30 @ 1624.00
35 @ 1635.00
20 @ 1635.00
45 @ 1637.00
45 @ 1640.00
17 @ 1880.00
35 @ 2100.00
Package
Size (mm)
3.8x3.8
1.4x1.2
2.0x1.5
2.0x1.5
1.4x1.2
1.4x1.2
3.0x3.0
3.0x3.0
1.4x1.2
1.4x1.2
Part
Number
856356
856522
856565
856584
856561
856576
856039
856139
856577
856604
Page 4
Connecting the Digital World to the Global Network
®
www.triquint.com
© 5-10
GUIDE BY MARKET
|
Dual LNA
RF Filter
Base Station
LNA
RF Filter
Mixer
Variable
IF Amp IF Filter Attenuator IF Amp IF Filter
RF Filter
LO Amp
Switch
Switch
Tower Mounted LNA
IQ Mod
Variable
RF Amp Attenuator
RF Amp

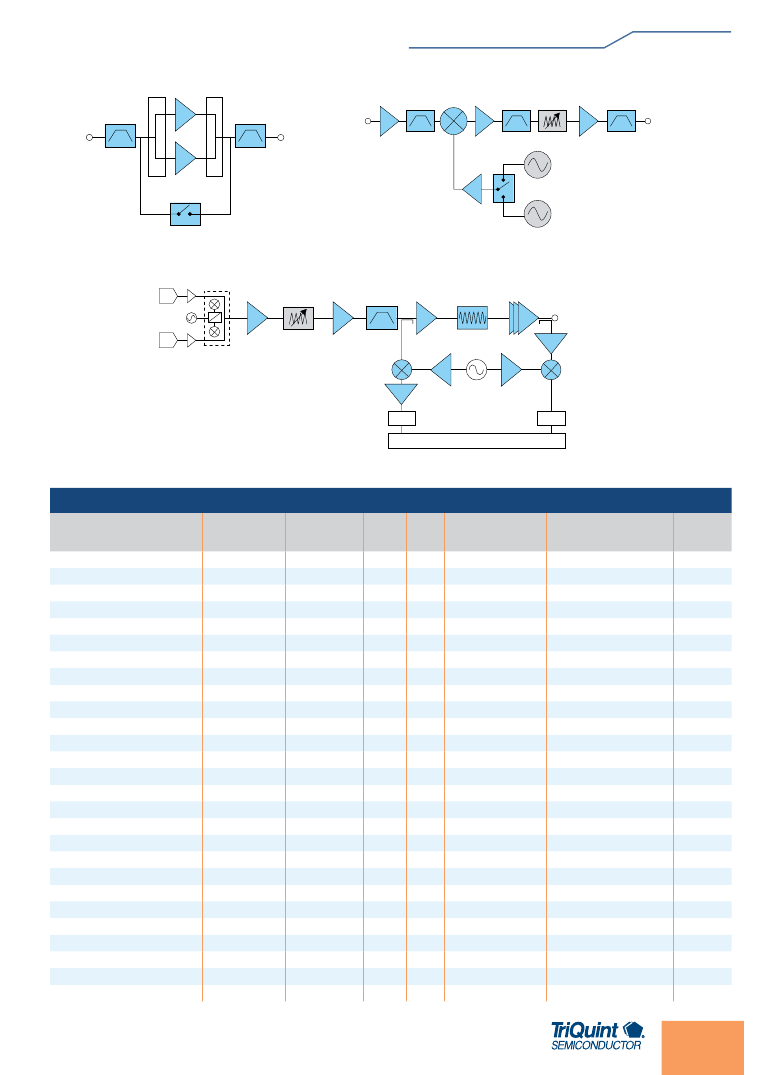

Base Station Receiver (Single Branch Shown)
RF Filter
MPA
SAW
Delay Line
HPA
RF Amp
Mixer
IF Amp
ADC
DSP / Digital Control
LO Amp
LO Amp
DAC
Mixer
Base Station Transmitter & PA
General Purpose Amplifiers
Description
General Purpose Gain Block
General Purpose Gain Block
General Purpose Gain Block
General Purpose Gain Block
General Purpose Gain Block
General Purpose Gain Block
General Purpose Gain Block
General Purpose Gain Block
General Purpose Gain Block
General Purpose Gain Block
General Purpose Gain Block
General Purpose Gain Block
General Purpose Gain Block
General Purpose Gain Block
General Purpose Gain Block
General Purpose Gain Block
General Purpose Gain Block
General Purpose Gain Block
General Purpose Gain Block
General Purpose Gain Block
General Purpose Gain Block
MESFET IF Gain Block
MESFET IF Amplifier
+5V Active Bias IF Gain Block
+5V Active Bias IF Gain Block
+5V Active Bias IF Gain Block
VGA, 20 dB Range, 5V Control
Frequency
Range (MHz)
DC - 3000
DC - 3500
DC - 3500
DC - 4000
DC - 4000
DC - 4000
DC - 4000
DC - 5500
DC - 6000
DC - 6000
DC - 6000
DC - 6000
DC - 6000
DC - 6000
DC - 6000
DC - 6000
DC - 6000
DC - 6000
DC - 6000
DC - 6000
DC - 6000
50 - 870
50 - 1000
50 - 1000
50 - 1000
50 - 1000
50 - 2200
P1dB / OIP3
(dBm)
18.5 / 33
18.5 / 33
20.5 / 33.5
19.5 / 31
17.5 / 32
23.5 / 37
18 / 34.5
15 / 30
5.8 / 18.5
7.5 / 19.5
12 / 25
12.5 / 25
16 / 28.5
16 / 28
14.5 / 27.5
19 / 33
12.5 / 26
15 / 29
23 / 36
13 / 27
18 / 32
20 / 41
22 / 42
20.5 / 44
19.5 / 36.5
20 / 47
22 / 42
Gain
(dB)
16.5
13.6
17.2
18.5
21.5
14.3
15.3
14.2
11
17.7
14.3
18.4
14.5
18.9
19.1
18.2
21.4
19.5
19
15.5
20.1
13
19
19.5
19.3
14.4
15.5
NF
(dB)
3.8
4.4
3.5
2.9
3.4
4.6
5.5
3.7
4.4
3.1
3.2
3
3.7
3
2.9
3.5
3.4
3.7
3.5
3.2
3.4
3
2.2
5
4.7
5.4
4.5
Voltage / Current
(V / mA)
6 / 75
6 / 75
7 / 96
6 / 70
6 / 65
9 / 120
6 / 70
5 / 45
5 / 20
5 / 20
5 / 35
5 / 35
6 / 60
6 / 60
6 / 45
6 / 75
5 / 30
5 / 45
9 / 110
5 / 35
6 / 65
5 / 150
5 / 150
5 / 95
5 / 65
5 / 95
5 / 150
Package
Style
SOT89
SOT89
SOT89
SOT89
SOT89
SOT89
SOT89
SOT86 / SOT363 / SOT89
SOT86 / SOT363
SOT86 / SOT363
SOT86 / SOT363
SOT86 / SOT363
SOT86 / SOT89
SOT86 / SOT89
SOT86 / SOT89
SOT86 / SOT89
SOT363 / SOT89
SOT86 / SOT363 / SOT89
SOT89
SOT89
SOT86 / SOT89
SOT89
SOT89
SOT89
SOT89
SOT89
4x4 QFN16
Part
Number
AG603
AG602
EC1078
EC1019
ECG005
ECG008
ECG040
ECG006
AG201
AG203
AG302
AG303
AG402
AG403
AG503
AG604
ECG001
ECG002
ECG003
ECG004
ECG055
AH3
AH31
WJA1500
WJA1505
WJA1510
VG025
© 5-10
Connecting the Digital World to the Global Network
®
www.triquint.com
Page 5
京公网安备 11010802033920号
EEWORLD
