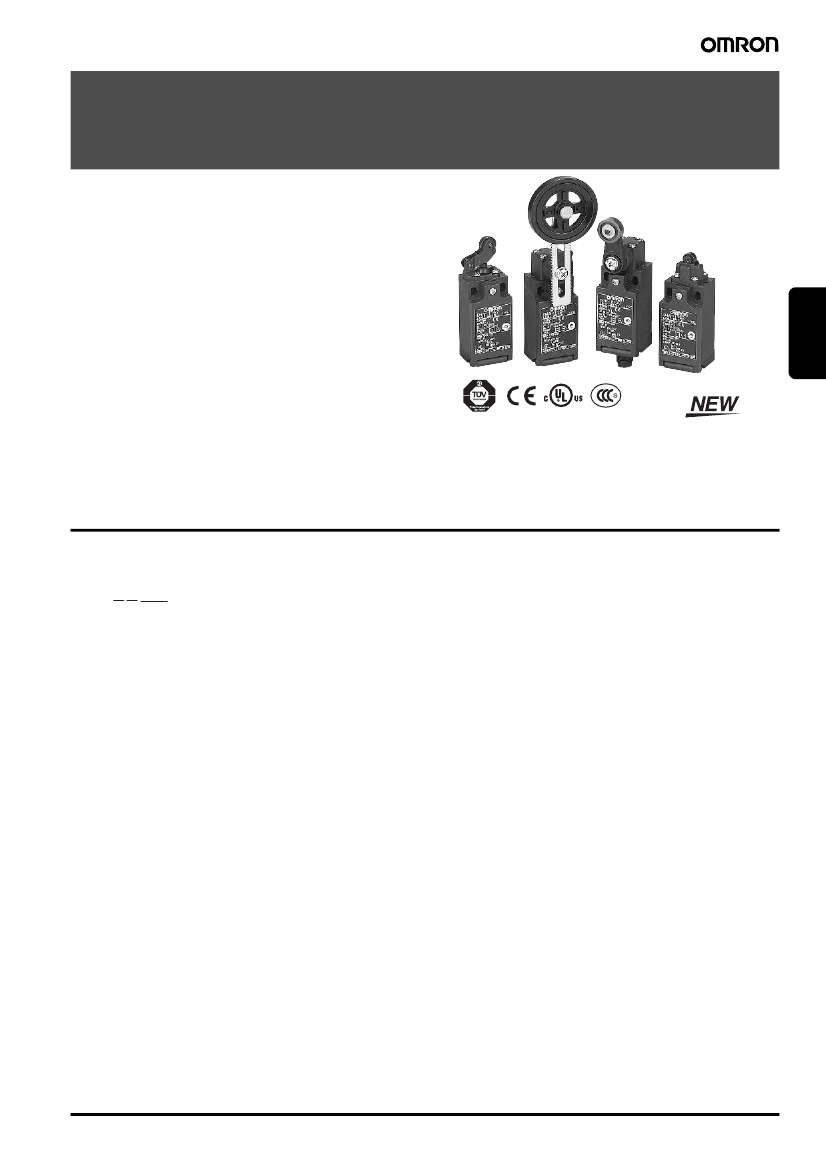

Safety Limit Switch

D4N

Upgraded Safety Limit Switches Based on

the Popular D4D, Providing a Full Lineup

Conforming to International Standards

• Lineup includes three contact models with 2NC/1NO and 3NC

contact forms in addition to the previous contact forms 1NC/

1NO, and 2NC. Models with MBB contacts are also available.

• M12-connector models are available, saving on labor and

simplifying replacement.

• Standardized gold-clad contacts provide high contact reliability.

Can be used with both standard loads and microloads.

• Free of lead, cadmium, and hexavalent chrome, reducing the

burden on the environment.

• Conforms to EN115 and EN81-1.

• Lineup includes both slow-action and snap-action models with

Zb contacts.

• Approved standards: UL, EN (TÜV), and CCC

Note:

Be sure to read the

“Safety Precautions”

on page B-23.

Safety Limit

Switches

D4N

Note:

Contact your sales representative for details on models with

safety standard certification.

Model Number Structure

■

Model Number Legend

D4N-@@@@

1 2

3. Head and Actuator

20: Roller lever (resin lever, resin roller)

22: Roller lever (metal lever, resin roller)

25: Roller lever (metal lever, metal roller)

26: Roller lever (metal lever, bearing roller)

2G: Adjustable roller lever, form lock (metal lever, resin roller)

2H: Adjustable roller lever, form lock (metal lever, rubber roller)

31: Top plunger

32: Top roller plunger

62: One-way roller arm lever (horizontal)

72: One-way roller arm lever (vertical)

80: Cat whisker

87: Plastic rod

RE:Fork lever lock (right operation)

LE: Fork lever lock (left operation)

1. Conduit/Connector size

1: Pg13.5 (1-conduit)

2: G1/2 (1-conduit)

3: 1/2-14NPT (1-conduit)

4: M20 (1-conduit)

5: Pg13.5 (2-conduit)

6: G1/2 (2-conduit)

7: 1/2-14NPT (2-conduit)

8: M20 (2-conduit)

9: M12 connector (1-conduit)

2. Built-in Switch

1: 1NC/1NO (snap-action)

2: 2NC (snap-action)

A: 1NC/1NO (slow-action)

B: 2NC (slow-action)

C: 2NC/1NO (slow-action)

D: 3NC (slow-action)

E: 1NC/1NO (MBB contact) (slow-action)

F: 2NC/1NO (MBB contact) (slow-action)

Safety Limit Switch

D4N

B-5
