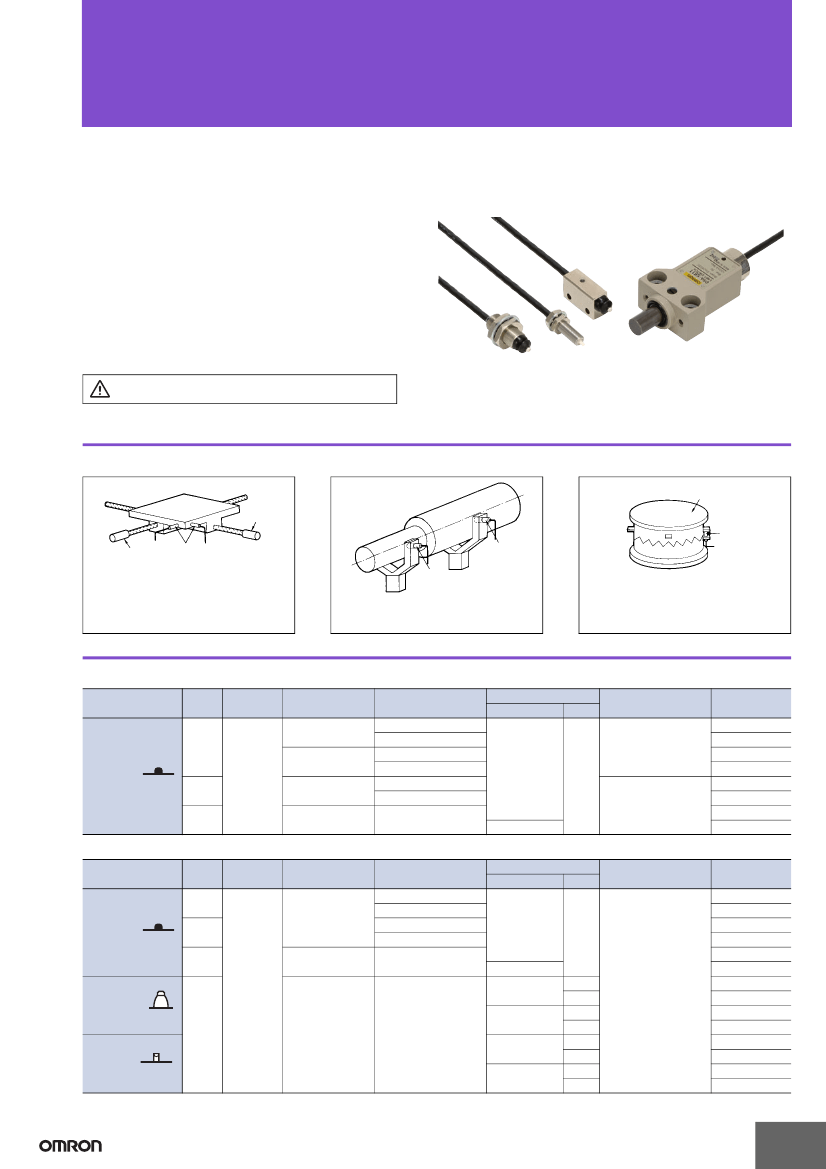

High-precision Switch
D5A
High-precision Switch for Detecting Micron-unit
Displacement
•
Ideal for detecting and measuring wear of cutting
tools or for original point of work.
•
Ceramic plungers on M5, M8, and slim models for
superior abrasion resistance and resistance to
temperature changes.
•
Direct input possible to microprocessors and
programmable controllers.
•
A version with screw-type cable connector available
for easy installation and maintenance.
Be sure to read
Safety Precautions
on page 5 to 6 and
Safety
Precautions for All Limit Switches.
CSM_D5A_DS_E_2_2
Application Examples
Origin Position Control of an X-Y Table
Coaxiality Inspection
Checking Turret Indexing Position
Turret
Motor
D5A
Motor
D5A
D5A
D5A
Origin can be set to a desired
position and the origin position
can be controlled using the D5A.
The D5A can be mounted on a jig
used for checking deviation to in-
spect its coaxiality.
Set the D5A on the turret index-
ing position to check if the turret
is engaged properly at the spec-
ified position.
Ordering Information
Contact Output Models (NC Contact)
Actuator
Type
Operation
Indicator
Repeat accuracy
1
µm
max.
M5
3
µm
max.
Pin plunger
M8
M16
None
1
µm
max.
3
µm
max.
Operating force
OF max.
0.29 N
0.49 N
0.29 N
0.49 N
0.49 N
0.98 N
2.45 N
Connector
Pre-wired
1m
IP67
IP40
Cable lead outlet
Lead outlet
Length
Degree of
protection
Model
D5A-1100
D5A-1200
D5A-2100
D5A-2200
D5A-3200
D5A-3300
D5A-7400
D5A-7403
Solid-state Output Models (PNP Transistor Output)
Actuator
Type
M8
1
µm
max.
Pin plunger
Slim
M16
Provided
Top plunger
Connector
Limit
Bevel plunger
Connector
3
µm
max.
3.92 N
Pre-wired
3
µm
max.
Operation
Indicator
Repeat accuracy
Operating force
OF max.
0.49 N
0.98 N
0.49 N
0.98 N
2.45 N
Connector
Pre-wired
3m
5m
3m
5m
3m
5m
3m
5m
IP67
Pre-wired
1m
Cable lead outlet
Lead outlet
Length
Degree of
protection
Model
D5A-3210
D5A-3310
D5A-5210
D5A-5310
D5A-7410
D5A-7413
D5A-8511
D5A-8512
D5A-8514
D5A-8515
D5A-9511
D5A-9512
D5A-9514
D5A-9515
1
D5A
Specifications
Ratings
Item
Contact output models
Electrical ratings
M5, M8, M16 Type: 10 mA at 24 VAC
10 mA at 12 VDC
Characteristics
Degree of protection
Repeat accuracy
*1
D5A-1@, D5A-2@: IP40
Other than the above models: IP67
M5 (D5A-1
@@@
series), M8, slim type:1
μm
max.
M5 (D5A-2
@@@
series), M16, limit type:3
μm
max.
1,000,000 operation min.
(Contact output models: 24 VAC, 10 mA, resis-
tive load, Solid-state output models: 24 VAC,
100 mA, resistive load)
M5, M8, M16, slim type: 10
μm
max.
Limit type: 20
μm
max.
1
μm/s
to 0.5 m/s
50/60 Hz
100 MΩ min. (at 250 VDC) between each termi-
nal and non-current-carrying metal part
800 mΩ max. (initial) with 1 m cable,
2.4
Ω
max. (initial) with 3 m cable,
4
Ω
max. (initial) with 5 m cable
1,000 VAC, 50/60 Hz for 1 min between each
terminal and non-current-carrying metal part
100 mA at 5 to 24 VDC±10%
Leakage current: 0.15 mA max.
Solid-state output models
Residual voltage: 3 V max.
Power consumption: 3 mW max.
Mechanical
10,000,000 operations min.
Durability
*2
Electrical

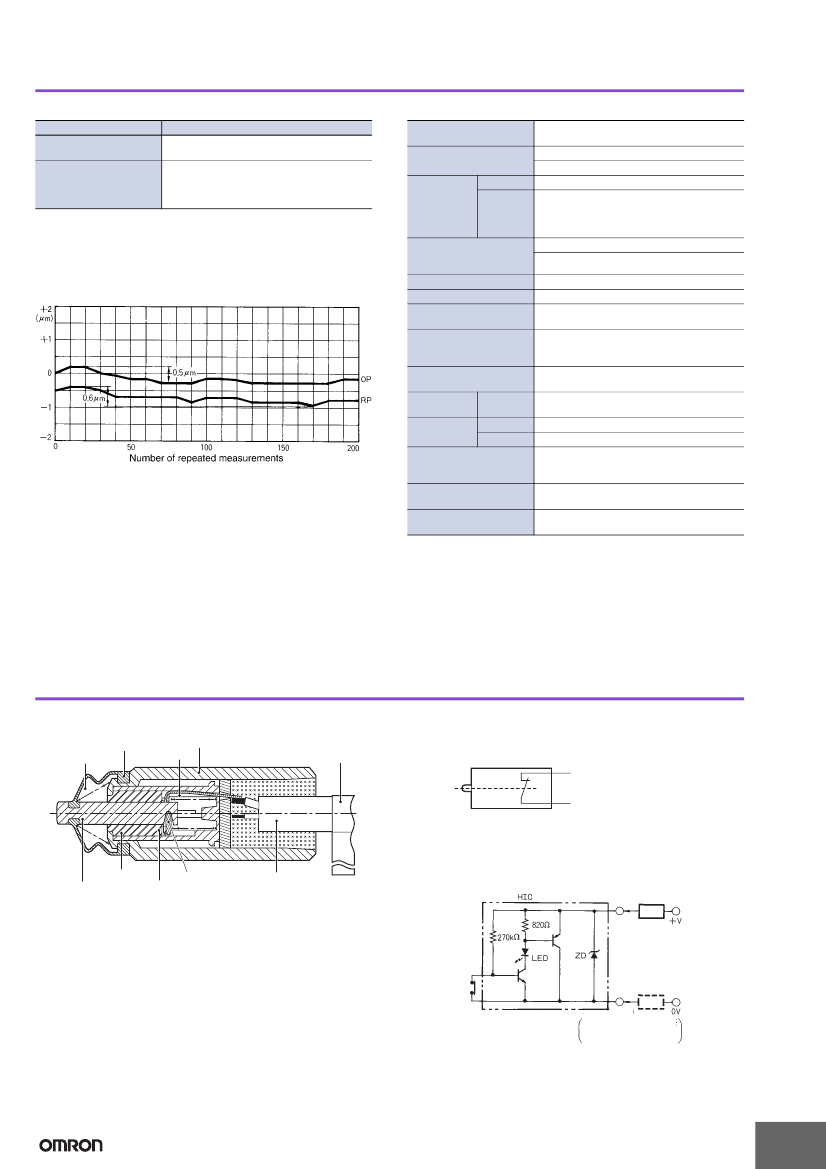

Engineering Data
Repeat Accuracy Examples (Reference Data)
M5 Type (Contact Output) With
Repeat Accuracy of 1
μm
max.
D5A-1@@@ Series
Deviation in electrical
durability after 1,000,000
operations
Operating speed
Rated frequency
Insulation resistance
Contact resistance
(Initial value)
*4
Dielectric strength
Vibration
resistance
Shock
resistance
Malfunction
10 to 55 Hz, 1.5-mm double amplitude
Mechanical
1,000 m/s
2
max.
Malfunction
300 m/s
2
max.
M5, M8, slim type:
±20 ×
10
-6
/°C max.
Temperature coefficient
*3
M16 type:
±40 ×
10
-6
/°C max.
Limit type:
±50 ×
10
-6
/°C max.
Ambient operating
temperature
Ambient operating humidity
−20°C
to +75°C (with no icing)
35% to 85%RH
(35% to 95%RH with the seal rubber)
Note: The above figures are initial values.
*1. Contact your OMRON sales representative for measurement conditions of
the repeat accuracy.
*2. Durability values are calculated at an operating temperature of +5°C to +35°C,
and an operating humidity of 40% to 70%RH. Contact your OMRON sales
representative for more detailed information on other operating environments.
*3. The value indicates the operating position change rate for a change of 1°C
in the ambient temperature. The specifications depend on the model.
Contact your OMRON sales representative for details.
*4. Values for contact output models.
Structure and Nomenclature
Structure
Seal rubber
(NBR)
Spring
Case
Spring
Nameplate
Contact Form/Output Circuit Diagram
Contact Output Models
M5, M8, M16 type
(NC)
Note: NO Switches are not available with contact output models.
Bearing
Plunger
Contact
Contactor
Cable
(V-HKCVV)
Solid-state Output Models (PNP Transistor Output)
M8, Slim, M16, Limit type
Load
Brown (White)
Blue (Black)
Load
HIC (hybrid integrated circuit)
An LED current limit resistor is incorporated.
The ZD absorbs surge.
Note: The load may be connected to either the +V or 0 V terminal.
Core wire colors have been changed accompanying changes in
standards. The old core wire colors are given in parentheses.
2
D5A

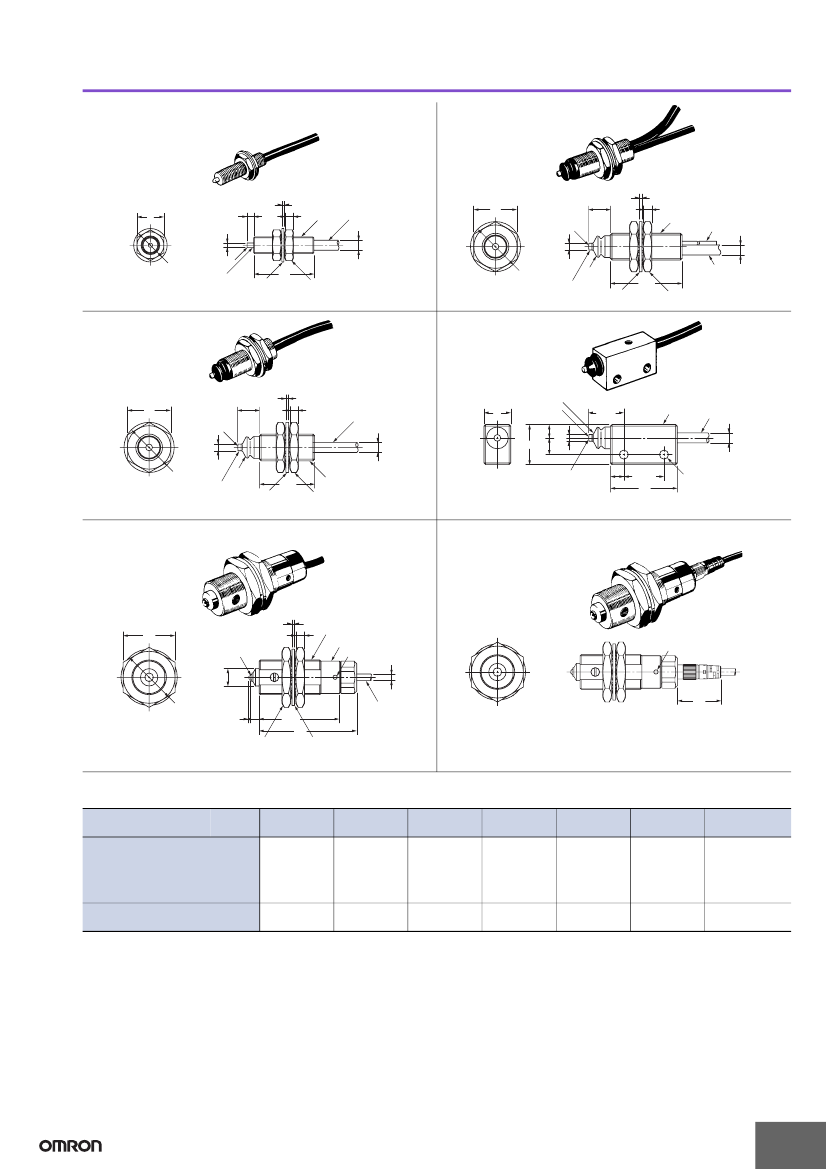

Dimensions and Operating Characteristics
M5 Type (Contact Output)
D5A-1100 D5A-2100
D5A-1200 D5A-2200
M8 Type (Solid-state Output)
D5A-3210
D5A-3310
(Unit: mm)
0.6
8
*1 OP
(FP)
1.3 dia.
10 dia.
3.7R
S-FLEX V-HKCVV
equal level, 3 dia.
2.5 M5
×
0.5 Two conductors
0.08 mm
2
1m
3 dia.
0.8
13
*1 OP
(FP)
4.85R
2 dia.
15 dia.
Ceramic
plunger
Seal
rubber
2.5
M8
×
0.5 Operation indicator fiber,
2 dia. (approx. 450 mm)
3 dia.
S-FLEX V-HKCVV
equal level, 3 dia.
21.5
Two conductors 0.08 mm
2
1m
Toothed lock washer Two clamping nuts
18
Ceramic
plunger Toothed lock washer Two clamping nuts
M8 Type (Contact Output)
D5A-3200
D5A-3300
S-FLEX V-HKCVV
equal level, 3 dia.
Two conductors
0.08 mm
2
1m
3 dia.
Seal
rubber
Slim Type (Solid-state Output)
D5A-5210
D5A-5310
S-FLEX V-HKCVV
equal level, 3 dia.
Operation indicator (LED) Two conductors
0.08 mm
2
1m
3 dia.
0.8
13
*1 OP
(FP)
4.85R
2 dia.
15 dia.
Ceramic
plunger
2.5
8
Seal rubber
Ceramic
plunger
4
12
5
2 dia.
OP *1
(FP)
M8
×
0.5
16.5
Toothed lock washer Two clamping nuts
4.85R
4
12
±
0.2
20
Two, 2.7
+0.1
dia.
0
M16 Type (Contact Output/Solid-state Output)
D5A-7400
D5A-7410
M16 Type (Contact Output/Solid-state Output)
D5A-7403
D5A-7413
(Connector type)
1.2
24
1/8-inch
ultra-hard ball
8 dia.
4
M16
×
0.5 (Length: 28.5)
Nameplate
Operation indicator (LED) *3
3 dia.
20
Operation indicator (LED) *3
26 dia.
PT
OP
Two clamping nuts
37.5
45
Toothed lock washer
S-FLEX V-HKCVV
equal level, 3 dia.
Two conductors
0.08 mm
2
1m
Note: 1. The dimensions are the same as the
left model's.
2. Cables with connectors are not sold
separately.
Note: 1. Unless otherwise specified, a tolerance of
±
0.4 mm applies to all dimensions.
2. Special screw dimensions apply to the case screws (pitch: 0.5 mm). Mounting is not possible with standard tapping. Use the provided special nuts.
Operating
characteristics
Operating force
Pretravel
Overtravel
Movement
Differential
Operating Position
Free Position
Model D5A-1100
*2
D5A-2100
OF max.
0.29 N
PT max.
---
OT min.
1.5 mm
5
µm
MD max.
OP
*1
(2 mm)
FP
---
D5A-1200
*2
D5A-2200
0.49 N
---
1.5 mm
5
µm
(2 mm)
---
D5A-3200
*2
D5A-3210
0.49 N
---
1.5 mm
5
µm
(6.5 mm)
---
D5A-3300
*2
D5A-3310
0.98 N
---
1.5 mm
5
µm
(6.5 mm)
---
D5A-5210
*2
0.49 N
---
1.5 mm
5
µm
D5A-5310
*2
0.98 N
---
1.5 mm
5
µm
D5A-7400, D5A-7410
D5A-7403, D5A-7413
2.45 N
1 mm
2 mm
5
µm
(4.4 mm)
(5 mm)
10.5±0.4 mm 10.5±0.4 mm
---
---
*1. The operating position of these types is the same as the free position because of high sensitivity (repeat accuracy: 1
µm
max.). This does not apply to M16 limit
switch types.
*2. Total movement is 1.9 to 2.1 mm. Set the appropriate stroke (plunging depth) to 1.0 to 1.5 mm from the FP.
*3. Not available in the contact output type.
3
D5A

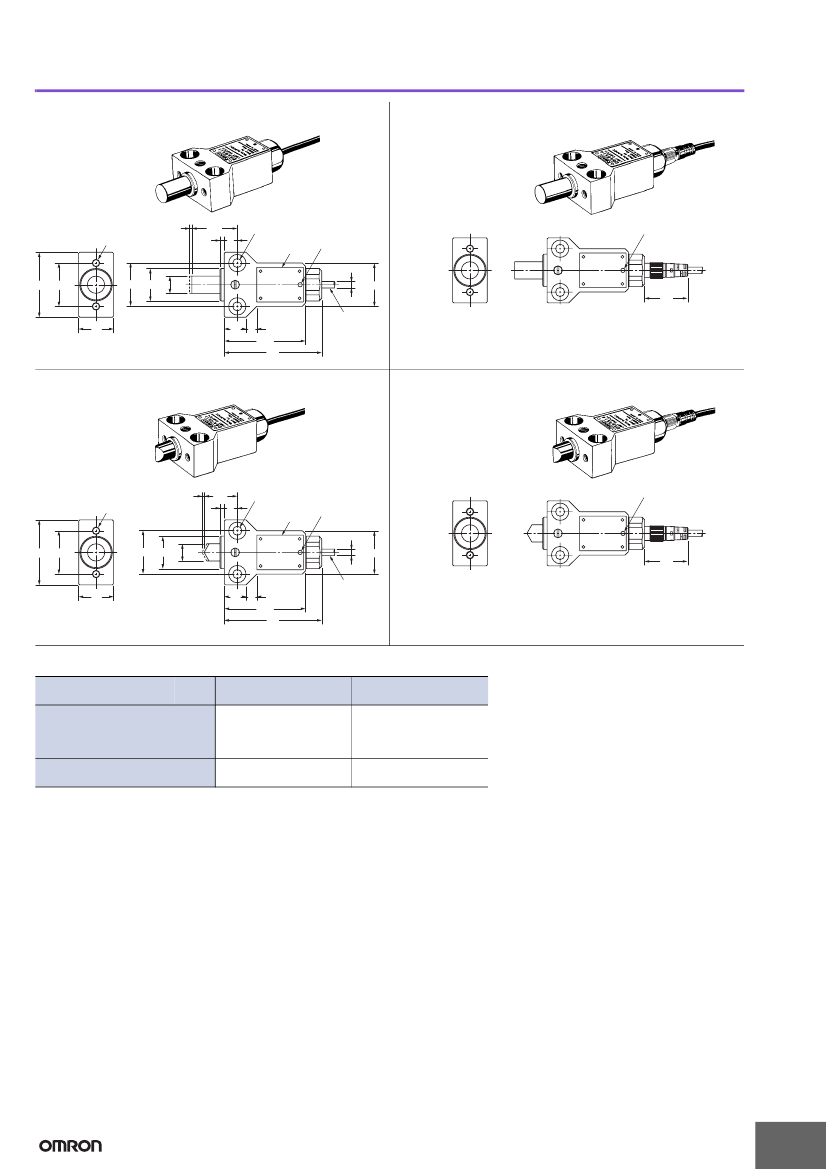

Limit Type (Solid-state Output)
D5A-8511
D5A-8512
Limit Type (Solid-state Output)
D5A-8514
D5A-8515
(Connector type)
PT
Two, M3
×
0.5
OP
3
Two, 4.2 dia. holes 8 dia. spot facing depth: 5
6
Nameplate
Operation indicator (LED)
Operation indicator (LED)
30 20
±
0.2
20
±
0.2
15 dia. 8 dia.
3 dia. 20
20
S-FLEX V-HKCVV
equal level, 3 dia.
Two conductors
0.08 mm
2
3m/5m
16
10
5
37.5
45
Note: 1. The dimensions are the same as the
left model's.
2. Cables with connectors are not sold
separately.
Limit Type (Solid-state Output)
D5A-9511
D5A-9512
Limit Type (Solid-state Output)
D5A-9514
D5A-9515
(Connector type)
PT
Two, M3
×
0.5
3
OP
6
Two, 4.2 dia. holes 8 dia. spot facing depth: 5
Nameplate
Operation indicator (LED)
Operation indicator (LED)
30 20
±
0.2
20
±
0.2
15 dia. 8 dia.
3 dia. 20
20
S-FLEX V-HKCVV
equal level, 3 dia.
Two conductors
0.08 mm
2
3m/5m
16
10
5
37.5
45
Note: 1. The dimensions are the same as the
left model's.
2. Cables with connectors are not sold
separately.
Note: Unless otherwise specified, a tolerance of
±
0.4 mm applies to all dimensions.
Operating
characteristics
Operating force
Pretravel
Overtravel
Movement Differential
Operating Position
Free Position
Model
OF
PT
OT
MD
OP
FP
max.
max.
min.
max.
D5A-8511, -8514
D5A-8512, -8515
3.93 N
1 mm
5 mm
5
µm
21.0±0.4 mm
(21.8mm)
D5A-9511, -9514
D5A-9512, -9515
3.93 N
1 mm
4 mm
5
µm
15.2±0.4 mm
(15.8mm)
4
D5A
Safety Precautions
Refer to
Safety Precautions for All Limit Switches.
Precautions for Correct Use
Handling of Fiber Cable
•
Do not pull or impose any force exceeding 29.42 N on the fiber
cable.
•
Make sure that the bending radius of the fiber cable is as large as
possible and at least R20 mm.
•
The 40-mm portion of the fiber cable on the connector end as
shown below must not be bent.
40 mm min.
•
When mounting the Switch to a panel, be sure to use the toothed
lock washer attached as an accessory (to M5, M8, and M16 types
only). Use the washer on the panel surface opposite the object to
be detected by the Switch.
Nut
Object
to be
detected
Panel
Toothed lock washer
R20 mm min.
Connection of Contact Output
Load
12 VDC
10 mA
D5A
•
Do not impose compressing loads on the fiber cable.
Fiber cable
Nylon clip
Load
24 VAC
10 mA
D5A
Consideration of polarity is not required.
•
The fiber cable can be cut with OMRON’s E39-F4 Cutting Tool.
•
Do not impose any force exceeding 29.42 N on the cable, otherwise
the cord may break. Make sure that the bending radius of the cable
is at least 20 mm.
Connection of Solid-state Output
•
Be sure to connect the load to the power source in series.
•
The operating state of the Switch can be checked by the LED
operation indicator (lights when the Switch is in operation)
incorporated in the solid-state output circuit.
•
The output residual voltage is approximately 3 V. Therefore,
exercise care when selecting the load and setting the supply
voltage. The residual voltage, however, can be easily calculated
because it is almost constant and is free from the influence of
fluctuation in the load current.
100 mA max.
Brown (White)
5 to 24 VDC
Mounting
•
The screw sections of cases for M5, M8, and M16 types have
special dimensions. Do not use the mounting dimensions specified
for standard types.
•
For the mounting dimensions, refer to the following figures and
tables.
Type
M5
Size
A (Mounting hole)
B (Panel thickness)
5.2±0.1
mm dia.
3 to 10 mm
M8
Contact
output
Solid-state
output
M16
16.2±0.1
mm dia.
10 to 17 mm
26 mm dia.
D5A
Blue (Black)
8.2±0.1 mm dia.
5 to 8
mm
5 to 13
mm
C
10 mm dia.
(Toothed lock washer)
15 mm dia.
Type
Size
A Mounting pitch
B
Tapping
Mounting hole
2.8
Slim
12±0.2 mm
M2.6
±0.2
0
mm
Limit
20±0.2 mm
M4
dia.
4.2
±0.2
0
mm
Note: The lead wire colors of the D5A have been changed in compliance with
the latest applicable JIS standards.
Colors in parentheses are previous ones.
[Example]
(1) In the above circuit, suppose the MY relay rated at 12 VDC is used as the
load. Since the must operate voltage of the relay is 80% or less than the
rated voltage, it is 12
×
0.8 = 9.6 V. The supply voltage, in turn, is 3 + 9.6 =
12.6 V.
Therefore, the relay may not operate with a 12 V power source.
(2) However, if the relay rated at 24 VDC is employed, the must operate voltage
and supply voltage of the relay are respectively 19.2 V and 22.2 V. The relay
therefore can operate with a 24 V power source.
dia.
•
Do not tighten the nut with too much force. Be sure to apply the
torque shown in this table.
Type
M5
M8
M16
Slim
Limit
Appropriate tightening torque
0.98 N·m max.
2.94 N·m max.
9.81 N·m max.
0.29 N·m max. (M2.6 screw)
1.47 N·m max. (M4 screw)
•
When a solid-state circuit is turned OFF, leakage current of 0.15
mA (max.) flows, causing some voltages to remain in the load. For
this reason, be sure to check the must release voltage of the load
before using it.
5
京公网安备 11010802033920号
EEWORLD
