Z/X/DZ Common Accessories
Common to Z, X, and DZ Models
Actuators (Sold Separately)
CSM_Z_X_DZ_OP_E_1_2
A Switch can be actuated by a cam or an appropriate object, in which case, use one of the following Actuators according to the application.
Ordering Information
Actuator
Hinge lever
Hinge roller lever
Short
Panel mount plunger
Medium
Long
Panel mount roller plunger
Application
Common to Z and X models
XAA-1
ZAA-2
ZAQ-3
ZAQ-2
ZAQ-1
ZAQ-22

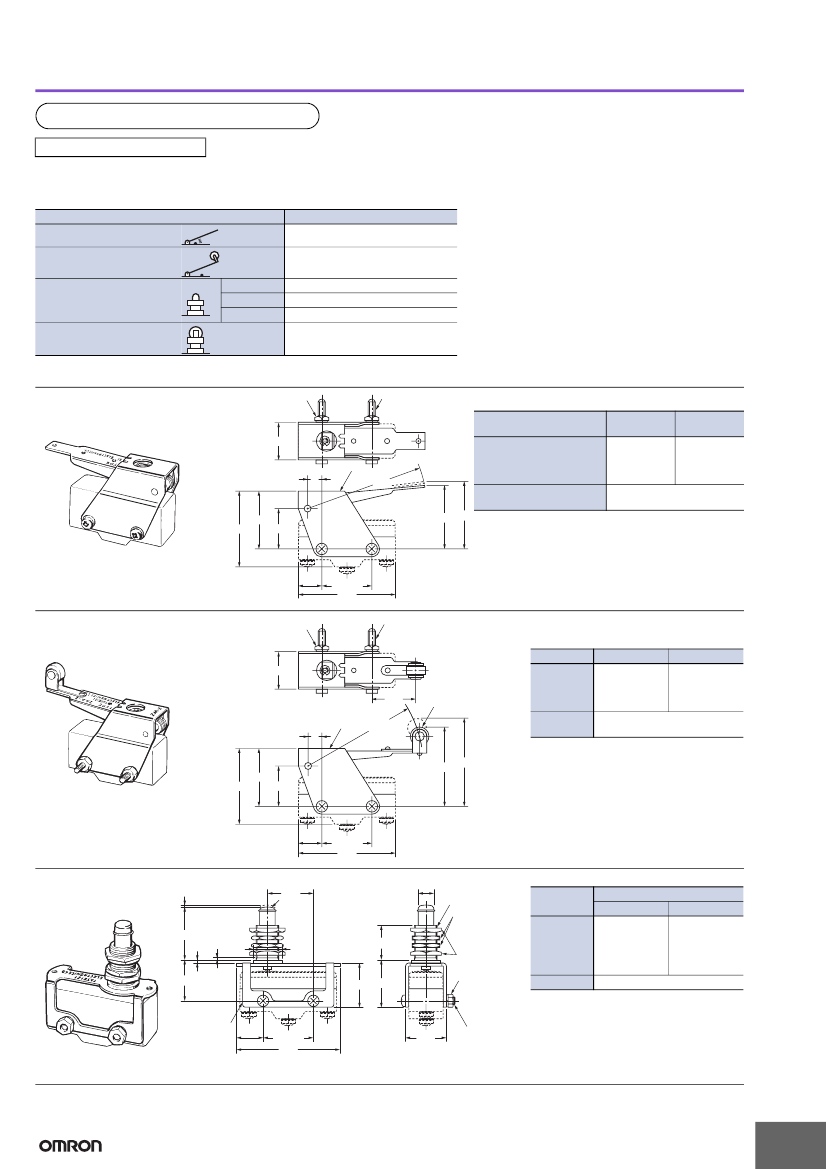

Dimensions (Unit: mm) and Operating Characteristics
Hinge Lever
XAA-1
19.1
A-
1
XAA
-1
Note: These Actuators are not provided with Switches.
Two, M4
Two, M4 30
Model
Operating characteristics
Operating force OF max.
Release force
RF min.
Overtravel
OT min.
Movement Differential MD max.
Free Position
FP max.
Operating Position OP
OP
FP
Z-15G-B
4.90 N
1.67 N
12.7 mm
2.2 mm
X-10G-B
4.90 N
1.67 N
12.7 mm
3.3 mm
*
7
60R
XA
32.9±1.6 mm
28.9±1.6 mm
29.4
38.5
20.5
Note: This Actuator can be used with the Z-15G(-B) and X-
10G(-B). When mounting the Switch, set the overtravel to
between 32% and 100%, taking into consideration the
operating body and the distance between the Actuator
and the dog.
* Stainless steel
11.9
25.4±0.1
49.2
Two, M4 30
Hinge Roller Lever
ZAA-2
Two, M4
Z-15G-B
19.1
X-10G-B
4.90 N
1.67 N
12.7 mm
3.3 mm
22.2
*2
7
.5R
9.5 dia.
×
4.8 *1
OF max.
RF min.
OT min.
MD max.
FP max.
OP
4.90 N
1.67 N
12.7 mm
2.2 mm
58
44.5±1.6 mm
40.4±1.6 mm
OP
29.4
38.5
20.5
FP
Note: This Actuator can be used with the Z-15G(-
B) and ZX-10G(-B). When mounting the
Switch, set the overtravel to between 32%
and 100%, taking into consideration the
operating body and the distance between
the Actuator and the dog.
11.9
25.4±0.1
49.2
*1. Stainless steel roller
*2. Stainless steel
Short Panel Mount Plunger
ZAQ-3
PT
OP
1.6
*3
7.9 dia.
23.3
12SR
*1
M12
×
1 mounting
screw
2 t
×
14 width
across flats
17.5
2 t
×
15.6 width
across flats
22.6 24.2
Two, M4 nuts
ZAQ-3
Z-15E-B
OF max.
RF min.
PT max.
OT min.
MD max.
OP
8.34 N
1.12 N
0.8 mm
4.8 mm
0.15 mm
X-10G-B
5.39 N
1.12 N
1 mm
4.5 mm
0.2 mm
14.5
dia.
20.7
27.8±1.5 mm
*3
*2
13.5
25.4±0.1
52.4
20.7
*1. Stainless-steel pin plunger
*2. Bronze frame
*3. Incomplete screw section part with a maximum of 1.5 mm
Note: 1. This Actuator (pin plunger) can be used
with Standard Pin Plungers (Z-15G(-B),
Z-15E(-B), X-10G(-B), DZ-10G-1A(-1B))
for the Z, X, and DZ models.
Two, M4
×
25 screws
Note: Each dimension has a tolerance of
±0.4
mm unless otherwise specified.
1

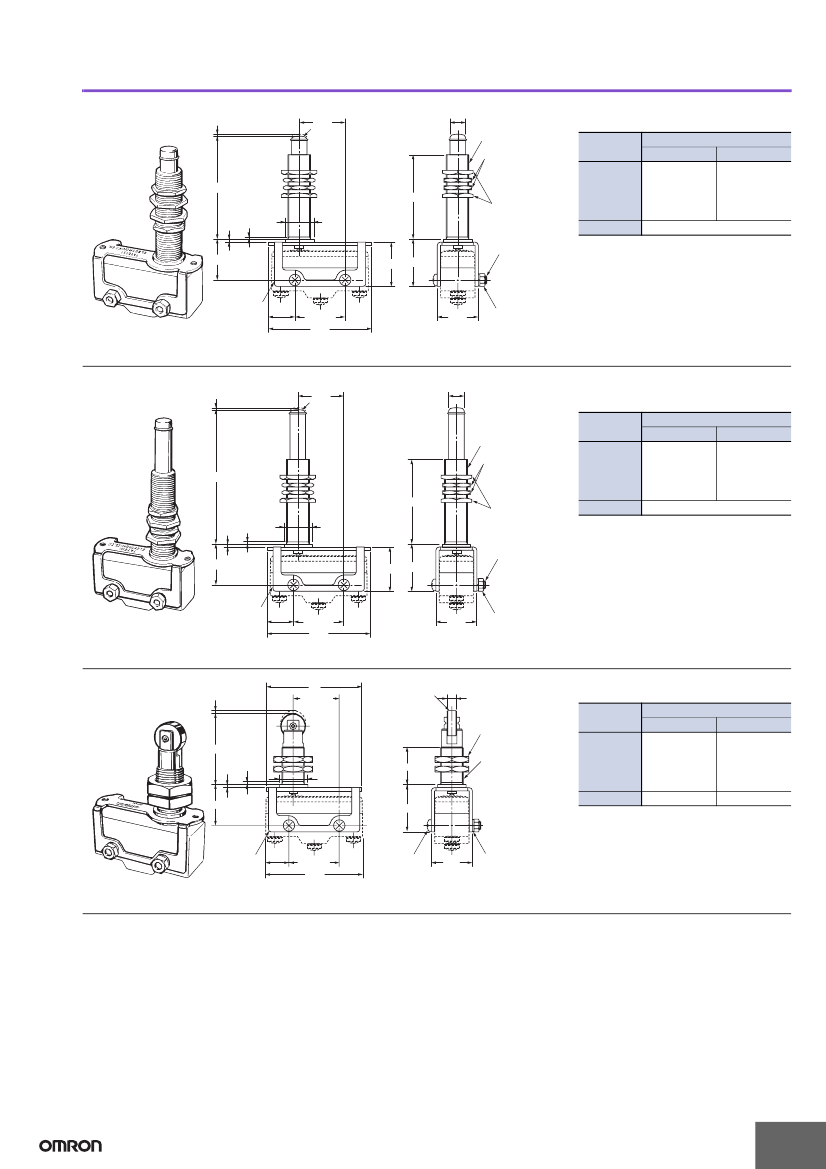

Medium Panel Mount Plunger
PT
ZAQ-2
7.9 dia.
23.3
12SR
*1
M12
×
1 mounting screw
2 t
×
14 width across
flats
ZAQ-2
Z-15E-B
OF max.
RF min.
PT max.
OT min.
MD max.
OP
8.34 N
1.12 N
0.8 mm
4.8 mm
0.15 mm
X-10G-B
5.39 N
1.12 N
1 mm
4.5 mm
0.2 mm
OP
42.8
*3
14.5
dia.
2 t
×
15.6 width
across flats
1.6
53.2±1.5 mm
Two, M4
×
25 screws
20.7
22.6 24.2
Note: This Actuator (pin plunger) can be used with
Standard Pin Plungers (Z-15G(-B), Z-15E(-
B), X-10G(-B), DZ-10G-1A(-1B)) for the Z,
X, and DZ models.
*2
13.5
25.4±0.1
52.4
Two, M4 nuts
20.7
*1. Stainless-steel pin plunger
*2. Copper alloy frame
*3. Incomplete screw section part with a maximum of 1.5 mm
Long Panel Mount Plunger
PT
ZAQ-1
7.9 dia.
23.3
12SR
*1
M12
×
1 mounting screw
2 t
×
14 width across
flats
ZAQ-1
Z-15E-B
OF max.
RF min.
PT max.
OT min.
MD max.
OP
8.34 N
1.12 N
0.8 mm
20.6 mm
0.15 mm
X-10G-B
5.39 N
1.12 N
1 mm
20.4 mm
0.2 mm
OP
42.8
*3
14.5
dia.
2 t
×
15.6 width
across flats
69.1±1.5 mm
1.6
20.7
Note: This Actuator (pin plunger) can be used with
Standard Pin Plungers (Z-15G(-B), Z-15E(-
B), X-10G(-B), DZ-10G-1A(-1B)) for the Z,
Two, M4
×
25 screws
X, and DZ models.
22.6 24.2
*2
13.5
25.4±0.1
52.4
Two, M4 nuts
20.7
*1. Stainless-steel pin plunger
*2. Copper alloy frame
*3. Incomplete screw section part with a maximum of 1.5 mm
Panel Mount Roller Plunger
PT
ZAQ-22
48
23.3±0.25
12.7 dia. *1
4.8
Two hex nuts 5-mm
thickness, 19 mm
between opposing edges
With groove for roller
penetration
ZAQ-22
Z-15E-B
OF max.
RF min.
PT max.
OT min.
MD max.
OP
8.34 N
1.12 N
2 mm
3.58 mm
0.15 mm
37± 0.8 mm
DZ-10G-1B
11.1 N
1.12 N
2 mm
1 mm
0.46 mm
35.4±1.2 mm
OP
1.6
*3
14.5
dia.
18.9
M12
×
1 mounting
screw
20.7
23.9
Note: This Actuator (roller plunger) can be used with
standard pin plungers (Z-15G(-B), Z-15E(-B),
and DZ-10G-1A(-1B)). It cannot be used with
X models.
20.7
Spring washer
*2
11.9
25.4±0.2
49.2
Two, M4
×
25
screws
*1. Stainless-steel pin plunger
*2. Steel frame
*3. Incomplete screw section part with a maximum of 1.5 mm
Note: Each dimension has a tolerance of
±0.4
mm unless otherwise specified.
2
