G3MB-202P-4 DC12: Descriptionsolid state relay phototriac 2 amp 12 vdc 5.08mm pitch; CategoryLED optoelectronic/LED; File Size188KB，4 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

G3MB-202P-4 DC12 Overview

solid state relay phototriac 2 amp 12 vdc 5.08mm pitch

G3MB-202P-4 DC12 Parametric

Parameter Name	Attribute value
Maker	All Sensors
Product Category	solid state relay
RoHS	yes
Control voltage range	12 VDC
Load current rating	2 A
Contact form	1 Form A
Relay type	Thin Profile PCB
Termination type	Solder Tail

Preview

Download Datasheet

View All

NO:

DATE:

RL-130

June 2010

PRODUCT: G3MB Solid State Relays

TYPE:

Discontinuation Notice

Omron G3MB PCB Solid State Relays will be Discontinued

March 30, 2011; Replace with G3MC Models

In order to reduce and consolidate the PCB mount SSR products, the G3MB-102PL and G3MB-

202P(L) models will be discontinued on or before March 30, 2011.

Last Order Date: March 25, 2011 (December 30, 2010 for order lines > 1,000 pcs.)

Product

Discontinuation

G3MB Series Relays

Recommended

Replacement

G3MC Series Relays

Caution on recommended replacement

•

The G3MB “4” Models are not footprint compatible with G3MC Models. However, only Terminal

1 for G3MB “4” Models differs.

Order G3MC-VD for replacement relays stamped with UL, CSA, and VDE Approvals.

Recommend last time buy date is March 25, 2011 (December 30

, 2010 for 1K pcs. or more).

Difference from discontinued product

Model

G3MB-102PL

G3MB-202P

G3MB-202P-4

G3MB-202PL

G3MB-202PEG-4

G3MB-202PLEG-4

Body

Color

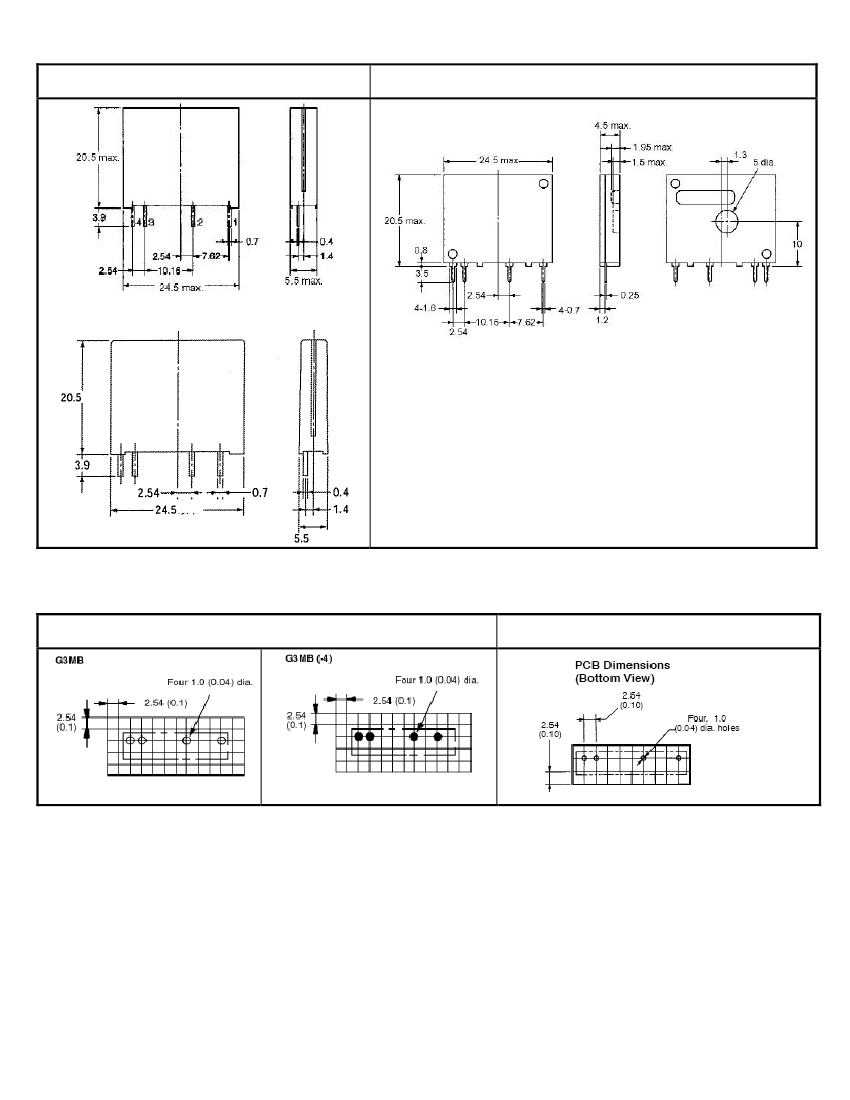

Dimensions

Footprint

Terminal

Width

Without

Input

Resistor

Safety

Approvals

Output

Ratings

: Fully compatible

: The change is a little

／

Almost compatible

: Not compatible

G3MB-202P-4 DC12 Related Products

	G3MB-202P-4 DC12	G3MB-202PL-4 DC24	G3MB-202PLEG-4 DC20MA	G3MB-202P-4 DC24
Description	solid state relay phototriac 2 amp 12 vdc 5.08mm pitch	solid state relay solid state relay	solid state relay solid state relay	solid state relay solid state relay
Maker	All Sensors	All Sensors	All Sensors	All Sensors
Product Category	solid state relay	solid state relay	solid state relay	solid state relay
RoHS	yes	yes	yes	yes
Load current rating	2 A	2 A	2 A	2 A
Contact form	1 Form A	1 Form A	1 Form A	1 Form A
Relay type	Thin Profile PCB	Thin Profile PCB	Thin Profile PCB	Thin Profile PCB
Termination type	Solder Tail	Solder Tail	Solder Tail	Solder Tail
Control voltage range	12 VDC	24 VDC	-	24 VDC
