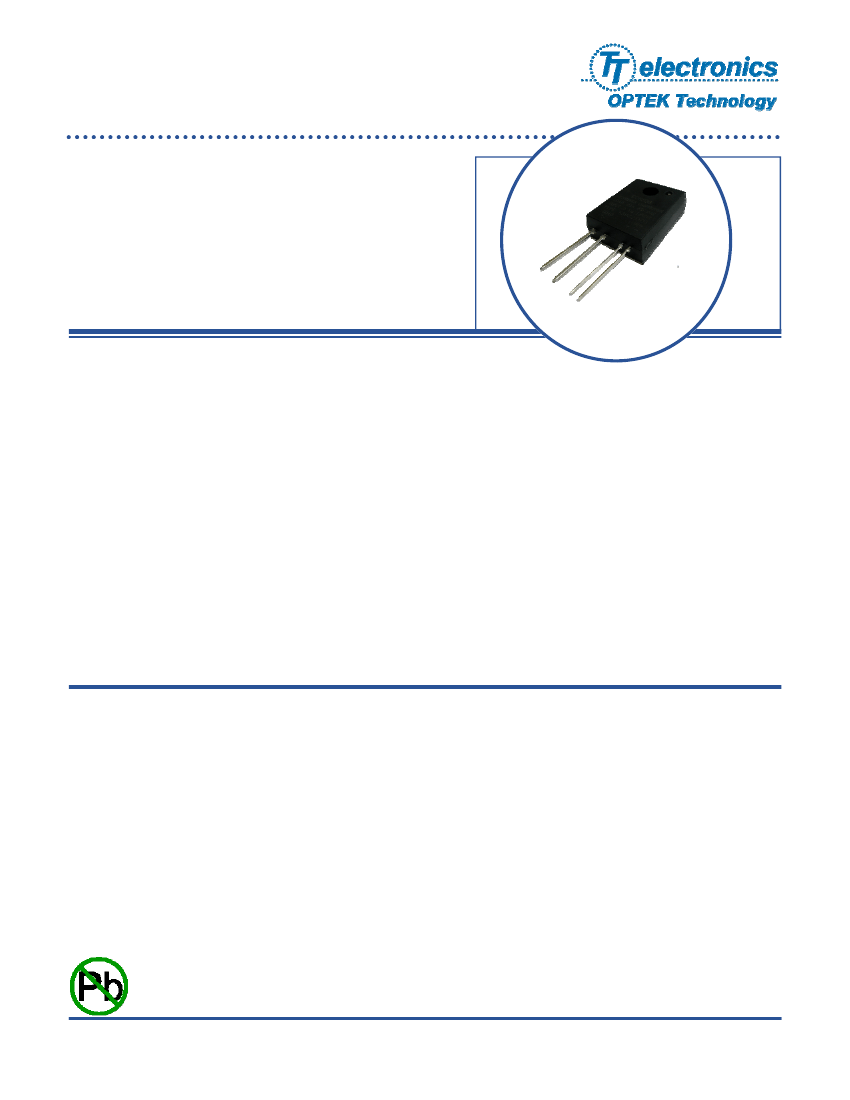

Solid State Relays
4-Pin SIP Package—VDC Input / VAC Output
OSSRD1001A thru OSSRD1006A
Features:
•
•
•
•
•
•
•
•
Molded Epoxy package
Zero crossing circuit
High Input/output Optical Isolation 4k Vrms
Small size and light weight
Can be installed directly on the P.C. board
Fast switching time
Non-contact switch
UL Cert. No: E321810(1001A,1002A,1003A only)
Approval Agency:
Description:
The OSSR Solid State Relay series are electronic controlled switches, they contain no moving parts.
When voltage is applied to the input, a Light Emitting Diode or LED illuminates a Photosensor which
controls the internal output circuit. The output circuit is utilized to drive high current loads. The input
and output are optically isolated. The OSSR series incorporates a zero crossing circuit which minimizes
current and noise surges due to resistive and inductive loads. Optek provides three different electrical
configurations of the OSSR series: DC input – AC output, AC input – AC output and DC input – DC
output. These configurations meet most industry applications.
The
OSSRD100XA
family comes in a standard 4-pin SIP, Single In-Line Package, for PCB mounting
applications. The package offers a light weight, compact and robust molded epoxy body with extended
operating temperature range of up to 100°C.
The input circuit features a DC range from 5 to 12 VDC. The output consists of a Triac circuit featuring
load current ratings from 3 to 40 Amps and a maximum load voltage of 250VAC with normally open
output.
Applications:
•
•
•
•
•
•
•
•
•
•
Temperature controlled systems
Office equipment
Motor controls
Industrial Equipment
Light controls systems
Heater control
Appliances
HVAC temperature control
Plastic molding
Packaging industry
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747
FAX: (972) 323-2396 sensors@optekinc.com www.optekinc.com
Issue A.3 11/09
Page 1 of 15
Solid State Relays
4
-
Pin SIP Package—VDC Input / VAC Output
OSSRD1001A thru OSSRD1006A

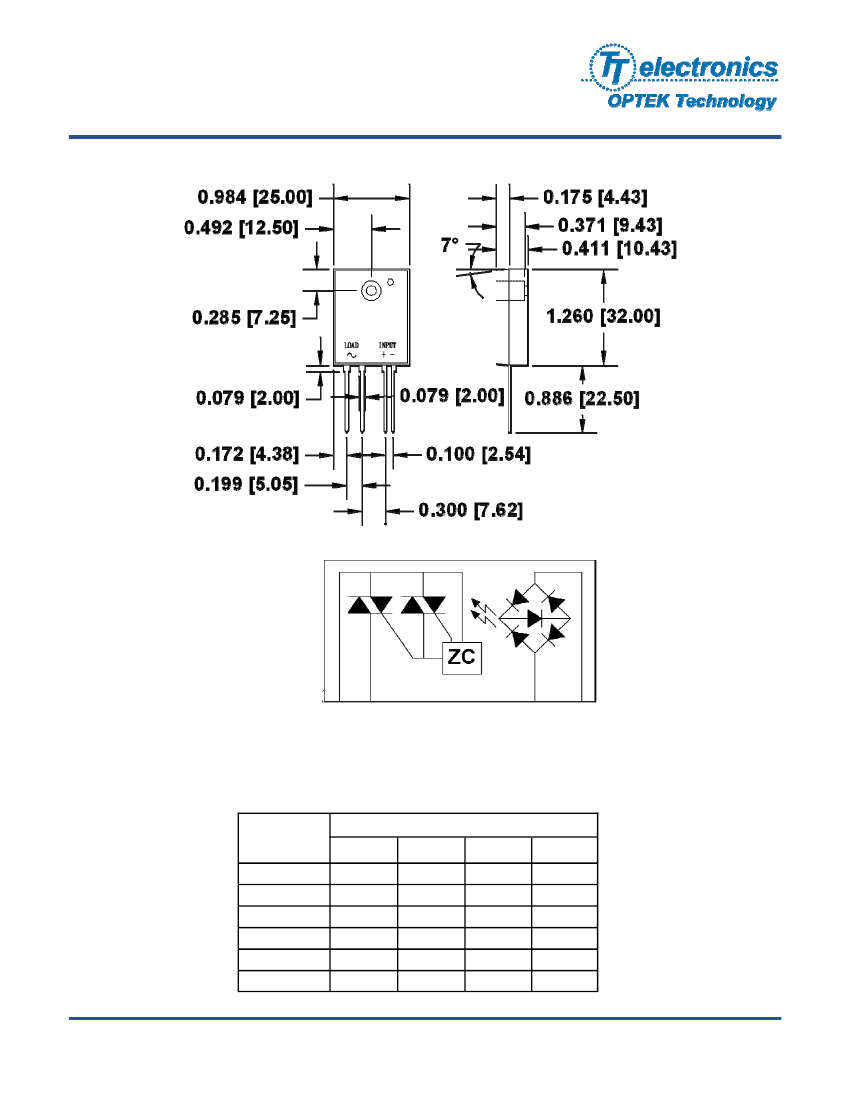

Package Outline:
4-Pin SIP
Tolerance:
0.2mm [millimeters]
Schematic:
Top View
All dimensions in Inches [millimeters]
ZC
+
LOAD
-
+
-
INPUT
OSSRD1001A— OSSRD1006A
Pin Configuration
Part Number
OSSRD1001A
OSSRD1002A
OSSRD1003A
OSSRD1004A
OSSRD1005A
OSSRD1006A
Pin #
1
A
A
A
A
A
A
2
K
K
K
K
K
K
3
A1 (+)
A1 (+)
A1 (+)
A1 (+)
A1 (+)
A1 (+)
4
A2 (-)
A2 (-)
A2 (-)
A2 (-)
A2 (-)
A2 (-)
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
Issue A.3
11/09
Page 2 of 15
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747
FAX: (972) 323-2396 sensors@optekinc.com www.optekinc.com
Solid State Relays
4-Pin SIP Package—VDC Input / VAC Output
OSSRD1001A thru OSSRD1006A
VDC Input / VAC Output Devices Ordering Information
Part Number
Input
Min. Tgr Max. Output Min. Ouput
Output
Max. Vout Min. Vout
Current Ift
Current
Current
Type
50mA
50mA
50mA
50mA
50mA
50mA
3A
5A
10A
15A
25A
40A
0.05A
0.05A
0.05A
0.05A
0.05A
0.05A
250VAC
250VAC
250VAC
250VAC
250VAC
250VAC
50VAC
50VAC
50VAC
50VAC
50VAC
50VAC
AC
AC
AC
AC
AC
AC
Br. Vol.
Input to
Output
Configuration
OSSRD1001A 5-12VDC
OSSRD1002A 5-12VDC
OSSRD1003A 5-12VDC
OSSRD1004A 5-12VDC
OSSRD1005A 5-12VDC
OSSRD1006A 5-12VDC
4000VAC BR —A1(+) A2(-)
4000VAC
BR—A1(+) A2(-)
4000VAC BR —A1(+) A2(-)
4000VAC BR —A1(+) A2(-)
4000VAC BR —A1(+) A2(-)
4000VAC BR —A1(+) A2(-)
Configuration
Information
LED
Sensor
Configuration: Definition of Terms
LED Identification—Sensor Identification
BR - Bridge Rectifier
A1(+) and A2(-) = Main Terminals of Double Triac

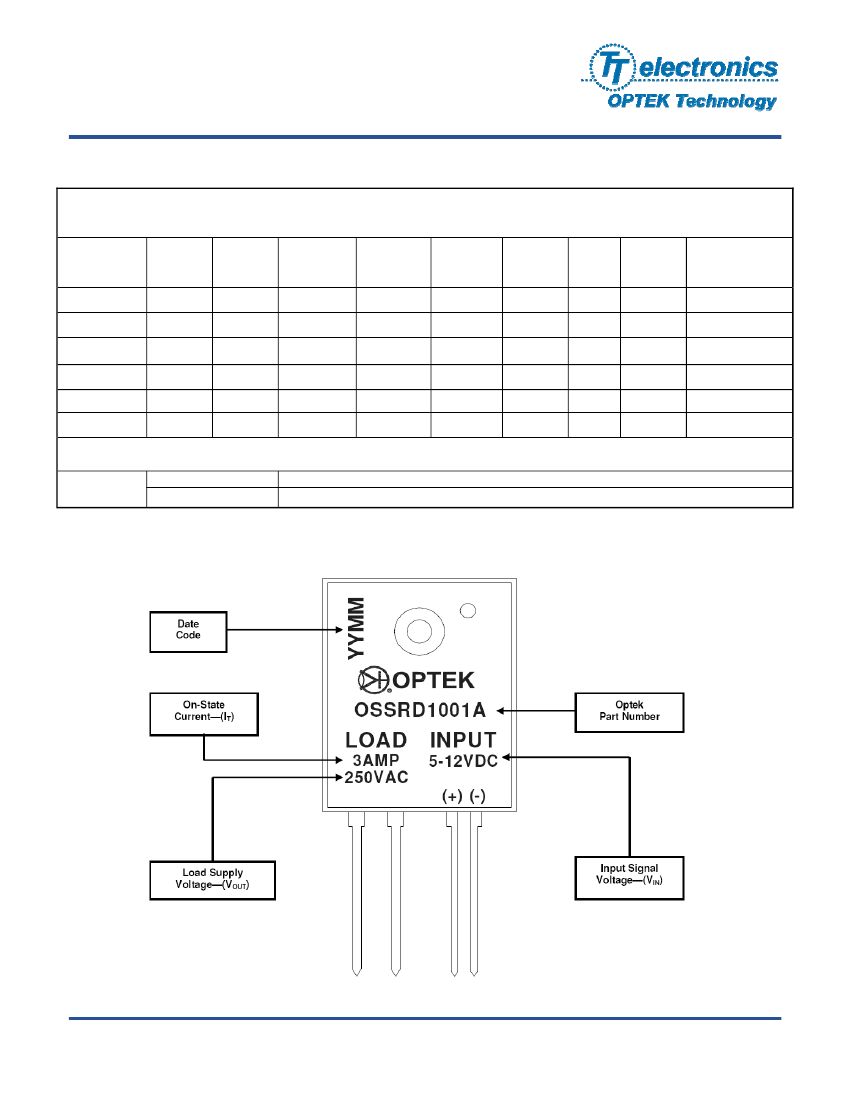

Part Number Symbolization
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747
FAX: (972) 323-2396 sensors@optekinc.com www.optekinc.com
Issue A.3 11/09
Page 3 of 15
Solid State Relays
4
-
Pin SIP Package—VDC Input / VAC Output
OSSRD1001A thru OSSRD1006A
Absolute Maximum Ratings
(
T
A
= 25
o
C unless otherwise noted)
Storage Temperature
OSSRD1001A thru OSSRD1006A
Operating Temperature
OSSRD1001A thru OSSRD1006A
Isolation Voltage (Input to Output)
OSSRD1001A thru OSSRD1006A
Soldering Temperature 10 sec.
OSSRD1001A thru OSSRD1006A
-30° C to +125° C
-30° C to +100° C
4,000 Vrms
260° C
Input Diode
Input Signal Voltage—(V
IN
)
OSSRD1001A thru OSSRD1006A
Drop-out Voltage—(Vdo)
OSSRD1001A thru OSSRD1006A
5– 12 VDC
1 VDC
Output Triac
RMS On-State Current - (I
T
)
OSSRA1001A
OSSRA1002A
OSSRA1003A
OSSRA1004A
OSSRA1005A
OSSRA1006A
Peak One Cycle Surge Current - (I surge)
OSSRA1001A
OSSRA1002A
OSSRA1003A
OSSRA1004A
OSSRA1005A
OSSRA1006A
Repetitive Peak-Off State Voltage—(V
DRM
)
OSSRD1001A thru OSSRD1006A
Operating Frequency—(f)
OSSRD1001A thru OSSRD1006A
Critical Rate of Rise of On-State Current—(di/dt)
OSSRD1001A thru OSSRD1006A
Load Supply Voltage—(V
OUT
)
OSSRD1001A thru OSSRD1006A
3 Arms
5 Arms
10 Arms
15 Arms
25 Arms
40 Arms
30 A
50 A
100 A
150 A
250 A
400 A
600 V
47—70 Hz
50 A/µS
250 Vrms AC
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
Issue A.3
11/09
Page 4 of 15
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747
FAX: (972) 323-2396 sensors@optekinc.com www.optekinc.com
Solid State Relays
4-Pin SIP Package—VDC Input / VAC Output
OSSRD1001A thru OSSRD1006A
Electrical Characteristics
SYMBOL
PARAMETER
MIN
TYP
MAX
UNITS
TEST CONDITIONS
Input Diode
V
PU
I
IN
Pick-up Voltage
OSSRD1001A thru OSSRD1006A
Input Current
OSSRD1001A thru OSSRD1006A
-
5
-
-
4
35
VDC
mA
I
T
= 1Arms
V
IN
= 5 - 12 V
Output Triac
V
T
I
OP
I
LEAK
dv/dt
-
V
OUT
On-State Voltage
OSSRD1001A thru OSSRD1006A
Operating Current
OSSRD1001A thru OSSRD1006A
Leakage Current
OSSRD1001A thru OSSRD1006A
Critical Rate of Rise of Off-State Voltage
OSSRD1001A thru OSSRD1006A
Zero-Cross Voltage
OSSRD1001A thru OSSRD1006A
Load Voltage Rating
OSSRD1001A thru OSSRD1006A
Minimum Trigger Current
OSSRD1001A, OSSRD1002A, OSSRD1003A
OSSRD1004A, OSSRD1005A, OSSRD1006A
Isolation resistance Input to Output
OSSRD1001A thru OSSRD1006A
Turn-on Time
OSSRD1001A thru OSSRD1006A
Turn-off Time
OSSRD1001A thru OSSRD1006A
Thermal Resistance (between junction and case)
-
50
-
50
-
50
-
-
-
200
Yes
-
1.5
-
7
-
-
280
Vrms
I
T
= 1Arms
mArms Vout = 240Vrms
mArms Vout = 240Vrms
V/µs
-
VAC
See Note 1.
-
I
T
= 50mArms MIN
I
FT
-
-
10^1
0
-
-
-
-
-
-
-
-
1.3
10
25
-
8.3
8.3
-
mA
Ω
mS
mS
°C/W
V
DRM
= 600 V
V
DRM
= 600 V
DC500 V
60Hz AC
60Hz AC
−
Riso
T
ON
T
OFF
Rth (j-C) l
Note1:
Output (dv/dt) protection is provided in all models, and they are designed to switch resistive or inductive loads to 0.2 factor. The dv/dt rating is based on
source impedance of 50 ohms.
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747
FAX: (972) 323-2396 sensors@optekinc.com www.optekinc.com
Issue A.3 11/09
Page 5 of 15
