DN2530N3-P013 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> DN2530N3-P013

DN2530N3-P013: Descriptionmosfet small signal 300v 12ohm; Categorysemiconductor Discrete semiconductor; File Size501KB，6 Pages; ManufacturerSupertex

Download Datasheet Parametric Compare View All

DN2530N3-P013 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DN2530N3-P013	-	-	View	Buy Now

DN2530N3-P013 Overview

mosfet small signal 300v 12ohm

DN2530N3-P013 Parametric

Parameter Name	Attribute value
Maker	Supertex
Product Category	MOSFET small signal
RoHS	no
Configuration	Single
Transistor polarity	N-Channel
Resistor drain/source RDS (on)	12 Ohms
Drain/source breakdown voltage	300 V
Gate/source breakdown voltage	+/- 20 V
Drain continuous current	175 mA
Power dissipation	0.74 W
Maximum operating temperature	+ 150 C
Installation style	Through Hole
Package/box	TO-92
Minimum operating temperature	- 55 C

Preview

Download Datasheet

View All

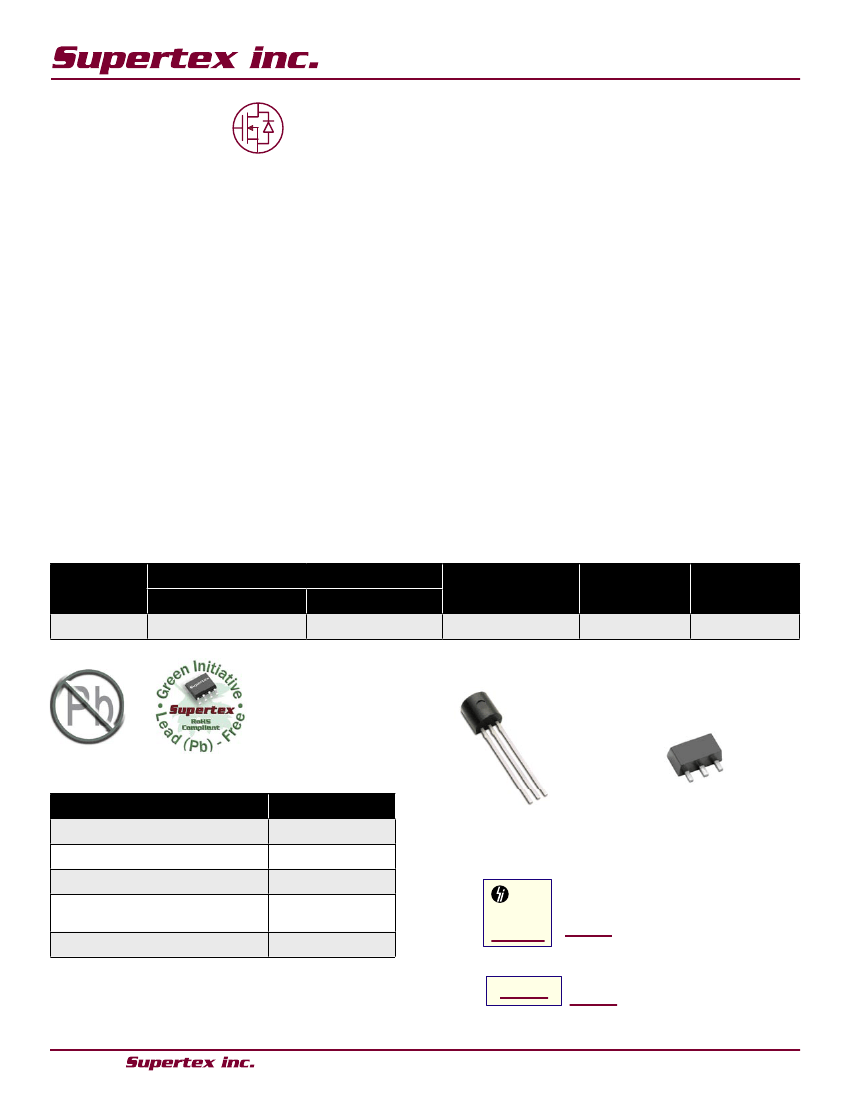

DN2530

N-Channel Depletion-Mode

Vertical DMOS FETs

Features

►

High input impedance

Low input capacitance

Fast switching speeds

Low on-resistance

Free from secondary breakdown

Low input and output leakage

General Description

The DN2530 is a low threshold depletion-mode (normally-on)

transistor utilizing an advanced vertical DMOS structure and

Supertex’s well-proven silicon-gate manufacturing process.

This combination produces a device with the power handling

capabilities of bipolar transistors and with the high input

impedance and positive temperature coefﬁcient inherent

in MOS devices. Characteristic of all MOS structures, this

device is free from thermal runaway and thermally-induced

secondary breakdown.

Supertex’s vertical DMOS FETs are ideally suited to a

wide range of switching and amplifying applications where

high breakdown voltage, high input impedance, low input

capacitance, and fast switching speeds are desired.

Applications

►

Normally-on switches

Solid state relays

Converters

Linear ampliﬁers

Constant current sources

Power supply circuits

Telecom

Ordering Information

Device

DN2530

Package Options

TO-243AA (SOT-89)

DN2530N8-G

TO-92

DN2530N3-G

DSX

/BV

DGX

(V)

DS(ON)

(max)

(Ω)

DSS

(min)

(mA)

300

200

-G indicates package is RoHS compliant (‘Green’)

Pin Conﬁgurations

DRAIN

SOURCE

DRAIN

SOURCE

Absolute Maximum Ratings

Parameter

Drain-to-source voltage

Drain-to-gate voltage

Gate-to-source voltage

Operating and storage

temperature

Soldering temperature*

DRAIN

Value

DSX

DGX

±20V

-55 C to +150 C

TO-92 (N3)

GATE

TO-243AA (SOT-89) (N8)

Product Marking

2 5 3 0

YYWW

300

YY = Year Sealed

WW = Week Sealed

= “Green” Packaging

TO-92 (N3)

Absolute Maximum Ratings are those values beyond which damage to the device

may occur. Functional operation under these conditions is not implied. Continuous

operation of the device at the absolute rating level may affect device reliability. All

voltages are referenced to device ground.

* Distance of 1.6mm from case for 10 seconds.

DN5TW

W = Code for week sealed

= “Green” Packaging

TO-243AA (SOT-89) (N8)

●

1235 Bordeaux Drive, Sunnyvale, CA 94089

●

Tel: 408-222-8888

●

www.supertex.com

DN2530N3-P013 Related Products

	DN2530N3-P013	DN2530N3-P003	DN2530N3-P014-G	DN2530N3-P013-G	DN2530N3-P014	DN2530N8	DN2530N3-P002	DN2530N3
Description	mosfet small signal 300v 12ohm	mosfet small signal 300v 12ohm	mosfet small signal 300v 12ohm	mosfet small signal 300v 12ohm	mosfet small signal 300v 12ohm	mosfet small signal 300v 12ohm	mosfet small signal 300v 12ohm	mosfet small signal 300v 12ohm
Configuration	Single	Single	Single	Single	Single	SINGLE WITH BUILT-IN DIODE	Single	SINGLE WITH BUILT-IN DIODE
Maximum operating temperature	+ 150 C	+ 150 C	+ 150 C	+ 150 C	+ 150 C	150 °C	+ 150 C	150 °C
Maker	Supertex	Supertex	Supertex	Supertex	Supertex	-	Supertex	-
Product Category	MOSFET small signal	MOSFET small signal	MOSFET small signal	MOSFET small signal	MOSFET small signal	-	MOSFET small signal	-
RoHS	no	no	yes	yes	no	-	no	-
Transistor polarity	N-Channel	N-Channel	N-Channel	N-Channel	N-Channel	-	N-Channel	-
Resistor drain/source RDS (on)	12 Ohms	12 Ohms	12 Ohms	12 Ohms	12 Ohms	-	12 Ohms	-
Drain/source breakdown voltage	300 V	300 V	300 V	300 V	300 V	-	300 V	-
Gate/source breakdown voltage	+/- 20 V	+/- 20 V	+/- 20 V	+/- 20 V	+/- 20 V	-	+/- 20 V	-
Drain continuous current	175 mA	175 mA	200 mA	200 mA	175 mA	-	175 mA	-
Power dissipation	0.74 W	0.74 W	0.74 W	0.74 W	0.74 W	-	0.74 W	-
Installation style	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	-	Through Hole	-
Package/box	TO-92	TO-92	TO-92	TO-92	TO-92	-	TO-92	-
Minimum operating temperature	- 55 C	- 55 C	- 55 C	- 55 C	- 55 C	-	- 55 C	-
