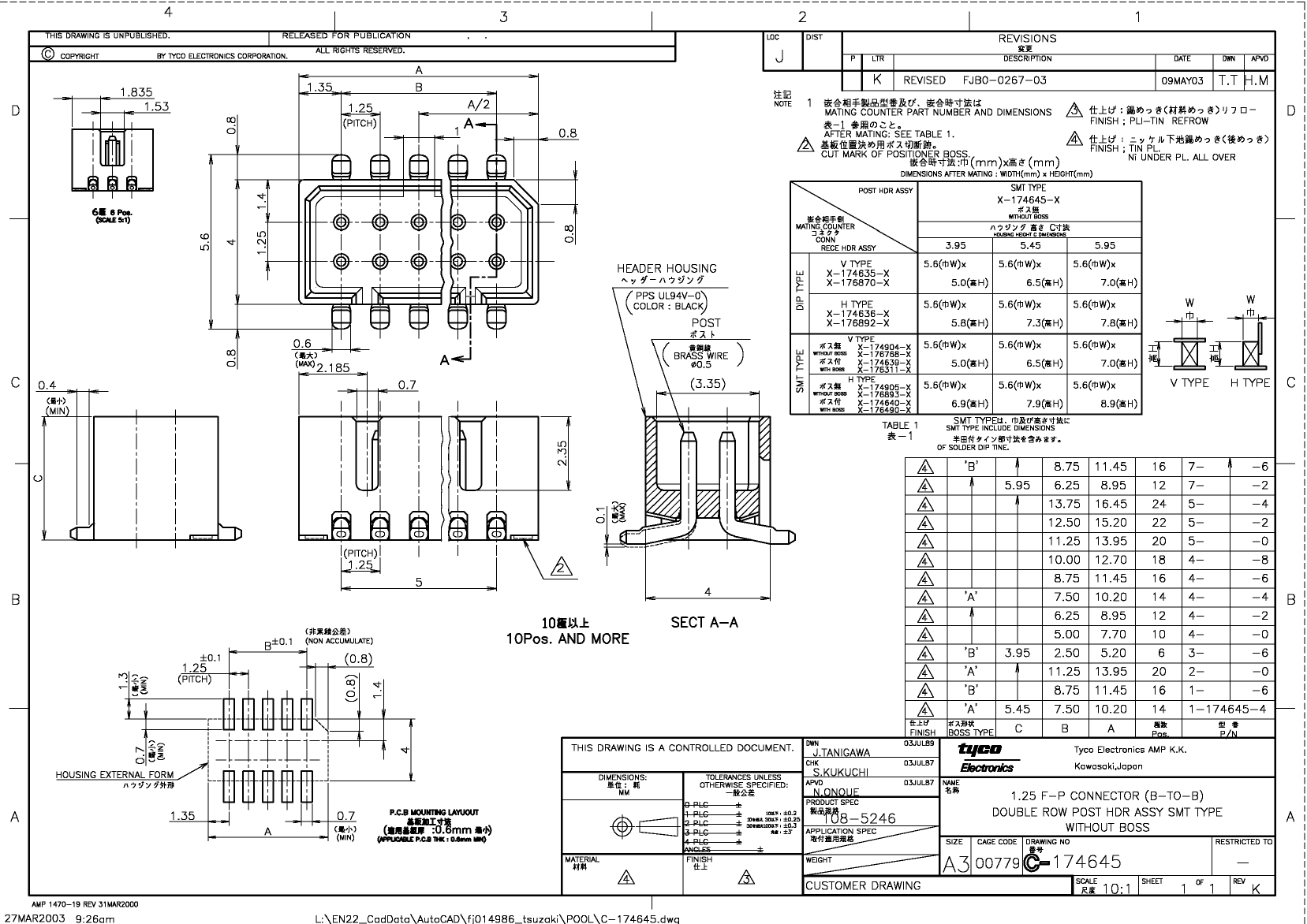

5-174645-0: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,20 CONTACTS,PIN,0.049 PITCH,BLACK; CategoryThe connector The connector; File Size57KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5-174645-0 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,20 CONTACTS,PIN,0.049 PITCH,BLACK

5-174645-0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Other features	LOOSE PIECE
body width	0.158 inch
subject depth	0.156 inch
body length	0.549 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN-PB
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VDC V
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	POLYPHENYLENE SULPHIDE
Manufacturer's serial number	174645
Plug contact pitch	0.049 inch
Match contact row spacing	0.049 inch
Installation method	STRAIGHT
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-30 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.0132 mm
polarization key	HOUSING SIDE
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.2446 mm
Total number of contacts	20
Base Number Matches	1

Preview

Download Datasheet

View All

5-174645-0 Related Products

	5-174645-0	4-174645-6	3-174645-6	5-174645-4	4-174645-8	4-174645-2	7-174645-6
Description	HEADER CONNECTOR,PCB MNT,RECEPT,20 CONTACTS,PIN,0.049 PITCH,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,16 CONTACTS,PIN,0.049 PITCH,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,6 CONTACTS,PIN,0.049 PITCH,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,24 CONTACTS,PIN,0.049 PITCH,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,18 CONTACTS,PIN,0.049 PITCH,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,12 CONTACTS,PIN,0.049 PITCH,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,16 CONTACTS,PIN,0.049 PITCH,BLACK
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compli	compli	compliant	compliant	compliant	unknown	compli
Other features	LOOSE PIECE	LOOSE PIECE	LOOSE PIECE	LOOSE PIECE	LOOSE PIECE	POLARIZED	LOOSE PIECE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN-PB	SN-PB	SN-PB	SN-PB	SN-PB	NOT SPECIFIED	SN-PB
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	NOT SPECIFIED	BRASS
Manufacturer's serial number	174645	174645	174645	174645	174645	174645	174645
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of rows loaded	2	2	2	2	2	2	2
Terminal pitch	1.2446 mm	1.2446 mm	1.2446 mm	1.2446 mm	1.2446 mm	1.25 mm	1.2446 mm
Total number of contacts	20	16	6	24	18	12	16
body width	0.158 inch	0.158 inch	0.158 inch	0.158 inch	0.158 inch	-	0.158 inch
subject depth	0.156 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch	-	0.234 inch
body length	0.549 inch	0.451 inch	0.205 inch	0.648 inch	0.5 inch	-	0.451 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	-	RECEPTACLE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
Contact resistance	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	-	10 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	-	SQ PIN-SKT
Dielectric withstand voltage	500VDC V	500VDC V	500VDC V	500VDC V	500VDC V	-	500VDC V
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	-	500000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	-	BLACK
insulator material	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	-	POLYPHENYLENE SULPHIDE
Plug contact pitch	0.049 inch	0.049 inch	0.049 inch	0.049 inch	0.049 inch	-	0.049 inch
Match contact row spacing	0.049 inch	0.049 inch	0.049 inch	0.049 inch	0.049 inch	-	0.049 inch
Number of connectors	ONE	ONE	ONE	ONE	ONE	-	ONE
PCB row number	2	2	2	2	2	-	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	-	105 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-	-30 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
PCB contact row spacing	4.0132 mm	4.0132 mm	4.0132 mm	4.0132 mm	4.0132 mm	-	4.0132 mm
polarization key	HOUSING SIDE	HOUSING SIDE	HOUSING SIDE	HOUSING SIDE	HOUSING SIDE	-	HOUSING SIDE
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	-	0.5 A
Guideline	UL	UL	UL	UL	UL	-	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL
Base Number Matches	1	1	1	1	1	1	-
